Hammock House

HAMMOCK HOUSE

Javier Corvalán + Laboratorio de Arquitectura

Hammock House
© Andrea Parisi

ARCHITECTS
Laboratorio de Arquitectura

STRUCTURES
Ing. Anibal Aguilar

PROJECT TEAM
Pedro Briend, Nicolas Berger

PHOTOGRAPHY
Andrea Parisi

SITE AREA
360 m2

AREA
80.0 m2

YEAR
2009

LOCATION
Asuncion, Paraguay

CATEGORY
Houses

Text description provided by architect.

We found no better name for this house, not only due to the formal outcome of the envelope, but because of the structural concept that stabilizes it.

Hammock House
© Andrea Parisi
Hammock House
© Andrea Parisi

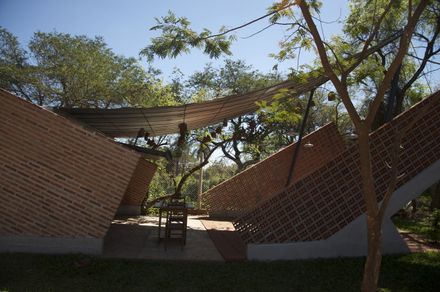

Two aligned end blocks counterbalance the roof, the formal result of copying the parabola of the corresponding catenary.

The mixed structure, comprised of wet and dry construction, consists of two recovered iron frames supporting a network of 10mm rods.

Hammock House
© Andrea Parisi
Hammock House
© Andrea Parisi

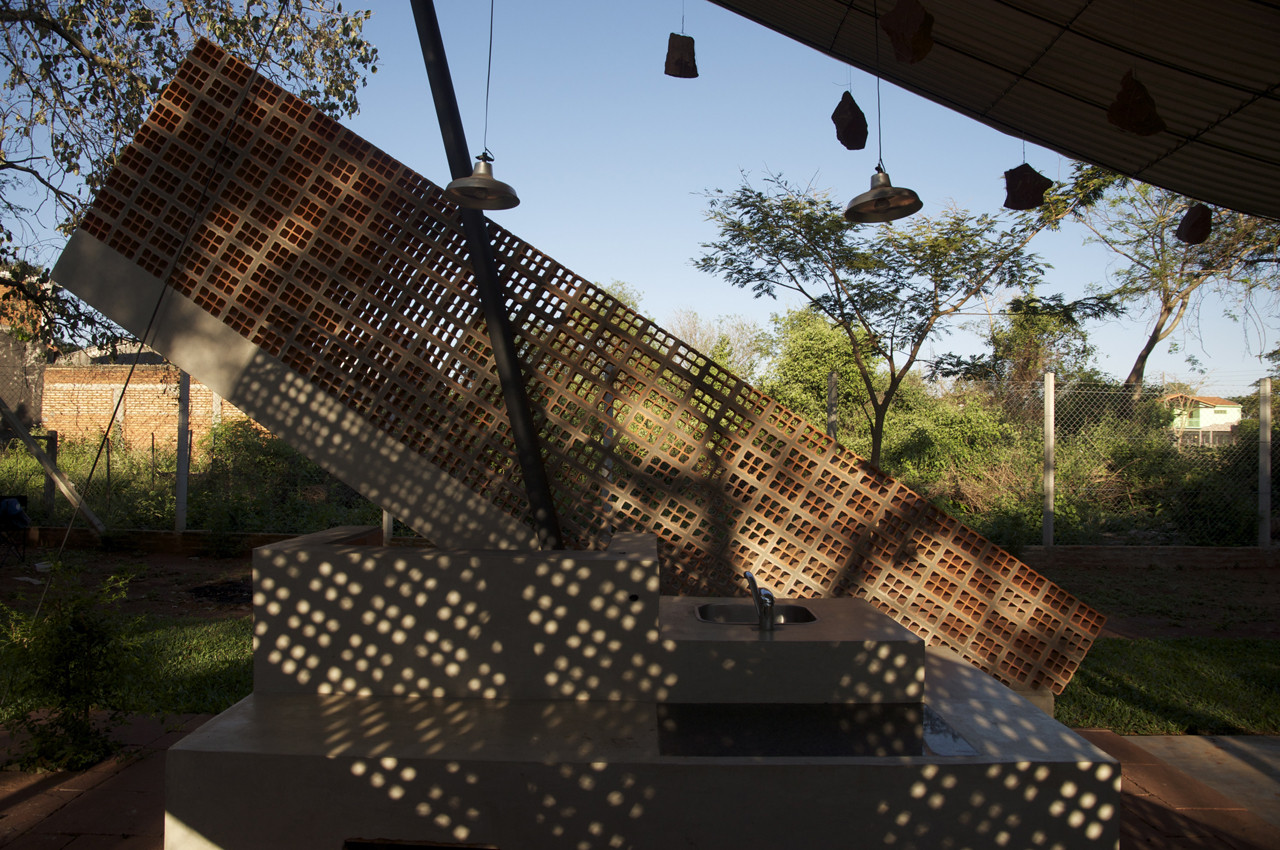

Which carry loads (tension), diverting and anchoring to the weights of the brick walls in the form of boxes that rest on concrete skis, some on the ground and partly on a cantilever bracket supported with the above mentioned tensors.

The final cladding is made of galvanized sheet metal attached to the network of rods and increased in weight by hanging stones.

Hammock House
© Andrea Parisi
Hammock House
© Andrea Parisi

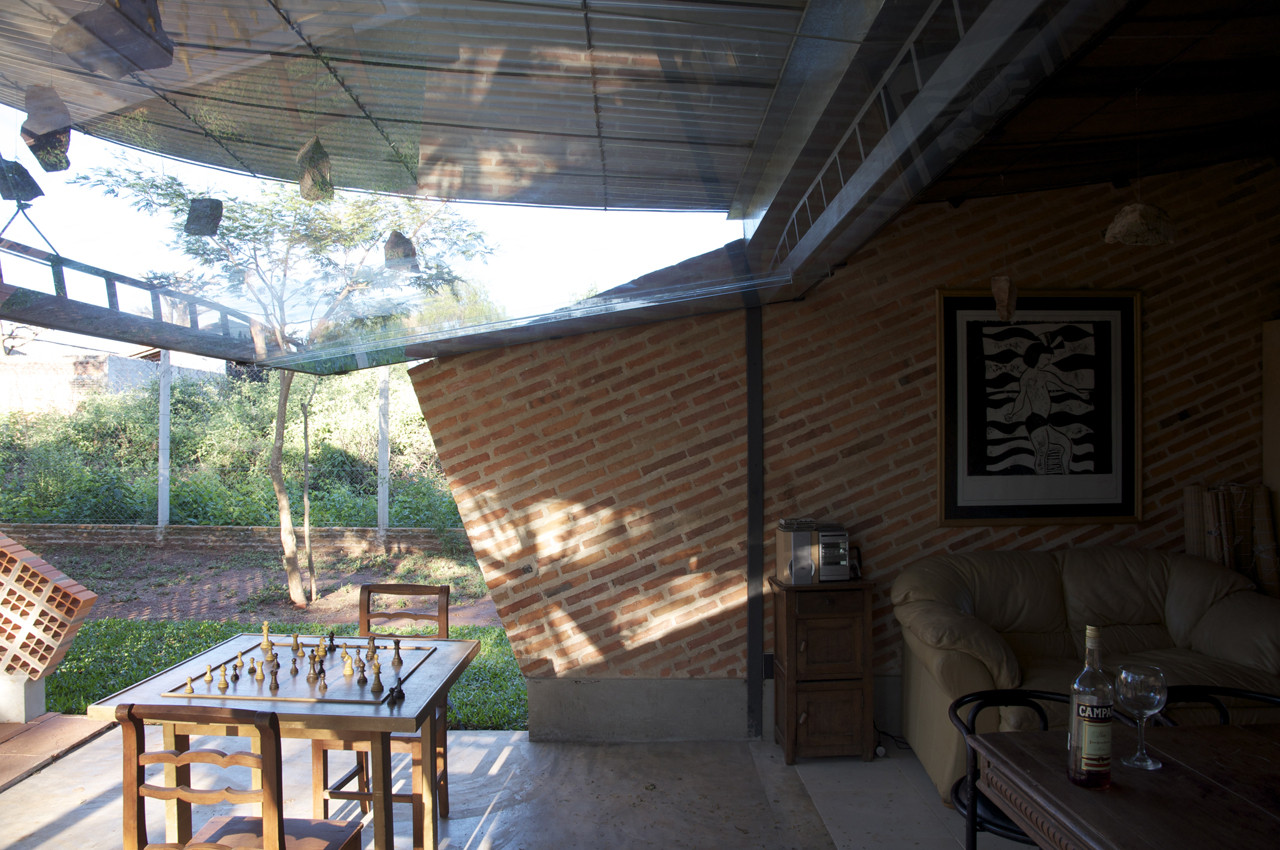

The program is solved in a first space of 70 m2 covered, with a closed service block articulating the large space.

The rest of the program is an intermediate space, a new kitchen and a barbecue.

Both areas are connected by a large swinging glass door that unifies the areas into a single space.

Hammock House
© Andrea Parisi
Hammock House
© Andrea Parisi

We hope this is a tribute to our cherished Paraguayan hammock. The construction was made possible with leftover materials from other projects, some used and some recovered.


Hammock House
© Andrea Parisi
Hammock House
© Andrea Parisi
Hammock House
© Andrea Parisi
Hammock House
© Andrea Parisi
Hammock House
© Andrea Parisi


Hammock House
Plan
Hammock House
Roof Plan


Hammock House
Sequence 1
Hammock House
Sequence 2
Hammock House
Sequence 3
Hammock House
Sequence 4
Hammock House
Sequence 5
Hammock House
Sequence 6


Hammock House
Section
Hammock House
Sketch
