SATTLER WINERY

Architects Collective

CLIENT
Erich Sattler Winery

CONTRACTOR
Gartner Schienerbau GmbH

PROJECT TEAM
Andreas Frauscher, Patrick Herold, Richard Klinger, Kurt Sattler

LOCATION
Tadten, Austria

AREA
300.0 sqm

PROJECT YEAR
2009

Text description provided by architect.

The Erich Sattler Winery is located in the village of Tadten, a typical village in the Austrian wine region of Burgenland along the border to Hungary. The property is 12 x 120 m with two existing buildings and a new construction in between.

Sattler Winery
© Architects Collective
Sattler Winery
© Architects Collective

Towards the centre of the village is an existing L-shaped residential building with a courtyard and public access for pedestrians. At the other end of the property in the direction of the vineyards is an existing manufacturing and storage facility with service entrance.

In the middle of the property is a new building that is limited by two fire walls and that is used on the ground floor as a barrel room, while the first floor houses a tasting room with kitchen, offices and guest rooms.

Sattler Winery
© Architects Collective
Sattler Winery
© Architects Collective

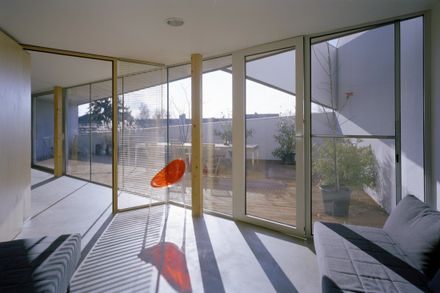

The interior of the first floor has an east and a west terrace with two long glass facades that allow for flowing inside/outside spaces.

The roof terrace above overlooks the village and offer a 360 ° view of the surrounding vineyards, the nearby lakes and the foothills of the Alps.

The ground floor plan of the new building consists of a rectangle and the first floor of a parallelogram, which is oriented east and west.

Sattler Winery
© Architects Collective
Sattler Winery
© Architects Collective

These two basic forms are connected by a series of spatial diagonals and merged into a flowing overall form, creating a number of diverse spaces, views and topographies which are relating to the sun, the patio, and the surrounding environment.

The remaining areas of the parallelogram leave the east and west terraces which are used for events and wine presentations. The interior space can be used as a single large space or individual rooms through a large sliding wall and four large doors.

Sattler Winery
© Architects Collective
Sattler Winery
© Architects Collective

In the middle of this space is a free standing pentagon-shaped construction with wooden panels that includes bath rooms and kitchen.

The building itself construction consists of concrete and masonry, and wood construction for ceilings and walls. All terraces have wooden floors and the façade of the building is painted dark grey outside and white inside.

Sattler Winery
© Architects Collective
Sattler Winery
© Architects Collective
Sattler Winery
© Architects Collective

The orientation of the glass facades, the integrated cantilevered canopies, the possibility to cross ventilation every room and the good insulation allow for a pleasant climate all year round.


Sattler Winery
Section
Sattler Winery
Section
Sattler Winery
Section

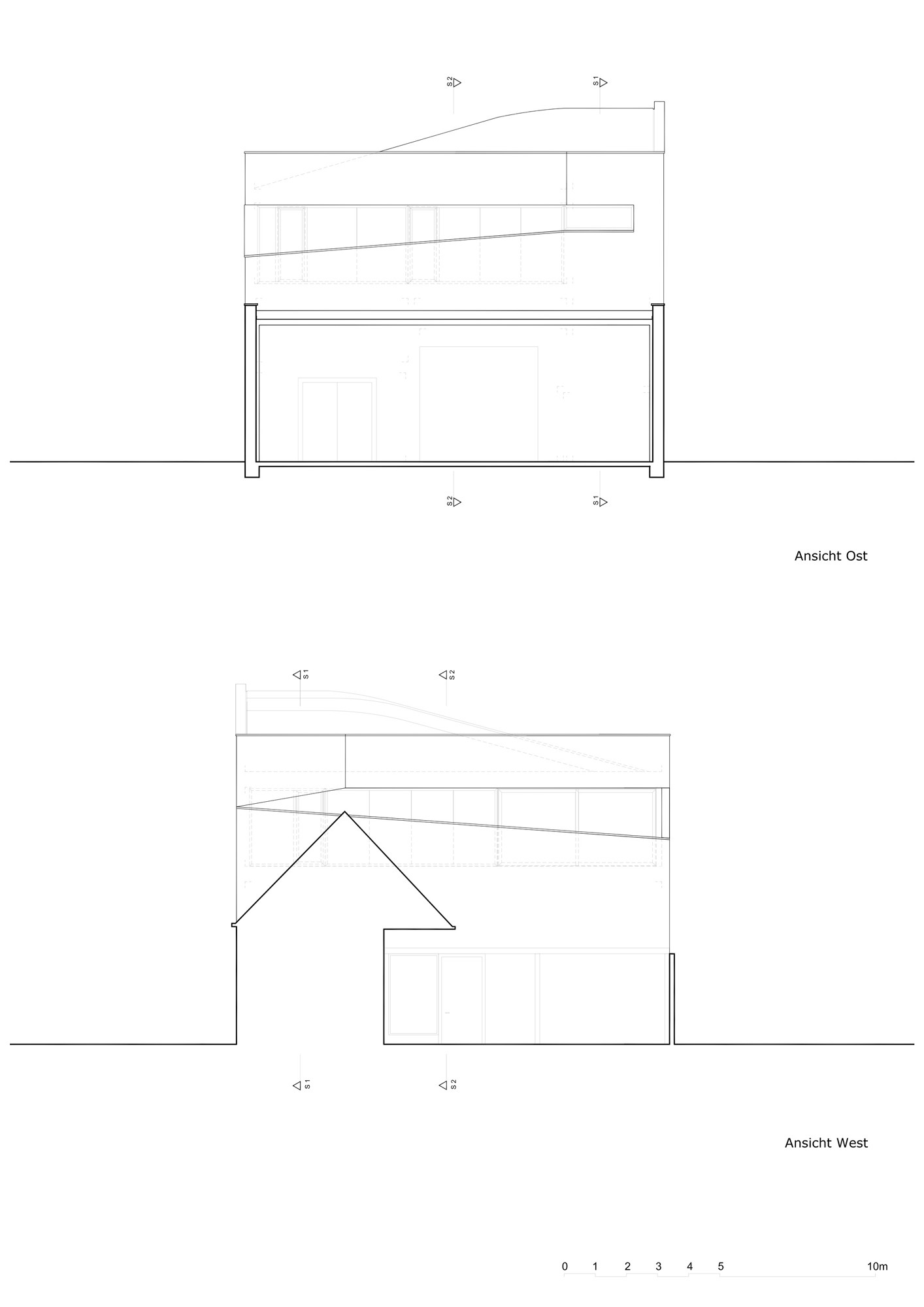

Sattler Winery
Elevation
Sattler Winery
Elevation


Sattler Winery
Plan
Sattler Winery
Site Plan
