Studio Tamassociati

Medical Housing Compound

MEDICAL HOUSING COMPOUND

Studio Tam associati

Medical Housing Compound
© Raul Pantaleo

ARCHITECTS
Studio Tam associati: Studio tamassociati – Raul Pantaleo, Massimo Lepore, Simone Sfriso, con Pietro Parrino y Gino Strada

PHOTOGRAPHS
Raul Pantaleo

PROJECT YEAR
2009

LOCATION
Khartoum, Sudan

CATEGORY
Hospitality Architecture, Medical Facilities

Medical Housing Compound
© Raul Pantaleo
Medical Housing Compound
© Raul Pantaleo
Medical Housing Compound
© Raul Pantaleo

Text description provided by architect.

Looking at the amount of discarded containers laying around the building site of the Salam Centre we had this simple idea: to use them again in order to realize the required international staff housing compound.

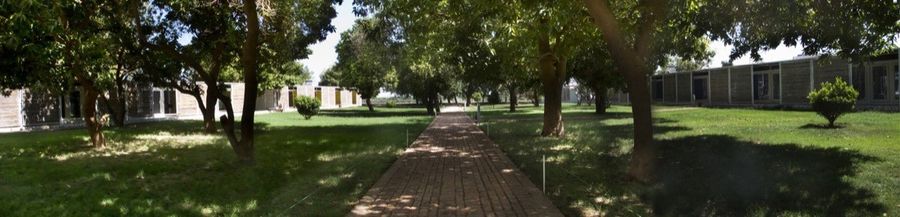

The Compound placed besides the Hospital, in the surroundings of the Nile river, is realized around a great courtyard full of wonderful mango trees. It consists of 95 20ft-containers for housing and 7 40ft-containers for the cafeteria.

Medical Housing Compound
© Raul Pantaleo
Medical Housing Compound
© Raul Pantaleo

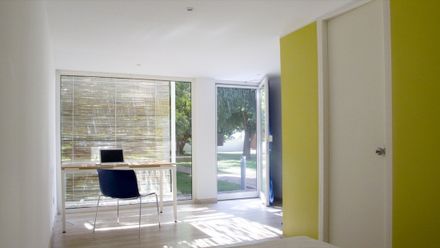

Every lodging is 20 sqm and is realized with one and a half containers; the lodging is composed of bedroom, bathroom and a small veranda on the court side.

Peculiar care has been dedicated to insulation and energy saving. The containers are insulated with a “layer system”.

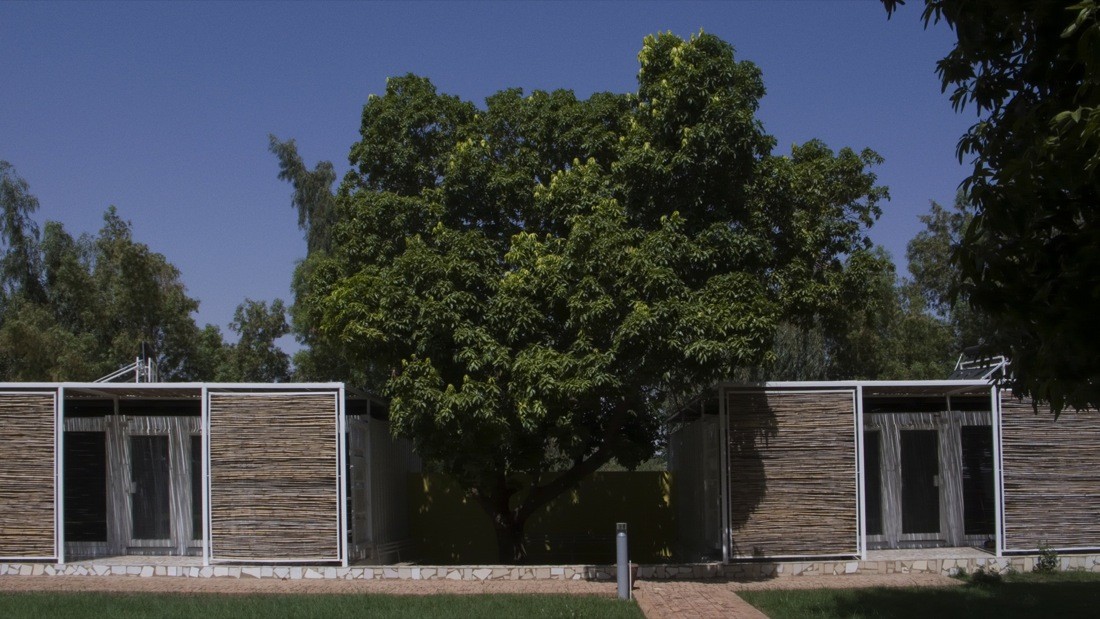

Inside the container 5 cm insulating panels have been placed. The outside “skin” is realized with a second insulated roof and a bamboo brise-soleil panel system.

Medical Housing Compound
© Raul Pantaleo
Medical Housing Compound
© Raul Pantaleo

In this way the sunrays never hit the containers. This system involves a huge energy saving. Solar panels also supply hot water for the entire compound.


Medical Housing Compound
construction process
Medical Housing Compound
construction process
Medical Housing Compound
© Raul Pantaleo
Medical Housing Compound
construction process


Medical Housing Compound
construction process
Medical Housing Compound
construction process
Medical Housing Compound
© Raul Pantaleo
Medical Housing Compound
construction process
Medical Housing Compound
construction process
Medical Housing Compound
construction process


Medical Housing Compound
© Raul Pantaleo
Medical Housing Compound
© Raul Pantaleo
Medical Housing Compound
© Raul Pantaleo
Medical Housing Compound
© Raul Pantaleo


Medical Housing Compound
Houses Elevations + Section
Medical Housing Compound
Houses Sections


Medical Housing Compound
Details
Medical Housing Compound
Exploded Model


Medical Housing Compound
General Floor Plan
Medical Housing Compound
Houses Floor Plan


Medical Housing Compound
Cafeteria Elevations
