Educational Building In Mozambique
EDUCATIONAL BUILDING IN MOZAMBIQUE
Masterstudents of Bergen School of Architecture
ARCHITECTS
Masterstudents of Bergen School of Architecture
CLIENT
Sister Catarina
SPONSORS
Bergen School of Architecture, Norway
PROJECT TEAM PROFESSORS
Andrè Fontes, Sixten Rahlff & Bror R. Hansen
PHOTOGRAPHS
Tord Knapstad, Sixten Rahlff, Stine Bjar, Ina Bakka Sem-Olsen, Bror Hansen, Olafia Zoëga
PROJECT TEAM ORGANIZER
Bror Hansen
BUDGET
45000 NOK (8500 $)
TRIP ORGANIZER
Bror Ragnar Hansen
PROJECT TEAM STUDENTS
Gøran Johansen, Stine Bjar, Silje Klepsvik, Larisa Sarajlija , Olafia Zoëga, Birgitte Haug, Tord Knapstad, Kristian Endresen, Anette M. Basso, Mathias Wijnen, Dan Paul Stavaru, Naeem Searle, Siri Nicholaisen, Maria Flores Adamsen, Monica Xiao, Irmelin Rose Fisch Wågen, Tale Marie Haaheim, Ina Bakka Sem-Olsen, Eirik Solheim Aakhus
LOCATION
Govuro, Mozambique
CATEGORY
Educational Architecture
PROJECT YEAR
2009
BEING AN ARCHITECT IN A FOREIGN CULTURE
As one of the master-courses offered at Bergen School of Architecture, ‘Being an architect in a foreign culture’ emphasizes social and local awareness in the architectural approach.
The student is to investigate and analyze the surrounding impressions and settings, and the role of the architect becomes a topic of discussion. This autumn of 2009, 19 architect students set out on a journey to Mozambique with no initial intention to build anything.
CHIMUNDO
It was an emotionally strong encounter when we arrived at Sister Catarina’s daycare centre for disadvantaged children in the small rural village of Chimundo.
With the help of the non-governmental organization Aid Global, Catarina also runs a trainee centre for teaching adults, which helps her cover expenses on the daycare centre.
However, the lease was running out, and threatened the existence of the daycare centre. After two weeks of registrations and understanding the logic of the place,
We commonly agreed to build a school-building at Catarina’s plot for multi-purpose use as trainee centre in the afternoon and as an extended space for the children during day-time. With only 12 days to go we had to start straight away.
THE BUILDING
With a simple structural body, the building consists of a closed room for computer-learning, and an open room for English teaching. Solid walls and the opportunity to close off completely make the computer-room safe in terms of burglary.
The open room connects with the outside, is spatial with a tall ceiling and transparent walls embracing the light. A framework of reinforced concrete makes a permanent bearing structure in the closed room. The framing allows for cheaper more temporary materials as in-fillings.
We experimented with sandbags in the east and north facade, where they functions as thermal mass in the winter, while an extension of the roof prevents sun exposure during summer.

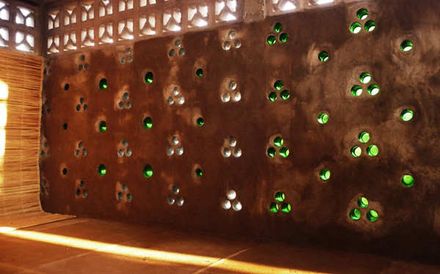

The shaded south facade has a glass-bottle wall for letting in light and keeping dust out. Bottles give an aesthetic quality, and make a good alternative to expensive windows.
The roof collects rainwater into a cistern and is made with corrugated iron sheets that sit on low-cost, self-made trusses. The trusses give a natural ventilation gap for cooling, and an inner-roof of cheap locally bought straw-mats filter hot air out.
Light straw-doors in the open room give a flexible use of space. The room can open up completely towards the inner school-courtyard to the south, and a small mango tree to the north. The two rooms are divided internally with a large sliding door so that they can be used both separated and as one.
We wanted to stay within a reasonable economic framework and tried to use as much local materials as possible, combining vernacular methods with new interpretations.
The whole construction is done in a demonstrational manner so that it is easily understood and can be carried out by the people of Chimundo. As a result, the building is in itself educational.
