INDEMANN

Maurer United Architects

ARCHITECTS
Maurer United Architects

PROJECT LEADER
Marc Maurer, Nicole Maurer

MANUFACTURER
GKD Metal Fabrics

AREA
860.0 m2

YEAR
2009

LOCATION
Inden, Germany

CATEGORY
Installations & Structures, Public Architecture

Text description provided by architect.

In the municipality of Inden, in Germany, there is a brown coal open cast mine and in order to excavate the mineral resources several entire villages were relocated within the municipality.

The mine currently covers an area of 4,500 hectares and excavation has created an unusual landscape.

Indemann
© Maurer United Architects
Indemann
© Maurer United Architects
Indemann
© Maurer United Architects

This scene will change after 2030 when the excavation work stops since the site will be transformed into a large area for water sports and other recreation called ‘Der Indische See’.

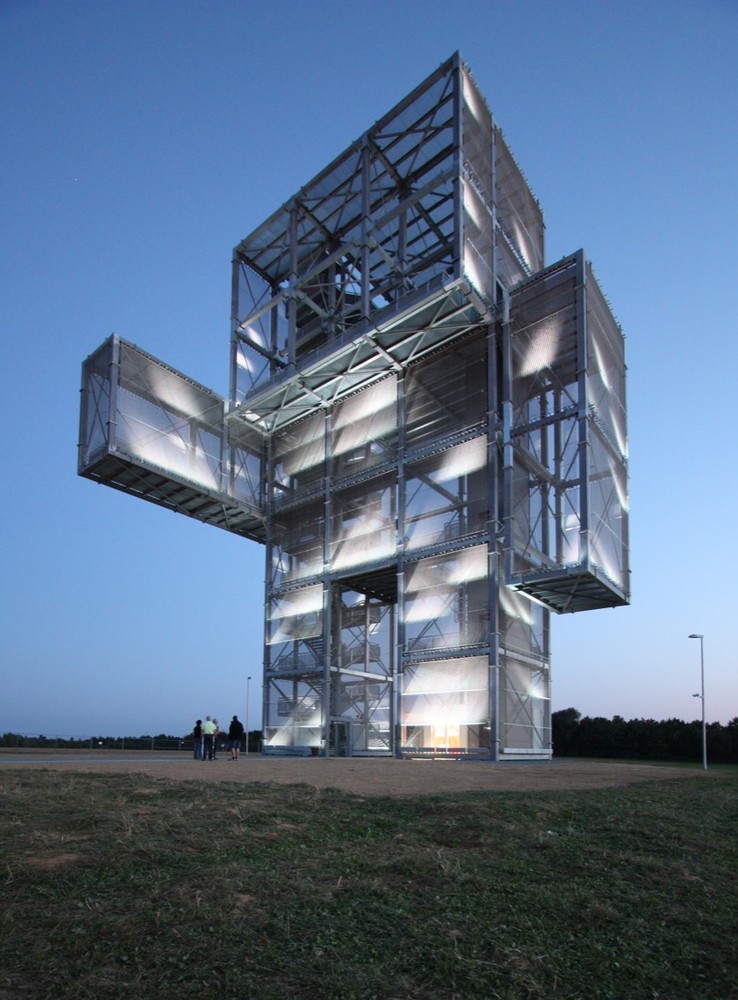

The municipality Inden wanted to erect a watchtower and landmark at this location. MUA decided on using the shape of an immense, 36 m tall robot:the Indemann.

The Indemann’s design is characterised by its striking external appearance, but the real surprise lies in the staged experiences that the visitors can expect in its interior.

Indemann
© Maurer United Architects
Indemann
© Maurer United Architects

The public experience the building as a composition of architectonic experiments, with tremendous overhanging elements, surprising transparencies and, for example, accessible grid floors in the outstretched robot arm 18 metres above the ground. In addition to this the front has had 40,000 LED’s incorporated into it.

This is the first LED façade to be realised on this scale in Europe and it works like a folded screen and can have animations projected onto it. In this way the watchtower creates a true lighthouse effect when it’s dark.

Since its completion the building has come to be seen as a ‘Wahrzeichen der Region’: a landmark for the Euregio Maas-Rhine.

Indemann
© Maurer United Architects
Indemann
© Maurer United Architects

The watchtower alongside the A4 motorway between Aachen and Cologne unites ‘Dutch Design’ with ‘German Efficiency’.

With this design MUA not only refers to the giant excavators but also marks the transition from an industrial to a media-based era. The opening attracted 10.000 visitors.

Indemann
© Maurer United Architects
Indemann
© Maurer United Architects

“We started the Indemann project by writing a fairy tale that established the region’s profile.

In the fairy tale the people finally built a monument for a giant, the Indemann, who they have helped physically, but mainly strategically, in the story. The fact that this watchtower has now been completed shows that fairy tales can become reality.”

Indemann
© Maurer United Architects


Indemann
Indemann
© Maurer United Architects
Indemann
© Maurer United Architects


Indemann
© Maurer United Architects
Indemann
© Maurer United Architects
Indemann
© Maurer United Architects


Indemann
© Maurer United Architects
Indemann
© Maurer United Architects


Indemann
plan 00
Indemann
plan 01
Indemann
plan 02
Indemann
plan 03
Indemann
plan 04
Indemann
plan 05
Indemann
plan 06
Indemann
plan 07
Indemann
plan 08
Indemann
plan 09
Indemann
plan 10
Indemann
plan 11
Indemann
plan 12
Indemann
details 01
Indemann
details 02


Indemann
details 03
Indemann
details 04
Indemann
details 05


Indemann
structure axo
Indemann
storeys axo
Indemann
skin axo
Indemann
exploded axo
Indemann
site plan
Indemann
situation plan


Indemann

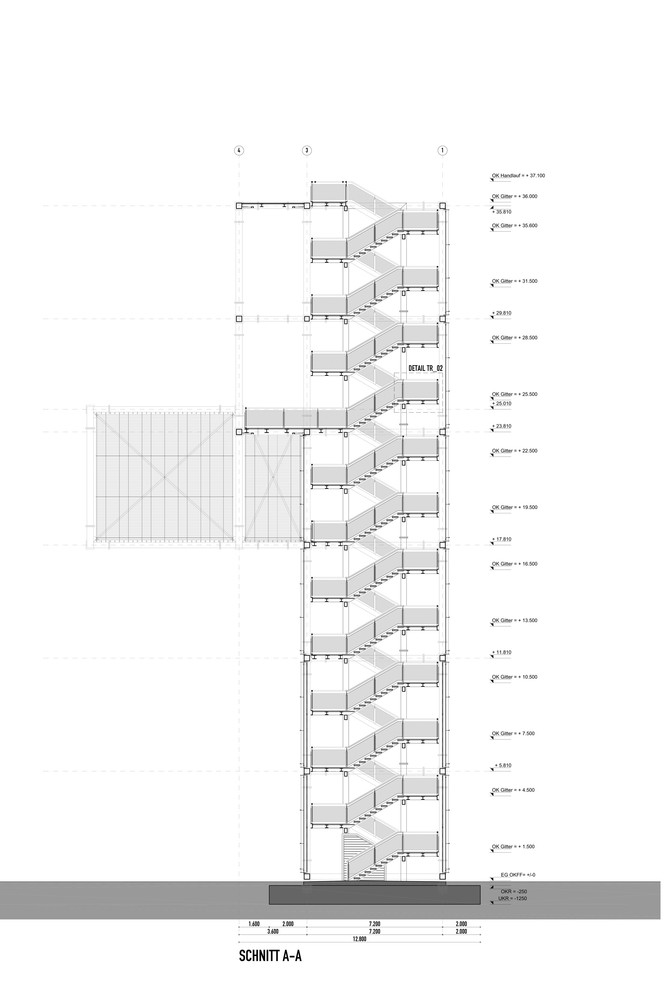

section 01
Indemann
section 02
Indemann
section 03
