LIVERPOOL INSURGENTES DEPARTMENT STORE

Rojkind Arquitectos

Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro

MEDIA
Monique Rojkind, Rosalba Rojas

MANUFACTURERS
Comex, Arquimart

INTERIOR DESIGN
Servicios Liverpool SA de CV

LANDSCAPE CONSULTANT
Entorno Taller de Paisaje

STRUCTURAL ENGINEER
Emr SA

FAÇADE INSTALLATION
Alitech, Arquimart, Todo en Metal

BIM ADMINISTRATION
ArchiCAD

EQUIPO
Alberto Villarreal, Gerardo Villanueva, Rodrigo Medina, Arie de Jongh, Victor Martínez, Juan Carlos Sainz, Adrian Aguilar, Alfredo Hernandez, Andrea León, Beatriz Zavala, Marielle Rivero, Nadezda Stankovic, Felipe Castañeda, Isaac Smeke, Víctor Alemán, Enrique de la Barrera, Davis Guajardo, Daniela Bustamante, Joe Tarr, Will Fox, Philipp Schlauch, Arie Hendrik, Diego Leál, Ignacio Cabrera, Linda Martínez, Karina Amparán, José de Jesús Guerra

LIGHTING CONSULTANT
Ideas y Proyectos en Luz

FAÇADE ENGINEER
Studio NYL

MEP
RCC

PHOTOGRAPHS
Rojkind Arquitectos. Photo: Jaime Navarro

FAÇADE AREA
2400 sqm

YEAR
2010

CATEGORY
Shopping Centers, Retail

LOCATION
Mexico City, Mexico

Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro

Text description provided by architect.

A successful department store had moved for ward with plans to expand and occupy what was once a ver y important open urban space at the busy intersection of Insurgentes and Felix Cuevas avenues in the southern quadrant of Mexico City.

With the opening of a new subway line station at the corner of the site, and its subsequent increase in pedestrian traffic and transport transfer activity, it became apparent that the typical closed retail “big box” model had to be questioned and a new identity given to the existing store’s façade to achieve a more dynamic urban presence and promote the brand.

We proposed to give the box a permeable an animated envelope where inside activity can be showcased and interact with urban activity.

Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro
Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro

A “deep wall” system where new programmatic options can be explored blurring the line between inside and outside and giving the user and passer by a more interactive experience.

A variety of temporar y programs and/or displays can be housed within the porous habitable façade that becomes a mediator between the busy surrounding urban condition and the department store’s traditionally programmed interiors.

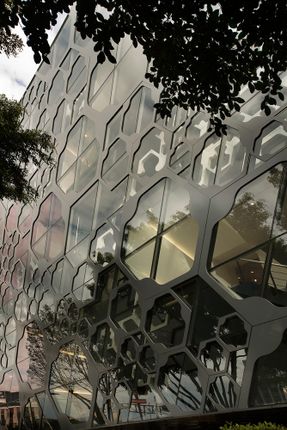

Inspired by Moiré patterns and optical art the 2.8m deep wall façade consists of a three-layer multi-sized hexagon system in fiberglass, steel, aluminum and glass.

Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro
Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro

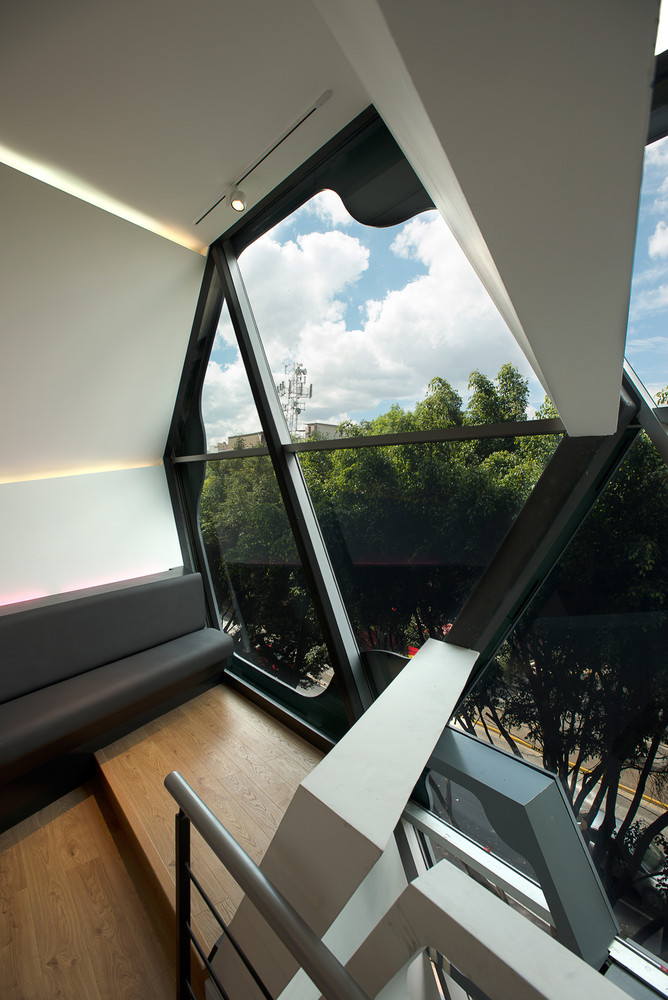

The resulting spaces are accessible from the interior through large openings that reveal the inside of the store to the passer by and vice versa and are connected between them through stairs and ramps allowing the dweller to navigate within the façade.

To maintain attainability this project took full advantage of Mexico's skilled craftsmen and rich tradition in metal work to overcome the unique challenge in fabrication and budget constraints.

The result of this "digital design / local fabrication" model is unique in its high-tech but crafted qualities.

Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro


LIVERPOOL INSURGENTES | Construcción Fachada


LIVERPOOL INSURGENTES | Fachada Habitable


Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro
Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro


Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro
Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro
Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro
Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro
Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro
Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro
Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro
Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro
Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro


Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro
Liverpool Insurgentes Department Store
© Rojkind Arquitectos. Photo: Jaime Navarro


Liverpool Insurgentes Department Store
Corte por Fachada 1
Liverpool Insurgentes Department Store
Corte por Fachada 2


Liverpool Insurgentes Department Store
Familias Fachada
Liverpool Insurgentes Department Store
Montaje
Liverpool Insurgentes Department Store
Diagrama Explotado
Liverpool Insurgentes Department Store
Elevaciones


Liverpool Insurgentes Department Store
Sección 1
Liverpool Insurgentes Department Store
Sección 2
Liverpool Insurgentes Department Store
Sección 3
