MEDICAL CENTRE CORTES

Iñigo Esparza Arquitecto

ARCHITECTS
Iñigo Esparza Arquitecto

AUTHORS
Iñigo Esparza Andrés, M. Asun Osés Alonso

LOCATION
Spain

YEAR
2010

CATEGORY
Healthcare Center

DIRECTOR
Iñigo Esparza Andrés

BUILDER
Arian, S.A.

COLLABORATORS
Alejandra Gómez Martínez, Jesús Corera Gutiérrez, Mikel Cañadas Tanco, Ingeniería Fitero

Text description provided by architect.

The medical centre is constructed in a trapezoid-shaped plot and has an extension of 3.300 square meters.

Medical Centre Cortes
© Berta Buzunariz
Medical Centre Cortes
© Berta Buzunariz

The intervention proposed to locate the building next to the west limit of the site forming a large outdoor area in front of it.

In this way, this open space was transform in 2.400 square meters of public park. The building, compound of two different pieces, is a one-storey construction which contribute to accesibility and funcionality.

Medical Centre Cortes
© Berta Buzunariz
Medical Centre Cortes
© Berta Buzunariz

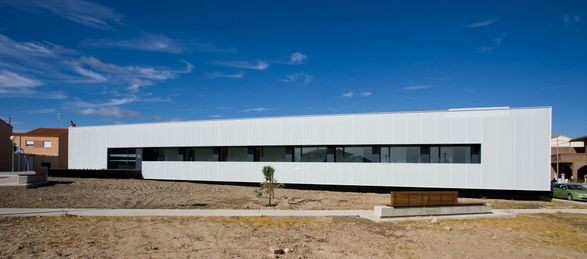

The principal element stretches lengthways (55 meters) configuring the main facade towards the park, giving access and containing the public spaces.

The waiting area opens to the exterior with a large glass surface that permits views to the green area whereas the consulting rooms are located at the back of the centre protected from direct view and facing the backyard.

Medical Centre Cortes
© Berta Buzunariz
Medical Centre Cortes
© Berta Buzunariz
Medical Centre Cortes
© Berta Buzunariz

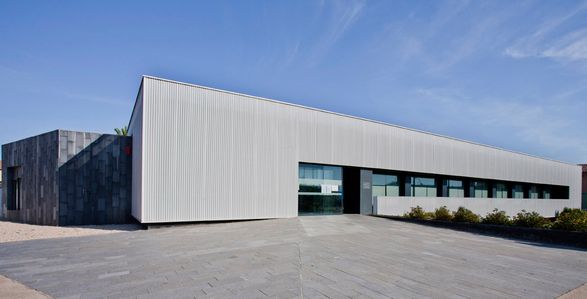

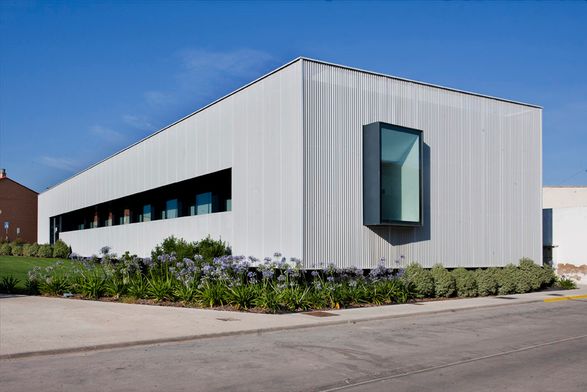

This volume rises gently over the terrain asserting the lightness of the enclosure which is constructed with wavy micro perforated steel sheets.

Conceived as a second skin to protect from weather aggressions, this steel layer also provides privacy where it is required.

Attached to the main construction, a secondary compact volume appears enclosing the private program:

Medical Centre Cortes
© Berta Buzunariz

administration area, services and installations with direct connection to the consulting area. This solid element rests on the ground and reinforce its monolitical presence with a dark stone facade.

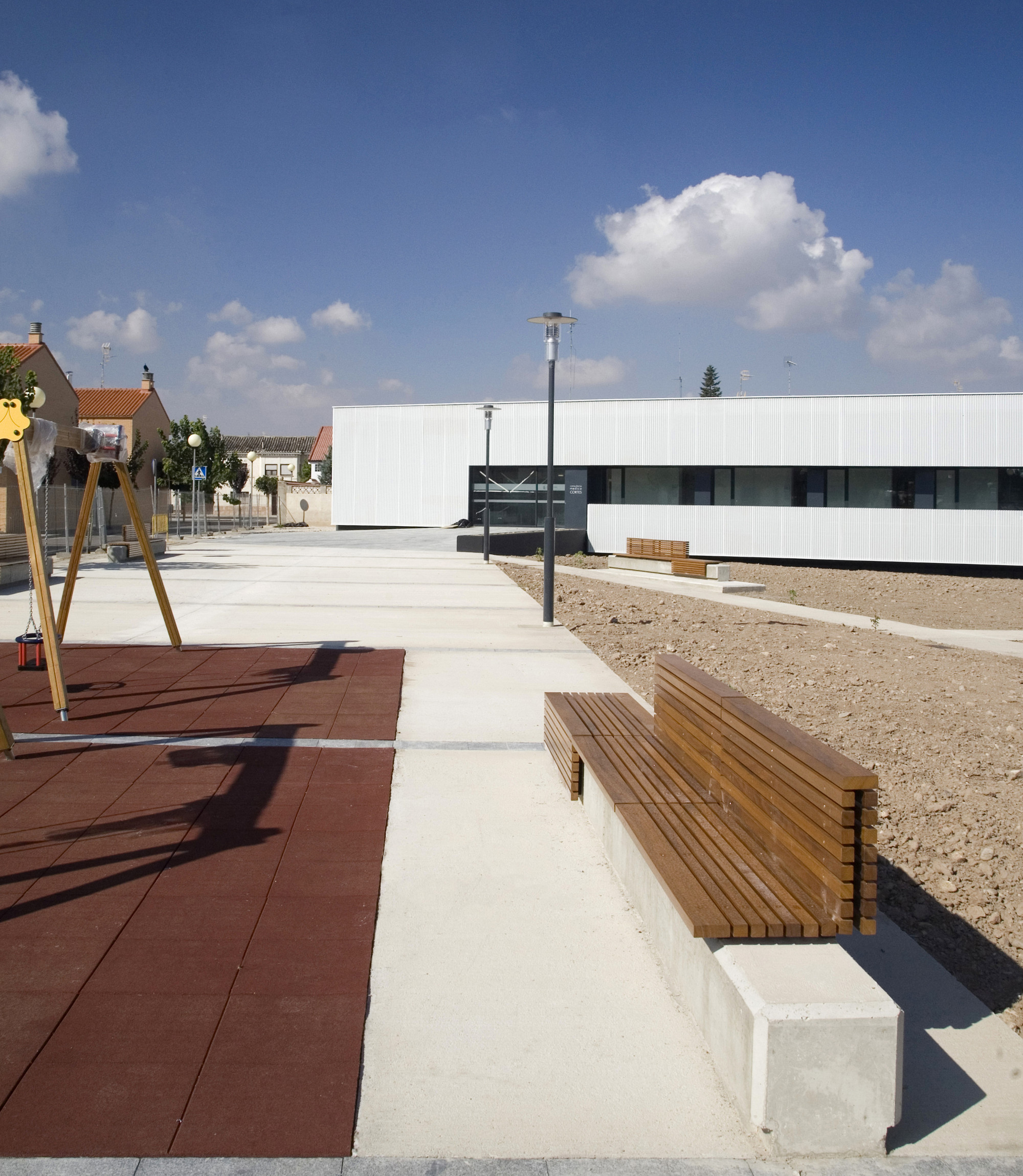

The remaining site is divided in two different spaces. Located in the most elevated part, a large paved square with a children playground conforms the access to the medical centre.

The park takes in the slope part of the terrain creating a sustainable garden that uses the minimum amount of water and native species.


Medical Centre Cortes
Site Plan
Medical Centre Cortes
Plan
Medical Centre Cortes
Plan


Medical Centre Cortes
Section
Medical Centre Cortes
Section


Medical Centre Cortes
Section
Medical Centre Cortes
Section


Medical Centre Cortes

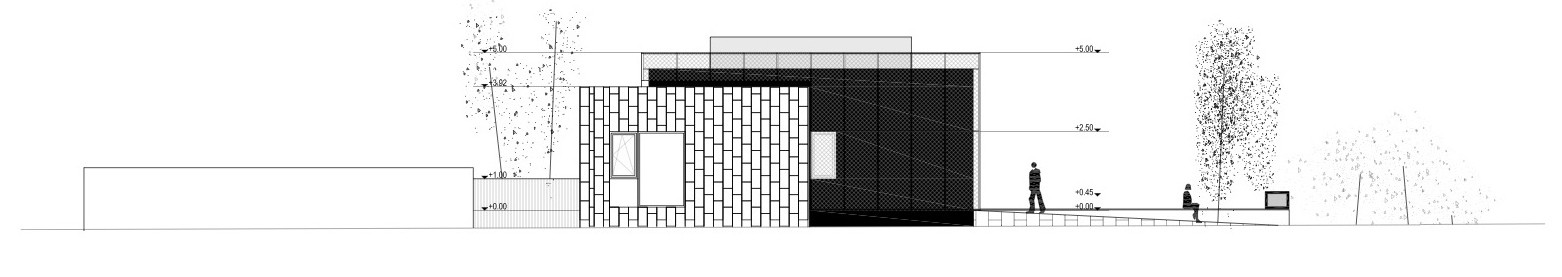

Elevation
Medical Centre Cortes
Elevation
Medical Centre Cortes
Elevation
Medical Centre Cortes
Elevation
