Liebel / Architekten BDA

Affalterwang

Affalterwang
© Michael Schnell

AFFALTERWANG

Liebel Architekten Bda

ARCHITECTS
Liebel Architekten Bda

LOCATION
Aalen, Germany

CATEGORY
Houses

YEAR
2010

PHOTOGRAPHS
Michael Schnell

STONE ON STONE

A barren area with a stone-filled soil, which only enables underground levels up to a depth of 1 m to be built.

Affalterwang
© Michael Schnell
Affalterwang
© Michael Schnell

And a plot of land that is constricted by stables, which only allow good light from the southern side. Based on these circumstances, it was decided that this new build would be a split-level house!

THE ADVANTAGES?

All individual rooms on the first floor, which are north facing, receive enough sun from the south as a result of the split-level concept.

Affalterwang
© Michael Schnell
Affalterwang
© Michael Schnell

Similarly, the study in the "cellar area" also gains space and light from a deep-set courtyard. Since in the split-level house the individual levels are staggered, the ground floor is 1.5 m above ground level.

In the living/dining area you are therefore sitting – inside as well as outside – at treetop height, which creates a wonderful atmosphere.

Affalterwang
© Michael Schnell

Despite the height difference, there is direct access to the garden: a slightly raised slope directly in front of the patio leads down to the green area and is enthusiastically used by children to play in summer and winter!

The rooms are well-lit and the carefully thought-out details are subtly but effectively emphasised. For example, the floor-level window in the living room hides the neighbours and provides an atmospheric view into the green foliage. At the same time it captures the low-lying evening sun and immerses the living room in an ambient light.

INCIDENTALLY

The stones that, as expected, were found when excavating the foundation pit were incorporated in the preliminary stages in the building design: they can now be found in the natural stone facade and the sloping garden!

Affalterwang
© Michael Schnell
Affalterwang
© Michael Schnell


Affalterwang
Plan 00
Affalterwang
Plan 01


Affalterwang
West Elevation
Affalterwang
South Elevation

Affalterwang

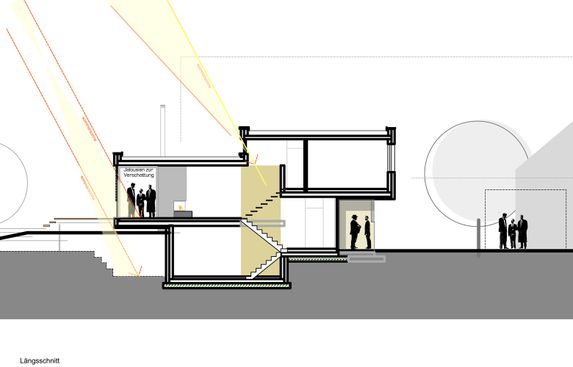

Section
