Grecco Building

Grecco Building
© Walter G. Salcedo

GRECCO BUILDING

Estudio Arzubialde

ARCHITECTS
Estudio Arzubialde

AREA
604.45 m²

YEAR
2010

LOCATION
Rosario, Argentina

CATEGORY
Housing

Text description provided by architect.

Pasaje Middleton, a narrow alleyway in the center of the city of Rosario, is the site of our small apartment building.

The ground floor is designed for parking, and six two-bedroom apartments are distributed in first, second and third floors.

Grecco Building
© Walter G. Salcedo
Grecco Building
© Walter G. Salcedo
Grecco Building
© Walter G. Salcedo

Pasaje Middleton, a narrow alleyway in the center of the city of Rosario, is the site of our small apartment building.

The ground floor is designed for parking, and six two-bedroom apartments are distributed in first, second and third floors.

In order to achieve an open ground plan as versatile as possible, the structure on the ground floor was designed with reinforced concrete beams and steel columns.

Grecco Building
© Walter G. Salcedo
Grecco Building
© Walter G. Salcedo
Grecco Building
© Walter G. Salcedo

The remaining floors were designed with load bearing, hollow brick masonry, comprised of bricks 18x18x33 centimeters.

This design avoided formwork, concrete pouring and curing for an independent structure, which reduced the construction runtime.

The tiles used as wall coverings are a consequence of this decision; to work with load bearing ceramic bricks, a technique which requires a finish.

Grecco Building
© Walter G. Salcedo
Grecco Building
© Walter G. Salcedo

The finish is thus presented as an experiment in itself. It responds to three variables:

- To offer a texture to the surface
- To give color to the volume
- To solve these variables with a material that contains color in its mass, to avoid maintenance.


Grecco Building
Ground Floor Plan
Grecco Building

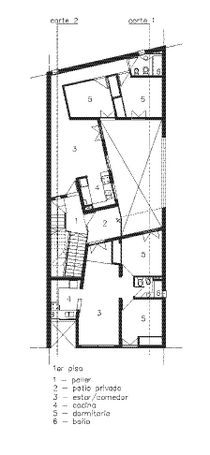

First Floor Plan
Grecco Building
Second Floor Plan
Grecco Building
Third Floor Plan


Grecco Building
Plan
Grecco Building
Elevation
Grecco Building
Axonometry


Grecco Building
Section
Grecco Building
Section


Grecco Building

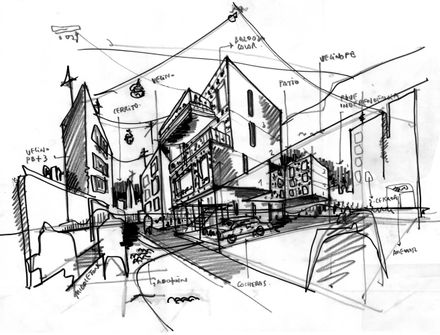

Drawing
Grecco Building
Drawing
