Pavilion 4

Pavilion 4
Lvfeng photography Studio

PAVILION 4

HMA Architects & Designers

PHOTOGRAPHS
Lvfeng photography Studio

AREA
10200.0 m²

YEAR
2010

LOCATION
Shanghai, China

CATEGORY
Exhibition Center

Text description provided by architect.

We have designed a pavilion in Shanghai World EXPO 2010. This building was used as an industrial factory in the 1970s.

Pavilion 4
Lvfeng photography Studio
Pavilion 4
Lvfeng photography Studio

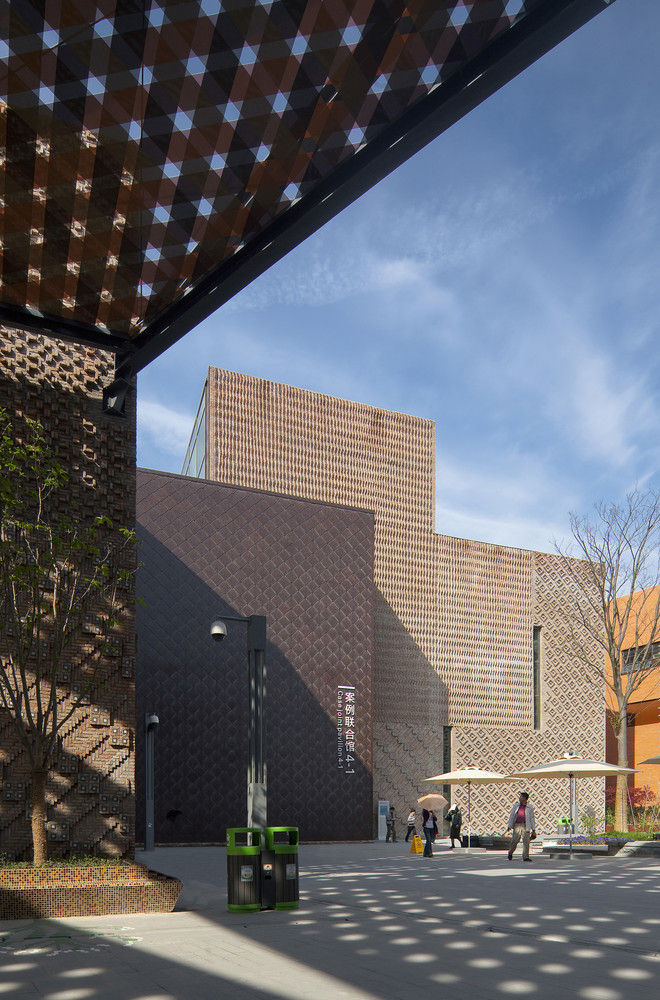

We converted from old factory to exhibition centre. The EXPO site was situated in centre of Shanghai city and was separated both side of Huangpu River.

Almost of all national pavilions was designed Pudong district that was vacant up to 2000s. On the other hand, Puxi district which is our site was used to use as an industry district.

Pavilion 4
Lvfeng photography Studio
Pavilion 4
Lvfeng photography Studio

Therefore our design started to consider how we are going to reuse an old dock factory. The aim of our pavilion is to exhibit a practical example for sustainable city.

Our design intention is to reuse existing structure and material as much as we can use, and reduce many scrap materials by half.

Pavilion 4
Lvfeng photography Studio
Pavilion 4
Lvfeng photography Studio

After we researched existing building we found that original wall needs to remove. It is because it can’t stand for.

When we remove all walls we try to keep original brick in the site which use for afterward.

Then these original bricks were piled up again with some decorations and patterns.

Pavilion 4
Lvfeng photography Studio
Pavilion 4
Lvfeng photography Studio
Pavilion 4
Lvfeng photography Studio

Moreover roof window is added on the top for getting sunlight and natural ventilation and dull flat roof shape was redesigned to random shape.

That gourd shape promotes gravity ventilation. One another building had removed except structure columns and beams.

Then gourd shape of void was inserted into existing structure.

That gourd shape promotes gravity ventilation.

Pavilion 4
Lvfeng photography Studio


Pavilion 4
Lvfeng photography Studio
Pavilion 4
Lvfeng photography Studio
Pavilion 4
Lvfeng photography Studio


Pavilion 4
Section
Pavilion 4
Section
Pavilion 4
Section


Pavilion 4
Plan
Pavilion 4
Elevation
Pavilion 4
Site Plan
