Kino Architects

Tokyo Balconies

Tokyo Balconies
© Daici Ano

TOKYO BALCONIES

KINO Architects

ARCHITECTS
KINO Architects

AREA
31.12 m²

LOCATION
Japan

CATEGORY
Houses

YEAR
2010

PHOTOGRAPHS
Daici Ano

Text description provided by architect.

In Tokyo where building density is high both the “Geographical map”, defining the undulating land, and “Town planning and zoning regulations” have a large influence on construction.

Tokyo Balconies
© Daici Ano
Tokyo Balconies
© Daici Ano
Tokyo Balconies
© Daici Ano

This house is on a site where the features of these two geographical maps come together successfully.

This site is off a busy shopping street in the middle of Tokyo. The southern part of the site belongs to a “commerce” zone, and the northern part to a “1st priority residential” zone.

To the north of the site the residential zone continues. These two different zones have different regulations in regard to the height of buildings.

Tokyo Balconies
© Daici Ano
Tokyo Balconies
© Daici Ano

The design proposes to make the best use of building on the boundary of two zones. The design included four floors with a large balcony to the north on the top floor.

This balcony could also take advantage of the geography to the north giving an outstanding view of the skyscrapers of Shinjuku.

Tokyo Balconies
© Daici Ano
Tokyo Balconies
© Daici Ano
Tokyo Balconies
© Daici Ano

The balcony feature from the top floor is repeated on each floor; internal space is enhanced with outside balcony space.

It is too difficult to provide a garden in the super-high density Tokyo environment; also balconies are not included in the calculation of building volume. Therefore many balconies were used to produce an urban garden.

The balconies have two additional roles: to communicate with the surroundings and to obstruct a direct view from the road. The balconies gradually connect the inside and outside.

Tokyo Balconies
© Daici Ano

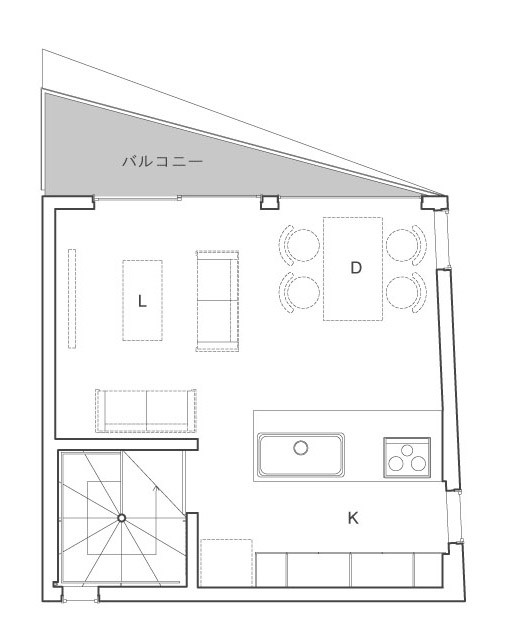

Tokyo Balconies
Plan
Tokyo Balconies
Plan
Tokyo Balconies
Plan
Tokyo Balconies
Plan
Tokyo Balconies
Section
Tokyo Balconies
Section

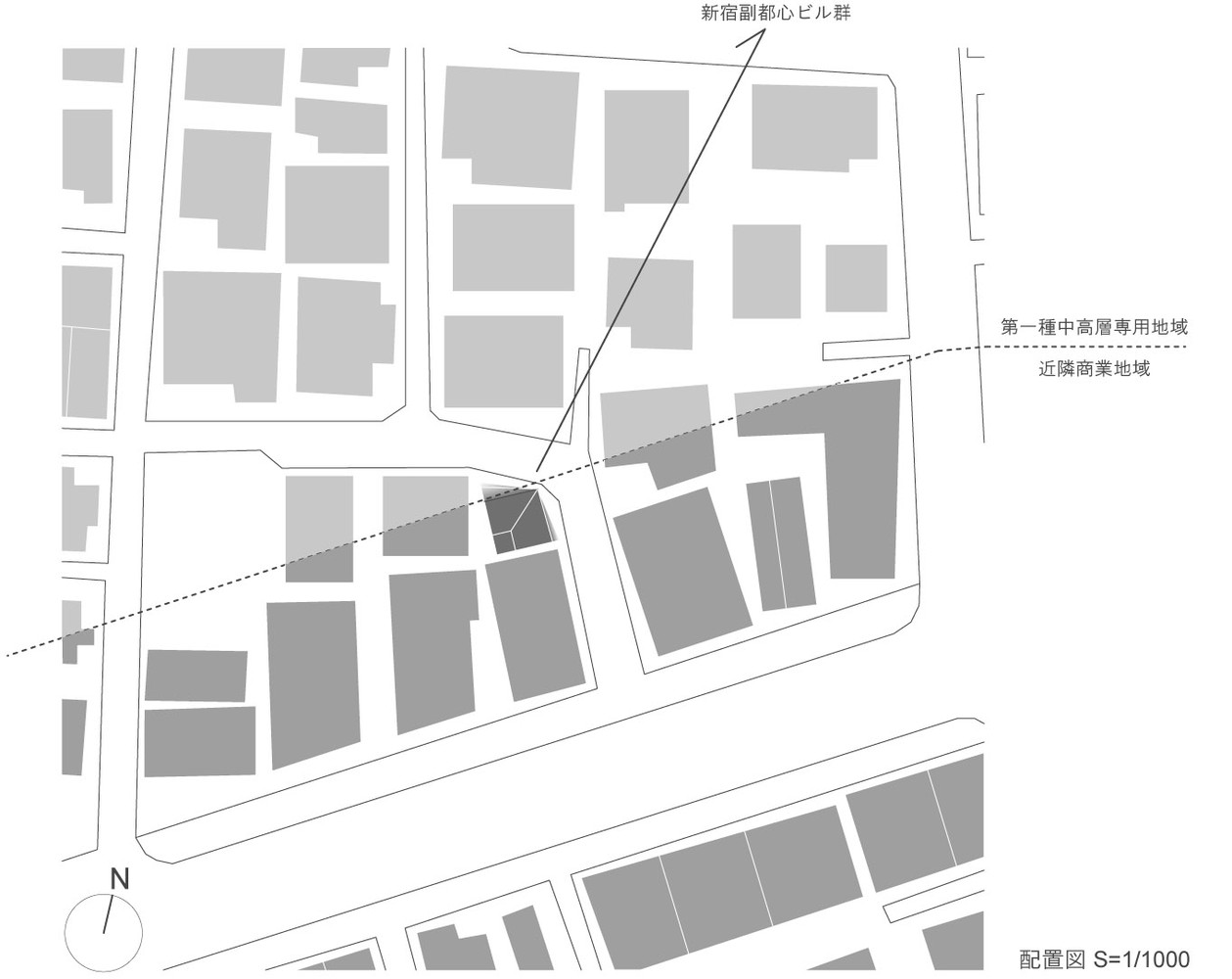

Tokyo Balconies
Site Plan
