MAPFRE AUTOMOVILE SERVICES CENTRE

Beriot + Bernardini Arquitectos

AREA
4.0 m²

YEAR
2010

LOCATION
Alcorcón, Spain

CATEGORY
Services

Text description provided by architect.

The building is the result of an architectural competition fostered by Spain’s leading car insurance company, Mapfre, calling for a new tipology responding to an innovating service offered to its clients:

Mapfre Automovile Services Centre
© Beriot, Bernardini Arquitectos
Mapfre Automovile Services Centre
© Beriot, Bernardini Arquitectos

a centre where damaged cars are taken by the client, expertised and stored before distribution to external repair centres.

The projet aspires to translate the functional optimization of its program into formal resolution, while aiming for a rotund and highly visible image.

Elevating the vehicle storage element off-ground configures a powerful image of the building in the long distance and generates the public nucleus beneath as a great unified space where vehicle expertising, delivery and pick-up takes place.

Mapfre Automovile Services Centre
© Beriot, Bernardini Arquitectos
Mapfre Automovile Services Centre
© Beriot, Bernardini Arquitectos

The client service office cuts out against this space as a singular pavilion. Behind these public areas is the ramp leading to first floor and basement and vehicle loading/unloading from trucks takes place.

First floor is dedicated mainly to vehicle storage, with all heating, cooling and water and electrical services placed above the ramp.

Mapfre Automovile Services Centre
© Beriot, Bernardini Arquitectos
Mapfre Automovile Services Centre
© Beriot, Bernardini Arquitectos

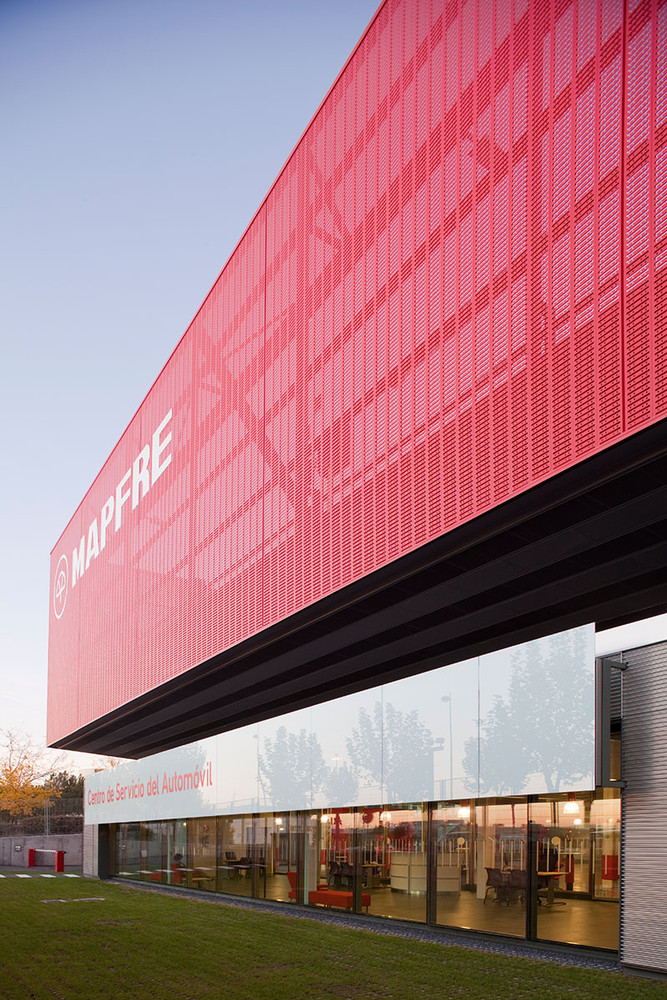

The whole floor is wrapped in a perforated metal sheet, which allows veiled views of parked cars; its impressive corporate red endows the building a powerful and easily identifiable image. The basement is also dedicated to vehicle storage, services and a car wash.

Given the special characteristics of its use circulations have been carefully studied. Vehicle circulation is based on a two-ring scheme, one for client circulation and the other for internal use, which are tangent in the public area, where vehicle exchange takes place.

Mapfre Automovile Services Centre
© Beriot, Bernardini Arquitectos
Mapfre Automovile Services Centre
© Beriot, Bernardini Arquitectos

Construction is clearly divided between underground, with reinforced concrete diaphragm walls and pillars, and above ground.

Here HEM steel pillars support a series of parallel 1.50m high PVS steel beams, supporting a secondary order of Boyd beams on which the first floor rests.

Mapfre Automovile Services Centre
© Beriot, Bernardini Arquitectos
Mapfre Automovile Services Centre
© Beriot, Bernardini Arquitectos

This is a concrete slab on a collaborating corrugated metal sheet, calculated so as to avoid the need for support during concreting.


Mapfre Automovile Services Centre
© Beriot, Bernardini Arquitectos
Mapfre Automovile Services Centre
© Beriot, Bernardini Arquitectos
Mapfre Automovile Services Centre
© Beriot, Bernardini Arquitectos
Mapfre Automovile Services Centre
© Beriot, Bernardini Arquitectos


Mapfre Automovile Services Centre
Render
Mapfre Automovile Services Centre
Render
Mapfre Automovile Services Centre
Render


Mapfre Automovile Services Centre
Detail
Mapfre Automovile Services Centre
Detail


Mapfre Automovile Services Centre
Plan
Mapfre Automovile Services Centre
Plan
Mapfre Automovile Services Centre
Plan
Mapfre Automovile Services Centre
Plan


Mapfre Automovile Services Centre
Section
Mapfre Automovile Services Centre
Section
Mapfre Automovile Services Centre
Section
Mapfre Automovile Services Centre
Section
Mapfre Automovile Services Centre
Section
