HEALTH CENTER CAP LA GARRIGA

Roldán + Berengué

ARCHITECTS
Roldán + Berengué

CATEGORY
Healthcare Center

AREA
1690.0 m²

YEAR
2010

LOCATION
La Garriga, Spain

Health Center CAP La Garriga
© Jordi Surroca

Text description provided by architect.

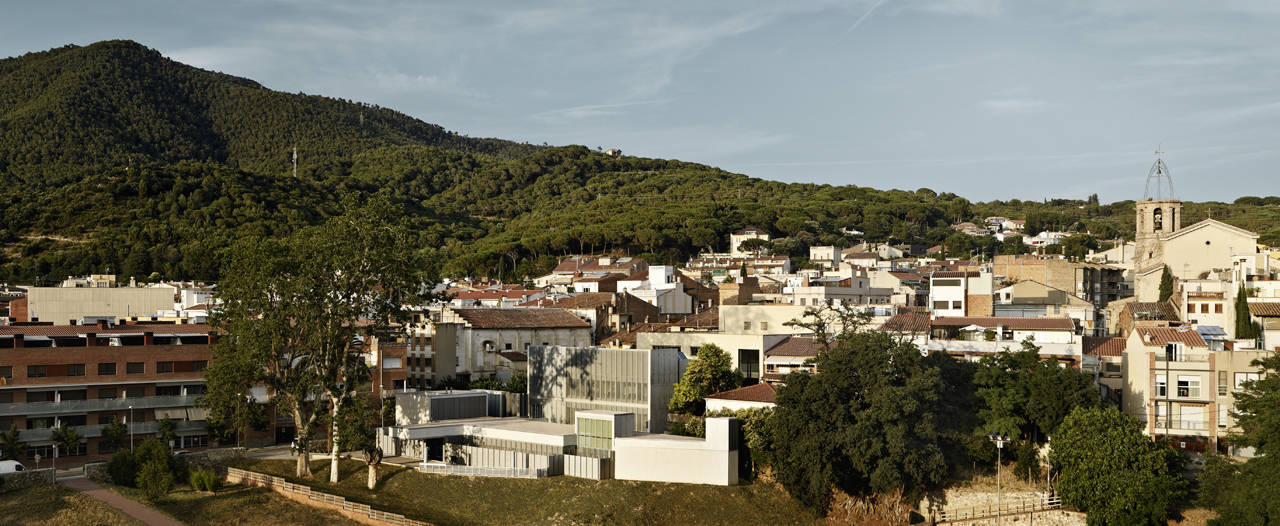

Typologically Cap La Garriga is exceptional for the size of the parcel,for the topographical conditions and for its position in the corner of a park.

Health Center CAP La Garriga
© Jordi Surroca
Health Center CAP La Garriga
© Jordi Surroca

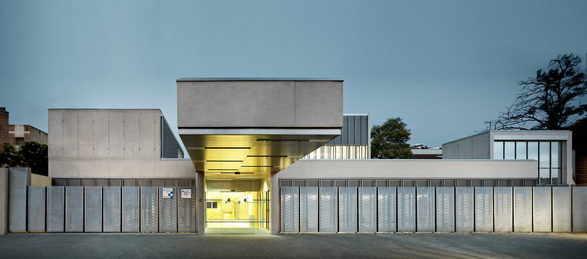

The building, which actually has five levels of height, but appears to be a two-storey building if perceived from St. Francis Street, and from the park like a one level building with a three level curtain wall background.

This is accomplished by making the building grow downwards through a system of patios, so that 60% of the program is located bellow ground.

Health Center CAP La Garriga
© Jordi Surroca
Health Center CAP La Garriga
© Jordi Surroca

The complex geometry resulting in plan and section is solved by giving chromatic value to the plan that divides the two levels, as if it were a new ground floor traced from Sant Francesc Cesc Street.

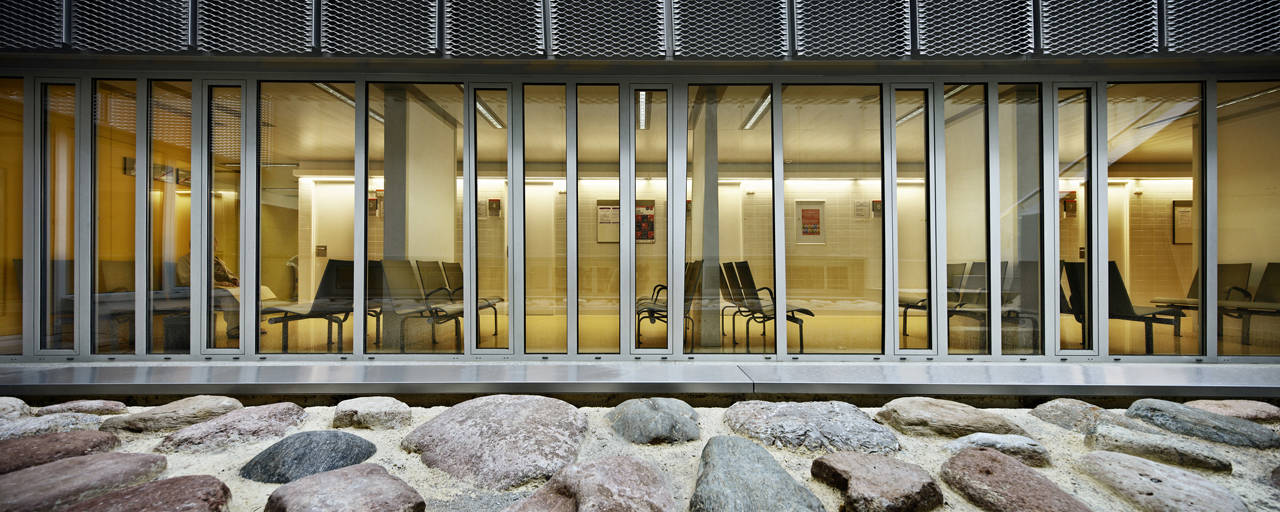

It is a floating yellow terrazzo cover that extends the dimension of the street which submerges to create the patios; the river stones found in excavation are placed as decoration.

On the deck, which is the façade that is seen from the waiting areas, not only the volumes are placed but also the installations, chimneys and skylights.

Health Center CAP La Garriga
© Jordi Surroca
Health Center CAP La Garriga
© Jordi Surroca

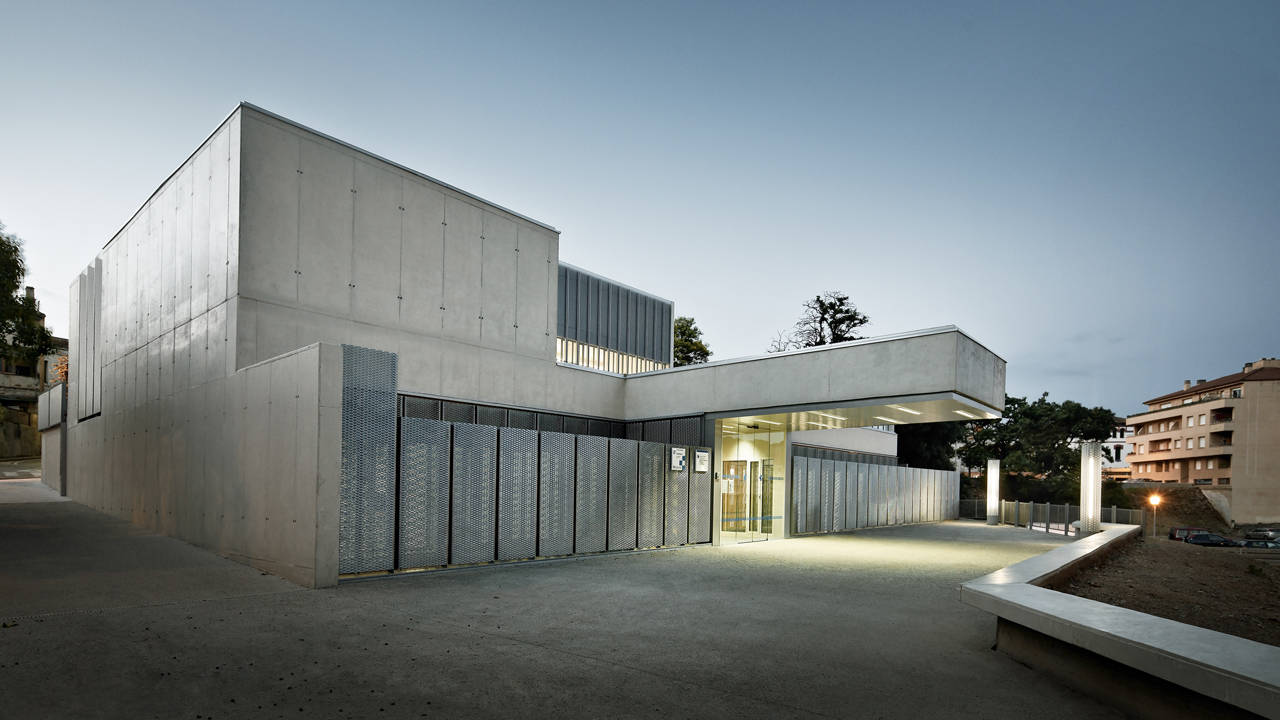

Beside the roof, the building is resolved with austere materials and colors: concrete walls and structure in light gray and yellow, natural color aluminum for façades and lattice mesh; interior finishes in white and yellow.

Different measures of passive architecture are applied: ventilated façade and roof, windows with double skin (glass-mesh), semi-buried building, control and use of natural light through the quality of interior materials.

Health Center CAP La Garriga
© Jordi Surroca
Health Center CAP La Garriga
© Jordi Surroca

The building facade systems are pre-industrialized with materials originally 60% recycled and 100% reciclable.

Health Center CAP La Garriga
© Jordi Surroca
Health Center CAP La Garriga
© Jordi Surroca
Health Center CAP La Garriga
© Jordi Surroca


Health Center CAP La Garriga
Section 01
Health Center CAP La Garriga
Section 02


Health Center CAP La Garriga
-1 Floor Plan
Health Center CAP La Garriga
Ground Floor Plan
Health Center CAP La Garriga
Floor 1 And Floor 2 Plan

Health Center CAP La Garriga
Axo
