RIVERSIDE CLUBHOUSE

TAO - Trace Architecture Office

ARCHITECTS
TAO - Trace Architecture Office

PHOTOGRAPHS
Yao Li

LOCATION
China

CATEGORY
Clubhouse

YEAR
2010

AREA
500.0 m²

Text description provided by architect.

The clubhouse is located on one side of a river in Yancheng, surrounded by a park and sports field. The extended horizon, sky, water, island in river, and reed, these elements of the site define a tranquil, pure and poetic atmosphere.

Riverside Clubhouse
© Yao Li
Riverside Clubhouse
© Yao Li

In such an environment, we think architecture must be a careful intervention to the site, to avoid ruining the original sense of place and meanwhile create the close contact with nature.

Thus a glass building on riverside and in trees naturally comes to mind as beginning idea, to integrate visitor, architecture and landscape.

Riverside Clubhouse
© Yao Li
Riverside Clubhouse
© Yao Li

The design therefore takes Mies’ Farnsworth as a prototype concept and creates a new form through a series of actions on it: stretch, loop, and fold.

These actions lead to following results: smaller building depth with better views, introversive courtyard space offering more privacy, getting closer to water and accessible roof as extension of landscape.

Riverside Clubhouse
© Yao Li
Riverside Clubhouse
© Yao Li
Riverside Clubhouse
© Yao Li
Riverside Clubhouse
© Yao Li

The transparency dematerializes architecture. The concern to physical form of building is replaced by desire to create flowing and see-through space to maximize visitors’ experience of natural environment outside.

Responding to the horizontal feature of surrounding landscape and trees in site, the building is made into a linear and folded form.

Riverside Clubhouse
© Yao Li
Riverside Clubhouse
© Yao Li
Riverside Clubhouse
© Yao Li
Riverside Clubhouse
© Yao Li
Riverside Clubhouse
© Yao Li
Riverside Clubhouse
© Yao Li

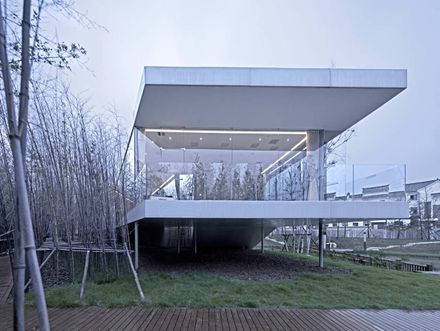

It zigzags and flows, sometimes approaching the ground, sometimes floating in the air. While inside it provides to visitors various views at different level and angle, it also gives an impression that architecture is touching the site in a very “light” form, thus creating a subtlety.

The soft soil geo-condition of the site also makes this floating form structurally reasonable since slim columns on pile foundations support the building.

Riverside Clubhouse
© Yao Li
Riverside Clubhouse
© Yao Li

The floor thickness and column size are made to their minimum dimensions to emphasize the “light” character of building and feeling of floating.

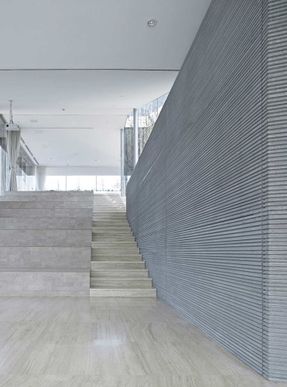

The materials such as low iron glass, white aluminum panel, travertine floor, precast concrete panel and translucent glass partition are used to gain formal abstraction and to create the atmosphere of simplicity and purity.

Riverside Clubhouse
© Yao Li
Riverside Clubhouse
© Yao Li
Riverside Clubhouse
© Yao Li

In the context of lacking local materials and craftsmanship, an abstract form becomes a natural choice aesthetically.


Riverside Clubhouse
structural frame
Riverside Clubhouse
© Yao Li
Riverside Clubhouse
wall section


Riverside Clubhouse
section 01
Riverside Clubhouse
section 03


Riverside Clubhouse
plan 01
Riverside Clubhouse
plan 02
