Lotte Buyeo Resort Baeksangwon

Lotte Buyeo Resort Baeksangwon
© Kim Yongkwan, Kim Jaekyung

LOTTE BUYEO RESORT BAEKSANGWON

KYWC Architects, Kim Seunghoy (Seoul National University)

ARCHITECTS
KYWC Architects, Kim Seunghoy (Seoul National University)

LOCATION
Buyeo, South Korea

AREA
57497.84 m²

CLIENT
Lotte Resort Buyeo

CATEGORY
Hotels

YEAR
2010

PHOTOGRAPH
Kim Yongkwan, Kim Jaekyung

STRUCTURAL ENGINEER
Yoon Koojo Structural Engineering Co.

CONSTRUCTION
Lotte Engineering & Construction

ARCHITECT IN CHARGE
Kim Seunghoy (Seoul National University) + Kang Wonphil (KYWC)

PROJECT TEAM
Sohn Seokhoon, Kim Jungyun, Jin Seongil, Jeon Jaeyoung, Yoo Yongyeon, Shin Sungjin, Lee Jihee

Text description provided by architect.

What should be the starting point of exploring a new style? The answer to this question lies in the style used in the arrangement of the 300 condominiums units:

Lotte Buyeo Resort Baeksangwon
Lotte Buyeo Resort Baeksangwon

Each condominium unit of Baeksangwon is connected through a balcony-access-type corridor that is curved like a horseshoe.

Other corridor styles, such as the type of corridor frequently used in hotels, where housing units can be accessed through a corridor in the middle, can be chosen for the overall purpose of efficiency.

Lotte Buyeo Resort Baeksangwon
Lotte Buyeo Resort Baeksangwon

But these types of corridors often create an undesirable environment due to artificial lighting and poor ventilation.

For this reason, a balcony-access-type corridor was chosen, which is better at providing natural light and offers pretty good ventilation. A curved corridor also offers a more comfortable feeling.

Lotte Buyeo Resort Baeksangwon
Lotte Buyeo Resort Baeksangwon
Lotte Buyeo Resort Baeksangwon

Additionally, a balcony-access-type corridor helps retain technique characteristics of both the inner and outer spaces by providing a clear distinction between the front and back.

This clear distinction provides better flexibility in the design of the façade of the corridors.

The condominium units and corridors are arranged along the two curved lines, which naturally form two courtyards.

Lotte Buyeo Resort Baeksangwon
Lotte Buyeo Resort Baeksangwon

The first courtyard, which opens to the outside, forms a square at the entrance of the convention hall, and at the same time, an indoor garden.

The second courtyard is a multi-functional space, as it connects with many different locations on the lower part of the building (such as cafes, restaurants and a water park).

Lotte Buyeo Resort Baeksangwon
Lotte Buyeo Resort Baeksangwon

Although the flow of space moves along the curves, a strong axiality is formed, as corridors or canopies also make perpendicular lines. Such a sense of direction is reinforced through a partial symmetry of pillars, lined columns or facades.

The process where the round-shaped corridor is connected to the main hall and the garden, as well as the process where the courtyard in front of the conventional hall is connected to the convention hall provides a chance to experience the depth of a clearly defined axis and space.

Lotte Buyeo Resort Baeksangwon
Lotte Buyeo Resort Baeksangwon

The balcony-access-type corridor was very influential in the way the condominium units are organized.

Compared to the units in a hotel type corridor, the units with the balcony-access-type corridor have a much deeper space. Because of the deeper space, each unit is provided with a new floor plan consisting of three areas that lead from the entranceway to the living room.

A unit with a courtyard is planned for the top floor, and is based on a unique floor plan of a traditional Korean house.

The independent, round-shaped corridor leads visitors to the porch of Baeksangwon and clearly defines the outer space surrounding the corridor.

Visitors can view Baeksangwon and its surroundings from every angle by walking along the round-shaped corridor. Additionally, the square inside the corridor can be used as an open space to house various types of events.

Lotte Buyeo Resort Baeksangwon
Lotte Buyeo Resort Baeksangwon

Two different curved lines with three central points, each outlining the shape of Baeksangwon, successfully provide a new resort condominium style, creating a frame to form various types of space.


Lotte Buyeo Resort Baeksangwon
Diagram
Lotte Buyeo Resort Baeksangwon
Diagram
Lotte Buyeo Resort Baeksangwon
Diagram
Lotte Buyeo Resort Baeksangwon
Diagram
Lotte Buyeo Resort Baeksangwon
Sketch


Lotte Buyeo Resort Baeksangwon

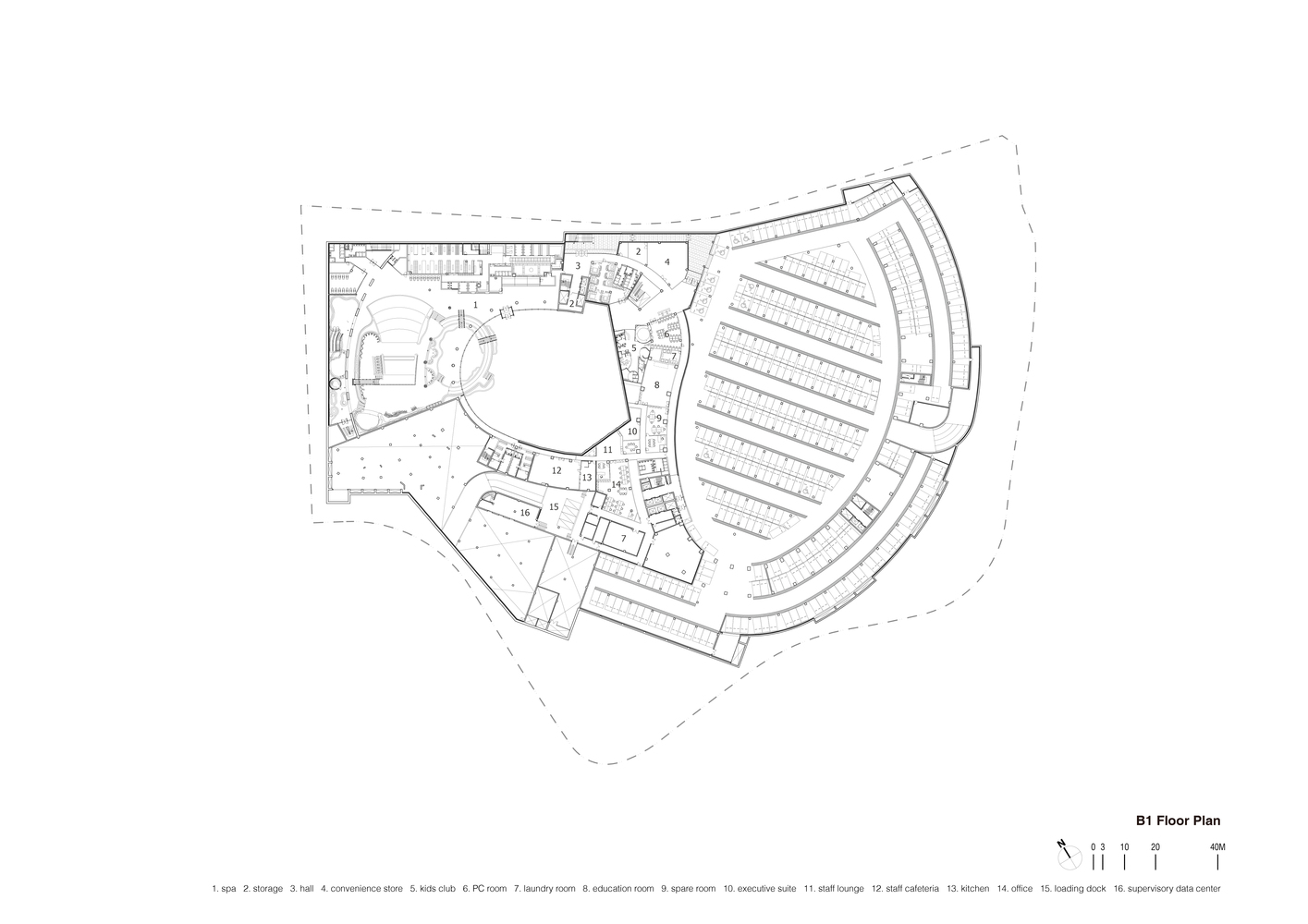

B1 Floor Plan
Lotte Buyeo Resort Baeksangwon
2nd Floor Plan
Lotte Buyeo Resort Baeksangwon
1st Floor Plan


Lotte Buyeo Resort Baeksangwon
Hotel Room Floor Plan
Lotte Buyeo Resort Baeksangwon
Hotel Room Floor Plan
Lotte Buyeo Resort Baeksangwon
Wall Details
