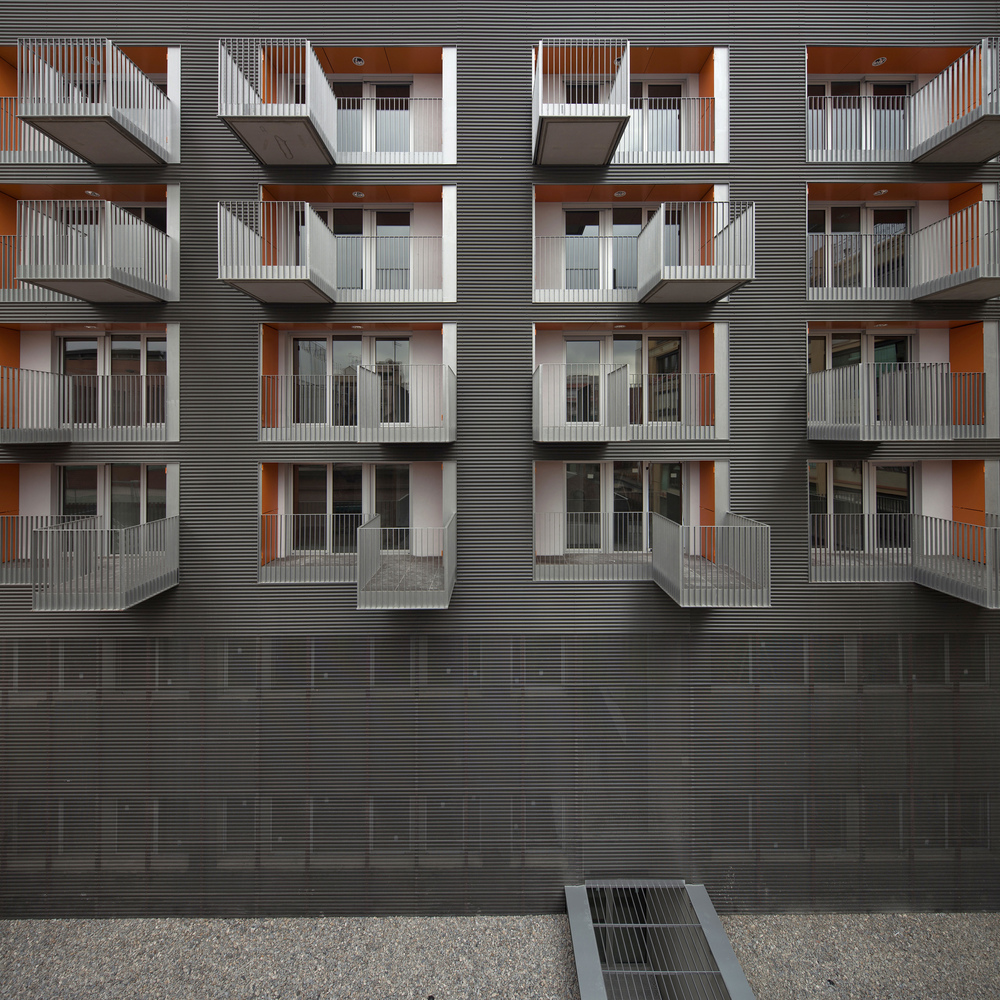

CAP Cibeles

CAP Cibeles
© Jordi Surroca

CAP CIBELES

Valor-Llimós

ARCHITECTS
Valor-Llimós

YEAR
2010

LOCATION
Barcelona, Spain

AREA
5880.0 m²

MANUFACTURERS
ULMA Architectural Solutions, Armstrong Ceilings, Technal

CATEGORY
Retirement, Housing

COLLABORATORS
Laura Llimós, Marc Abril, Aiguasol, L3J, GPO, Conrad Torr

PHOTOGRAPHS
Jordi Surroca

ARCHITECTS IN CHARGE
Jaume Valor, Marc Obradó, Elisabeth Sadurní

32 DWELLING FOR ELDERLY PEOPLE, PRIMARY CARE CENTER & PARKING

The center is located on the border between the “Ensanche” and the “Gracia” neighborhood within an existing building that includes three different uses: 32 dwellings for elderly people, Primary Care Center and parking for 44 vehicles.

CAP Cibeles
© Jordi Surroca
CAP Cibeles
© Jordi Surroca
CAP Cibeles
© Jordi Surroca

The ground floor is strongly conditioned by the need for independent access to each of the different uses.

Space distribution is very influenced by the strict dimensional requirements of the Primary Care Center and housing minimum surface requirements.

All that is reflected in the design of structures, facilities and fire protection.

CAP Cibeles
© Jordi Surroca
CAP Cibeles
© Jordi Surroca

The building is conditioned by the intention to take full advantage of the possibility of natural lighting and ventilation. To do so, the mezzanine floor is pulled apart from the façade, generating an elevated ramp that acts as a hallway, and works as an extension of the street as a space of relationship.

In terms of energy efficiency, the building is one of the four High-Combi pilot projects of the VII European Union's Framework Program, for high-performance solar thermal buildings, and has achieved an Energy Certification A label.

CAP Cibeles
© Jordi Surroca


CAP Cibeles
Front Elevation
CAP Cibeles
Section 04


CAP Cibeles
Ground Floor Plan
CAP Cibeles
Second Floor Plan
CAP Cibeles
Loft Floor Plan
CAP Cibeles
Fourth Floor Plan
