NEW SPORTS BUILDINGS IN OLOT

Bcq Arquitectura

ARCHITECTS
Bcq Arquitectura

LOCATION
Olot, Spain

CATEGORY
Sports Architecture

AREA
5914.0 m²

YEAR
2010

PHOTOGRAPHS
Pedro Pegenaute

COLLABORATING ARCHITECTS
Marta Cid, Alexandre Liberato

STRUCTURAL CALCULATIONS
Eskubi-Turró Arquitectes

CONTRACTOR
Excover

COST
5.282.539 €

M&E ENGINEERING
AIA Instal·lacions Arquitectòniques

PROJECT EXEC MANAGER, TECHNICAL ARCHITECTS
Jaume Bahí, Daniel Castanyer

In a lush grove of majestic poplars, we extend a carpet of wood to make sport. We want to play in a relaxed atmosphere, surrounded by vegetation.

New Sports Buildings In Olot
© Pedro Pegenaute

The building is missing, of course; we need changing rooms, controls, stairways, hallways, spectators, services, stands, stores, benches, baskets, machines, tubes, carpentry ... in short, a large program to serve this space to play, and we try to solve it with a clear and simple volume.

But, how should this volume be? First of all it has to be light, full of air and green, like the trees. It should blend in easily with the sky, even disappear into it.

Meanwhile we are playing indoor, unconcerned, under a large white cover which illuminates and protects us ..., everything is all right.

New Sports Buildings In Olot
© Pedro Pegenaute

The new Sports Hall is built as a volume levitating above the ground. The body achieves a clear and well-rounded geometry.

As a result we get the possibility to use the area above the body of changing rooms for small-format sports (table tennis) as well as services and facilities areas.

The cover, stepped to the rhythm of the beams illuminates a large interior white space. The most important thing of the playing court is the activity, the sport and the play.

Inside, the building appears as a blank canvas, a big empty frame where sport is developed. Only the volume that houses the changing rooms, warehouses, and small-format sports appears contrasted in dark. As the choir of a Gothic church, it departs from the central sports courts area facing towards it in a stair-shape way.

Behind this volume lie the access way to the changing rooms of the athletes, solving the isolation of the circulation area for sport shoes exclusively.

New Sports Buildings In Olot
© Pedro Pegenaute
New Sports Buildings In Olot
© Pedro Pegenaute

Access to the building must be resolved through a separate volume, an elongation of the interior body of the changing rooms that moves outside the building to welcome visitors.

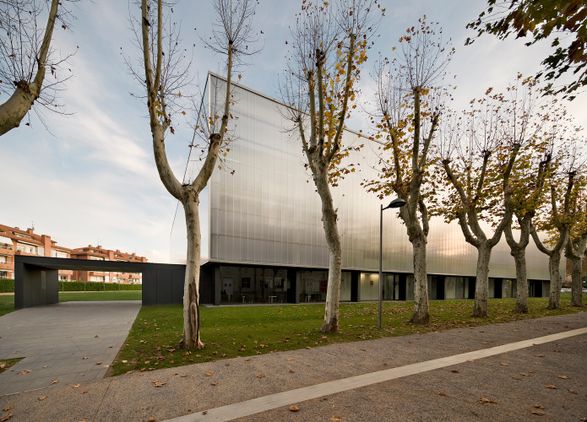

Outside, the green of the trees’ leaves, and their shadows are reproduced in the pixel pattern of the new pavilion’s façade. Ahead of this one, a polycarbonate skin blurs the colors of the façade and the real dimension of the building.

The external image of the building is elusive; it varies depending on time of day or angle of vision. Sometimes the building blends with the sky, sometimes is confused with the trees, at times the building seems to have its own light.

The double façade works, on the other hand, in the thermal conditioning of the building. The heat captured by the walls thanks to the greenhouse effect is used during the winter for heating, while in summer causes a flow of natural ventilation.

New Sports Buildings In Olot
© Pedro Pegenaute
New Sports Buildings In Olot
© Pedro Pegenaute

The main volume is raised a few feet off the ground, releasing a fully glazed ground floor, so that it is possible to play sports on the inside with permanent view to the outside.


New Sports Buildings In Olot
Diagram


New Sports Buildings In Olot
Elevation 1
New Sports Buildings In Olot
Elevation 2

New Sports Buildings In Olot
Elevation 3


New Sports Buildings In Olot
Section 1
New Sports Buildings In Olot
Section 2
New Sports Buildings In Olot
Section 3
New Sports Buildings In Olot
Section 4


New Sports Buildings In Olot
Site Plan
New Sports Buildings In Olot
Ground Floor Plan
New Sports Buildings In Olot
Ground Floor Plan (a)
New Sports Buildings In Olot
First Floor Plan
New Sports Buildings In Olot
First Floor Plan (a)
