SMS Arquitectos

High School Extension

High School Extension
© Jose Hevia

HIGH SCHOOL EXTENSION

SMS Arquitectos

ARCHITECTS
SMS Arquitectos

CLIENT
Ibisec

LOCATION
Palma De Mallorca, Spain

CATEGORY
High School, Extension

AREA
698.0 m²

YEAR
2010

PHOTOGRAPHS
Jose Hevia

COLLABORATORS
Cristian Álvarez

QUANTITY SURVEYOR
Aina Bonet

M&E
TIIS ingenieria

STRUCTURE CALCULATION
Bernat Nadal

GENERAL CONTRACTOR
Pedro Siles SL

BUDGT
440.789,24 €

High School Extension
© Jose Hevia
High School Extension
© Jose Hevia

RESOURCE MAP

The project starts from the small scale of the material, with the premise of using the minimum possible amount of imported resources targeting two objectives, first: reduce the ecological footprint by reducing the "resource map", second: to locate the building in a context much larger than the physical, the economic and the cultural.

High School Extension
© Jose Hevia
High School Extension
© Jose Hevia

The manufacturers of precast concrete have a large palette of materials available on the island that do not dependent on imports.

Since the implementation of the concrete block as a base element of construction in Mallorca, has created a thriving industry of small manufacturers using local aggregates that produce a wide range of small pieces very characteristic of the residential developers of the '70s.

High School Extension
© Jose Hevia
High School Extension
© Jose Hevia
High School Extension
© Jose Hevia

It is therefore an exercise that explores the visual capabilities as well as "re-valuate" banal elements used in architecture that do not enjoy the "status" of other materials.

The facade was made with "german blocks" of the company Palerm, and in their production only gravel aggregates from a local quarry have been used.

The extension it can be considered as a 1:1 test of the aesthetic and structural possibilities of small precast blocks.

High School Extension
© Jose Hevia
High School Extension
© Jose Hevia
High School Extension
© Jose Hevia

Several resistance tests have been made to determine the strength of the blocks that have not been used in its usual position, and when the resistance is surpassed the blocks return are placed in their traditional position.

The facade has been designed as self-supporting, a cross between a ventilated façade cavity wall improving the thermal efficiency of the skin.

High School Extension
© Jose Hevia
High School Extension
© Jose Hevia

DIRECT ACTION

The high school extension is a literal translation of the exiting construction, a bold continuation with no desire for standing out in order to avoid being absorbed by the large adjacent block.

It also allow us to optimize elements, using as many architectural elements and technical aspects of the existing building as the stairs, the elevator system or the central heating.

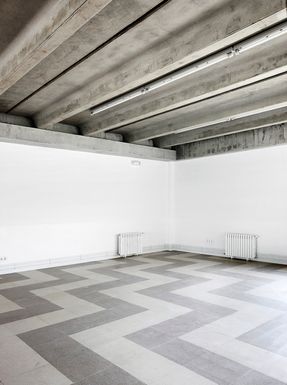

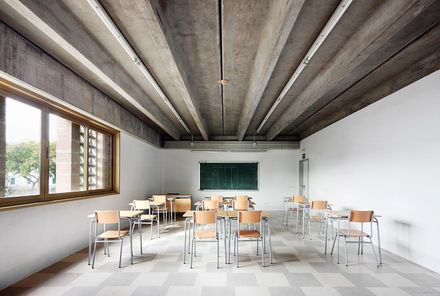

The new structure has been resolved with large span prefabricated elements in order to provide structural continuity and create flexible spaces with possibilities of redistribution.

High School Extension
© Jose Hevia


High School Extension
Elevation

High School Extension
Elevation


High School Extension

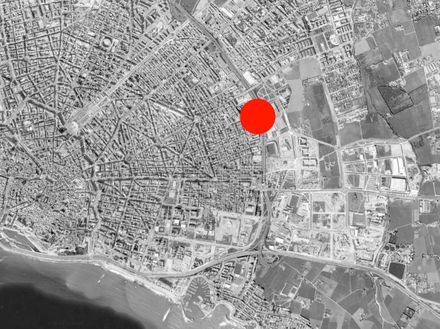

Site Plan
High School Extension
Site Plan


High School Extension
Floor Plan
High School Extension
Floor Plan
High School Extension
Floor Plan
High School Extension
Floor Plan
High School Extension
Floor Plan
High School Extension
Floor Plan
High School Extension
Floor Plan
High School Extension
Floor Plan


High School Extension
Section
High School Extension
Section
High School Extension
Axonometric


High School Extension
Detail
High School Extension
Detail
High School Extension
Site Plan
