BOB361 Architects

Library + Restaurant + Multifunctional Space

Library + Restaurant + Multifunctional Space
© André Nullens

Library + Restaurant + Multifunctional Space

BOB361 Architects

ARCHITECTS
BOB361 Architects

LOCATION
Dendermonde, Belgium

CATEGORY
Library

AREA
6300.0 m2

YEAR
2010

PHOTOGRAPHS
André Nullens

Text description provided by architect.

The building site is situated between the main road of the city of Dendermonde and the green bank of the river Dender.

Library + Restaurant + Multifunctional Space
© André Nullens
Library + Restaurant + Multifunctional Space
© André Nullens

Three urban strategies lead to the creation of a new connection of these two contrasting atmospheres.

The historical fortifications are transformed into a greenbelt around the centre of the city. The green passage along the library completes the missing link in this structure.

Within the urban fabric the complex introduces a new hangout-place, enriching the social network. The presence of schools and the diverse program will activate the site day and night.

Library + Restaurant + Multifunctional Space
© André Nullens
Library + Restaurant + Multifunctional Space
© André Nullens

By creating a physical pedestrian walkthrough, connecting the main shopping axis and the recreational green area, a critical mass of people can penetrate the site. The passage gives the building four active façades.

The literal implementation of the program would have been problematic on the building site, as the green passage would have become parking and the building itself would lack dialogue with its surrounding space.

Library + Restaurant + Multifunctional Space
© André Nullens
Library + Restaurant + Multifunctional Space
© André Nullens

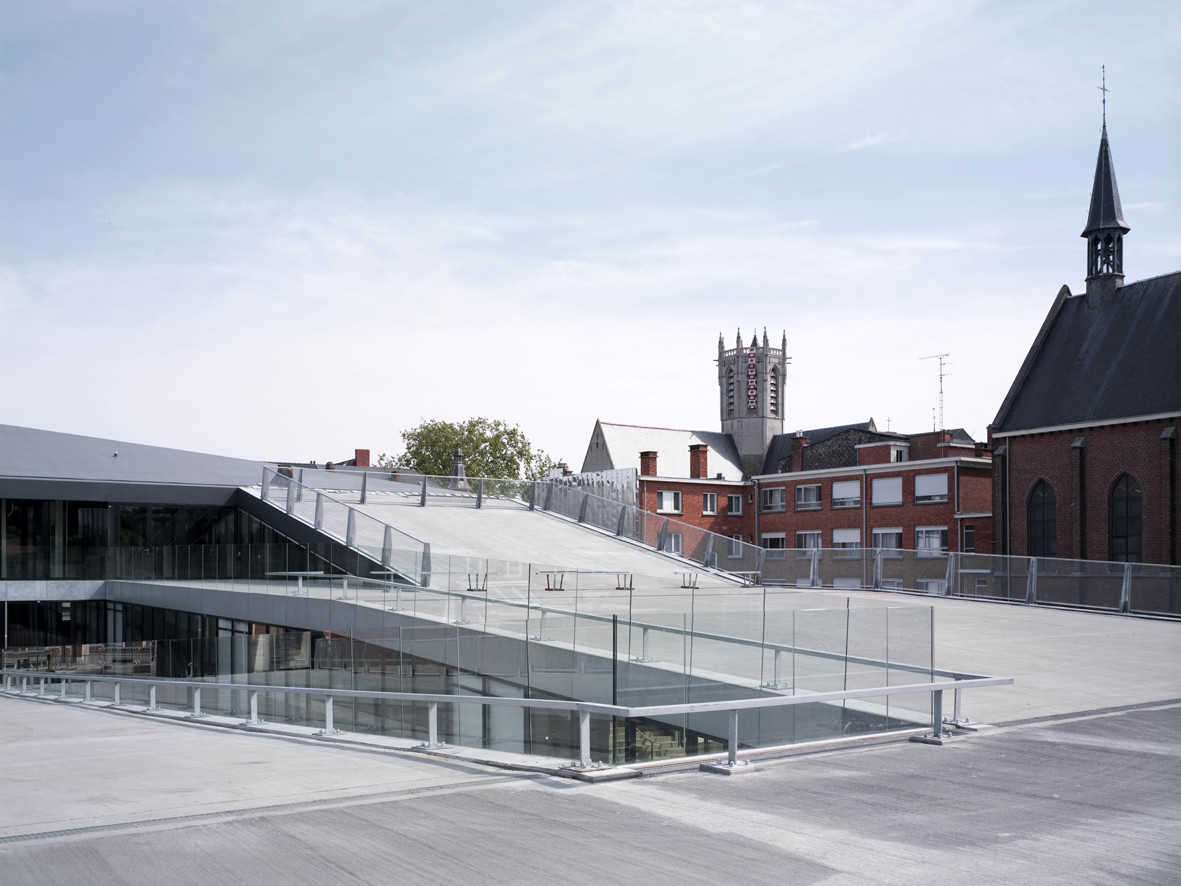

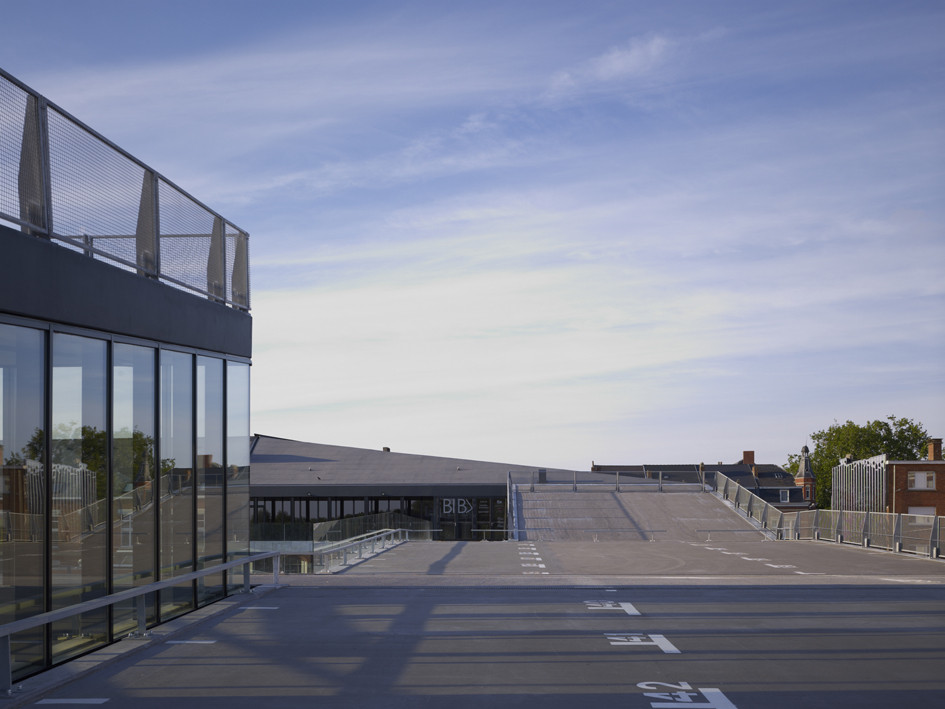

By shifting the parking onto the top of the building, the green area can become a pedestrian connection where the main entrance of the library is situated. The roof functions as a public and easily accessible square.

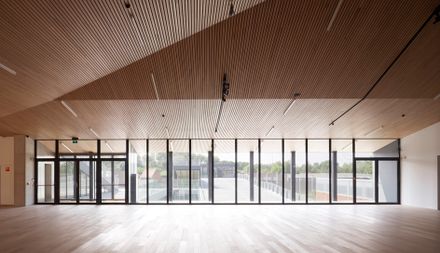

The multifunctional hall (exhibitions, functions, lectures…) along the main road and meeting rooms on the “backside” are lifted and can function separately through the roofscape. The ‘roof- square’ acts as a transit space for the flux of cars and people.

Library + Restaurant + Multifunctional Space
© André Nullens
Library + Restaurant + Multifunctional Space
© André Nullens

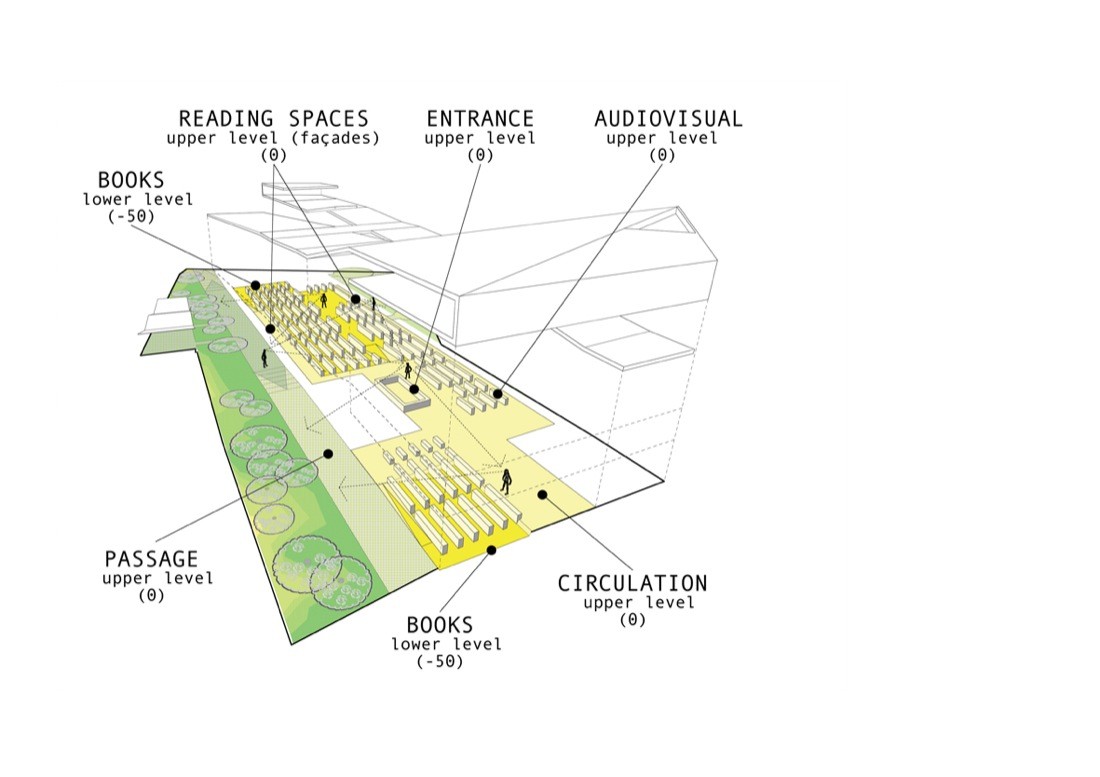

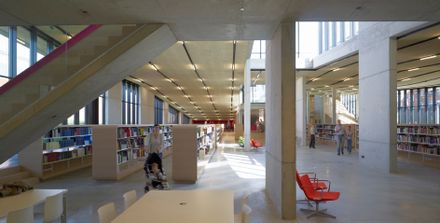

It folds to get natural light into the underlying spaces. The large open space of the library is formed by the folding planes of the roof and the floor, creating a space of varying volumes.

By setting the book collections down, the occupant has an uninterrupted view of the library space. The central circulation-strip services the different collections and is naturally lit (garden, light- pavilion, skylight).

SUSTAINABILITY

The folded concrete slab incorporates the lighting and the acoustic absorption.

Library + Restaurant + Multifunctional Space
© André Nullens
Library + Restaurant + Multifunctional Space
© André Nullens

Since the building is very deep, the design a sustainable lighting system was very important: the concrete roof is folded in such a way as to allow natural light to penetrate into the core of the building, without causing glare.

To realize optimal summer comfort, intensive night ventilation was integrated in the project. Although a library is a very busy and vibrant space, the lighting and acoustic design make it a very comfortable and quiet space.

Library + Restaurant + Multifunctional Space
© André Nullens


Library + Restaurant + Multifunctional Space
© André Nullens
Library + Restaurant + Multifunctional Space
© André Nullens
Library + Restaurant + Multifunctional Space
© André Nullens
Library + Restaurant + Multifunctional Space
© André Nullens
Library + Restaurant + Multifunctional Space
© André Nullens
Library + Restaurant + Multifunctional Space
© André Nullens


Library + Restaurant + Multifunctional Space
sketch
Library + Restaurant + Multifunctional Space
sketch
Library + Restaurant + Multifunctional Space
sketch
Library + Restaurant + Multifunctional Space
sketch


Library + Restaurant + Multifunctional Space
sketch
Library + Restaurant + Multifunctional Space
sketch


Library + Restaurant + Multifunctional Space

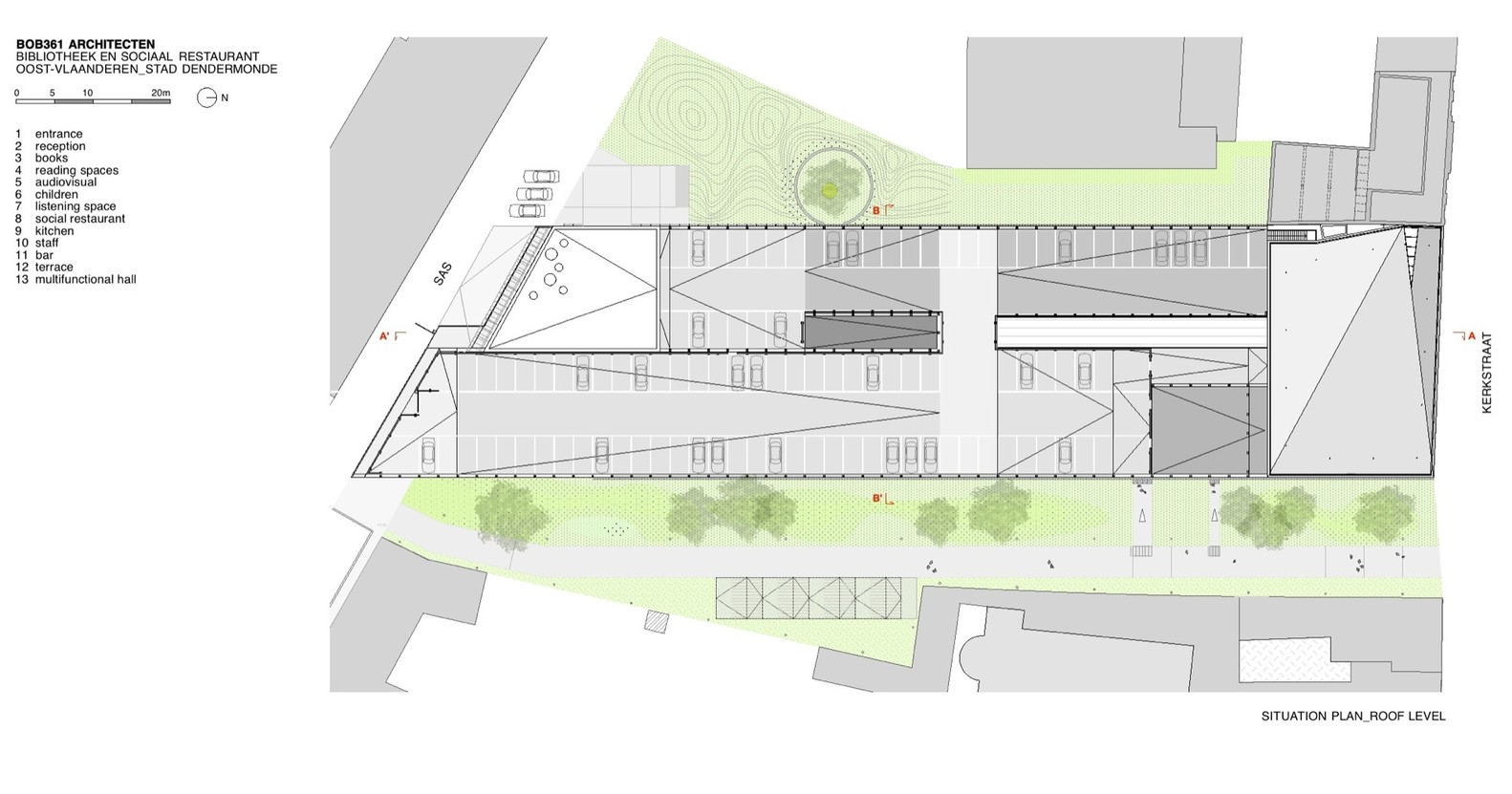

plan
Library + Restaurant + Multifunctional Space
Plan


Library + Restaurant + Multifunctional Space
elevation
Library + Restaurant + Multifunctional Space
Section
