MIDDELFART SAVINGS BANK

3XN

ARCHITECTS
3XN

PHOTOGRAPHS
Adam Mørk

YEAR
2010

LOCATION
Middelfart, Denmark

CATEGORY
Services

Text description provided by architect.

3XNs visionary and empathetic winning proposal unites the Middelfart savings Bank’s high ambitions for their new head office.

Middelfart Savings Bank
© Adam Mørk
Middelfart Savings Bank
© Adam Mørk

The building must ensure a perfect environment for the employees, while also positively stress demands for high architectural quality in the future development along the harbour front.

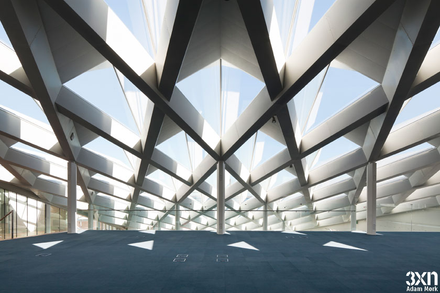

One large roof covers all functions in the building. The roof is a large elegant wooden structure with numerous openings.

The openings bring in abundant amounts of daylight and allow for direct view of the sea from all places in the building, up and down.

Middelfart Savings Bank
© Adam Mørk
Middelfart Savings Bank
© Adam Mørk

In this way, the light and friendly atmosphere sought for by the bank is achieved.

The 83 prism like skylights compose the spectacular roof surface defining the geometry of the rest of the building – in reference to the maritime environment on the harbor front as well as the surrounding timber framed buildings.

The roof is designed to frame a perfect view towards the Lillebælt waters as well with a functional purpose of shading from direct sunlight.

Middelfart Savings Bank
© Adam Mørk
Middelfart Savings Bank
© Adam Mørk
Middelfart Savings Bank
© Adam Mørk

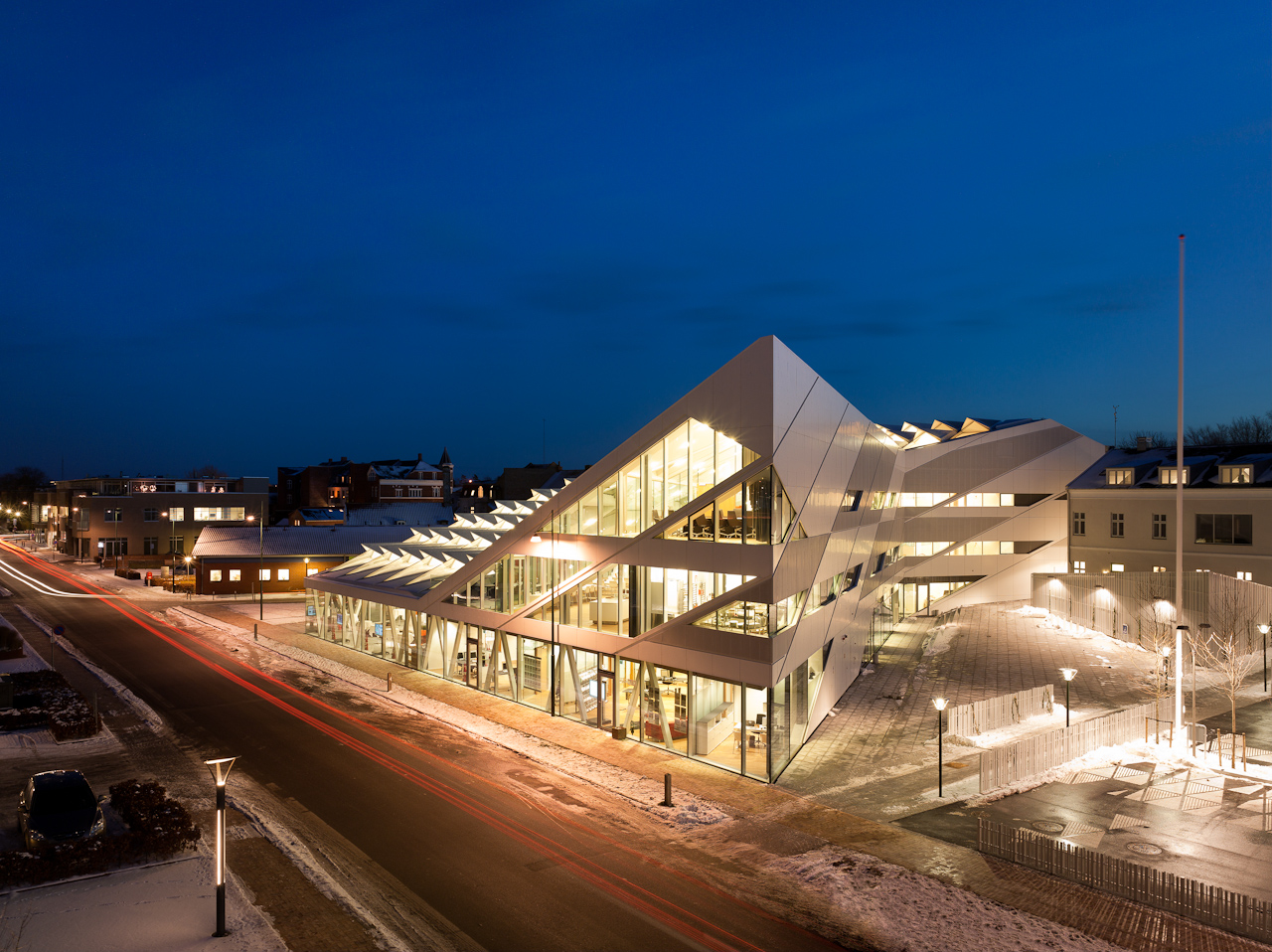

The new building is carefully fitted into the context. To one side, the village is respected by following dimensions, scale and the shape of the roof.

Towards the harbour the building retracts and makes way for a new, triangular space that opens for the view.

Middelfart Savings Bank
© Adam Mørk
Middelfart Savings Bank
© Adam Mørk

From the plaza, one enters a large, indoor ‘market place’, the heart of the building. At entrance level, a bookshop, a café and a real estate agent and the cash desk is placed.

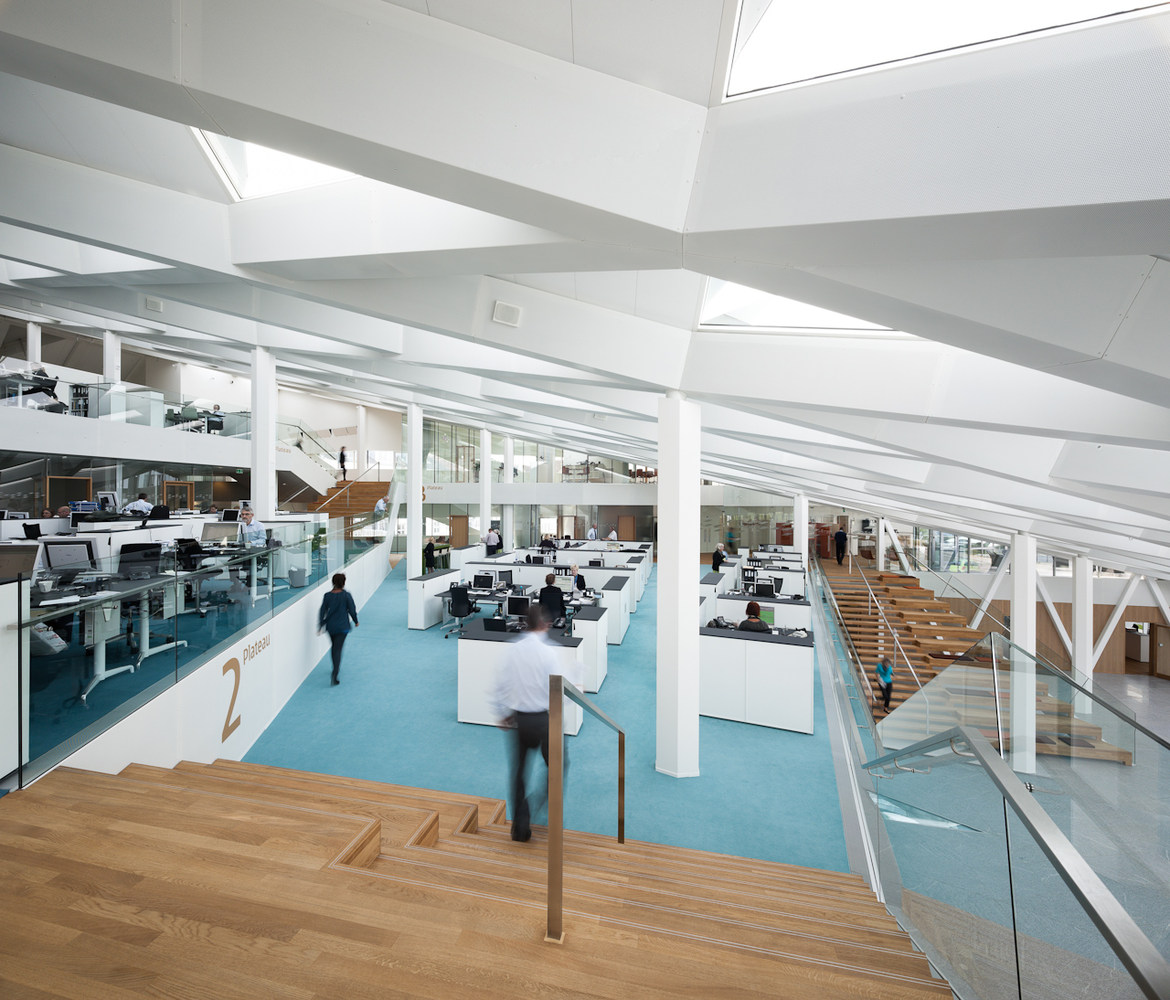

The rest of the bank’s area is spread at a series of terraces with open connections to the plaza and to each other. The terraces are connected by spacious staircases that provide good opportunities for the important informal meeting.

With its central position, the building will become a natural meeting point for clients, staff and visitors. In relation to the surrounding city, a delicate balance has been achieved a beautiful, contemporary and well functioning building that integrates respectfully in the overall picture.

Middelfart Savings Bank
© Adam Mørk
Middelfart Savings Bank
© Adam Mørk

Internationally renowned artist Olafur Eliasson has created an art installation for the plaza.

Six ‘shooting star’ kaleidoscopes inspired by the triangular geometry of the building are lowered into the ground floor granite adding an extra dimension to the structure.

THERMOACTIVE HYDRONICS ELEMENT

In addition to developing a comprehensive and holistic sustainable strategy for each project,

Middelfart Savings Bank
Middelfart Savings Bank
© Adam Mørk
Middelfart Savings Bank
© Adam Mørk

The Research & Development department at 3XN scans the marketplace and actively implements latest technologies and sustainable innovations into our projects. Developed through the Danish Technical University, and now a part of the curriculum,

the implementation of the latest technologies in energy efficient heating and cooling of buildings for the headquarters of Middelfart Savings Bank has been viewed as groundbreaking.

Middelfart Savings Bank
© Adam Mørk
Middelfart Savings Bank
© Adam Mørk

The method utilizes the mass and ability of concrete to adjust the room temperature by absorbing and releasing heat. The method is based upon pre-fabricated concrete decks with embedded plastic pipes.

LARGE ENERGY SAVINGS

With these thermoactive concrete elements it is possible to reduce the energy consumption for heating by 30 percent and the energy consumption for cooling and mechanical ventilation by up to 85 percent; in total, an energy saving of 30-50 percent.

Middelfart Savings Bank
© Adam Mørk
Middelfart Savings Bank
© Adam Mørk

This is due to the fact that the system allows for better use of alternative supply sources, i.e. the plant can operate as a low- temperature floor heating system during winter, based upon heat-driven heat pumps, and during summer, the cool night air, soil tubes, ground water or sea water can be used for cooling.

The system is partly self-regulating as water for heating and/or cooling is circulated with a temperature only a few degrees from the desired room temperature, and this is the key to the large energy savings. In addition to energy savings the capital costs were lower due to the reduced needs for cooling and heating.

Middelfart Savings Bank
© Adam Mørk


Middelfart Savings Bank
under construction
Middelfart Savings Bank
under construction


Middelfart Savings Bank
section


Middelfart Savings Bank
first floor plan
Middelfart Savings Bank
second floor plan
Middelfart Savings Bank
roof plan
Middelfart Savings Bank
grond floor plan
