Saota

Nettleton 195

Nettleton 195
© Courtesy of COA

NETTLETON 195

Saota

ARCHITECTS
Saota

LOCATION
Cape Town, South Africa

CATEGORY
Houses

AREA
1005.0 m2

PROJECT YEAR
2010

Nettleton 195
© Courtesy of COA

Text description provided by architect.

BRIEF

Our client purchased the site, after we had completed an initial Design Concept for the previous property owner. Our client loved the design, and the visual direction the home was going, and accordingly shaped his brief around the design he saw.

SITE

Whilst the site is fairly small at 874.7 sqm, it sloped away dramatically, resulting in a house of 5 separate floors which in many instances connects to the adjacent natural ground levels, or raised platforms.

Nettleton 195
© Courtesy of COA
Nettleton 195
© Courtesy of COA

One accesses the house at the midlevel between the second and the highest floor, resulting in the house being only 2 storys above Nettleton Road.

APPROACH

This family home defines itself primarily by the way the principal living spaces at level two relate to the surrounding portions of site.

Nettleton 195
© Courtesy of COA
Nettleton 195
© Courtesy of COA

This floor accommodates two generous living rooms, an open-plan kitchen and a triple volume dining room. Virtually all rooms open out to adjacent terraces or garden spaces, which allows the house to fully utilize the small property.

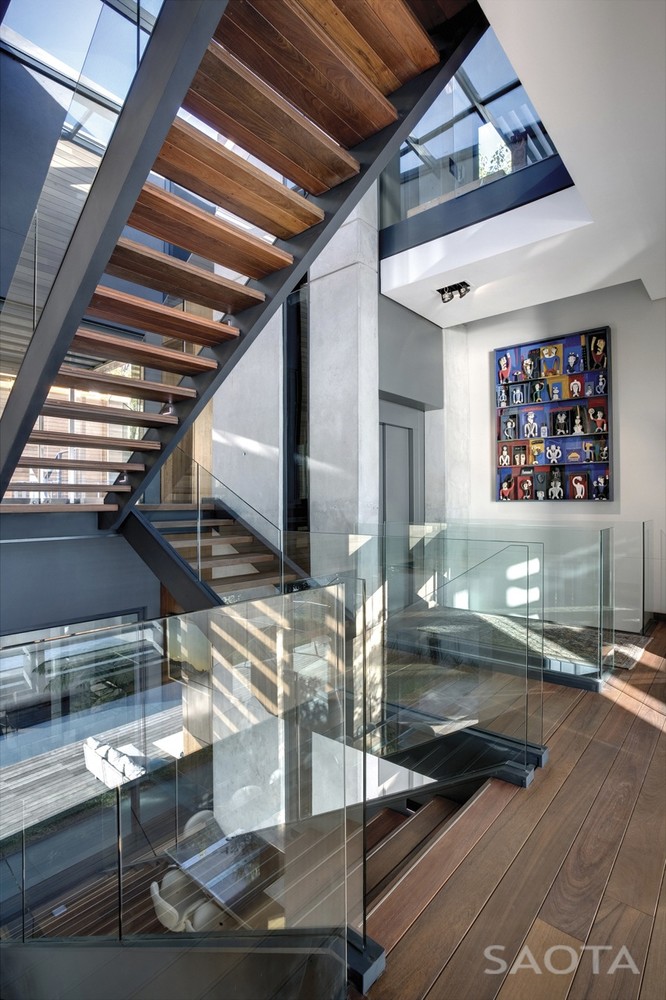

A dramatic open tread staircase and lift core, with a generous skylight creates a central spine which connects all the floors comfortably.

Nettleton 195
© Courtesy of COA
Nettleton 195
© Courtesy of COA

Even the lowest level, which is a predominantly double volume gallery space formed by the cavernous space below the main living level and the steep natural ground line, has generous natural light via the stairwell and skylights.

This floor accommodates a cellar, large wall surfaces for the client’s art collection, pool table, bar and open media room.

Nettleton 195
© Courtesy of COA
Nettleton 195
© Courtesy of COA

The next half level accommodates the staff quarters and plant room. As noted above, the second floor accommodates the main living rooms, which enjoy fantastic views, and connection to portions of gardens to the East and North.

The third and fourth floor accommodates four West facing en-suite bedrooms, a triple garage, a study and the entrance hall at street level. Views and a unique set of finishes enrich the otherwise compact size of most rooms.

Nettleton 195
© Courtesy of COA
Nettleton 195
© Courtesy of COA
Nettleton 195
© Courtesy of COA

The project is distinguished by its robust finishes and attention to detail. It’s seldom that a client allows us to use such raw finishes like the unpainted galvanized mild steel bridges and balustrades, at the entrance, the extent of off-shutter concrete and the ribbed zinc roofing and wall cladding. To introduce a softer layer of finishes a substantial amount of hardwood and softwood was used with rich stonework and resin bonded plaster wall finishes.

To introduce a softer layer of finishes a substantial amount of hardwood and softwood was used with rich stonework and resin bonded plaster wall finishes.


Nettleton 195
© Courtesy of COA
Nettleton 195
© Courtesy of COA
Nettleton 195
© Courtesy of COA
Nettleton 195
© Courtesy of COA


Nettleton 195
Basement Plan
Nettleton 195

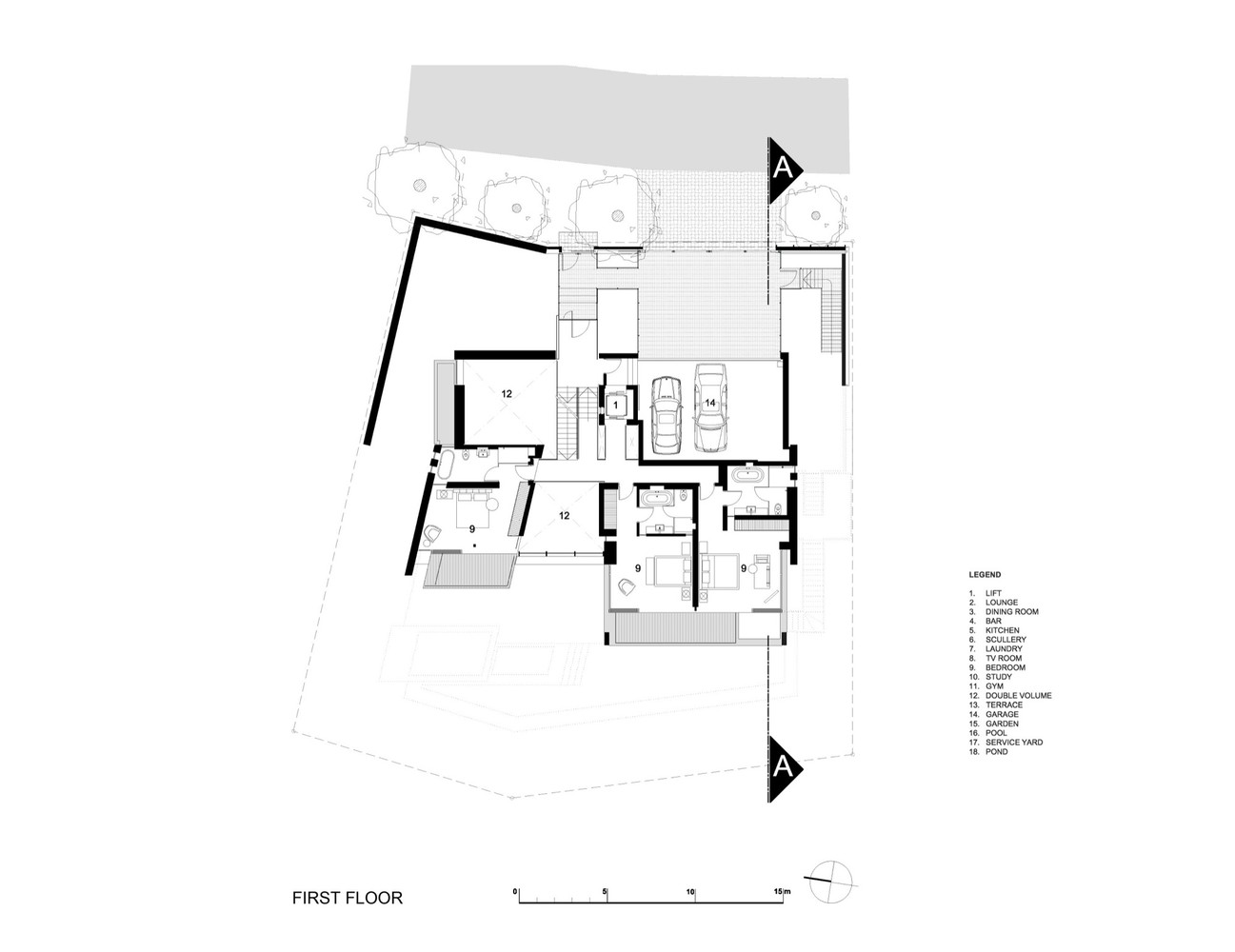

First Floor Plan
Nettleton 195
Ground Floor Plan
Nettleton 195
Second Floor Plan


Nettleton 195

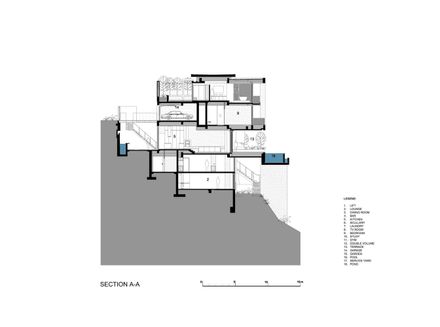

Section
Nettleton 195
West Elevation
