Text description provided by architect.

The house is located in Devín, a village near the capital Bratislava.

DEV House
Courtesy of GutGut
DEV House
Courtesy of GutGut

Narrow and long parcel, a traditional historical setting in this part of Slovakia ends on a boarder of a castle Devín.

House will be occupied by a senior couple. They are moving here after their children grown up and left home.

The orientation of the longitudinal axis is east – west.

DEV House
Courtesy of GutGut
DEV House
Courtesy of GutGut
DEV House
Courtesy of GutGut

The client wanted a large amount of intimacy in this project so any openings along facades facing south to neighbouring plots were out of question.

We decided for an introvert linear plan which opens itself just to the street, garden and inner patio. On a base level there is a single car garage and a service room.

All the living areas are situated on an elevated floor connected by both interior and exterior stairs. One enters the house with a staircase along the southern facade directly to the center point of the plan.

DEV House
Courtesy of GutGut
DEV House
Courtesy of GutGut

The house is organized around an inserted patio that acts as a very intimate, partial roofed outdoor area.

It also guides natural sun light to the kitchen, entrance area and a master bedroom. In front of the bedroom glazing is a roofed part of the patio with a whirlpool bathtub.

DEV House
Courtesy of GutGut
DEV House
Courtesy of GutGut

The living room at the western side occupies two floors including a gallery that overlooks part of the lower floor.

It is resting place with a skylight for reading books and a temporary sleeping oportunity for visitors eventually.

DEV House
Courtesy of GutGut
DEV House
Courtesy of GutGut

As it is set in an historical environment with strict rules we had to design this house with sloped roofs.

They are rising and descending along the longitudinal axis to various levels.

DEV House
Courtesy of GutGut
DEV House
Courtesy of GutGut
DEV House
Courtesy of GutGut

The highest one is above the open space living room and kitchen and contains the mentioned gallery.

The lower level of the house is a traditional masonry construction with a reinforced concrete slab. Upper floor is a timber framework open for diffusion. Spray applied cellulose is used for thermal insulation.

All the upper living floor is clad with a cement bonded particle boards with a smooth finish and color similar to aluminium metal roof.

DEV House
Courtesy of GutGut
DEV House
Courtesy of GutGut
DEV House
Courtesy of GutGut

The monochromatic finish of this volume should further enhance the rather expressive look of the zigzag-shaped roofs.

Interior finishes are very simple too. All the walls are white painted plasterboard with wooden doors. Oak wood is used for floors and pine veneered board cladding for the ceilings in main areas. Ceiling in rooms follows the sloped roofs above and are painted white.


DEV House
Courtesy of GutGut
DEV House
Courtesy of GutGut
DEV House
Courtesy of GutGut
DEV House
Courtesy of GutGut
DEV House
Courtesy of GutGut


DEV House

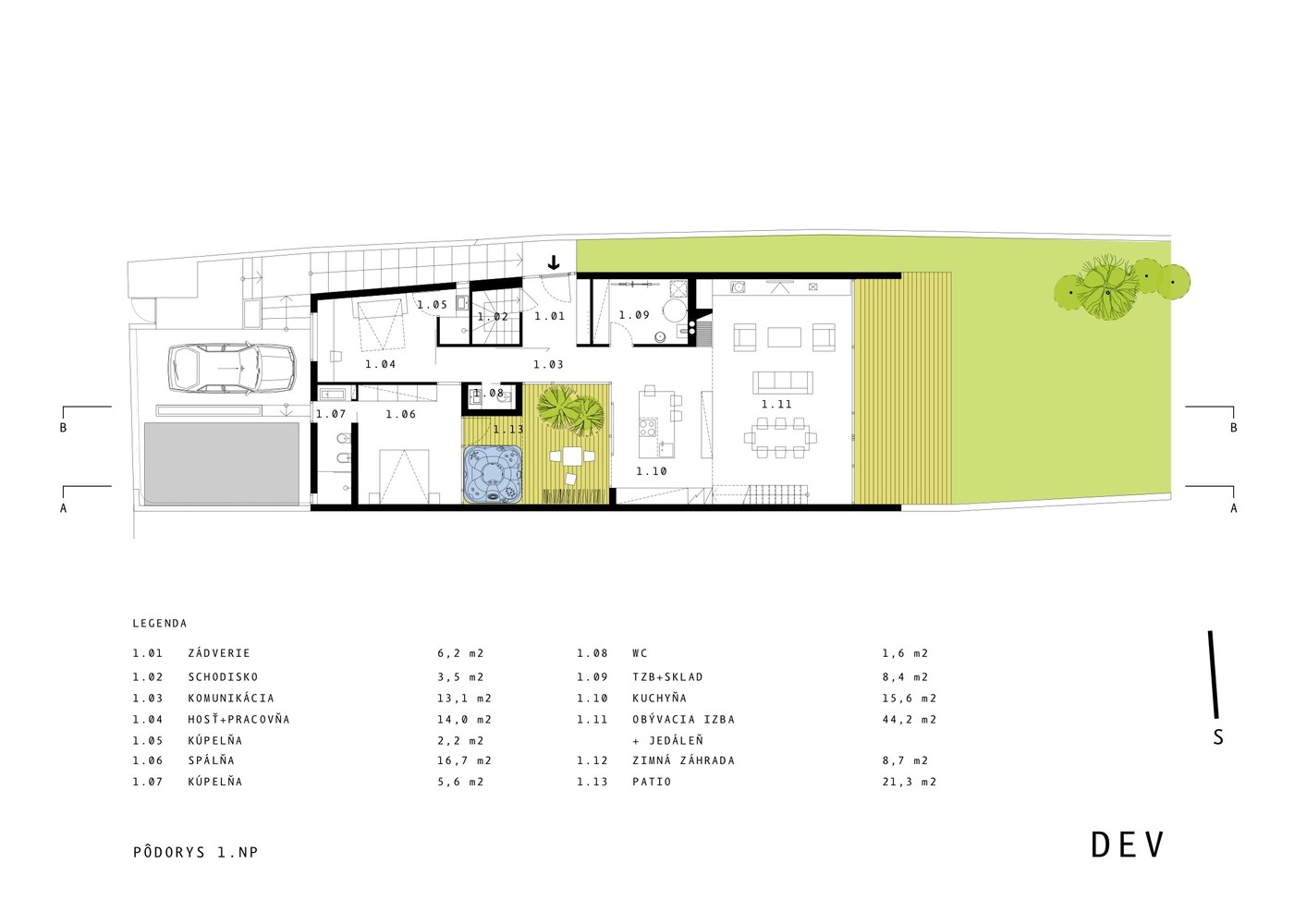

First floor plan
DEV House
Second floor plan
DEV House
Third floor plan
DEV House
Situation plan


DEV House
Sections
DEV House
Concept schemes


DEV House
Elevation 01
DEV House
Elevation 02
