Z-Square House

Z-Square House
© Henrietta Williams / Mary-Louise Halpenny

Z-SQUARE HOUSE

Mccullough Mulvin Architects

MAIN CONTRACTOR
Eamonn Hassett Construction, Pierce Healy Developments

PHOTOGRAPHS
Henrietta Williams, Mary-Louise Halpenny

QUANTITY SURVEYORS
John Skelly

STRUCTURAL ENGINEERS
Kavanagh Mansfield and Partners

MECHANICAL AND ELECTRICAL ENGINEERS
McArdle McSweeney

YEAR
2010

LOCATION
Rathmines, Ireland

CATEGORY
Houses

Text description provided by architect.

This mews house built on sustainable principles is located on a square (13.0 x 13.0 m) site in the rere garden of a large Edwardian house in South Dublin.

Z-Square House
© Henrietta Williams / Mary-Louise Halpenny
Z-Square House
© Henrietta Williams / Mary-Louise Halpenny

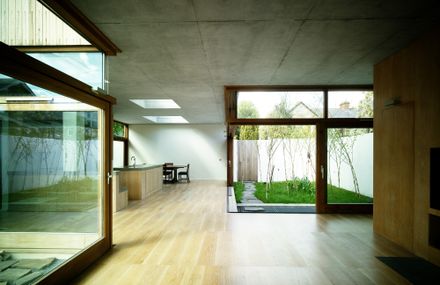

The ground plan is analogous to an Islamic house with external garden courts inset within a regular enclosure, the internal space free flowing under an uninterrupted concrete soffit.

Varieties of garden are planned for the external spaces; the roof is another planted landscape, with upstanding rooflights.

Z-Square House
© Henrietta Williams / Mary-Louise Halpenny
Z-Square House
© Henrietta Williams / Mary-Louise Halpenny

External walls are made with coursed granite and cedar panels.


Z-Square House
© Henrietta Williams / Mary-Louise Halpenny
Z-Square House
© Henrietta Williams / Mary-Louise Halpenny
Z-Square House
© Henrietta Williams / Mary-Louise Halpenny


Z-Square House
Section
Z-Square House
Section
Z-Square House
Section


Z-Square House
Ground Floor Plan
Z-Square House
First Floor Plan
Z-Square House
Site Plan
