QUEEN ANNE MID-MODERN

Coop15 Architecture

ARCHITECTS
Coop15 Architecture

LOCATION
Seattle, United States

CATEGORY
Houses

AREA
2430.0 m2

PROJECT YEAR
2010

Text description provided by architect.

One of Seattle’s highly regarded architects of the past century was Paul Hayden Kirk (1914-1995).

Modern home design put him on the map, and he went on to design the Intiman Theatre building and Exhibition Hall at Seattle Center; Balmer, Haggett, Meany and McMahon halls at the University of Washington; and UW's Odegaard Undergraduate Library.

Queen Anne Mid-Modern
© Coop15 Architecture
Queen Anne Mid-Modern
© Coop15 Architecture
Queen Anne Mid-Modern
© Coop15 Architecture

Design of the house at 2711 First on Seattle’s Queen Anne Hill was a mid-career effort for Kirk, a bold, compact composition with shingled walls that wrap over to become the roof.

The idea was reinforced inside with cedar clad walls and ceilings. When owners Gavin & Jenny Kelly asked us to renovate and expand the house in 2008, they had two young children living in an 1870 square foot, two-bedroom house, with very limited space for family activities.

We extruded the plan and form, stretching the house to the west about ten feet, making room for another bedroom on the lower level, with a separate bath for kids. The enlarged lower level also accommodated a media room and a spacious home office.

Queen Anne Mid-Modern
© Coop15 Architecture
Queen Anne Mid-Modern
© Coop15 Architecture
Queen Anne Mid-Modern
© Coop15 Architecture

Upstairs, the entry, and combined living/dining/kitchen area, were all expanded.

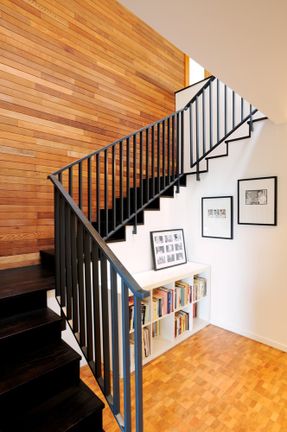

The master bedroom and bath were reconfigured to create a little extra elbow room for 6’-7” Gavin, and the stair was completely changed to increase headroom.

Queen Anne Mid-Modern
© Coop15 Architecture
Queen Anne Mid-Modern
© Coop15 Architecture

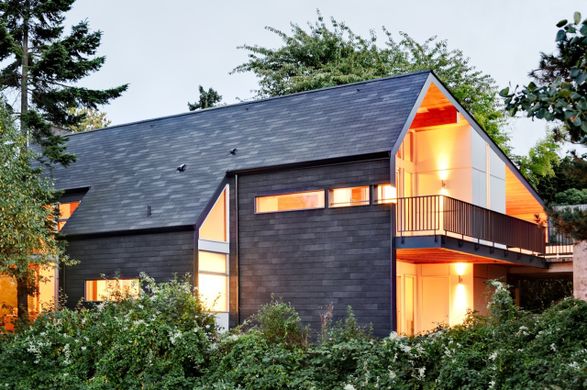

The power of walls that become roof was not changed. The original cedar shingle exterior was long-since replaced with a mishmash of corrugated metal and shingles, in need of replacement.

While a handsome standing seam metal system might have been ideal, it was cost-prohibitive, and the final solution was fiberglass composition shingles for the walls and roof, which ought to last 40 years.

Queen Anne Mid-Modern
© Coop15 Architecture
Queen Anne Mid-Modern
© Coop15 Architecture

Inside, extensive cedar paneling had darkened with age, and when combined with tall trees that had grown up around the property, the effect was a dreary interior.

We added more glass, including a large skylight that replaced a roof monitor, smoothing the lines on the exterior and brightening the interior.

Queen Anne Mid-Modern
© Coop15 Architecture
Queen Anne Mid-Modern
© Coop15 Architecture

Some of those cedar walls were replaced with white gypsum wallboard, with cedar limited to the exterior walls that become the ceiling, emphasizing the exterior concept.


Queen Anne Mid-Modern

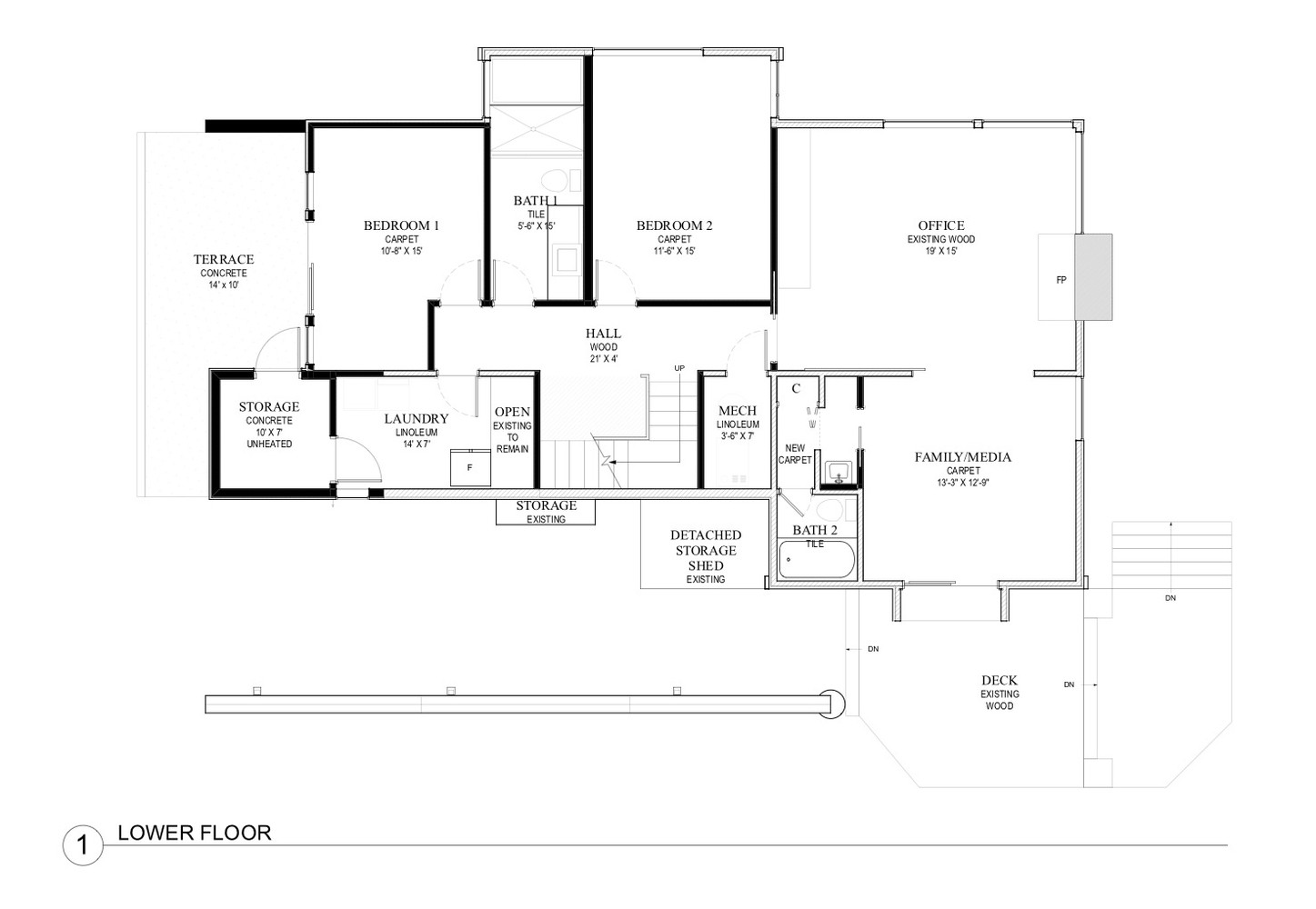

Lower Floor Plan
Queen Anne Mid-Modern
Main Floor Plan
