ARTEC Architekten Bettina Götz + Richard Manahl

Terrace House Tokiostrasse

Terrace House Tokiostrasse
Courtesy of ARTEC Architekten

TERRACE HOUSE TOKIOSTRASSE

ARTEC Architekten

ARCHITECTS
ARTEC Architekten

ARCHITECT IN CHARGE
Bettina Götz, Richard Manahl

PROJECT YEAR
2010

LOCATION
Vienna, Austria

CATEGORY
Apartments

Text description provided by architect.

Analogous to the Grimm Brothers’ fairy tale The Town Musicians of Bremen (whose main characters are a donkey, a dog, a cat, and a rooster), this reinterpretation of terrace houses involves stacking different apartment types atop one another.

Terrace House Tokiostrasse
Courtesy of ARTEC Architekten
Terrace House Tokiostrasse
Courtesy of ARTEC Architekten

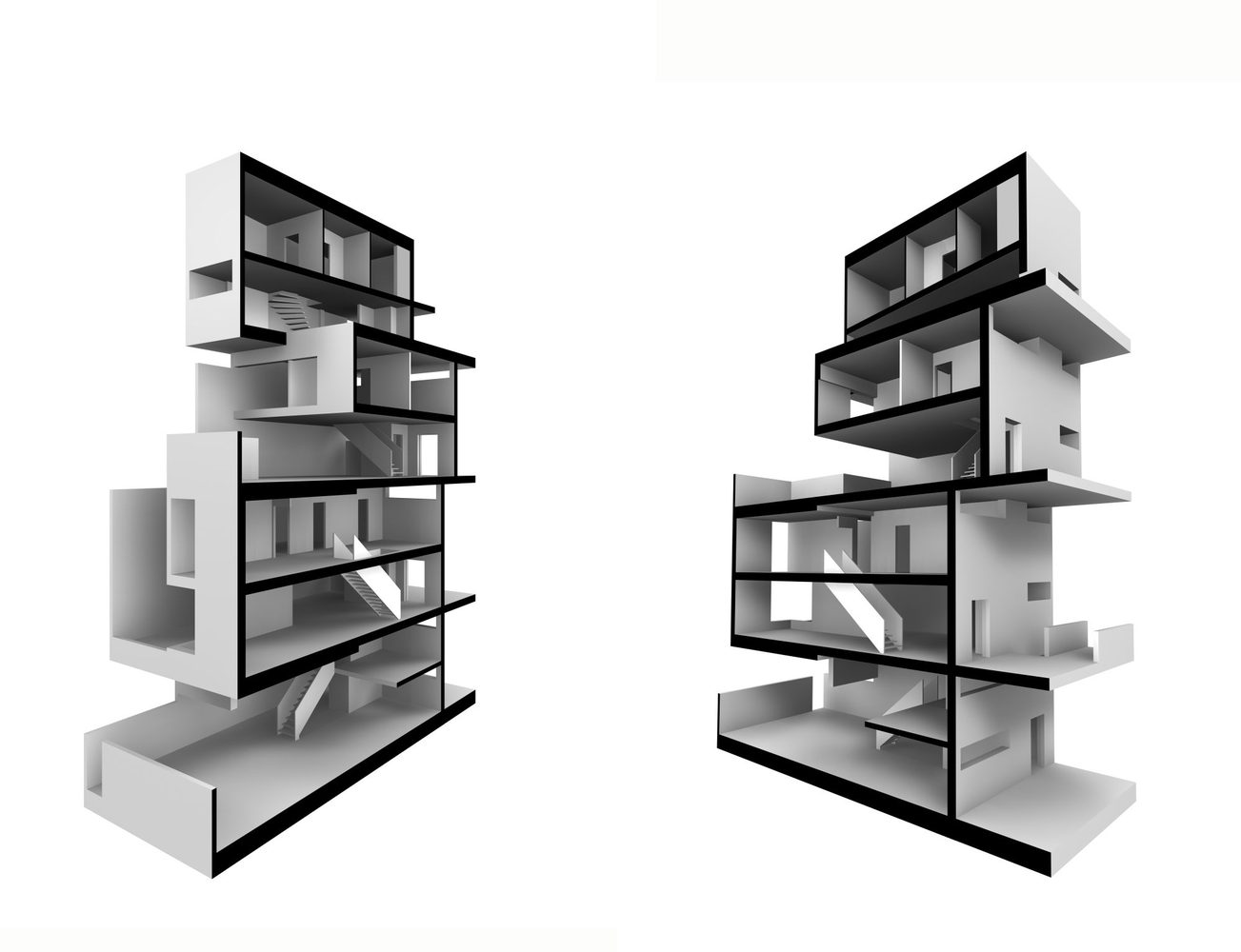

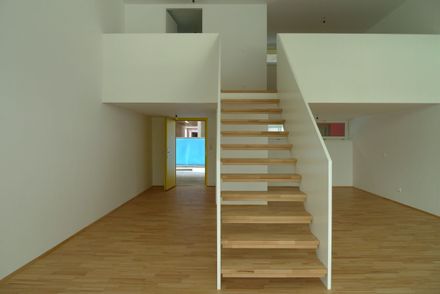

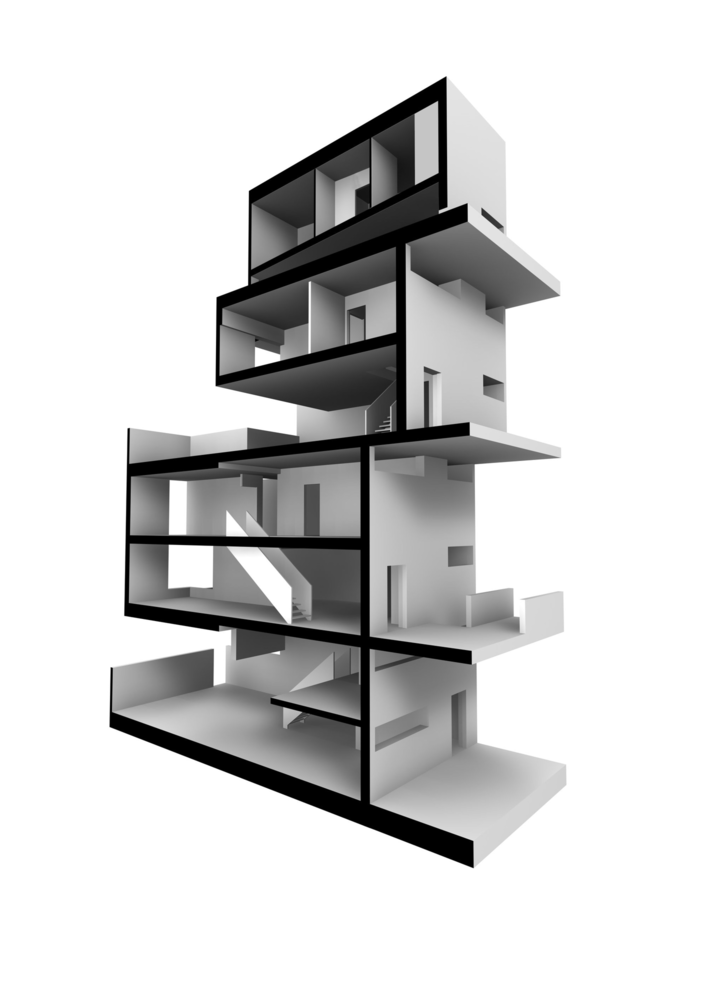

Dwelling types normally considered suburban, with the accompanying outdoor spaces, are stacked atop one another to achieve an urban bundle with high density: On the very bottom of the stack, the units each have an open floor plan with a gallery at the back and a garden in front.

on the next level, maisonettes face on to an atrium courtyard; next there are 2-story row houses with terraces; and at the top allotment-garden “houses” are separated by courtyards.

Terrace House Tokiostrasse
Courtesy of ARTEC Architekten
Terrace House Tokiostrasse
Courtesy of ARTEC Architekten

Along the street, a wing made up of the Casablanca type on “stilts” is superimposed upon the physical site on Tokiostrasse.

A simple, ribbon-like element marking the apartments in the facade (nicknamed “the spider”) provides the rigid massing with a physiognomy facing the public realm as well as an outermost boundary of the respective dwelling-units toward the street.

Terrace House Tokiostrasse
Courtesy of ARTEC Architekten
Terrace House Tokiostrasse
Courtesy of ARTEC Architekten

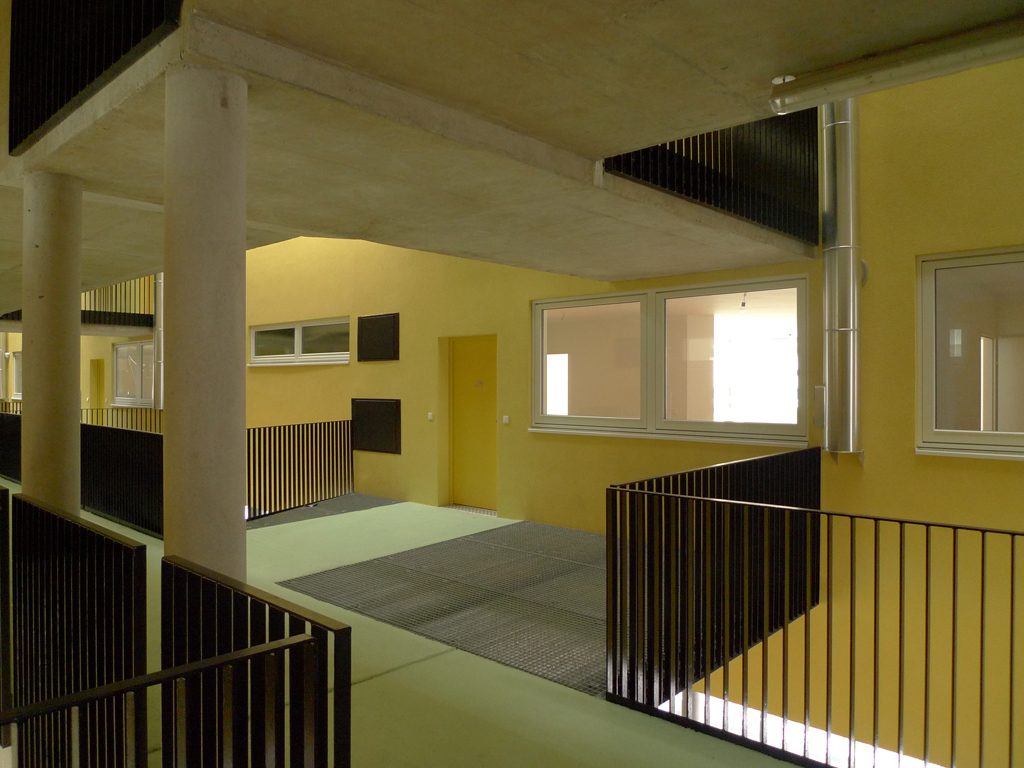

To the east, a green space running from north to south is flanked by the stacked structures, whose respective circulation is a new take on the Laubengang (a veranda-like walkway with a long tradition in Central Europe).

To the south and north, the wings running along the property lines and enclosing the courtyard are only two stories high. In this manner, with respect to both the new structure and its neighbors.

Terrace House Tokiostrasse
Courtesy of ARTEC Architekten
Terrace House Tokiostrasse
Courtesy of ARTEC Architekten
Terrace House Tokiostrasse
Courtesy of ARTEC Architekten

The sunlight and the view are only minimally infringed upon, and the sense of privacy and articulation toward the street remains intact.

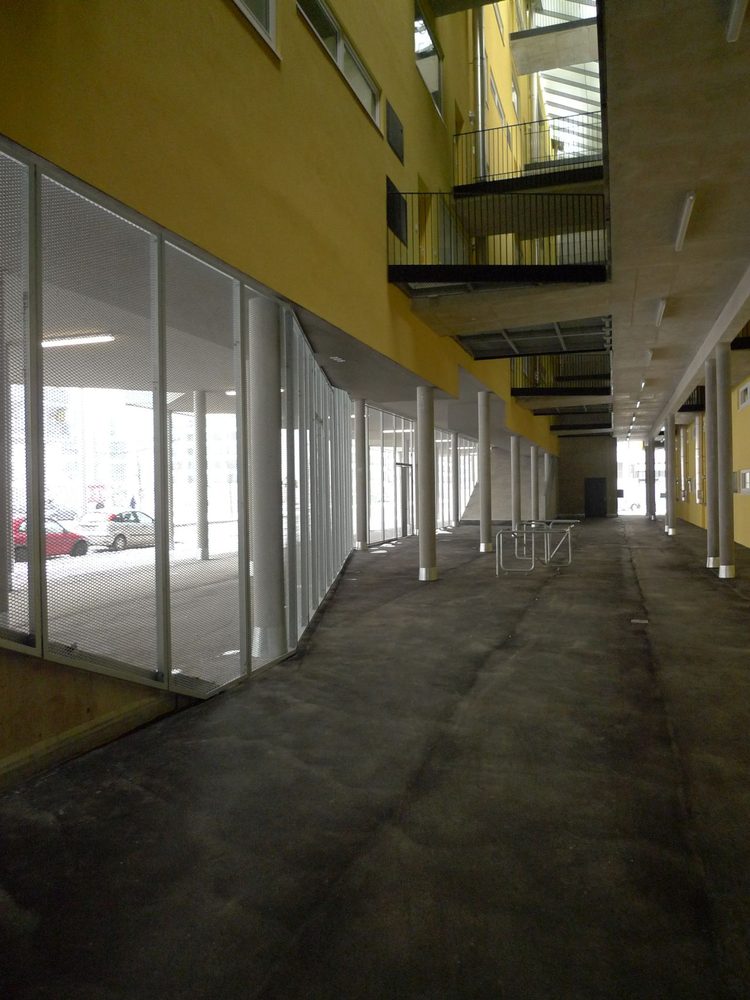

The vegetation at the center of the complex is linked to the streetscape via the open ground floor zone.

The sculptural building massing is articulated to provide the apartments with a pronounced relationship to the outdoors.

Terrace House Tokiostrasse
Courtesy of ARTEC Architekten
Terrace House Tokiostrasse
Courtesy of ARTEC Architekten
Terrace House Tokiostrasse
Courtesy of ARTEC Architekten

Every apartment has its own adjoining outdoor space – the majority of them potentially compact gardens.

All apartments are cross-ventilated; the kitchens and bathrooms receive daylight and have natural ventilation. In addition, the residents have access to the roof surface atop the wing running along the street, with its green terrace, swimming pool and sun deck.

The playgrounds on terraces are situated at “mid-level”, and the ground-level courtyard is a recreational area and playground, as well.

Terrace House Tokiostrasse
Courtesy of ARTEC Architekten
Terrace House Tokiostrasse
Courtesy of ARTEC Architekten

The garage’s skylights also double as seating and illuminaires in the courtyard.

The building’s exterior is characterized by the atrium and its vegetation, as well as by the terraces; the high degree of permeability at street level translates into an open atmosphere for residents and passers-by, and ensures that sufficient surface area will be available for possible future adaptations.

Terrace House Tokiostrasse
Courtesy of ARTEC Architekten


Terrace House Tokiostrasse
Courtesy of ARTEC Architekten
Terrace House Tokiostrasse
Courtesy of ARTEC Architekten
Terrace House Tokiostrasse
Courtesy of ARTEC Architekten
Terrace House Tokiostrasse
Courtesy of ARTEC Architekten
Terrace House Tokiostrasse
Courtesy of ARTEC Architekten
Terrace House Tokiostrasse
Courtesy of ARTEC Architekten
Terrace House Tokiostrasse
Courtesy of ARTEC Architekten
Terrace House Tokiostrasse
Courtesy of ARTEC Architekten
Terrace House Tokiostrasse
Courtesy of ARTEC Architekten


Terrace House Tokiostrasse
Courtesy of ARTEC Architekten
Terrace House Tokiostrasse
Courtesy of ARTEC Architekten


Terrace House Tokiostrasse
Elevación 01
Terrace House Tokiostrasse
Elevación 02


Terrace House Tokiostrasse
Detalle 01
Terrace House Tokiostrasse
Detalle 02


Terrace House Tokiostrasse
Planta 01
Terrace House Tokiostrasse
Planta 04
Terrace House Tokiostrasse
Planta 05
Terrace House Tokiostrasse
Planta 06
Terrace House Tokiostrasse
Planta 07
Terrace House Tokiostrasse
Planta 08
Terrace House Tokiostrasse
Planta 09
Terrace House Tokiostrasse
Planta 10
Terrace House Tokiostrasse
Planta 12


Terrace House Tokiostrasse
Sección 01
Terrace House Tokiostrasse
Sección 02
Terrace House Tokiostrasse
Sección 03
Terrace House Tokiostrasse
Sección 04
Terrace House Tokiostrasse
Sección 05
Terrace House Tokiostrasse
Sección 06
Terrace House Tokiostrasse
Sección 07
Terrace House Tokiostrasse
Sección 08
Terrace House Tokiostrasse
Sección 09
Terrace House Tokiostrasse
Sección 10
Terrace House Tokiostrasse
Sección 11
Terrace House Tokiostrasse
Sección 12
Terrace House Tokiostrasse
Sección 13
Terrace House Tokiostrasse
Sección 14
