TIANJIN WEST RAILWAY STATION

 Gmp Architekten

ARCHITECTS
Gmp Architekten

PHOTOGRAPHS
Gmp Architekten

LOCATION
China

AREA
179000.0 m2

YEAR
2011

CATEGORY
Transportation

Tianjin West Railway Station
© gmp Architekten

Text description provided by architect.

After a construction period of two and a half years, von Gerkan, Marg and Partners Architects (gmp) have completed the Tianjin West Railway Station in China.

The new intersection, which is located about 130 kilometers south-west of Beijing, serves as a stop on the high-speed line between the Chinese capital and Shanghai, as well as connecting the various regional lines and linking these to the underground network.

Tianjin West Railway Station
© gmp Architekten

The local urban design function of the railway station is to connect a commercial area to the north with the old city center to the south, bridging tracks, a river and a road in this city of 12 million residents.

Tianjin West Railway Station
© gmp Architekten
Tianjin West Railway Station
© gmp Architekten

The architects have highlighted the bridge function between the city quarters with a 57 meter high and nearly 400 meter long barrel vault roof above the terminal concourse. Its curved roof is reminiscent of a large scale city gate and the long, stretched out concourse beneath of a classic place of transit.

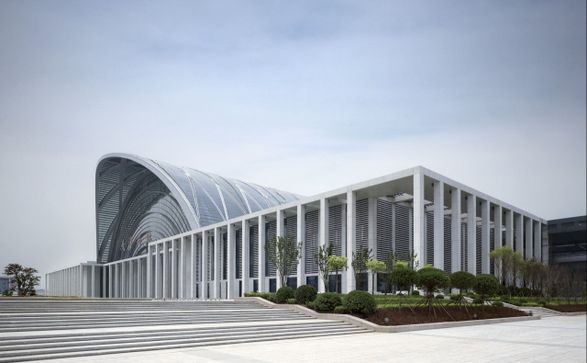

The portals of the eastern and western sides of the curved hall are symmetrically framed by arcades.

To the south of the building a large and open station forecourt covers a wide area which gives credence to the importance and dimension of this railway station.

Tianjin West Railway Station
© gmp Architekten
Tianjin West Railway Station
© gmp Architekten

Passengers enter the new Tianjin West Railway Station through the main entrances on the north and south sides.

Arched cantilevers above the entrances and tall window fronts convey an initial impression of the space passengers encounter in the concourse, which is flooded with daylight, providing a high quality atmosphere and clear orientation for travelers.

Daylight reaches the concourse through the diamond shaped steel and glass roof construction, and while the lower part is nearly transparent and admits a great deal of light, the upper part serves as protection against direct solar radiation.

Tianjin West Railway Station
© gmp Architekten
Tianjin West Railway Station
© gmp Architekten

The barrel vault roof conveys a dynamic impression, not least because its steel elements vary in width and depth from the bottom to the top, and are woven together.

Escalators and lifts are available for passengers and visitors to descend to the platforms.

Tianjin West Railway Station
© gmp Architekten
Tianjin West Railway Station
© gmp Architekten

This technically and structurally sustainable railway station illustrates a contemporary interpretation of the cathedrals of traffic from the heydays of railway travel.


Tianjin West Railway Station

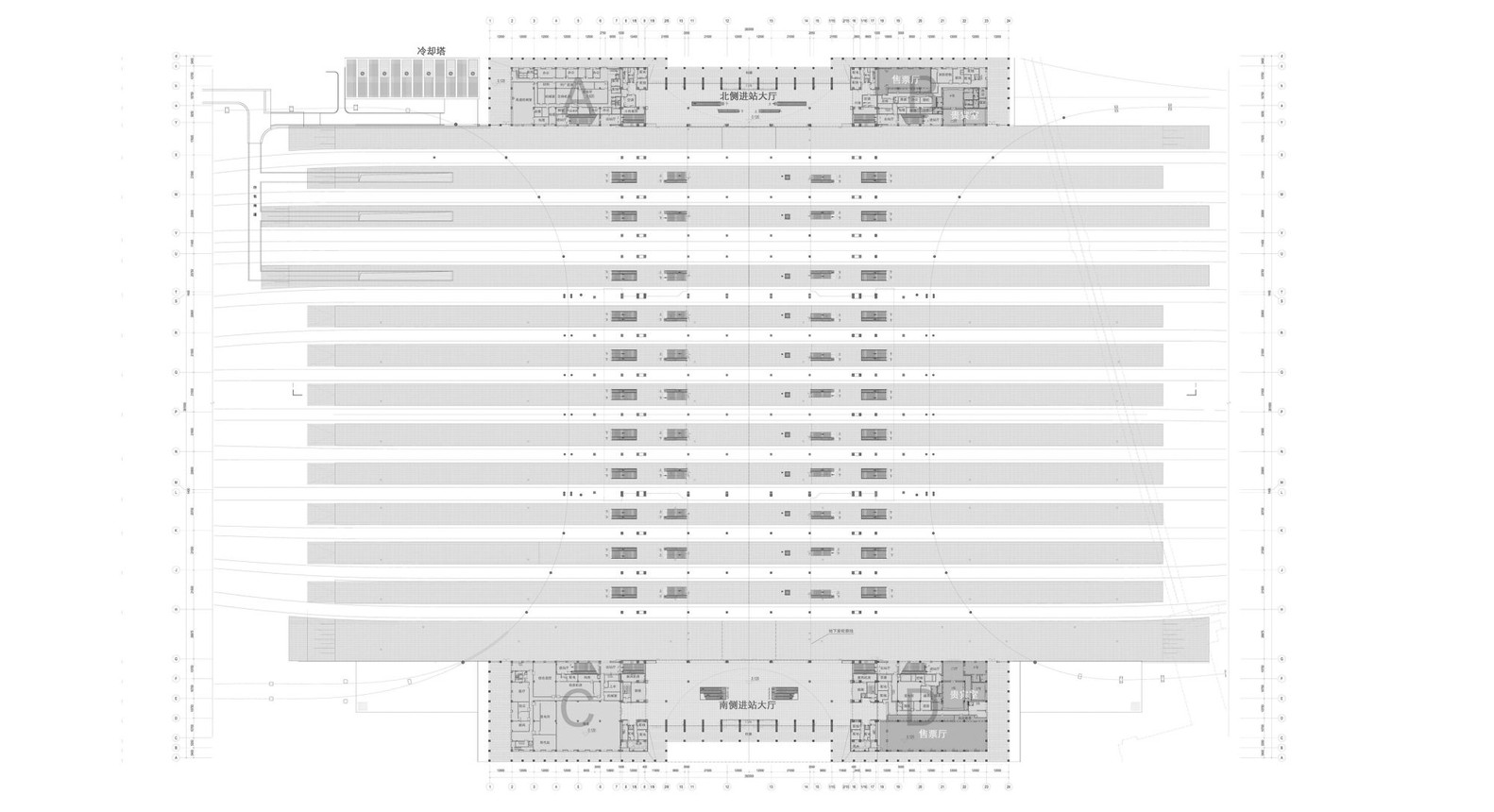

Floor Plan
Tianjin West Railway Station
Floor Plan
Tianjin West Railway Station
Site Plan
