Simon Conder Architect

Porthtowan

PORTHTOWAN

Simon Conder Associates

Porthtowan
Courtesy of Simon Conder Associates
Porthtowan
Courtesy of Simon Conder Associates

YEAR
2010

LOCATION
Porthtowan, United Kingdom

CATEGORY
Houses

Porthtowan
Courtesy of Simon Conder Associates
Porthtowan
Courtesy of Simon Conder Associates
Porthtowan
Courtesy of Simon Conder Associates

Text description provided by architect.

These two new houses are located on a dramatic, south-facing hillside overlooking the beach in the village of Porthtowan on the north Cornish coast.

The site has particularly fine views down the coast to St Ives.

Porthtowan
Courtesy of Simon Conder Associates
Porthtowan
Courtesy of Simon Conder Associates
Porthtowan
Courtesy of Simon Conder Associates

Surprisingly, for such a prominent and relatively remote coastal site, the new houses are surrounded by a suburban estate of bungalows dating from the 1950s.

The two new houses are for the same client, a couple with a teenage son. The larger house, Malindi, will be used as the main family home.

The smaller house, Providence, will accommodate an artist’s studio at upper ground floor level and an apartment for visitors and family at lower ground floor level.

Porthtowan
Courtesy of Simon Conder Associates
Porthtowan
Courtesy of Simon Conder Associates
Porthtowan
Courtesy of Simon Conder Associates

Both houses replace much smaller and substandard houses owned by the client.

To reduce the impact of the new houses on the landscape, and avoid blocking the view from the houses further up the hillside,both houses are built into the 1 in 7 slope of the hillside, so the houses are single storey on the road side and two storey on the seaward side.

The two adjacent sites face south and this orientation has been used to create two passive solar gain houses to minimize both the use of fossil fuels and energy costs.

Porthtowan
Courtesy of Simon Conder Associates
Porthtowan
Courtesy of Simon Conder Associates
Porthtowan
Courtesy of Simon Conder Associates

This has been achieved partly by fully glazing the southern elevations of the two houses and partly by using highly insulated, high mass construction for the remainder of the two houses.

The external cladding, roof decking and verandah structures are all made from FSC certified hardwood which has been left unfinished to weather naturally to a silvery grey.

The design proposals were enthusiastically received by the local planners and there were no local objections.

Porthtowan
Courtesy of Simon Conder Associates


Porthtowan

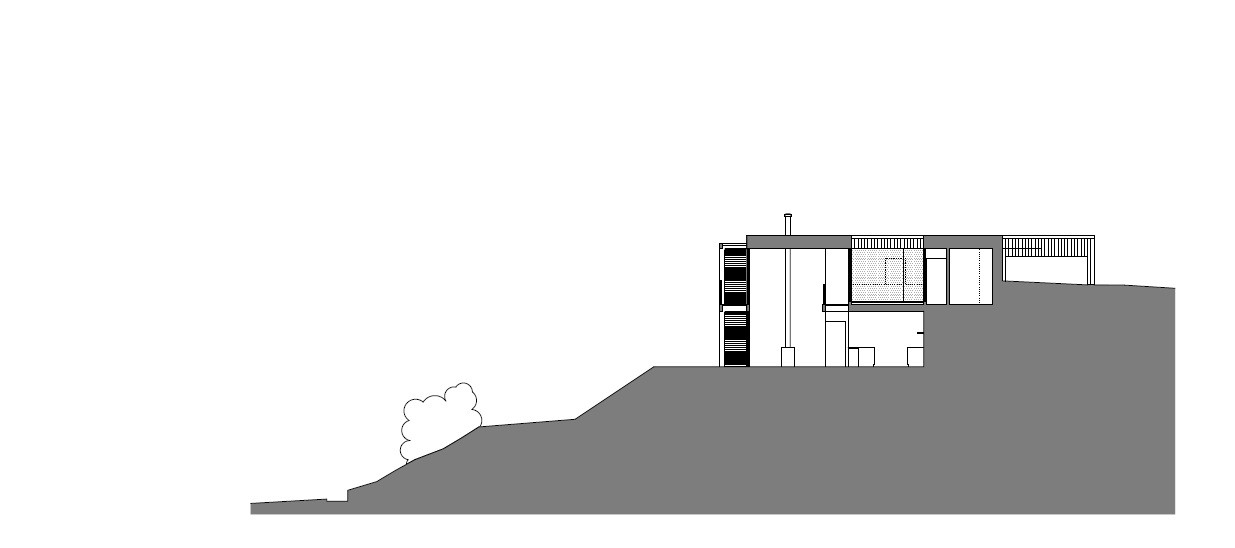

Section
Porthtowan
Section


Porthtowan
Elevation
Porthtowan
Elevation
Porthtowan
Elevation
Porthtowan
Elevation


Porthtowan
Plan
Porthtowan
Plan
