HAACK HOUSE

 4D-Arquitetura

ARCHITECTS
4D-Arquitetura

LOCATION
Guaíba, brazil

CATEGORY
Houses

AREA
442.0 m²

PROJECT YEAR
2011

Text description provided by architect.

This house sets off from others in its condominium by the design on straight lines and by the pure volume composition, a very well-known characteristic of the contemporary architecture.

Haack House
© 4D-Arquitetura
Haack House
© 4D-Arquitetura
Haack House
© 4D-Arquitetura

Located in a gated community, where walls and fences are not allowed, this house had the design developed in three parallel horizontal bars that protects terrain sides, granting privacy to its residents.

The central block has two floors: on the ground floor are the social areas at the center - living, dinner and leisure.

Haack House
© 4D-Arquitetura
Haack House
© 4D-Arquitetura

At second floor, with access by a linear loose ladder, is located the private area. A big mezzanine makes the two floor integration, giving the space higher amplitude.

A footbridge crosses the mezzanine, leading to the master bedroom, while the other rooms are on the other end of the floor.

Haack House
© 4D-Arquitetura
Haack House
© 4D-Arquitetura

The house structure was built on metal girders and pillars with two large concrete plans that serve as support.

This solution allowed free internal spaces and large swings at the front and back of the house, creating two covered open livings.

The idea was to give a greater lightness to the central volume, integrating the interior end the exterior of the house with large frames and glass panes.

Haack House
© 4D-Arquitetura
Haack House
© 4D-Arquitetura
Haack House
© 4D-Arquitetura

In contrast with more opened ground floor, the upstairs and the two side volumes are more closed, one wood-paneled and the other coated of masonry.


Haack House

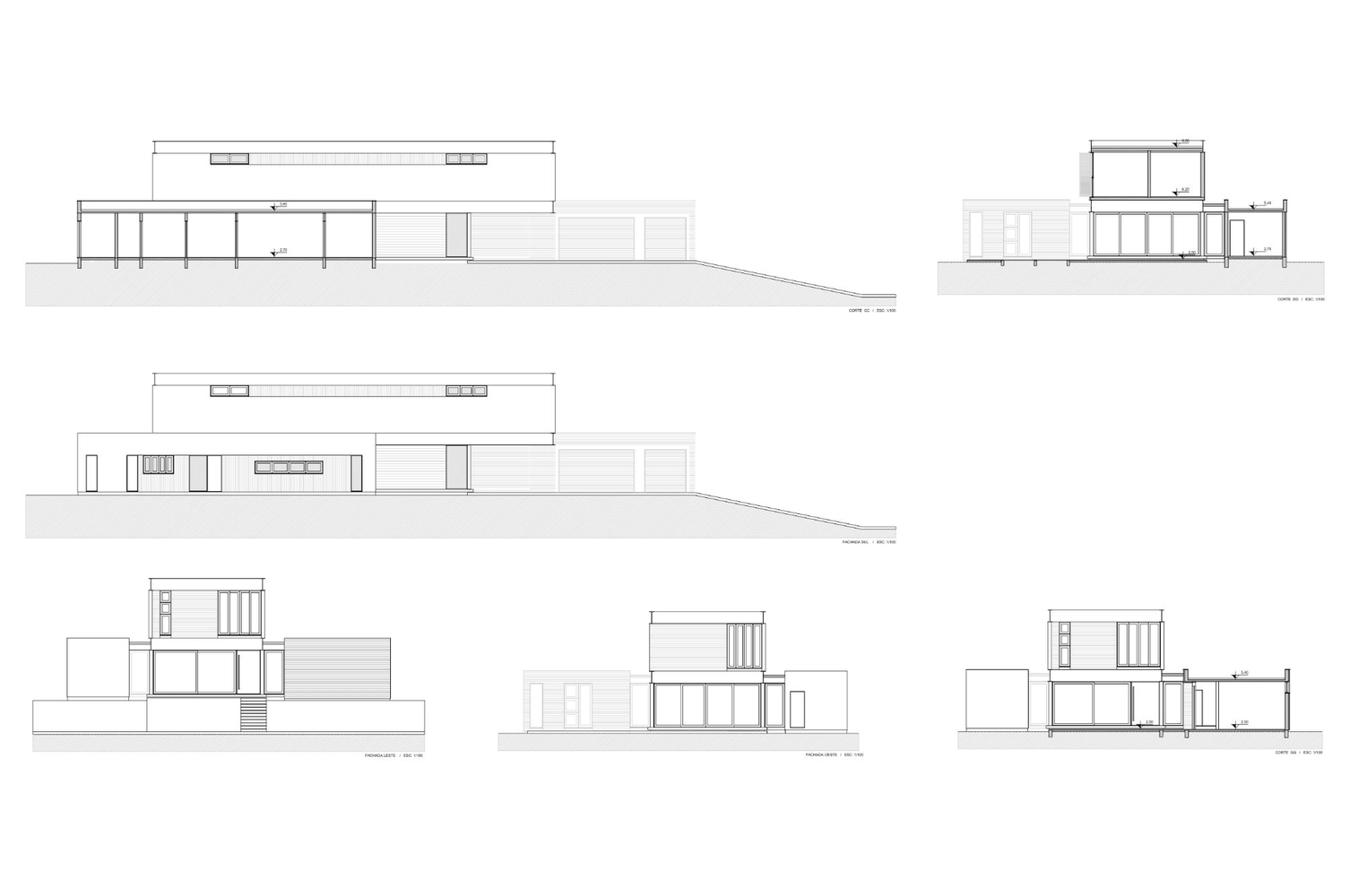

Sections and Elevations


Haack House
Plan 01
Haack House
Plan 02
Haack House
Roof Plan
