Snitker Borst Architecten

Tuinstede

Tuinstede
© Roos Aldershoff
Tuinstede
© Roos Aldershoff

YEAR
2011

LOCATION
Amsterdam, the netherlands

CATEGORY
Apartments

Tuinstede
© Roos Aldershoff
Tuinstede
© Roos Aldershoff
Tuinstede
© Roos Aldershoff

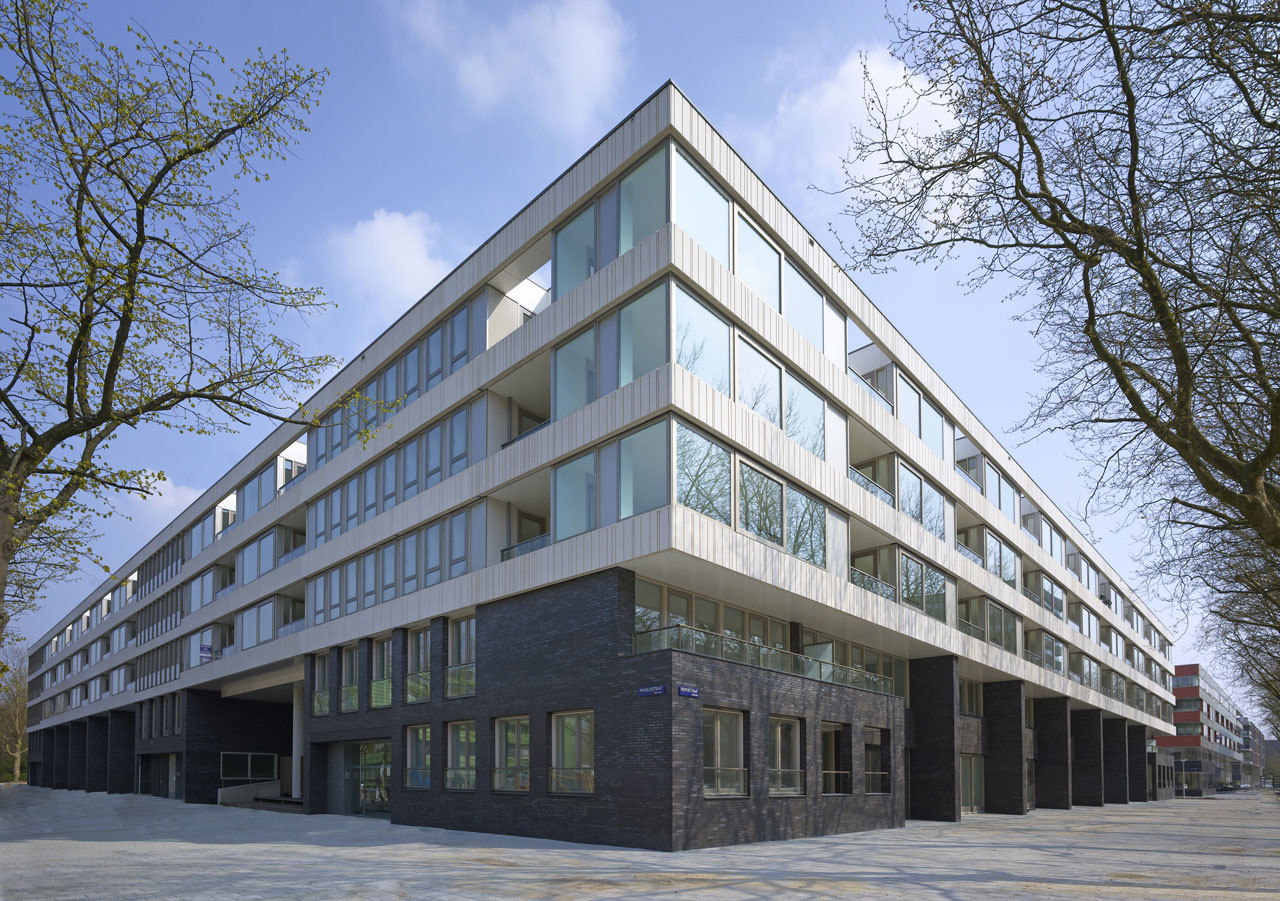

Tuinstede is the last of three new blocks that have been built in the Noordstrook, north of Delflandplein in the Amsterdam district New West.The urban design for the Noordstrook is made by Snitker/Borst Architects.

In order to increase the density of the neighbourhood the existing modernist open strip building plan will be replaced by three urban closed blocks with large communal courtyards.

Tuinstede
© Roos Aldershoff
Tuinstede
© Roos Aldershoff

One of the streets will remain without cars and will be arranged as a playground for children. The urban design will be executed in two phases. Recently the first phase was finished.

In a second phase the U-shaped blocks will be completed to closed blocks. The three blocks are designed by Dick van Gameren, ANA and Snitker/Borst Architects, respectively.

Tuinstede
© Roos Aldershoff
Tuinstede
© Roos Aldershoff

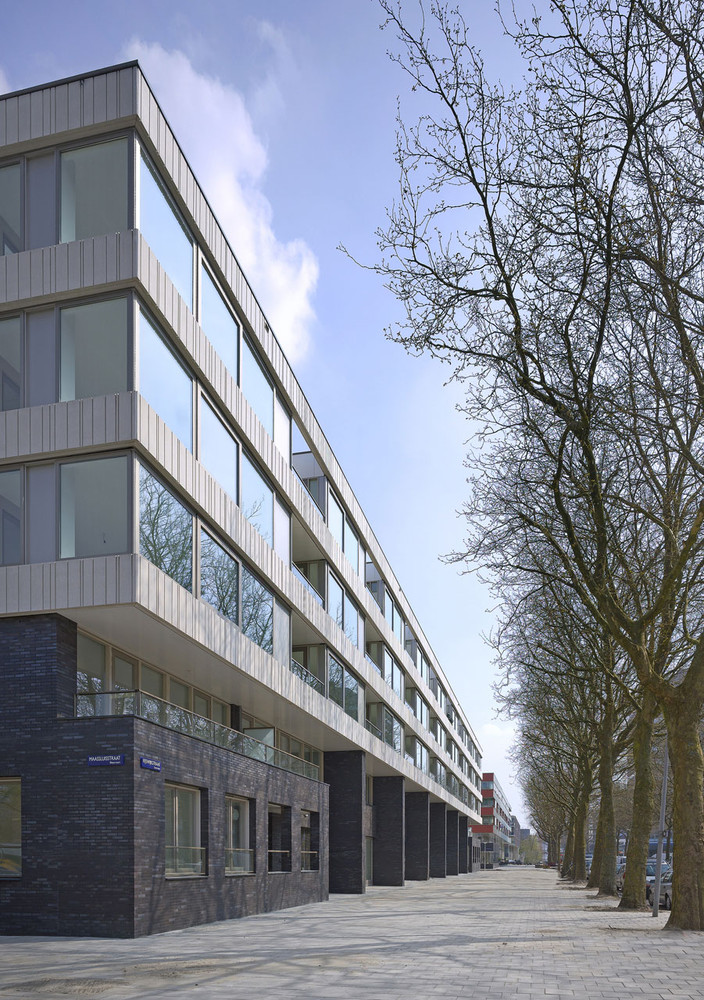

The architecture of Tuinstede matches with the modernist architecture of the Western Garden Cities of Amsterdam, with generous glass façades and large apartments with flexible 8,1 meter wide floor plans.

The block encloses a collective garden with birch trees. In order to maximize the open ground in the garden, the car park is placed partly under the housing block.

Tuinstede
© Roos Aldershoff
Tuinstede
© Roos Aldershoff

A zone with terraces forms a transitional zone between the individual homes and the courtyard’s communal space. Two large gates in the street façades connect the collective garden and the public street.

The block has three floors with apartments above double-storey maisonettes on ground floor.The maisonettes on ground floor are provided with two terraces.

Tuinstede
© Roos Aldershoff
Tuinstede
© Roos Aldershoff

One terrace on the street side and a second terrace on the court yard side, on top of the deck of the car park.

The difference in height between street level and the deck of the car park is used to make a spacious split level house with high ceilings.

Tuinstede
© Roos Aldershoff
Tuinstede
© Roos Aldershoff

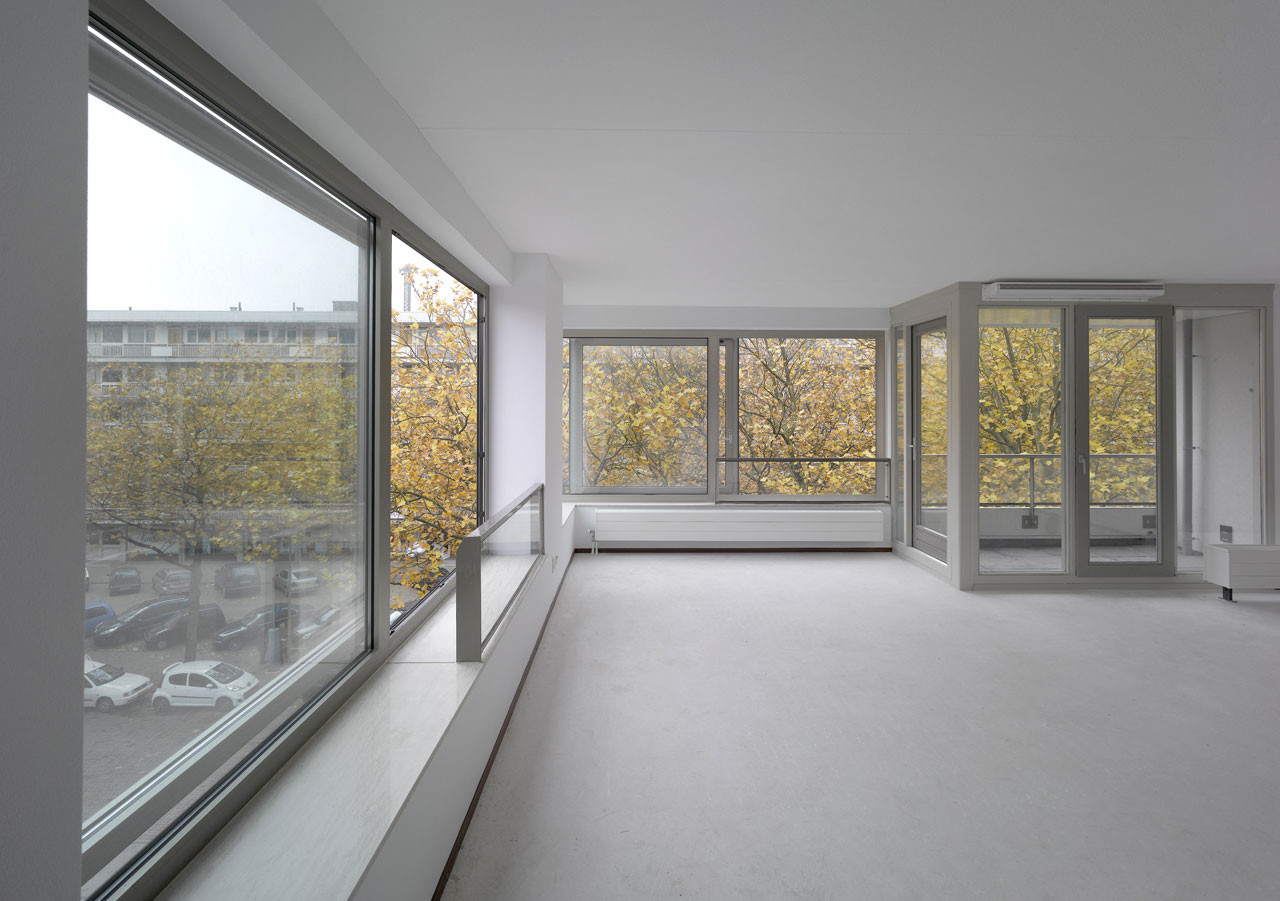

De ceiling height of the dining room on street side is 3,3 meter and the ceiling height of the living room on the court yard side is 4,2 meter.

Three bedrooms are located on street side above the dining room and the entrance.

Tuinstede
© Roos Aldershoff


Tuinstede

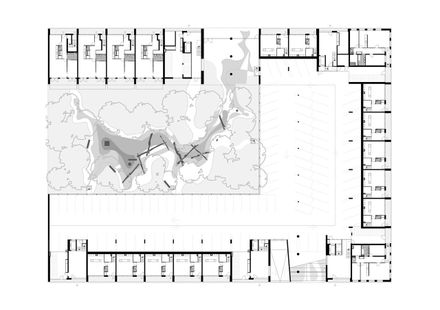

plan 01
Tuinstede
plan 02
Tuinstede
plan 03
Tuinstede
plan 04


Tuinstede
section
