LE CONNESTABLE

 Jean Paul Viguier Architecture

Area
12100.0 m²

LOCATION
Grenoble, france

PROJECT YEAR
2011

PHOTOGRAPHS
Renaud Chaignet

Text description provided by architect.

Redevelopment of the former De Bonne barracks was an important step int he drive to launch sustainable housing in France. Originally designed to extend the city centre towards

The Grands Boulevards, the estate combines social diversity and multiple functions – housing, retail space, amenities and parks, with easy access and environmental quality.

Le Connestable
© Renaud Chaignet
Le Connestable
© Renaud Chaignet

Its carbon footprint – building insulated on the outside (for this building for example) equivalent to the energy-efficient building (BBC) standard, is several years ahead of existing rules in France.

The project of urban redevelopment won the 2009 Grand Prix National for eco-neighbourhoods sponsored by the Ministry of Planning Sustainable Development.

122  HOUSINGS, COMPLETED IN 2011

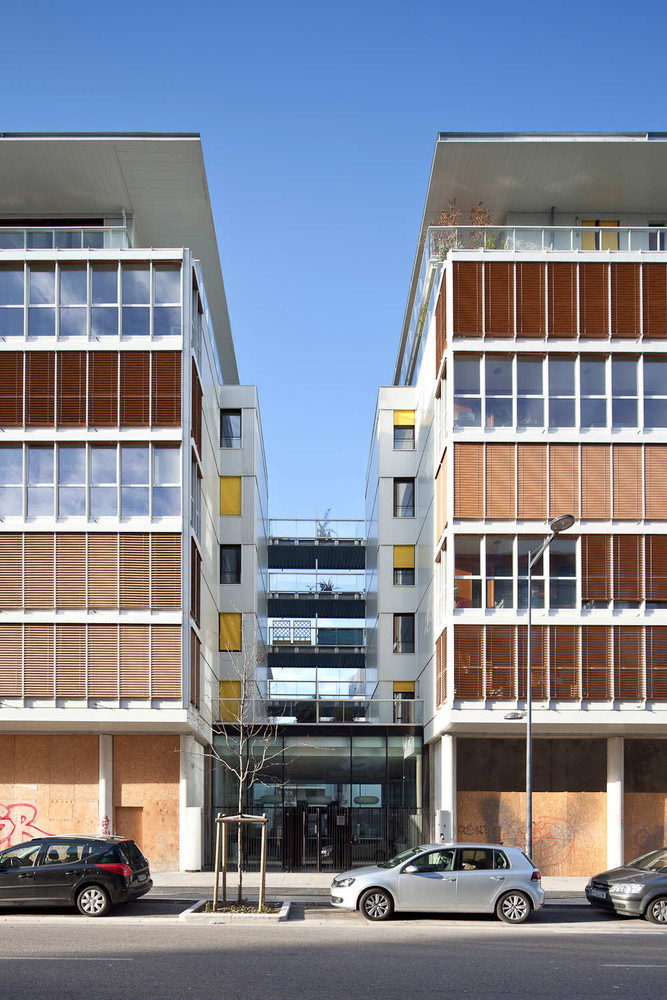

This building comprises four blocks surrounding an internal park visible

Le Connestable
© Renaud Chaignet
Le Connestable
© Renaud Chaignet

From the streets through vertical openings between the blocks. There are seven storeys of apartments with commercial activities at ground-floor level

Five fundamental points orientated the conception of the project : environmental quality, comfort, architectural and urban qualit

Le Connestable
© Renaud Chaignet
Le Connestable
© Renaud Chaignet

The treatment of the external spaces, and the modernity of the architecture. As a result, the study of the compact nature and depth of building led to proposing three principle apartment types:

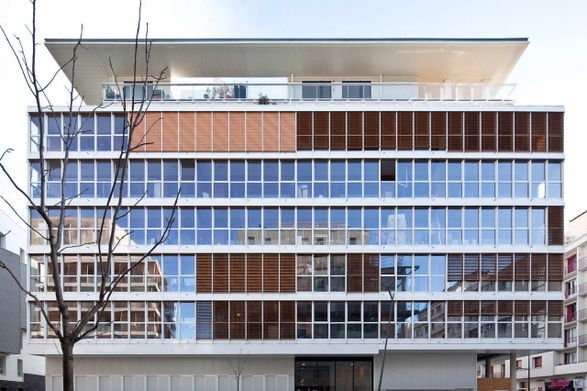

TYPE 1 – TYPICAL FLOOR LEVEL WITH HANGING GARDEN


The street-facing apartments between first- and fifth-floor levels open on to the exterior through the temporal space of a miniature garden and wooden terrace area enclosed behind a series of glazed screens.

This typology provides a system which is both efficient in climatic and acoustic terms and which creates a vibrant and animated street facade;

the articulation of the brise-soleils being dependant on the individual choice, usage and comfort.

Le Connestable
© Renaud Chaignet
Le Connestable
© Renaud Chaignet

TYPE 2 – DUPLEX OVERLOOKING INTERNAL GARDEN

Duplex apartments are organised over 4 floor levels around the internal garden.

The facades open on to the landscaping through loggias cantilevered over the gardens or through large glazed bays set within the building line.

Le Connestable
© Renaud Chaignet
Le Connestable
© Renaud Chaignet
Le Connestable
© Renaud Chaignet

Through these double-height glazed openings, the landscaping is enabled to penetrate visually within the living areas. The whole at a domestic scale evoking the image of a human community with common values.

TYPE 3 – ROOFTOP VILLA

The apartments on the last two levels are treated as large single-storey villas, leading off landscaped patios. Transversal voids, isolate these apartments from each other and imbue them with the status of individual houses.

Le Connestable
© Renaud Chaignet
Le Connestable
© Renaud Chaignet

The roofs of the upper-level villas are shaped to allow a higher ceiling height for the living areas and provide views towards the mountain ranges of the Vercors, the Chartreuse and the Belle Donne.


Le Connestable
site plan
Le Connestable
ground floor plan
Le Connestable
floor plan
