Kengo Kuma & Associates

Green Cast

GREEN CAST

Kengo Kuma & Associates

Green Cast
© Kengo Kuma & Associates

ARCHITECTS
Kengo Kuma & Associates

LOCATION
Japan

CATEGORY
Mixed use architecture

PROJECT YEAR
2011

PHOTOGRAPHS
Kengo Kuma & Associates

STRUCTURE DESING
 Makino Structural Design

TOTAL AREA
 1047.80sqm (residence area: 181.61sqm)

STRUCTURE
RC, steel-frame

SITE AREA
 424.50sqm

BUILT AREA
 207.64sqm

NUMBER OF STORIES
1 underground, 4 stories above

MAXIMUM HEIGHT
 14.97m

FLOOR AREA FOR EACH STORY
B1F 288.68sqm, 1F:201.65sqm, 2F:189.13sqm, 3F: 189.13sqm, 4F: 181.61sqm

CONSTRUCTION
 Takenaka Corporation

UTILITIES, EQUIPMENT
 P.T. Morimura and Associates

TREE PLANTING
Sugiko

ALUMINUM DIE CAST
 Sanwa Tajima

Green Cast
© Kengo Kuma & Associates

Text description provided by architect.

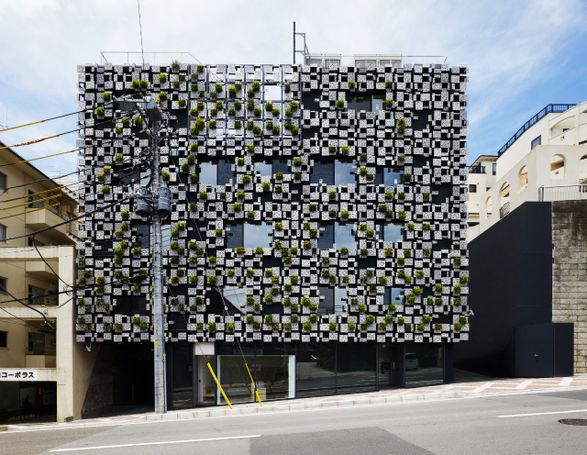

Kengo Kuma & Associates have created this visually stunning mixed-use building in Odawara, Japan, featuring a living façade made of aluminum die-cast panels that act as vertical planters.

The slightly slanted panels are made of monoblock casting and give an organic appearance, as the cast comes from decayed styrene foam.

Green Cast
© Kengo Kuma & Associates
Green Cast
© Kengo Kuma & Associates

The five story building was completed in the summer of 2011.

Parking is available on the basement and ground floor, along with a pharmacy and clinic.

The next two floors provide space for offices and a vocational school, while the fourth floor belongs to a two bedroom residence with access to a private rooftop terrace.

Green Cast
© Kengo Kuma & Associates
Green Cast
© Kengo Kuma & Associates

Equipment such as watering hoses, an air reservoir for ventilation and downpipes are integrated behind the aluminum panels to allow the façade to accommodate a comprehensive system for the building.


Green Cast
© Kengo Kuma & Associates
Green Cast
© Kengo Kuma & Associates
Green Cast
© Kengo Kuma & Associates
Green Cast
© Kengo Kuma & Associates
Green Cast
© Kengo Kuma & Associates
Green Cast
© Kengo Kuma & Associates


Green Cast
Elevation
Green Cast
Section
Green Cast
Green Wall Detail


Green Cast
Site Plan

Green Cast
Floor Plans
