ROC Mondriaan Laak II

ROC MONDRIAAN LAAK II

 LIAG

ROC Mondriaan Laak II
© Vulkers Fotografie

ARCHITECTS
LIAG

AREA
11000.0 m²

PHOTOGRAPHS
Vulkers Fotografie

LOCATION
The hague, the netherlands

YEAR
2011

CATEGORY
University, other facilities, dorms

ROC Mondriaan Laak II
© Vulkers Fotografie

Text description provided by architect.

The new building is situated on a narrow plot, perched between the busy railway lines at The Hague HS Station and the Waldorpstraat. The position, close to the public transport node is an excellent strategic choice:

the school campus that is formed here in conjunction with The Hague University of Applied Sciences, the student and entry level housing and the resulting social life, is directly connected to all forms of (public) transport and is situated in the middle of the city.

ROC Mondriaan Laak II
© Vulkers Fotografie
ROC Mondriaan Laak II
© Vulkers Fotografie

The building forms a powerful and colourful (a la Mondriaan) completion of the Leeghwaterplein. Seen from the train, it serves as a calling card for ROC Mondriaan.

The building has a grid shaped concrete façade decorated in the ROC colours. The effect in combination with the windows results in a strong whole.

ROC Mondriaan Laak II
© Vulkers Fotografie
ROC Mondriaan Laak II
© Vulkers Fotografie

An arcade follows the pedestrian route from the train station to the housing complexes and Megastores shopping mall.

Large glass areas along the arcade provide a glimpse into the school, which serves to combine transparency and a display window for vocational training with increased public safety.

ROC Mondriaan Laak II
© Vulkers Fotografie
ROC Mondriaan Laak II
© Vulkers Fotografie

The building’s is designed with a floor plan based on a framework, to facilitate future conversion into offices. By choosing spans without columns, from the façade to the cores, the layout of the school is adaptable for future schooling insights.

The building has two main volumes each with its own core and all support functions. This means that the complex could in the future be leased as two individual office building sections.

ROC Mondriaan Laak II
© Vulkers Fotografie
ROC Mondriaan Laak II
© Vulkers Fotografie

The entirely prefabricated building was manufactured in Germany. The squares on the grid shaped concrete facade feature the school’s colours.

Together with the “random” pattern of coloured panels and windows, the repetition of the exterior concrete elements creates a look without scale and a powerful whole.

ROC Mondriaan Laak II
© Vulkers Fotografie


ROC Mondriaan Laak II
ground floor plan
ROC Mondriaan Laak II
1st floor plan
ROC Mondriaan Laak II
2nd floor plan
ROC Mondriaan Laak II
3rd floor plan


ROC Mondriaan Laak II

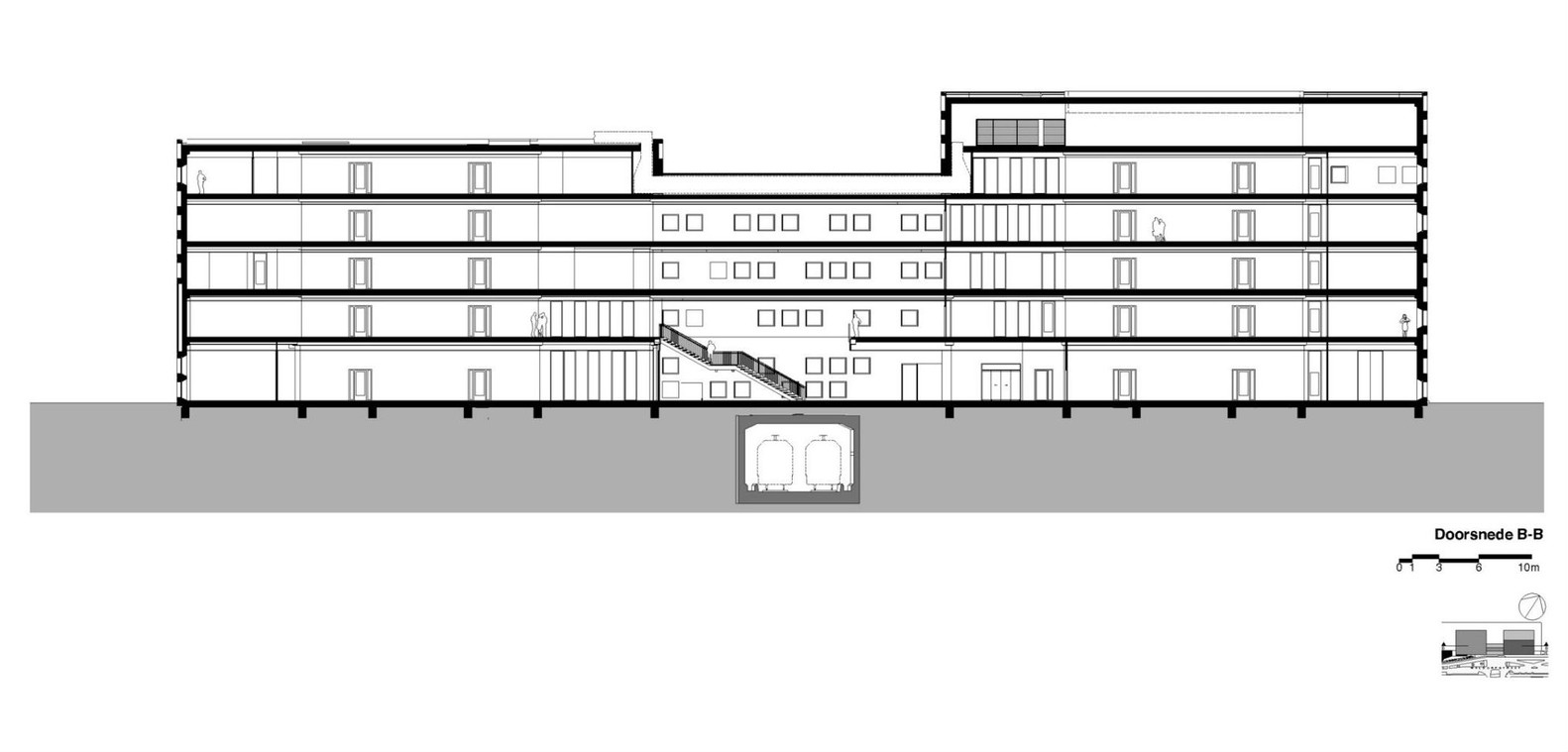

section 01
ROC Mondriaan Laak II

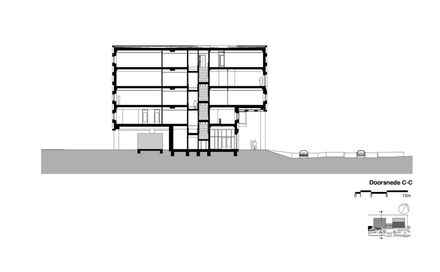

section 02
ROC Mondriaan Laak II
section 03
ROC Mondriaan Laak II
section 04


ROC Mondriaan Laak II

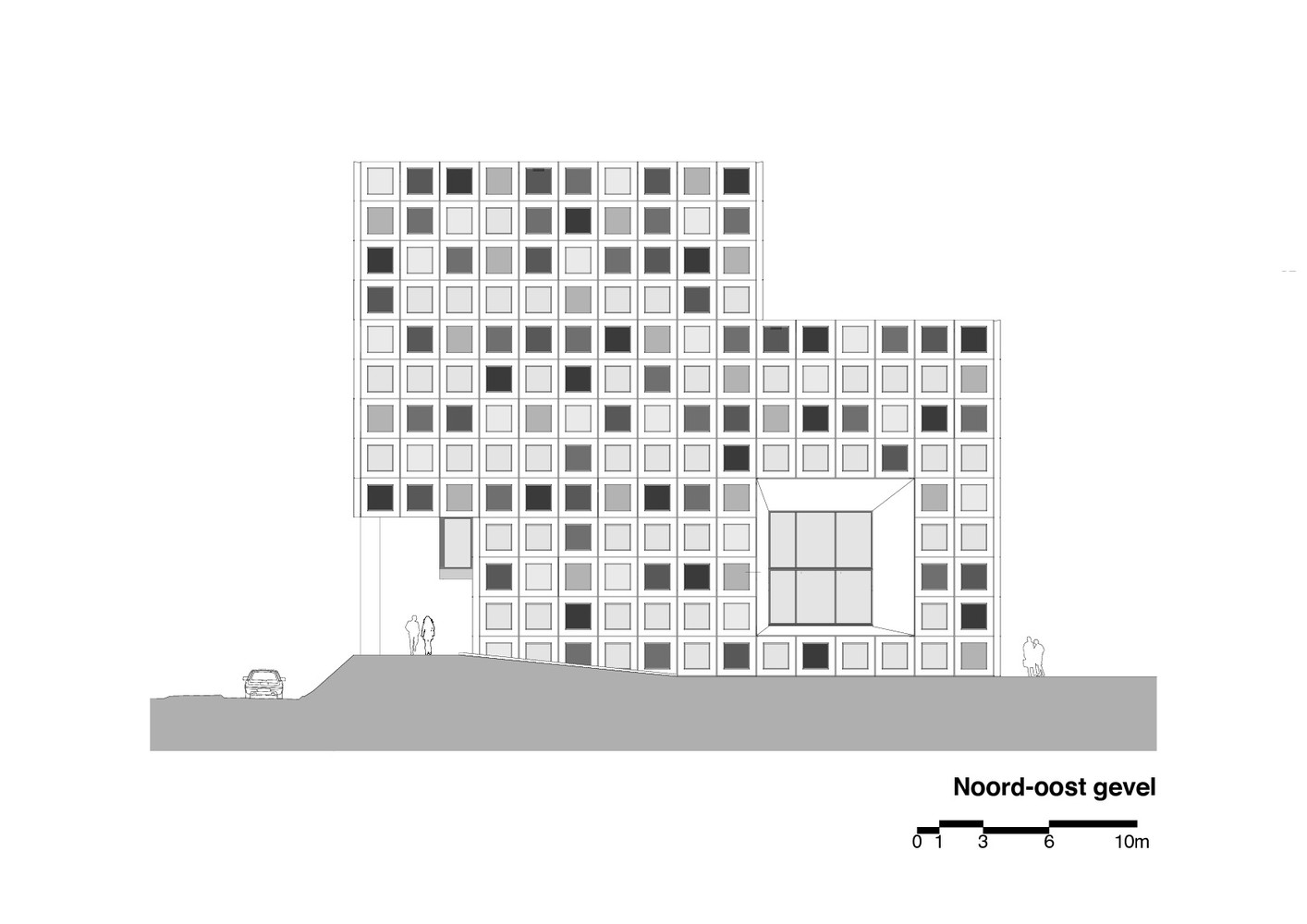

elevation 01
ROC Mondriaan Laak II
elevation 02
ROC Mondriaan Laak II
elevation 03
ROC Mondriaan Laak II
elevation 04


ROC Mondriaan Laak II
site plan
