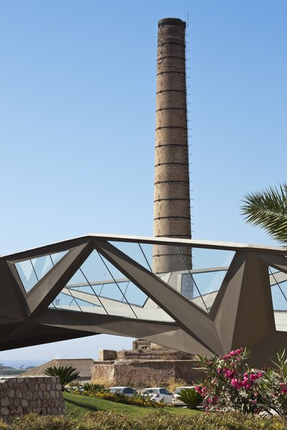

© Fernando Alda

MOTRIL FOOTBRIDGE

Guijón Arquitectura - Angel Gijón Díaz, Vicente Guallart Furió

ARCHITECTS
Guijón Arquitectura - Angel Gijón Díaz, Vicente Guallart Furió

PHOTOGRAPHS
Fernando Alda

PROJECT YEAR
2011

LOCATION
Spain

CATEGORY
Pedestrian bridge

The proposal meets the pedestrian continuity between the gardens of the Explanadas and the Park Pueblos de las Américas, bridging the difference in height between these two areas and freeing the passage of the Avenue Virgen de la Cabeza, main entrance city traffic.

The structures have been used are organic hexagonal design which allows easy adaptation to the surrounding environment, from host in its structure existing trees and adapt on the slopes to facilitate pedestrian traffic, allowing the movement of persons with motor disabilities .

Motril Footbridge
© Fernando Alda
Motril Footbridge
© Fernando Alda

The support of these structures are based on the lower bound for the Avenue, to emerge as ways to strengthen the gateway tree and at its upper bound.

The conditions that have been taken into account are derived from the road shot, whichever save a minimum height of 5m gauge across the width of the Avenue.

The structure was built with steel of varying thickness, so that the cutting and folding of the thin surface to create a continuous structural element gap.

Motril Footbridge
© Fernando Alda
Motril Footbridge
© Fernando Alda

The clearances of the structure have been closed on its upper face by opaque surfaces that allow pedestrian traffic. In its lower face seals are sandwiched glazed incorporating LEDs, which allow both an illumination of the structure and the Avenue.

The manufacturing process of the structures, continues with advanced manufacturing systems in which the architect must produce all the cutting of their projects through the programs of parametric design and scripting.

Motril Footbridge
© Fernando Alda


Motril Footbridge

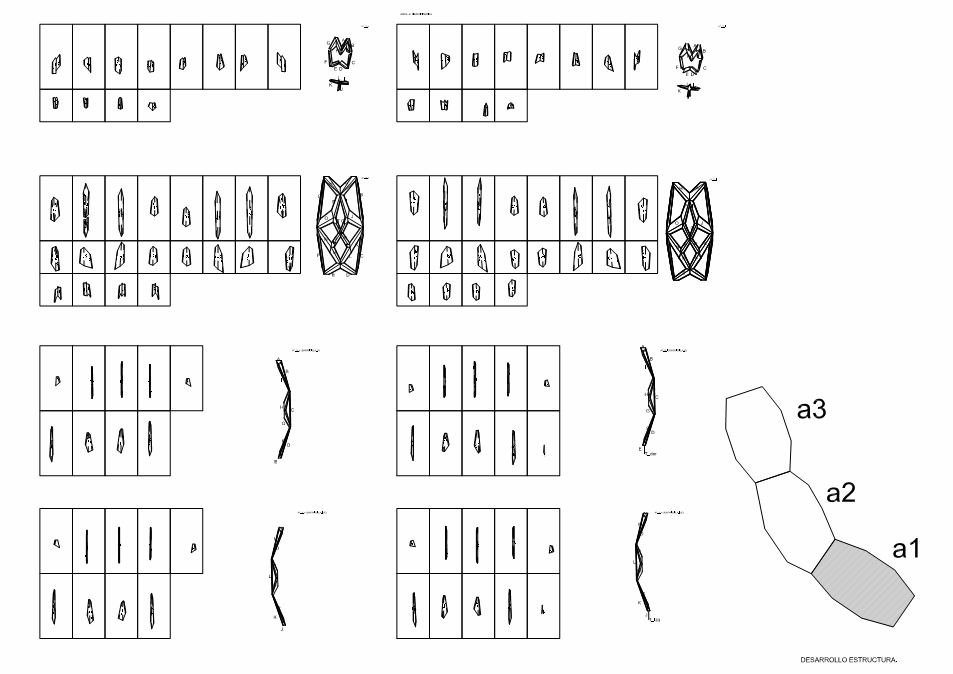

structure 01
Motril Footbridge
structure 02
Motril Footbridge
structure 03


Motril Footbridge
site plan
Motril Footbridge
plan
Motril Footbridge
scheme
