New Cultural Centre

NEW CULTURAL CENTRE

 FÜNDC

New Cultural Centre
© César Gª Guerra

ARCHITECTS
Fundc

PHOTOGRAPHS
César Gª Guerra, P. Gil, Anna Pericas

AREA
10500.0 m2

YEAR
2011

LOCATION
Spain

CATEGORY
Cultural center

New Cultural Centre
© César Gª Guerra

Text description provided by architect.

FÜNDC, Spanish architecture and urban planning office, just finalized The New Cultural Center (NCC), the largest urban intervention of the last decades made on Pozuelo de Alarcón, Madrid.

They also designed the new pedestrian area on and around Padre Vallet square, which establishes itself as the origin of the new network of pedestrian spaces. The project has a couple of unprecedented design solutions such as ‘mega-tree-pots’ and a transformable hall.

New Cultural Centre
© César Gª Guerra
New Cultural Centre
© César Gª Guerra

The pots allow for the growth of medium-large trees above underground parking, making possible green areas where usually just hard squares are found.

The hall allows for an use modification on the cultural building program, as it can switch between exhibition promenade and auditorium mode, through the manipulation of movable floor decks.

The built size of the intervention, both under and above ground comes near to 20,000 sqm. It consists on the urbanization through a new uninterrupted stone pavement, fountains and ‘mega-tree-pots’ around a New Cultural Center building.

New Cultural Centre
© P. Gil
New Cultural Centre
© César Gª Guerra
New Cultural Centre
© César Gª Guerra

The latter is composed of two different architectural typologies, old and new, which work on a symbiotic manner providing traditional and transformable spaces.

Under these areas and building a double-deck parking absorbs the vehicle impact, working together with underground roads and bus stops to free the upper square spaces to pedestrians and bikes.

New Cultural Centre
© César Gª Guerra
New Cultural Centre
© César Gª Guerra


New Cultural Centre
© César Gª Guerra
New Cultural Centre
© Anna Pericas


New Cultural Centre
© César Gª Guerra
New Cultural Centre
© César Gª Guerra


New Cultural Centre

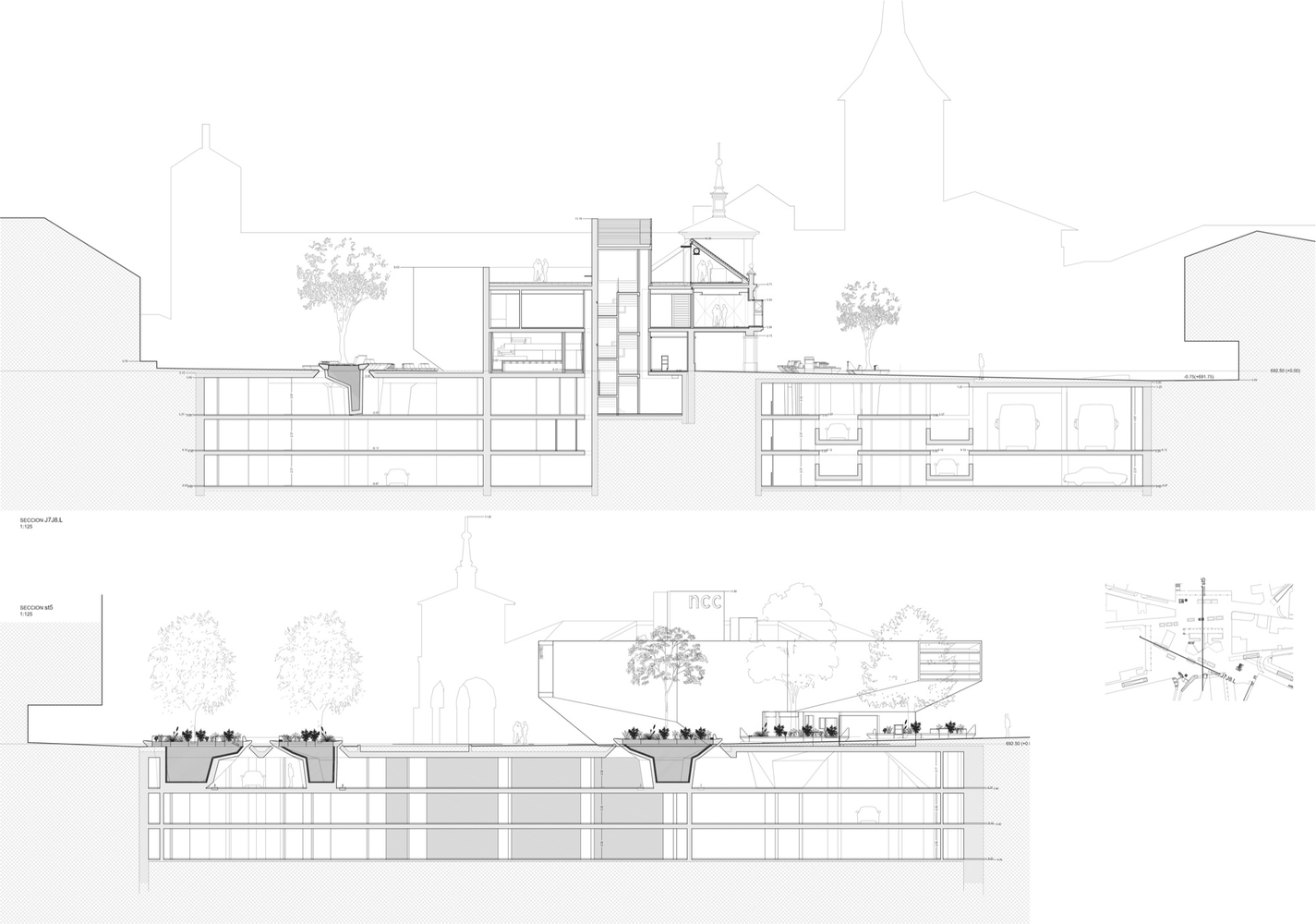

Cross Sections
New Cultural Centre
Cross Section


New Cultural Centre
Main Floor Plan
New Cultural Centre
Structural Plans


New Cultural Centre
Square Plan
New Cultural Centre
Furniture Plans
New Cultural Centre
Plans


New Cultural Centre
Detailed Scheme
New Cultural Centre
Elevations


New Cultural Centre
Urban Invention Concept
New Cultural Centre

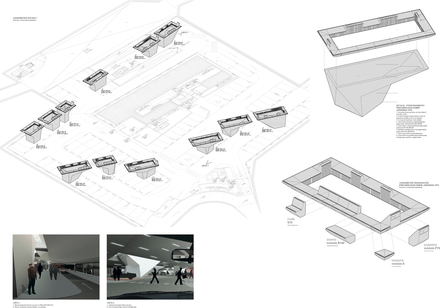

Mega-treepot’ concept


New Cultural Centre
Urban Invention Concept
New Cultural Centre
Hall 1. Configuration concept


New Cultural Centre
Axonometric View
New Cultural Centre

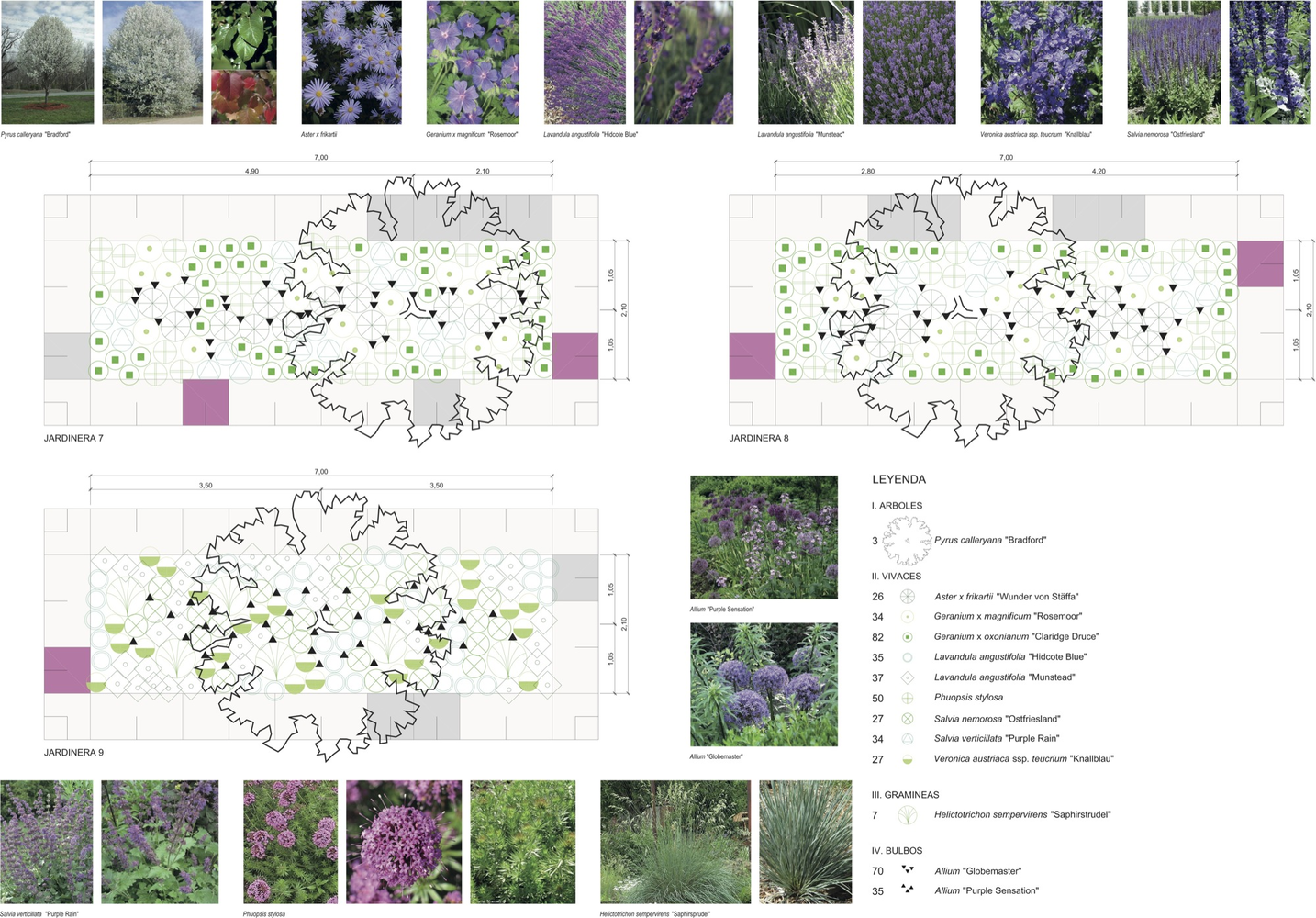

Landscape Design


New Cultural Centre
Intervention area
New Cultural Centre
Axon
