andOFFICE Blatter Ertel Probst Freie Architekten PartGmbB

LandyM

LandyM
© Courtesy of andoffice

LANDYM

 andOFFICE

ARCHITECTS
andOFFICE

AREA
651.0 m2

YEAR
2011

LOCATION
Lörrach, Germany

CATEGORY
Houses

Text description provided by architect.

Main concept of the cost effective single family home consists of an innovative spatial organisation, interesting and sophisticated outside areas and high flexibilty during lifecycle to enable the inhabitants open future plans.

LandyM
© Courtesy of andoffice
LandyM
© Courtesy of andoffice

The building combines compact, efficiently organised serving area with a spatious and open living area.

Soft zoning instead of sharp space borders maximise the felt living area as well as a strong integration of the terraces: a wooden deck partly enclosed by wall and ceiling enlarges the living zone on two whole building sides into the garden.

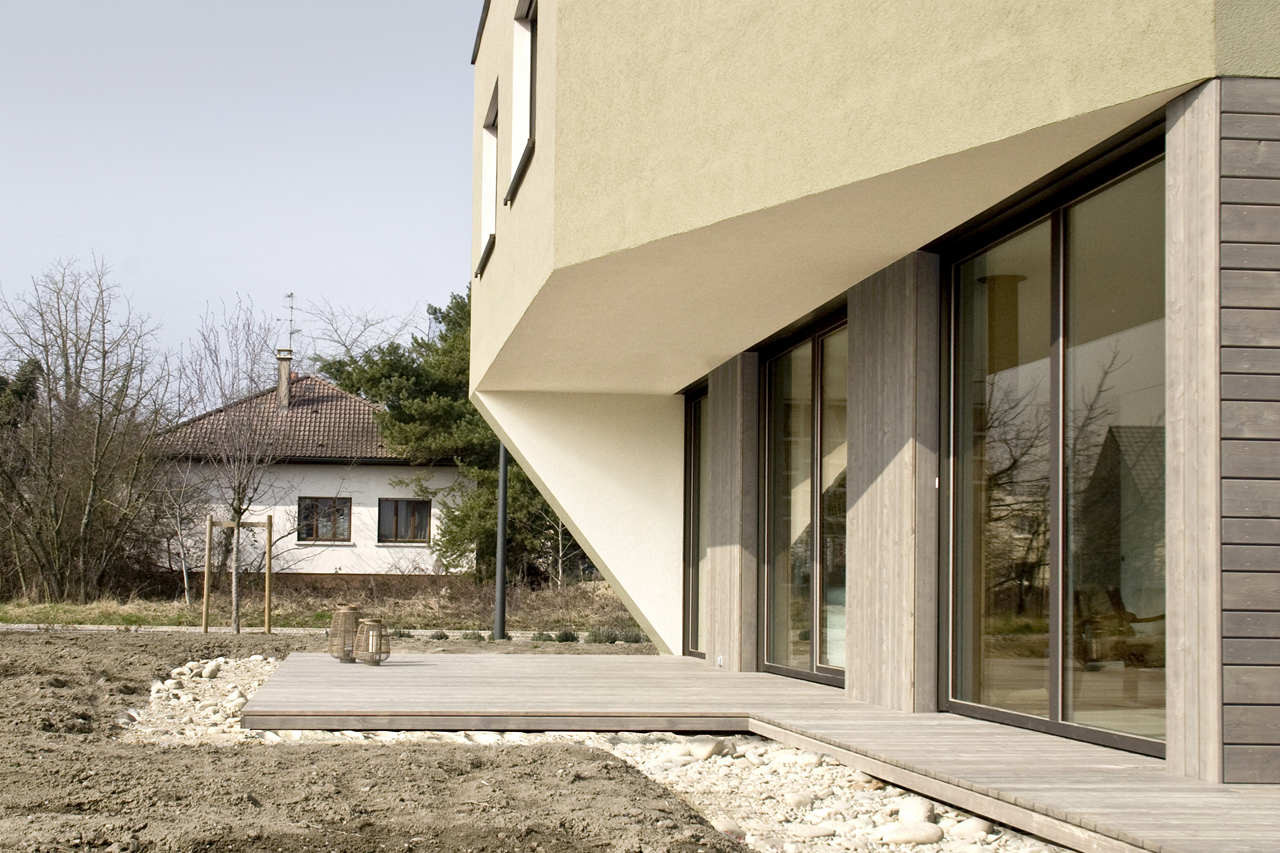

It generates an open morning terrace faced to Southeast while the main terrace towards Southwest is covered by the cantilevering upper floor.

LandyM
© Courtesy of andoffice
LandyM
© Courtesy of andoffice

The facade loop, a horizontal extension of the greige-colored plaster surfaces made of gravel, surrounds the terraces in order to connect it with the interior and to link it to the roof garden with its fantastic view towards Black Forrest and Vogese.

The 1st floors flexible plan enables the inhabitants open future plans. Up to 4 bedrooms and 2 bathrooms can be arranged individually and guarantee by minimised supporting structures a suitable configuration for every section of life. The fully insulated basement serves two additional bedrooms with comfortable lightwells.

The sustainable organisation corresponds with construction and services. The high quality cladding is built in solid wood construction and excellent wood fibre insulation and therefore consists of renewable resources.

LandyM
© Courtesy of andoffice
LandyM
© Courtesy of andoffice
LandyM
© Courtesy of andoffice

The combination with triple glazed windows in wood-aluminium construction leads to a low demand of thermal heat.

An excellent interior climate is generate by the airtight but permeable wall construction that enables an easy interior completion with services on the clients own account.

Thermal energy is mainly served by a wood stove with vision panel and storage unit. It is the traditional family centre in the living zone.

LandyM
© Courtesy of andoffice
LandyM
© Courtesy of andoffice

Heat-recovery ventilation, solar collector and usage of rain water complete the simple and ecological aware concept.

Simplicity is continued in terms of surfaces: Supporting elements are used as visible interior surfaces:

The groundfloor is covered with waxed floor screed, prefabricated stairways in concrete contrast to uncovered wooden walls with a simple industrial finishing.

LandyM
© Courtesy of andoffice
LandyM
© Courtesy of andoffice

Significant oak boards and furnitures as well as slick white plastered walls generate an exciting interplay of traditional and innovative materials.

Outside the greige-colored plaster facade corresponds with bronze anodised aluminium and pregreyed irregular boards of larch wood. It coveres terrace floors and adjoined facades and creates a haptic and visual experience of outside living.

LandyM
© Courtesy of andoffice


LandyM
© Courtesy of andoffice
LandyM
© Courtesy of andoffice


LandyM
sketch
LandyM
sketch


LandyM
section
LandyM

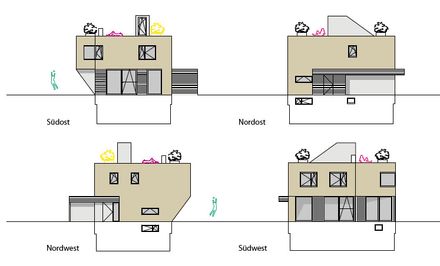

elevation
