René van Zuuk Architekten B.V.

Fire Station Dordrecht

Fire Station Dordrecht
© Christian Richters

FIRE STATION DORDRECHT

René van Zuuk Architekten

PHOTOGRAPHS
Christian Richters

AREA
7000.0 m²

YEAR
2011

LOCATION
Dordrecht, The Netherlands

CATEGORY
Fire Station

Text description provided by architect.

Together with the GHOR and ROC on the Learning Park in Dordrecht, a plot was assigned for a second fire station. This 'Multi functional aid station' lies on the edge of an educational district.

Fire Station Dordrecht
© Christian Richters
Fire Station Dordrecht
© Christian Richters

A triangular plot was assigned to the fire station, where the front where the front line should form a zigzag border edge. The urban plan also states that the firestation should be a minimum of 12 meters in height to act as a noise barrier between the school it backs on to and the N3 road opposite.

The project mainly consists of fire engine garages, two workshops, a 24 hour social area and an office area. In total they occupy 5560 m².

In addition, parking spaces are provided for 24 employees. There is also a smaller garage for the special ambulance service and supporting functions which covers 400m².

Fire Station Dordrecht
© Christian Richters
Fire Station Dordrecht
© Christian Richters

A 190m² Regional Training Centre occupies the smallest part of the complex which houses a number of classroom and practice examination rooms.

The length of overhead doors required for all vehicles exceeds the length of the useable site parameter, the solution was found in creating two streets in which there was the right amount of space for all the doors.

Reading left to right, the three volumes that align the streets are firstly the Fire brigade and the special ambulance service; secondly the workshop, and lastly 24 parking spaces.

Fire Station Dordrecht
© Christian Richters
Fire Station Dordrecht
© Christian Richters
Fire Station Dordrecht
© Christian Richters

The entrance can be found on the Western facade, from here you can access the upper levels.

The upper levels consists of two perpendicular volumes; in the first, facing the highway, there are the workshops; in the second volume, which is over two storeys, is the 24 hour social area which is paired with the Regional training area. The offices are on the second storey.

Fire Station Dordrecht
© Christian Richters
Fire Station Dordrecht
© Christian Richters
Fire Station Dordrecht
© Christian Richters

The concept of stacking the volumes is enhanced by the detailing used. On the ground floor there is a combination of polycarbonate and dark sandwich panels.

The translucent polycarbonate adds an even spread of light to the workshops and garages.

The 24 parking spaces are enclosed by a stretched sheet metal fence.

Fire Station Dordrecht
© Christian Richters
Fire Station Dordrecht
© Christian Richters

The first storey is clad with perforated aluminum sheeting which simultaneously allows light into the spaces without compromising the privacy of the workers.

On the second floor the facade is completely open using a green tinted glass to provide a light working environment.

There is an industrial palette used to help read the building as fitting to its function.

Fire Station Dordrecht
© Christian Richters


Fire Station Dordrecht
© Christian Richters
Fire Station Dordrecht
© Christian Richters
Fire Station Dordrecht
© Christian Richters
Fire Station Dordrecht
© Christian Richters


Fire Station Dordrecht

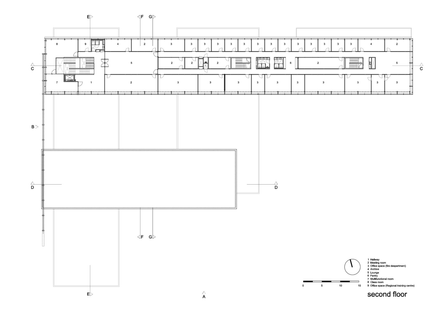

Plan
Fire Station Dordrecht
Plan
Fire Station Dordrecht
Plan
Fire Station Dordrecht
Plan
Fire Station Dordrecht
Plan


Fire Station Dordrecht
Elevation
Fire Station Dordrecht
Elevation


Fire Station Dordrecht

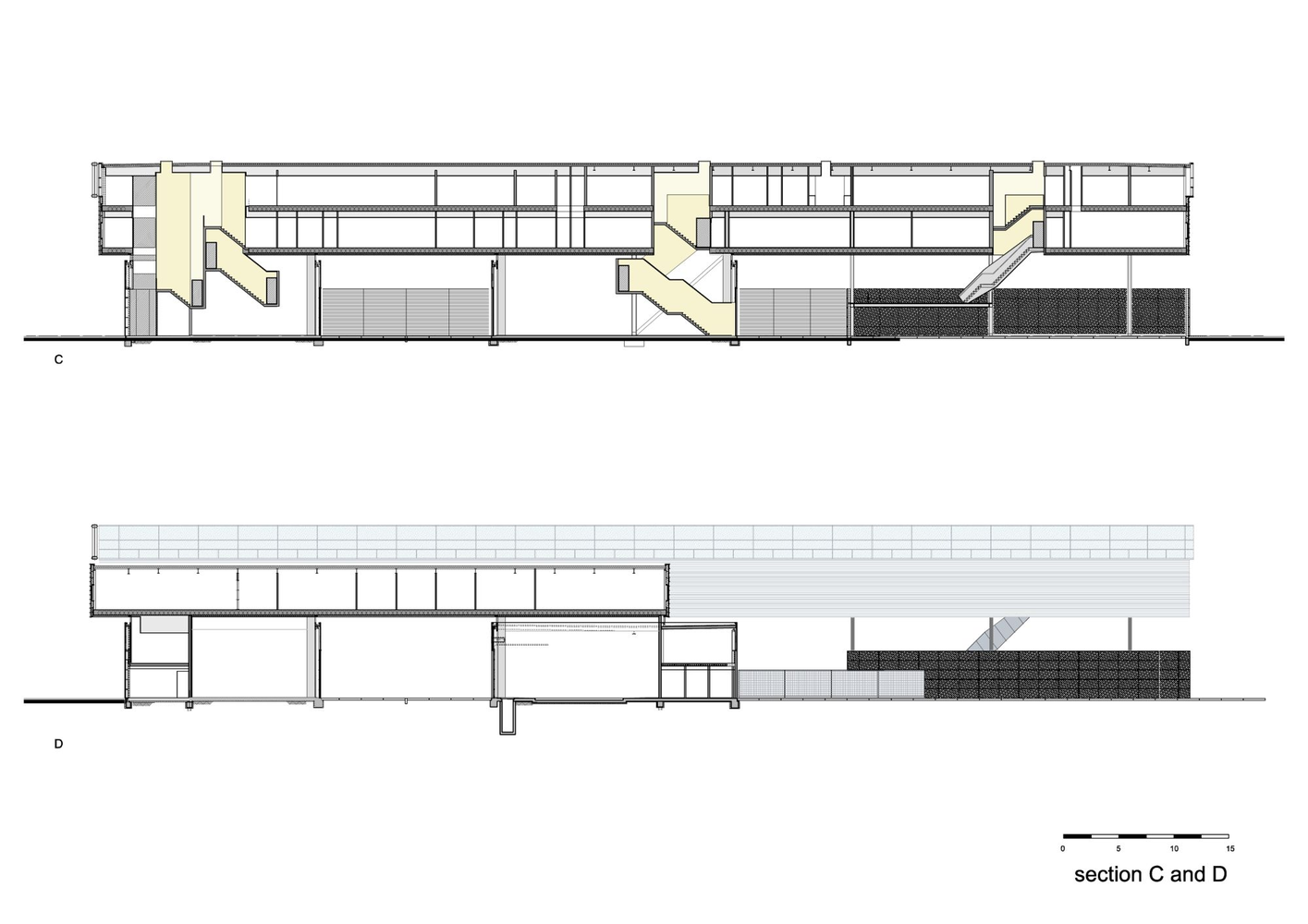

Section
