RMJM Architecture, FZ - LLC

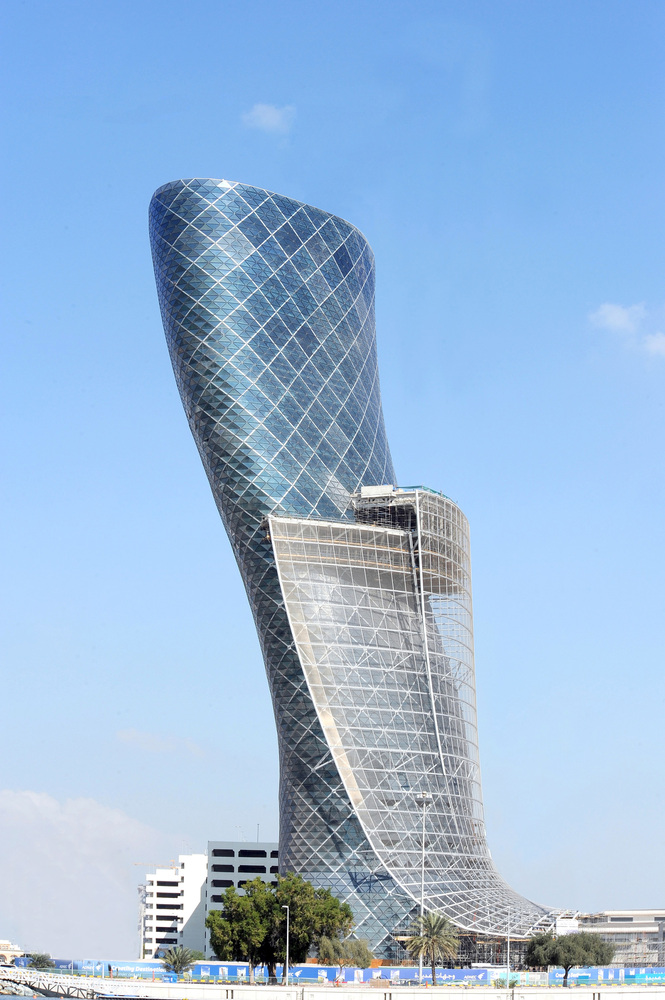

Capital Gate

Capital Gate
© RMJM

CAPITAL GATE

RMJM

ARCHITECTS
RMJM

PHOTOGRAPHS
Edgard EI, Serge Bystro, CC 3.0

LOCATION
Abu Dhabi - United Arab Emirates

PROJECT YEAR
2011

LANDSCAPING CONSULTANT
Al Khatib Crackneli

AREA
53100.0 m2

LIGHTING SERVICE
DPA Lightng Consultants

MEP
ETA

QUANTITY SERVEYOR
Hanscomb Ltd.

STEELWORKS
Eversendai

KITCHEN/DINNING
Tricon

FURNITURE/FINISHING
Marwan Furnishings Dubai

ARTWORK/ACCESSORIES
Arte Vivo

PROJECT MANAGE
Mace

FACADE CONSULTANT
Waagner Biro

GROUND FLOOR INTERIOR DESIGN CONSULTANT
U+A Architects

PROJECT ARCHITECT
Tony Archibold

MANUFACTURERS
GKD Metal Fabrics, Ejot, Pentair, Traxon Technologies

HOTEL INTERIOR DESIGN CONSULTANT
RPW

ARCHITECT IN CHARGE
Senior Design Architect & Neil van der Veen, Jeff Schofield

GLASS MANUFACTURER
Cardinal Glass

Text description provided by architect.

The Capital Gate ‘Feature Tower’ is an iconic development located on the exhibition site of the greater ADNEC masterplan. The tower is distinguished by a dramatic steel and glass facade with a striking organic form.

With its cantilevered tea lounge and open air pool deck, it provides a unique presence on the skyline of Abu Dhabi and creates a memorable identity to the exhibition centre.

Capital Gate
© Edgard EI
Capital Gate
© RMJM
Capital Gate
© CC 3.0

A sculptural stainless steel ‘splash’ flows down the front and at low level forms the hotel entrance canopy, flowing over the existing grandstand and acting as a solar shading device for both the building and the grandstand seating.

A free form internal atrium with a dynamic glass roof brings natural light and space deep into the tower.

External lighting is designed to minimise both light pollution and energy consumption, based on a combination of low-level landscape lighting with façade lighting comprising a net of compact LED clusters integrated into the design of the steel glazing system.

Capital Gate
© Serge Bystro
Capital Gate
© RMJM

At over 160m tall, the building stands 35 storeys high and offers over 16,000 sqm of high quality office space, as well as Abu Dhabi’s first Hyatt hotel, ‘The Hyatt@Capital Centre’.

Structurally, this challenging building sits on an intensive distribution of 490 piles which were drilled 30 metres underground to accommodate the gravitational, wind and seismic forces caused by the distinctive lean of the building.

Capital Gate
© RMJM
Capital Gate
© RMJM

The Feature Tower is an exemplary example of RMJM’s design and in-house engineering capabilities.

In January 2010 Capital Gate in Abu Dhabi was recognised as the world’s furthest leaning manmade tower by the Guinness Book of World Records.

Capital Gate


Capital Gate
© RMJM
Capital Gate
© RMJM
Capital Gate
© RMJM
Capital Gate
© RMJM
Capital Gate
© RMJM
Capital Gate
© RMJM


Capital Gate
Ground Floor Plan
Capital Gate
Mezzanine Floor Plan
Capital Gate
Basement Floor Plan
Capital Gate
Roof Deck Floor Plan
Capital Gate
Ground Floor Plan
Capital Gate
Helipad Floor Plan


Capital Gate
Typical Office Floor Plan Level 2
Capital Gate
Typical Office Floor Plan Level 8
Capital Gate
Office Floor Plan Level 16
Capital Gate
Hotel Public Floor Plan Level 18
Capital Gate
Hotel Public Floor Plan Level 18
Capital Gate
Public Floor Plan Level 19
Capital Gate
Typical Hotel Guestroom Floor Level 20
Capital Gate
Typical Hotel Guestroom Floor Level 26
Capital Gate
Typical Hotel Guestroom Floor Level 33
Capital Gate
Section
Capital Gate
Presidential Suites Floor Plan
Capital Gate
Section
