Juri Troy ZT GmbH

House J-T

House J-T
© Juri Troy Architects

AREA
138.0 sqm

YEAR
2011

LOCATION
Hörbranz, Austria

CATEGORY
Houses

House J-T
© Juri Troy Architects

Text description provided by architect.

The two-floor wooden construction lies directly above a yard with an roofed entrance area which curves in an abrupt slope.

The circumferential and vertical silver fir facade not only serves as a filter, but also almost imperceptibly directs views to the carefully selected outlooks.

House J-T
© Juri Troy Architects
House J-T
© Juri Troy Architects
House J-T
© Juri Troy Architects
House J-T
© Juri Troy Architects

The narrow, slightly and both-sidely bent ground plan follows both the course of the road and slightly bends the garden side towards the south.

The plan is developed around the central staircase connected with an infrastructure complex, containing a kitchen, bathrooms and a storage room.

House J-T
© Juri Troy Architects
House J-T
© Juri Troy Architects

The energy concept is based on the passive house standard. The low quantity of the remaining energy required for hot water processing and heating is being provided via district heating from the heat pump of the neighbouring house.

A controlled and central ventilation system provides an optimal air quality and minimal heat losses.

House J-T
© Juri Troy Architects
House J-T
© Juri Troy Architects

With a 5 kW photovoltaic plant on the rooftop the house generates nearly all the energy it needs and is therefore a close to zero energy building.


House J-T
Floor Plan
House J-T
Floor Plan
House J-T

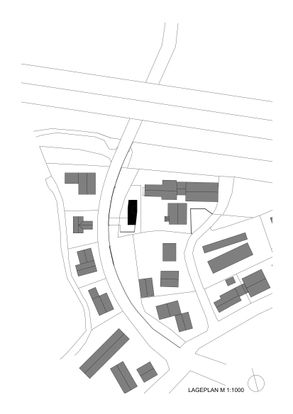

Site Plan
House J-T
Floor Plan


House J-T
Section
House J-T
Section
House J-T
Section


House J-T
Elevation
House J-T
Elevation
House J-T
Elevation
House J-T
Elevation
