Dobai Építésziroda kft

Szamalk Educational Center

Szamalk Educational Center
© Bujnovszky Tamás

SZAMALK EDUCATIONAL CENTER

DOBAI János DLA

ARCHITECTS
DOBAI János DLA

ARCHITECT COLLABORATORS
Vizdák Janka

PHOTOGRAPHS
Bujnovszky Tamás

LOCATION
Budapest, Hungría

CATEGORY
Educational Architecture

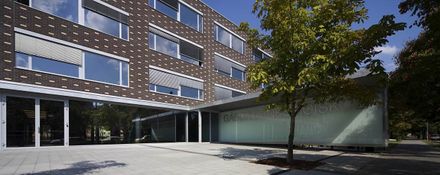

Szamalk Educational Center
© Bujnovszky Tamás

We have already made designs for SZÁMALK before, such as the reconstruction of their 40-year-old headquarter. Among those plans, the 242 people capacity lecture hall of the center building at Etele Street was realized. Already at that point, the possibility of a new building – instead of the questionable efforts of the reconstruction – occurred.

The construction works of Budapest Metro 4 and its possible subcenter in the vicinity of the neighboring Kelenföld Railway Station revalued the site. Finally the client decided to sell the lot and construct a new building. The site for this new building is near the crossing of Etele Street and Tétényi Street, and is actually not so far from the old one.

Szamalk Educational Center
© Bujnovszky Tamás

An elementary school was demolished here, which was previously closed due to the lack of students.The design program consists of mainly rooms used by Gábor Dénes College and other educational institutes.

The client asked for lecture halls of different sizes (the main profile is the education of computer studies and economics on advanced level), offices for a big staff and other rooms to support their service.

Szamalk Educational Center
© Bujnovszky Tamás
Szamalk Educational Center
© Bujnovszky Tamás

A lecture hall for 200 people, a cold buffet-kitchen and an underground parking space were also established here.

The educational activity is basically all-year around. Due to this reason and to deal with the thermal load generated by the numerous computers, the building is air-conditioned.

Szamalk Educational Center
© Bujnovszky Tamás
Szamalk Educational Center
© Bujnovszky Tamás

The floor plan is devised with a three-row division layout: classrooms face North – this way they are evenly illuminated but receive less heat impact from the sun – and offices face South.

Details are developed to allow any alteration in the size of the classrooms. In the middle row of the floor plan – to counterpoint the tight-fitting outer ones – staircases, elevators and the main hall are situated in an airy configuration.

Such as in the Elementary School of Budaörs there is an atrium above the main hall.

Szamalk Educational Center
© Bujnovszky Tamás
Szamalk Educational Center
© Bujnovszky Tamás

The floating appearance of staircases is realized through a special structure.

During the construction we recycled materials from the lecture hall of the demolished, old building at Etele Street.

The economical building coverage allowed us to construct Mérnök Ház - Student Hostel on the same lot a year later.

Szamalk Educational Center
© Bujnovszky Tamás
Szamalk Educational Center
© Bujnovszky Tamás


Szamalk Educational Center
© Bujnovszky Tamás
Szamalk Educational Center
© Bujnovszky Tamás
Szamalk Educational Center
© Bujnovszky Tamás


Szamalk Educational Center

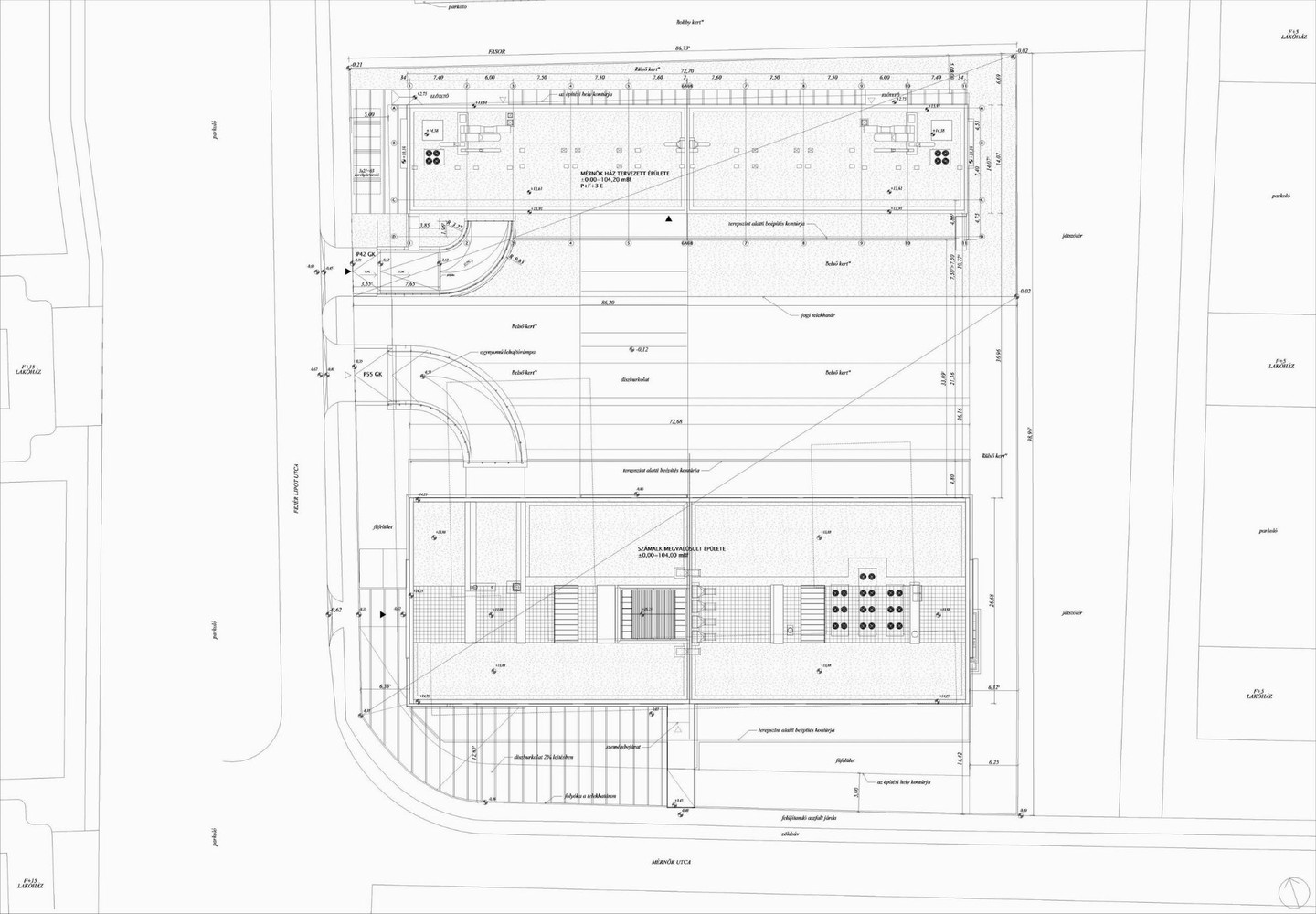

Plan
Szamalk Educational Center
Plan
Szamalk Educational Center
Plan
Szamalk Educational Center
Plan
Szamalk Educational Center
Plan

Szamalk Educational Center
Plan


Szamalk Educational Center

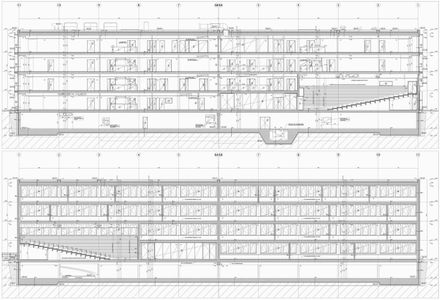

Section
Szamalk Educational Center
Section
Szamalk Educational Center
Section
Szamalk Educational Center
Section

Szamalk Educational Center

Section
