Vaillo - Irigaray and Associates, SLP

Occidens Museum

Occidens Museum
© Ruben Perez Bescos
Occidens Museum
© Ruben Perez Bescos

STRUCTURE
OPERA Ingeniería, Raúl Escrivá

COLLABORATORS
Felipe Pou, Javier Gil, Iñigo Beguiristain, Ángel Álvarez, Oscar Martínez, Eva Fernández

METAL WORKS
Larumbe, Goyo Larumbe

LIGHTING ELEMENTS
Irago

AREA
2000.0 m²

YEAR
2012

LOCATION
Pamplona, spain

CATEGORY
Museum

Text description provided by architect.

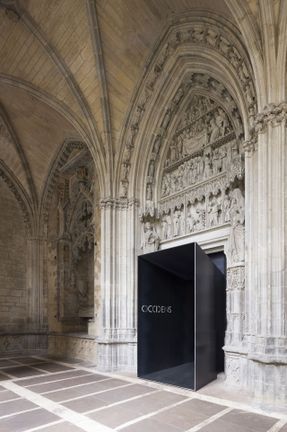

Occidens museum takes place into the Pamplona’s cathedral complex, crossing various spaces of different times: archaeological excavations II c fC-VIIIc aC, Romanesque palace, XI c, Archbishop's Palace XII c, and the gothic constructions of the Archdeacon palace of the XIV-XVI c.

Occidens Museum
© Ruben Perez Bescos
Occidens Museum
© Ruben Perez Bescos

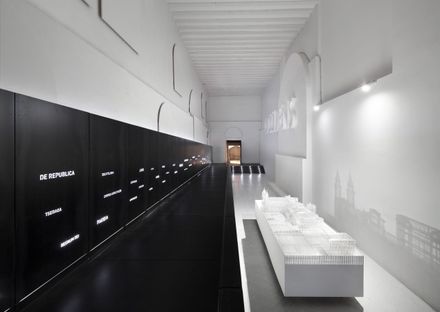

The Museum is conceived as a narrative project closer to a cinematographic discipline than to the conventional schemes of the museum through a discourse deployed through different frames and different reading levels: signs, images, objects, sounds, text, projections, codes, smells and atmospheres…

The project enhances the relationship between content-continent, between architecture and art works by devising different atmospheres appropriate to each time and each space.

Occidens Museum
© Ruben Perez Bescos
Occidens Museum
© Ruben Perez Bescos

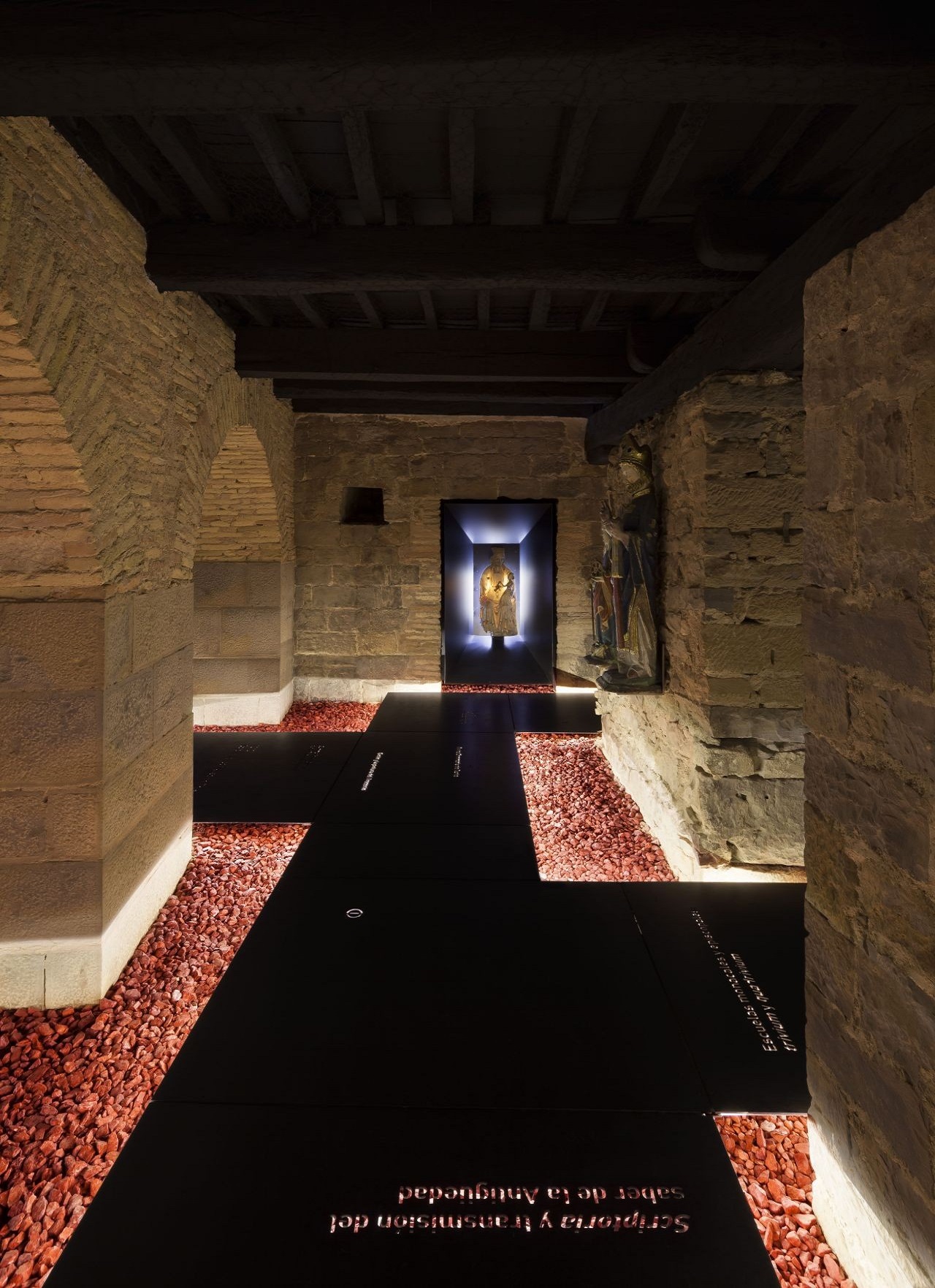

The unity of the museum –composed of architectures of different times- is achieved by using a carpet of steel that meanders through the various rooms of millenarian architectures floating between archaic atmospheres without touching the footprints of the past, giving unity to the whole exhibition.

The project is implemented by a single resource: a carpet of steel that works as a guiding thread of the whole exhibitions its, without touching, winding through the different rooms from different times.

Occidens Museum
© Ruben Perez Bescos
Occidens Museum
© Ruben Perez Bescos

A single resource, flexible and ambivalent, is able to realize its potential to generating an iconography able to provide homogeneity to an uneven set in time and space.

A black steel plate 1 cm thick is bent and drilled to become gangway, pavement, bench, lamp, exhibitor… the drilled text sexplain while lighting, guiding and giving content to the travel...

Occidens Museum
© Ruben Perez Bescos


Occidens Museum
© Ruben Perez Bescos
Occidens Museum
© Ruben Perez Bescos
Occidens Museum
© Ruben Perez Bescos
Occidens Museum
© Ruben Perez Bescos


Occidens Museum
© Ruben Perez Bescos
Occidens Museum
© Ruben Perez Bescos
Occidens Museum
© Ruben Perez Bescos


Occidens Museum

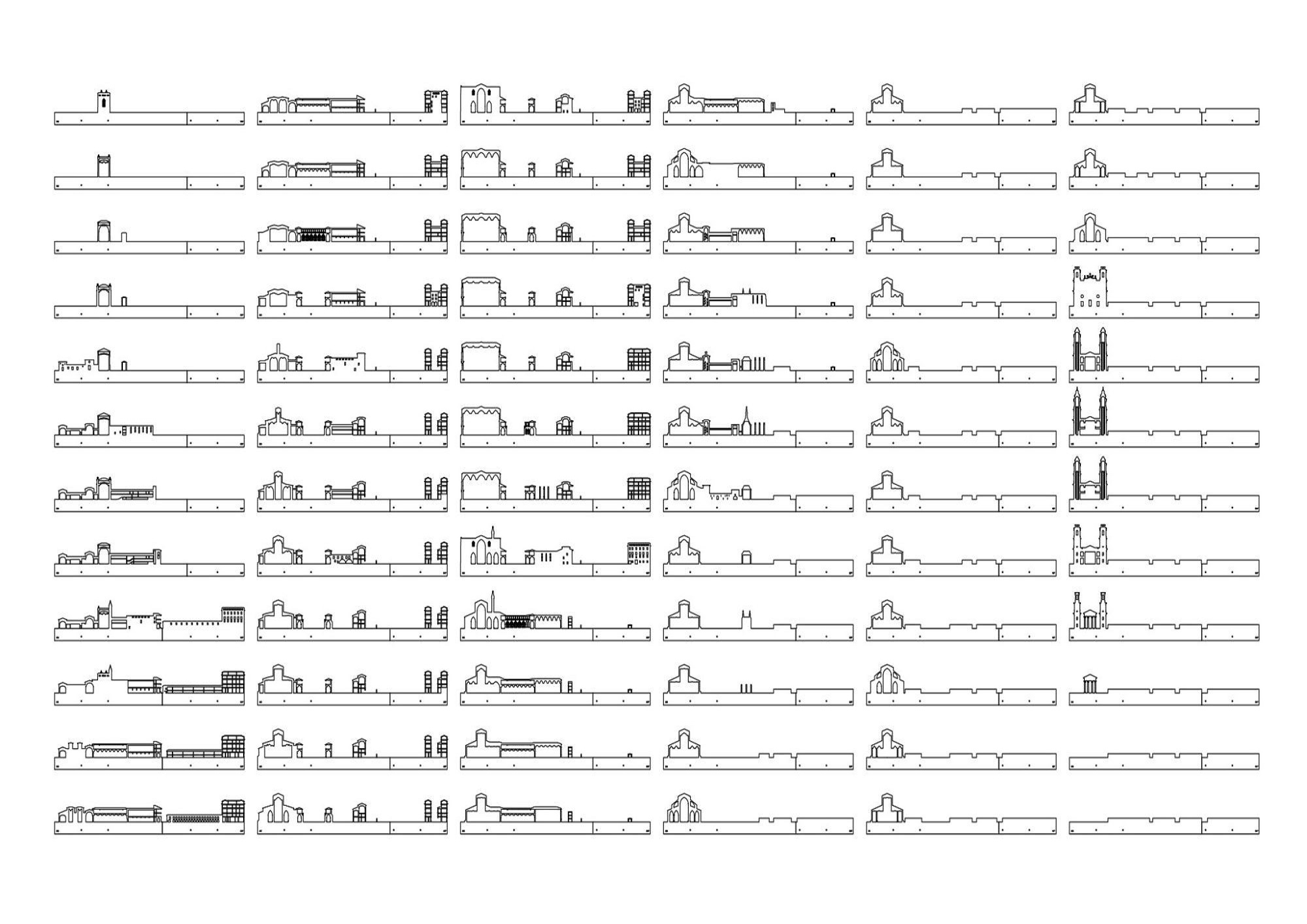

Diagram
Occidens Museum

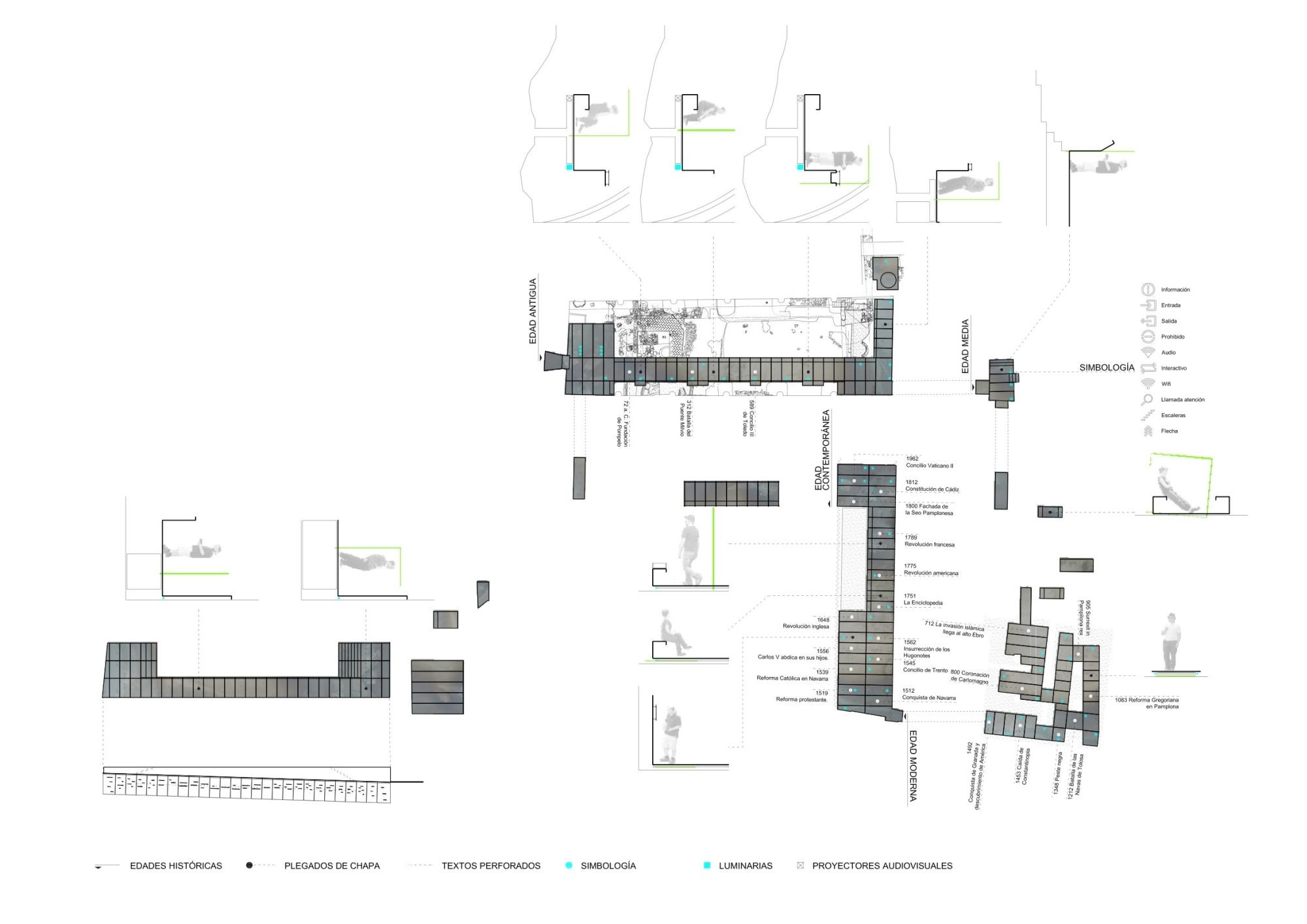

Diagram


Occidens Museum
Detail
Occidens Museum

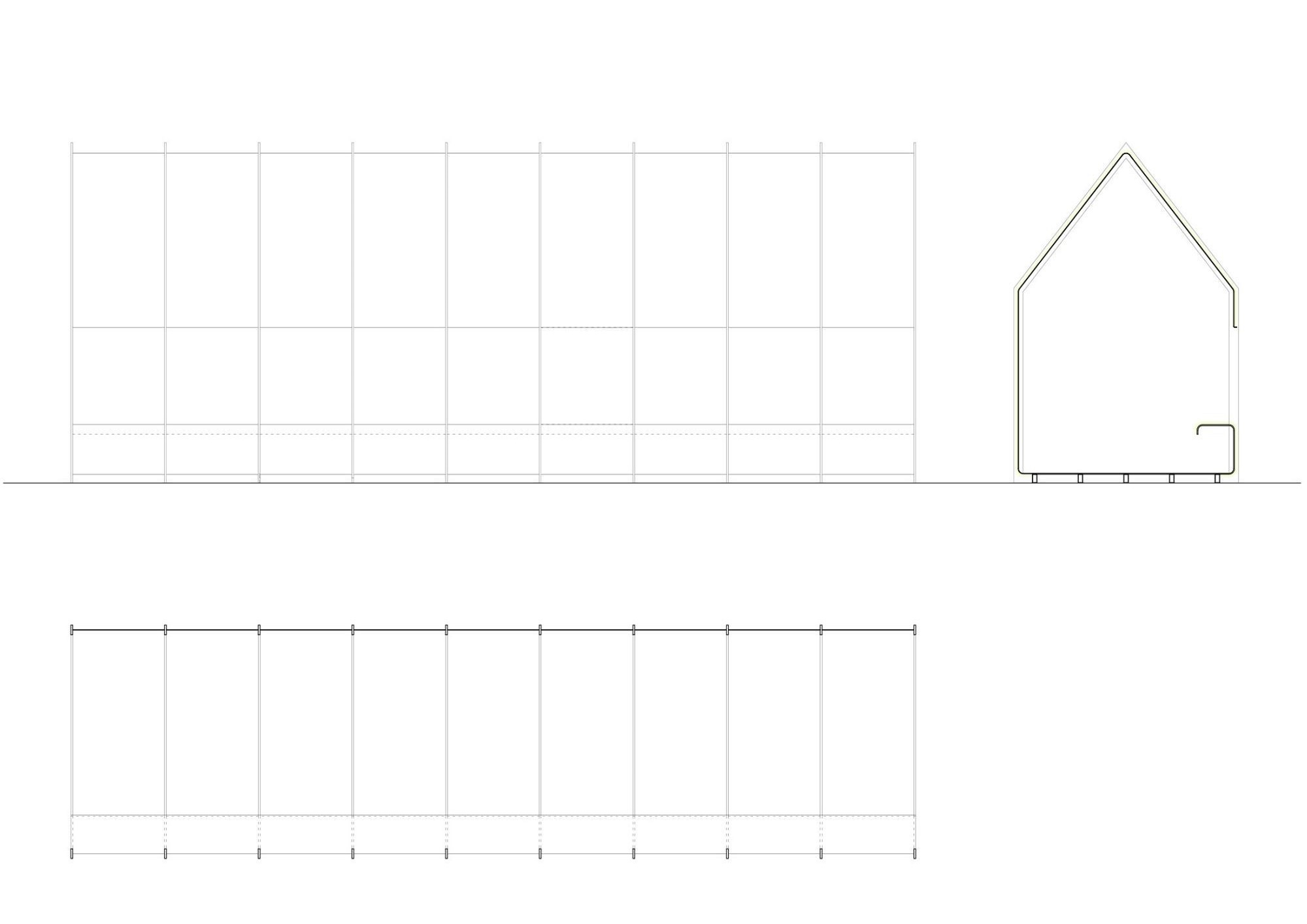

Section


Occidens Museum

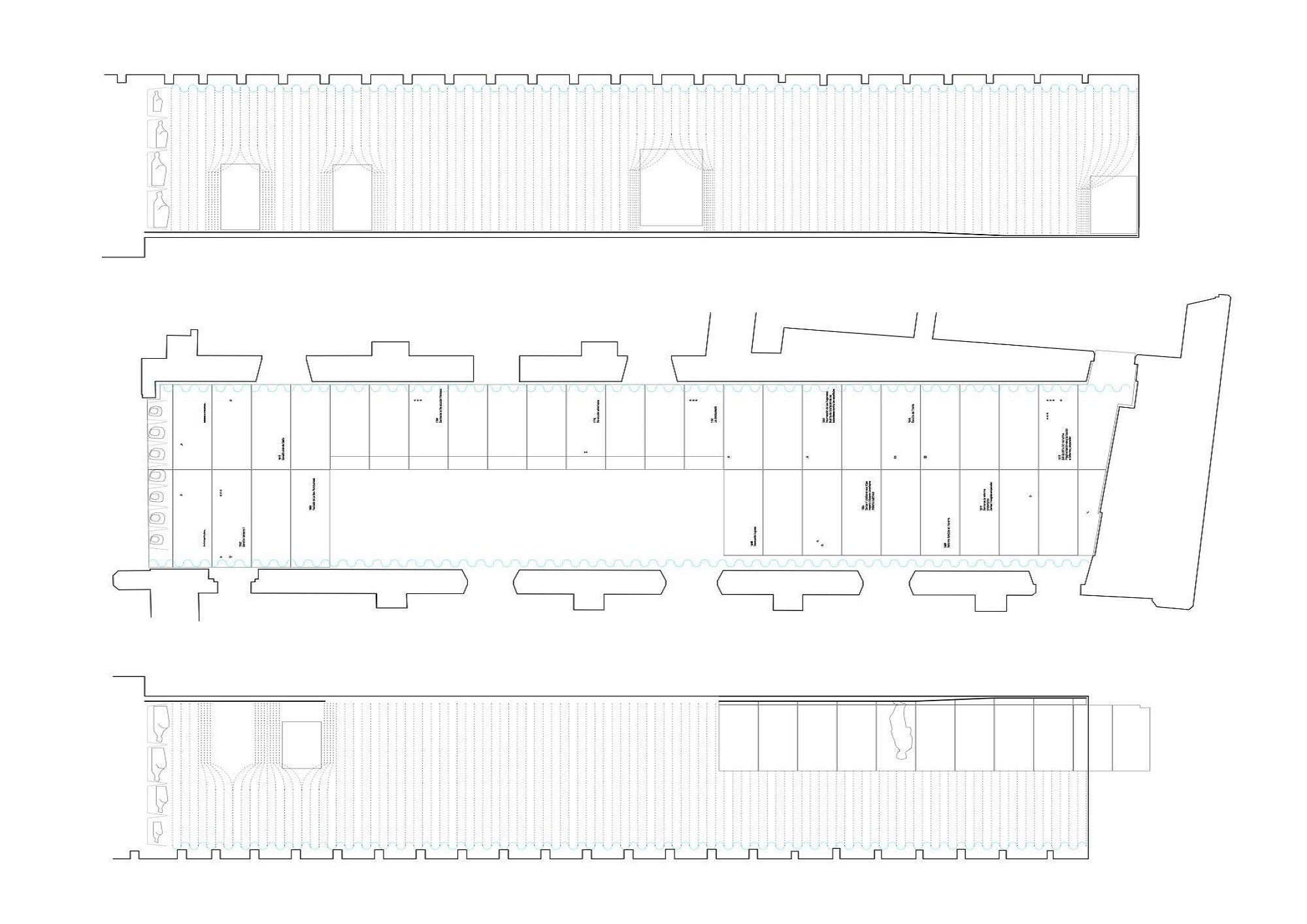

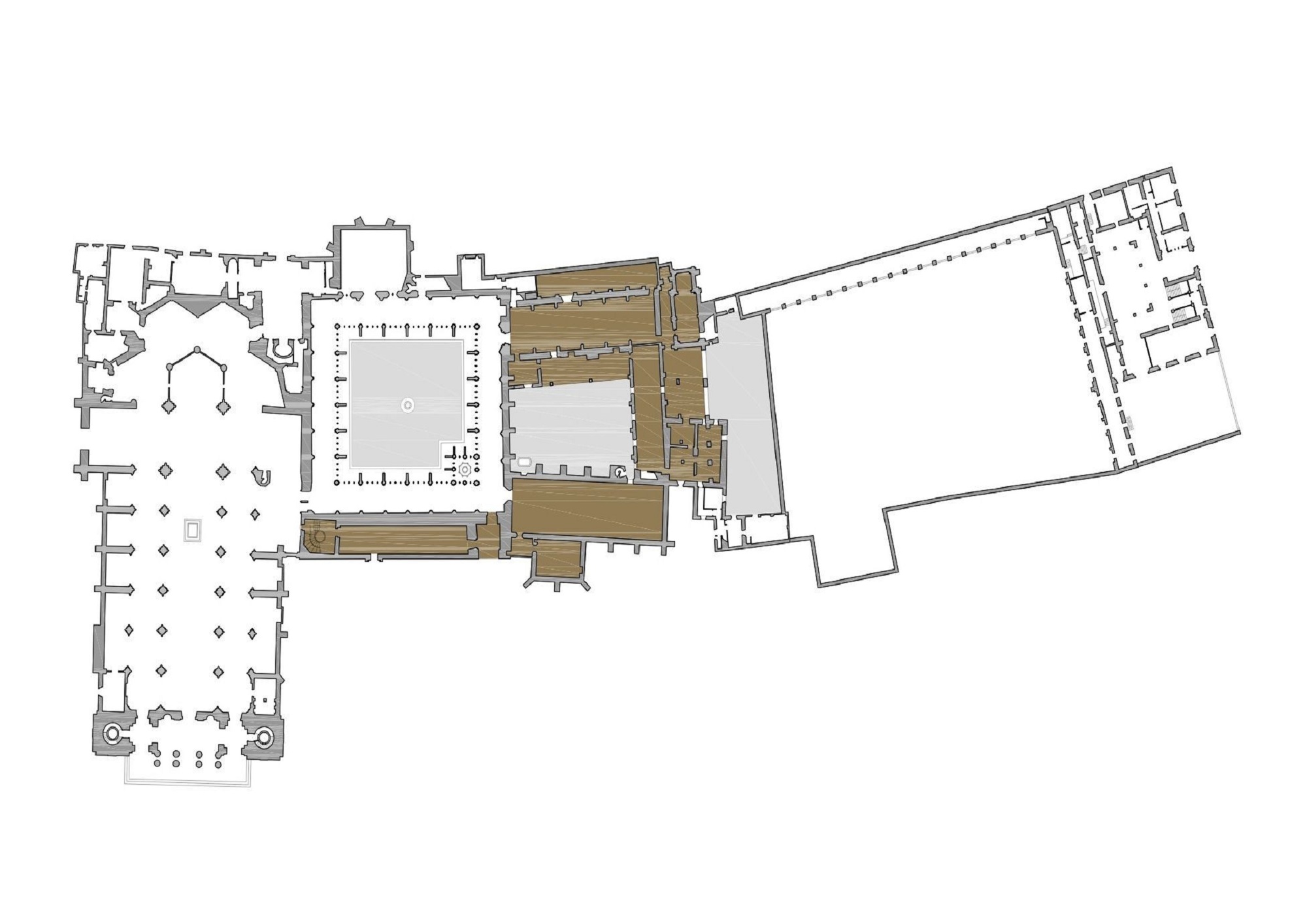

Plan
Occidens Museum
Plan
Occidens Museum

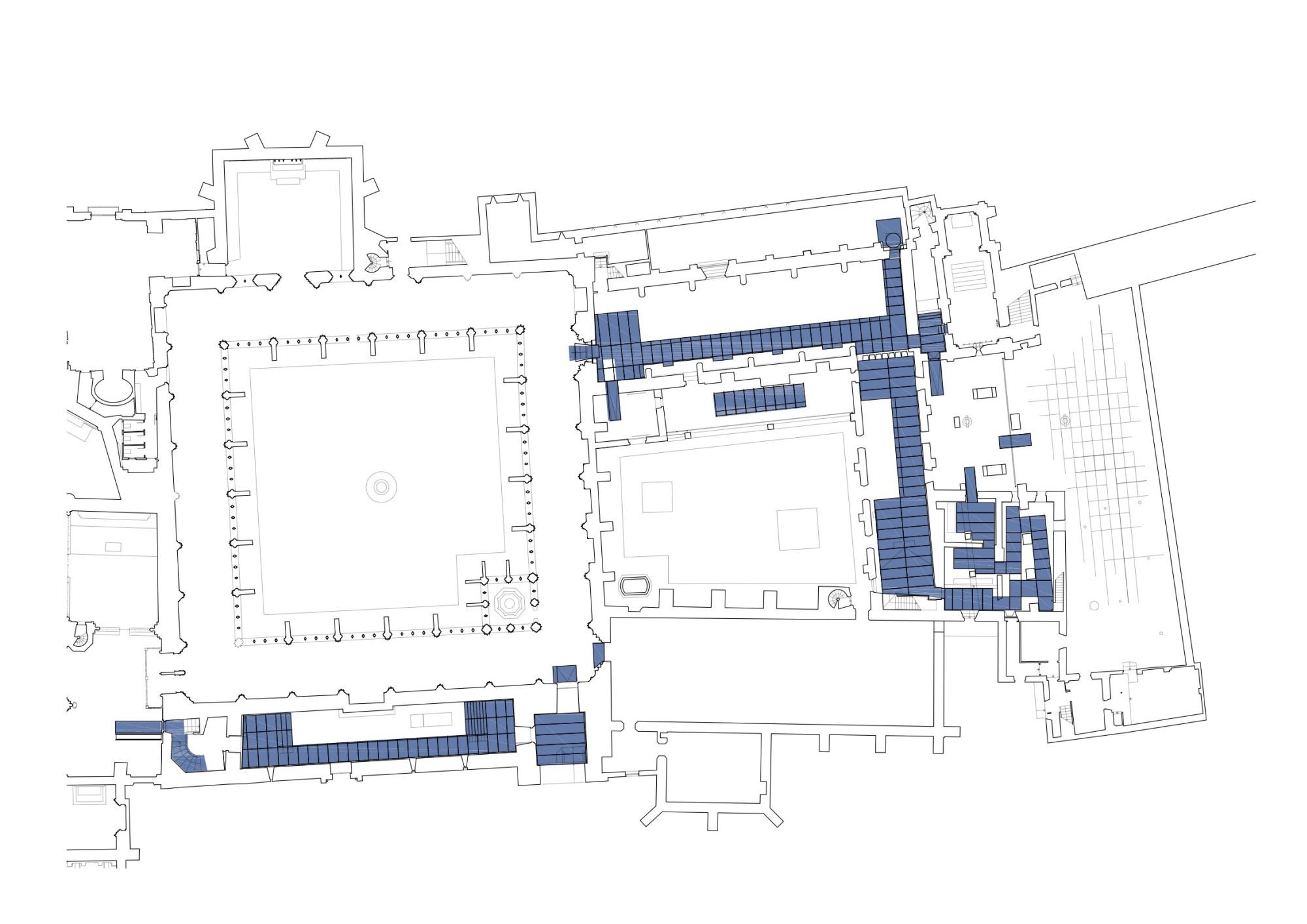

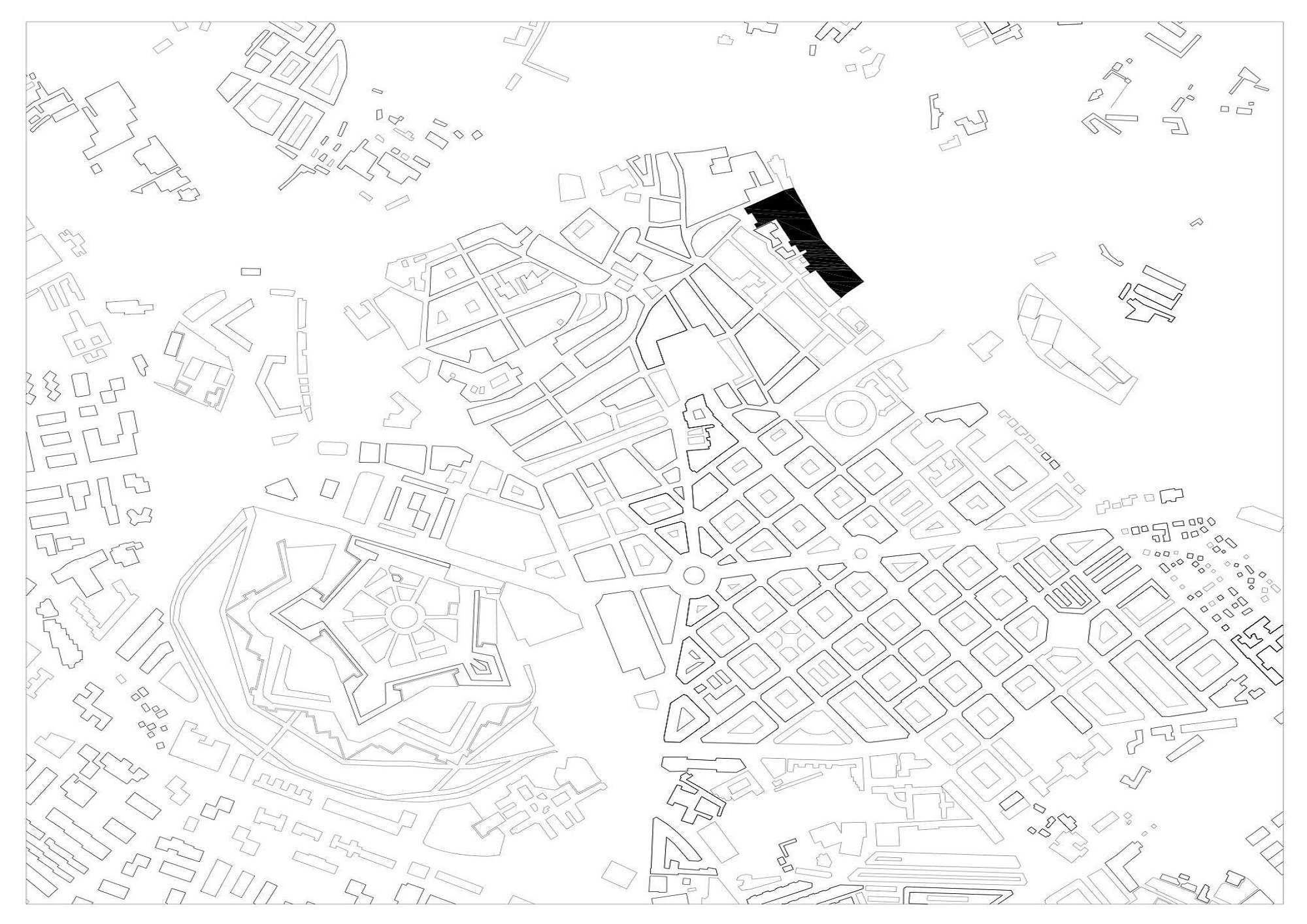

Site Plan
