Multifunctional Structure In Saló Central Area
MULTIFUNCTIONAL STRUCTURE IN SALÓ CENTRAL AREA
COLLABORATION
Iván Sánchez, Mario Súñer, Xavier Ramoneda, Enrique Stegeman, arquitectos; Dolors Feu, ingeniera agrónoma; Summa, ingeniería
PHOTOGRAPHS
Jordi Surroca
YEAR
2012
LOCATION
Sant Boi De Llobregat, Spain
CATEGORY
Installations & Structures, Landscape Architecture
Text description provided by architect.

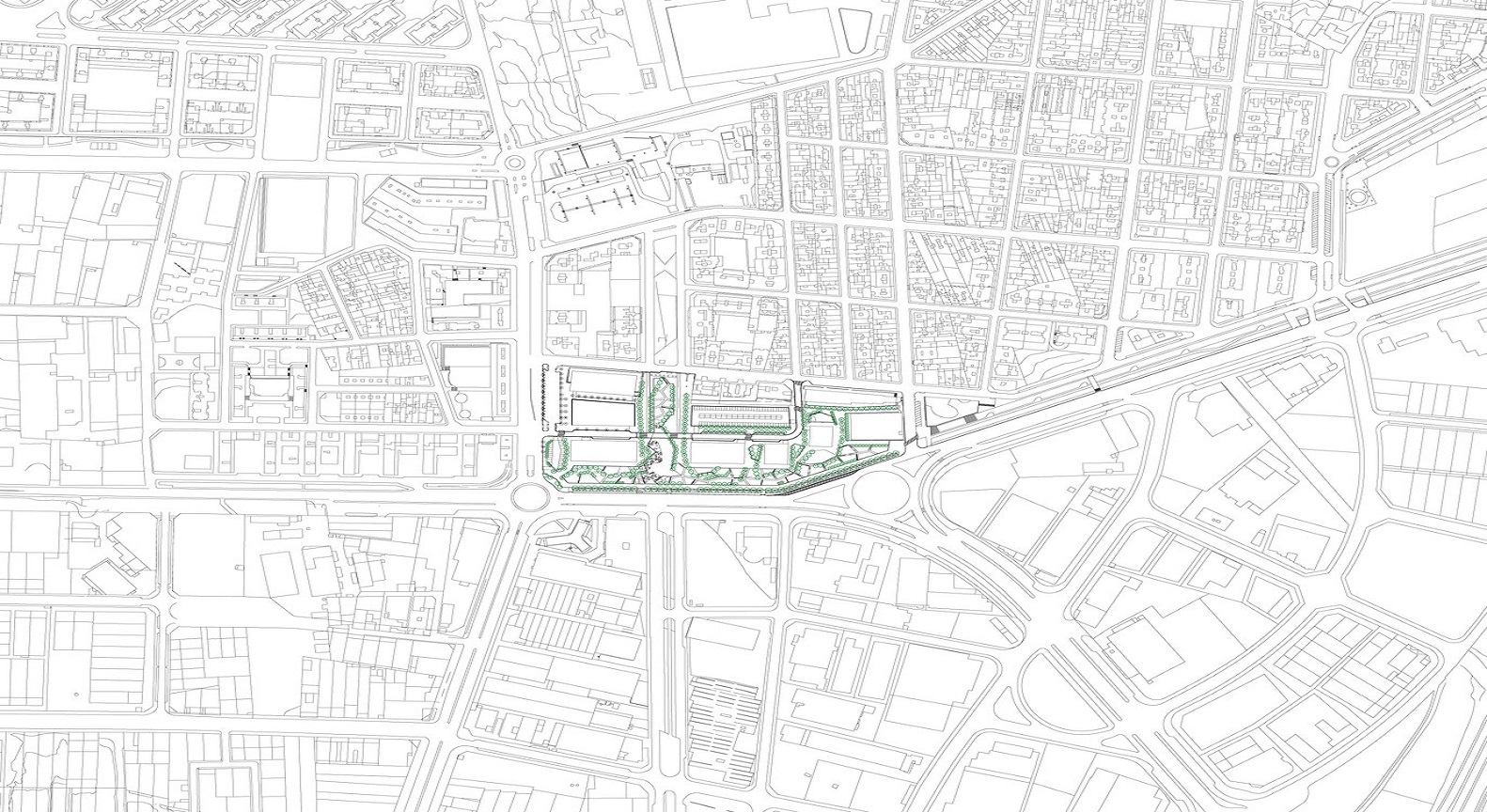

The Saló Central area is located in the junction of two axis which have a significant importance in the city of Sant Boi de Llobregat: Santa Creu de Calafell road (C-245) and Josep Mariages avenue. These two axis have different characters.
The C-245 road is one of the most important interurban roads in the region, having a very strong industrial character but at the same time experiencing very important transformations towards a more urban, green, residential and pedestrian character. On the other hand, Josep Mariages Avenue will soon become an important north-south pedestrian connection.

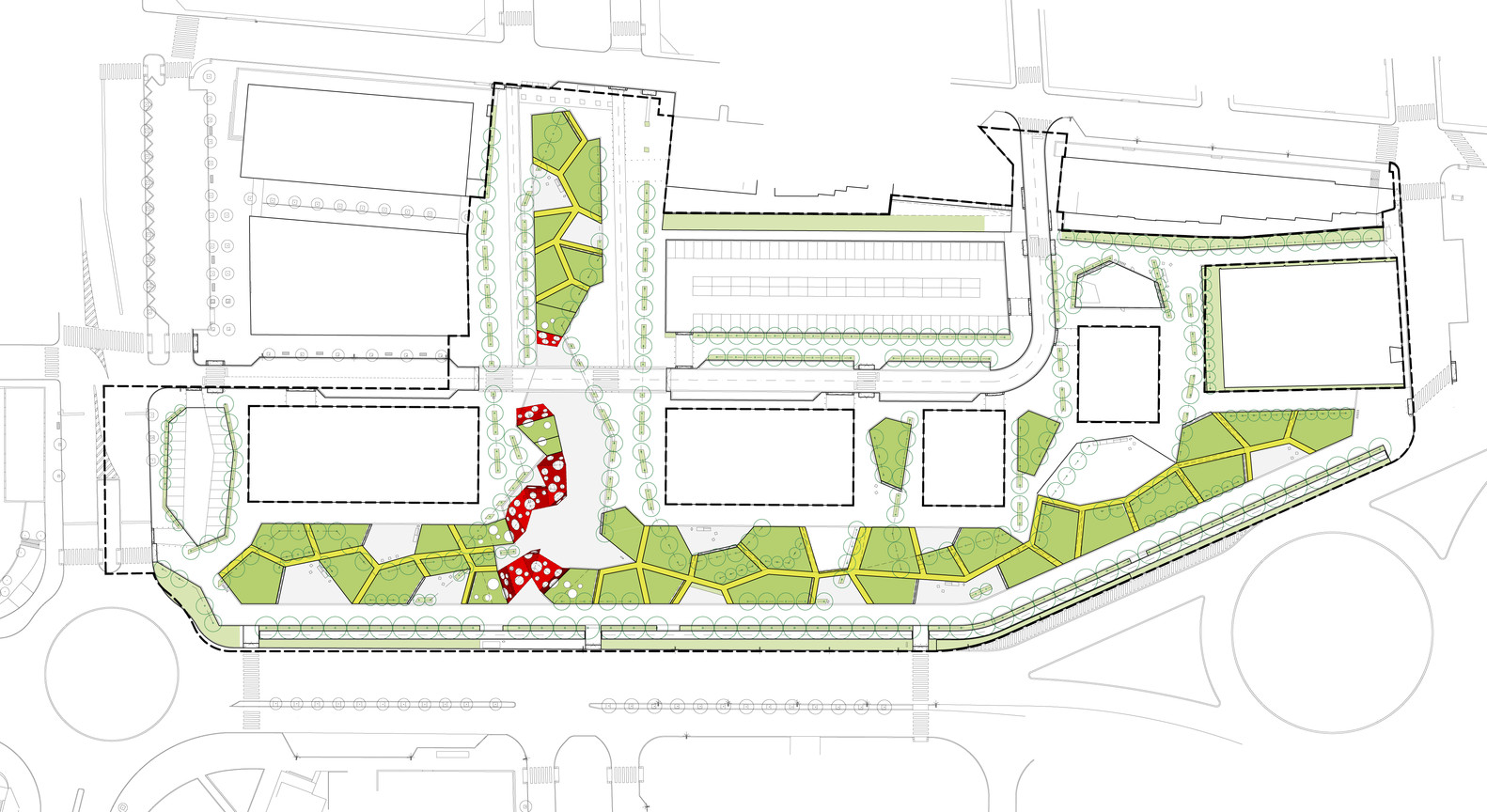

In this framework, the proposal gives response to several constraints. The project collaborates in this transformation process of the C-245 road to a more urban and pedestrian street, ensuring the continuity of the bicycle and pedestrian paths and creating a new green front that buffers the current noisy and heavy traffic conditions.
On the other hand, the proposal recognizes the importance of the junction of the two axis, and therefore generates a functional core of the park in this place.
This new area is emphasized by the creation of an urban landmark: the pergolas. When the polygonal pattern approaches the junction of the two axes, it detaches itself from the ground in the form of a pergola, maintaining the same formal language and material (steel).

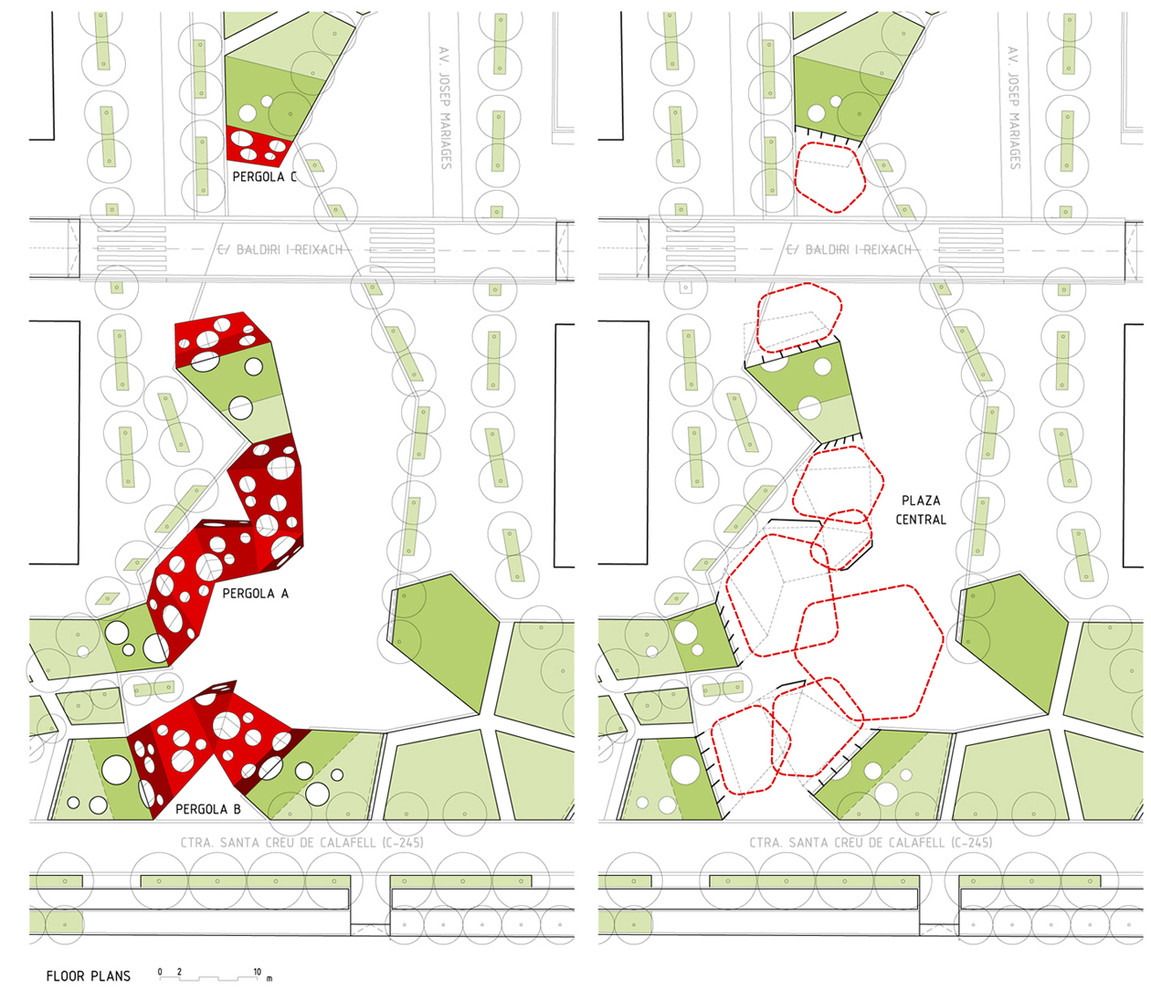

These pergolas generate a central plaza, not in sort of a great continuous space but fragmenting the it in a series of well-located shaded and polyvalent subspaces of different sizes, that can house several ephemeral events such as concerts, fairs, open air markets, shows for children, etc.
Moreover, the site is very visible and well located among the city’s pedestrian flows.
The new pergolas are going to hold the well-known Sant Boi fair, which takes place from December the 6th to the 8th.

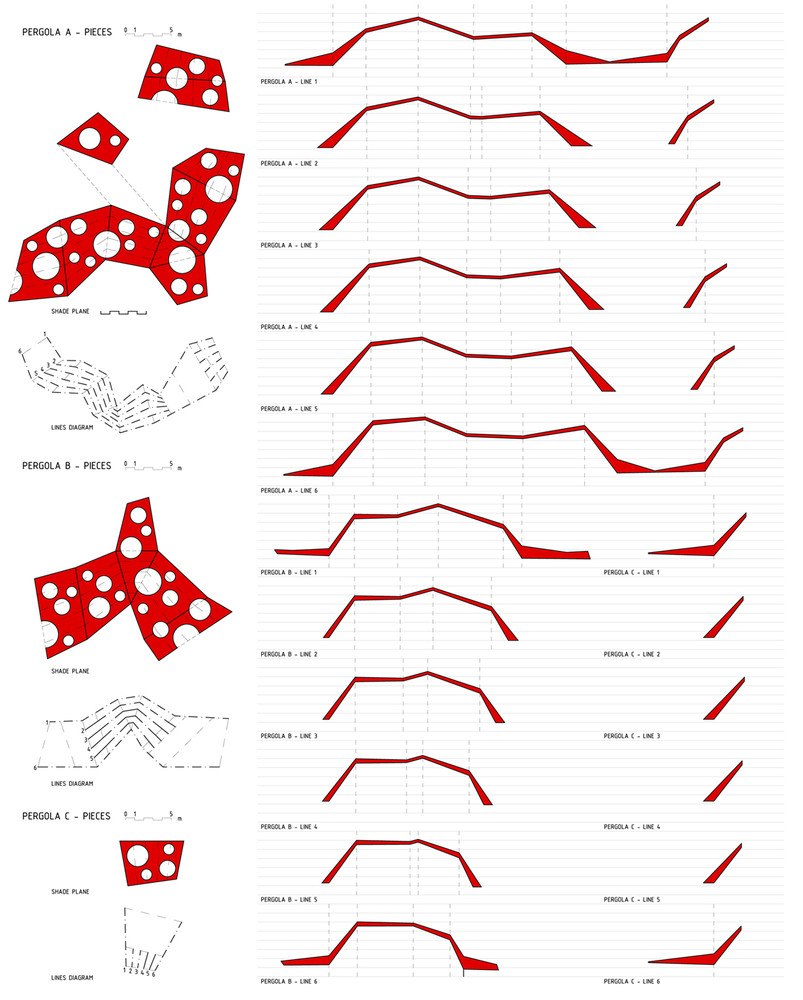

The structure of the pergola is about continuous metal ribs that fold to generate the different shapes and spaces in the plaza.
The cover of this structure is a continuous plane made of steel sheets with big perforations. This plan adapts to the twists and folding of the rib structure like an origami, providing big and comfortable shaded areas.
La pérgola funciona mediante una estructura de costillas continuas de plancha metálica colocadas de canto. Éstas se van doblando y plegando para generar estos diferentes espacios en la plaza. La cubrición de las pérgolas se realiza mediante un plano continuo perforado, que se adapta a esos giros y dobleces de la estructura de costillas, a modo de ‘origami’, generando la tan deseada sombra.

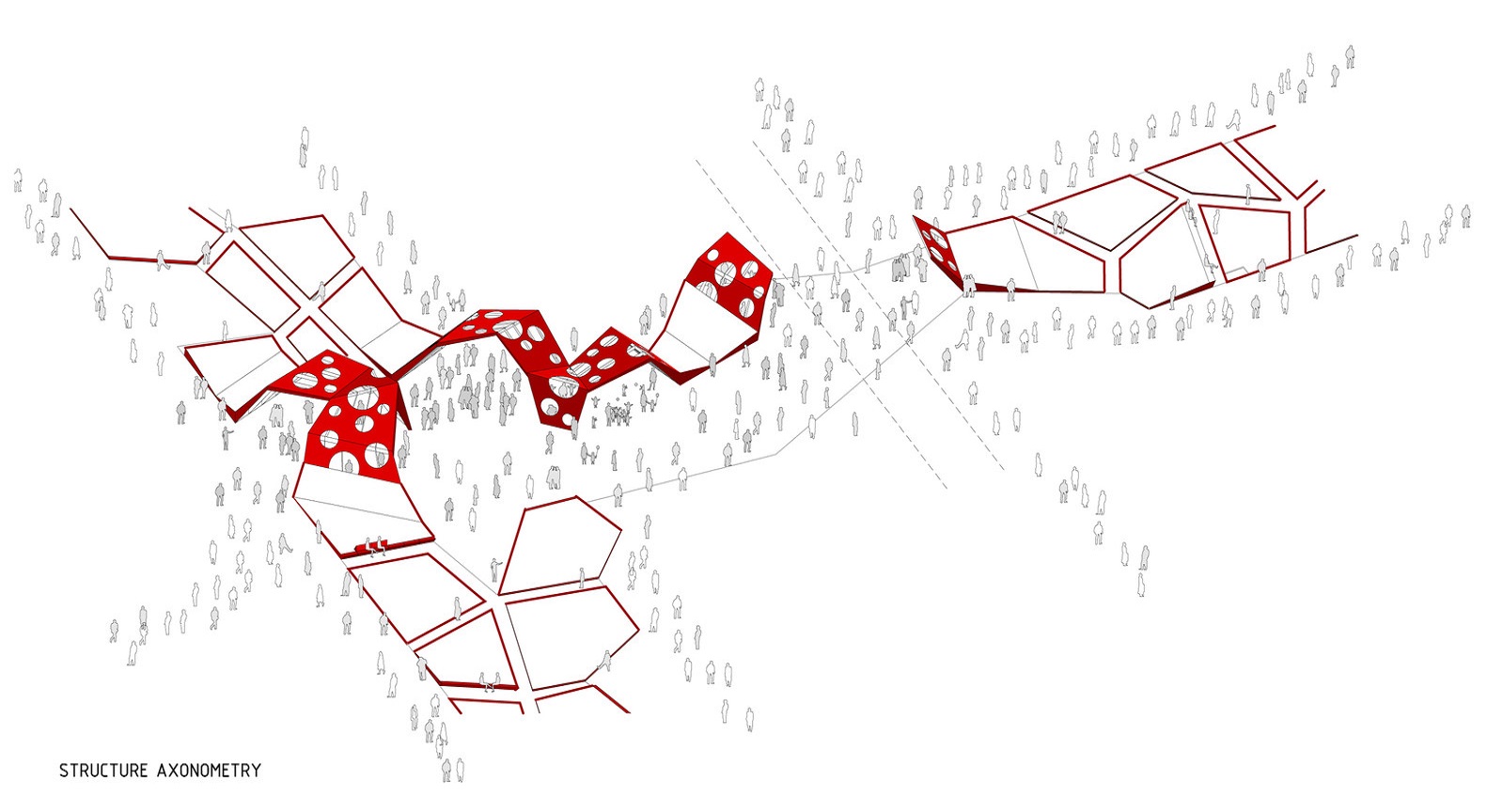

Axon
