Integrated Field Co., Ltd.

Baan Moom

Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF

ARCHITECTS
Integrated Field

LANDSCAPE ARCHITECT
Kirin Tanglertpanya& IF

STRUCTURAL ENGINEER
Piyapong Suwanmaneechot

MAIN CONTRACTOR
SPC TechnoconsCo.,Ltd.

INTERIOR DESIGNER
PorntidaKruapat& IF

SYSTEM ENGINEER
Mongkol Pichayakittisin

PHOTOGRAPHS
Wison Tungthunya & IF

AREA
550.0 m²

YEAR
2012

LOCATION
Thailand

CATEGORY
House

Text description provided by architect.

This house for a family of five is located on Sukhumvit Rd., Soi 101/1, next to their old house where they had been living since long time ago.

Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF

According to the scale of the site and owner's love of nature, open space, and gardening give an initial idea for this house design.

All functions are packed and stacked into 3-storeys to provide the most open space possible on the ground level.

Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF

Functional usages are one master bedroom with master bathroom for parents, 2 bedrooms and 2 bathrooms for sons, a living/dining space, a working room, an open kitchen, a Thai kitchen and a lap pool.

The house was positioned on the southwest part of the site. All bathrooms are on the west part on each floor of the house to protect all other functions from the sunlight during daylight hours, and for the hygienic reason of the bathroom as well.

Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF

With the bathroom on the west, each bedroom can face either north or east for the proper quality of natural light, and left the court on the ground level in L-shaped.

Two main characters those most likely tobe found in this house are the ‘stairs hall’ and ‘corners’ on each floor.

Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF

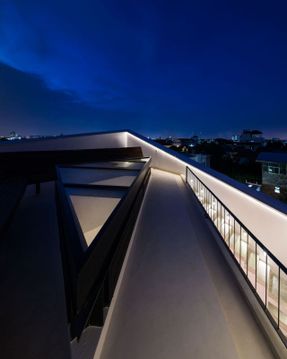

This stairs hall consists of the triangular staircase, the triangular skylight on the rooftop and internal voids for every room.

The skylight provides the natural light throughout stairs hall and even for the living space on the first floor, internal voids provides the ventilation for each room and also the visual connection for family members, and of course, this stairs hall acts as the main vertical circulation for this house.

Another thing mentioned earlier is the ‘Corner’. This later became a name of this house, ‘บ้านมุม’(มุม [Moom] means ‘Corner’ in English). There’re 2 types of corners in this house, ‘individual’ and ‘shared’.

Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF

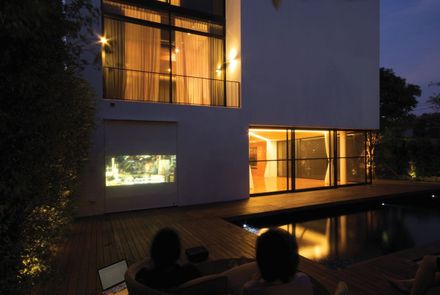

Individual ones became bedrooms those reflect the character of each family member, and shared ones became open spaces connected to stairs hall on each floor for different family usage, such as living space on the first floor that connect to the deck and lap pool outside, the multipurpose family space on the second floor and the terrace that leads to the rooftop of the house.

Materials to be mentioned are steel frame, insulated glass and fishnet from the ocean liner.

Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF

Steel window/door frames are mostly used to create smaller profile and make door sets look the most disappeared, especially for the set of sliding doors at the corner of the living room that can be slid all the way into walls on the both side and give the continuity of space from living room to the open space outside.

Insulated glass helps skylight not to let the heat into the house too much.

Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF

Fishnet used in the ocean liner was selected to be used as a hammock in the double space between working room(2nd floor) and the bedroom (3rd floor).


Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF


Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF
Baan Moom
© Wison Tungthunya & IF

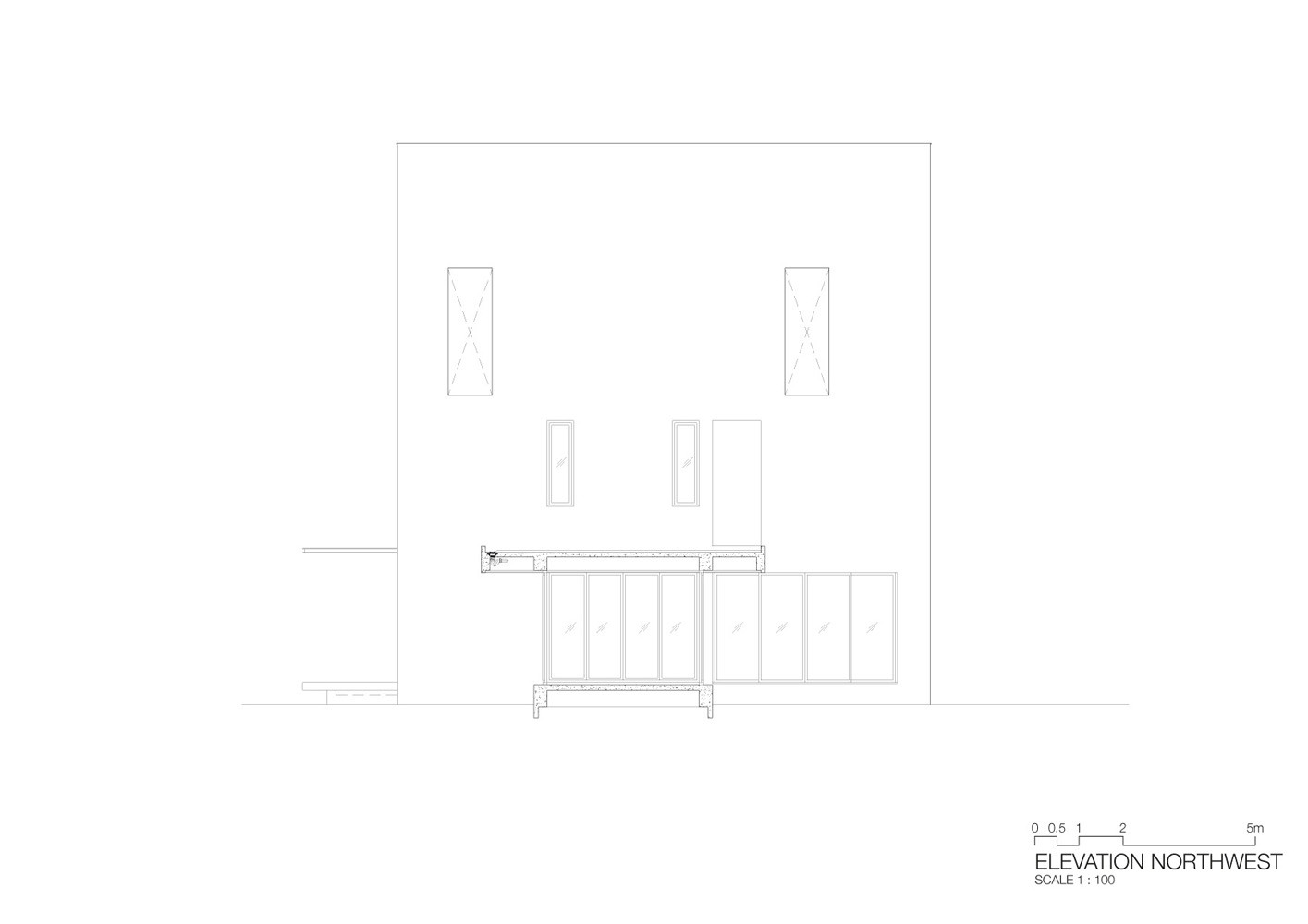

Baan Moom

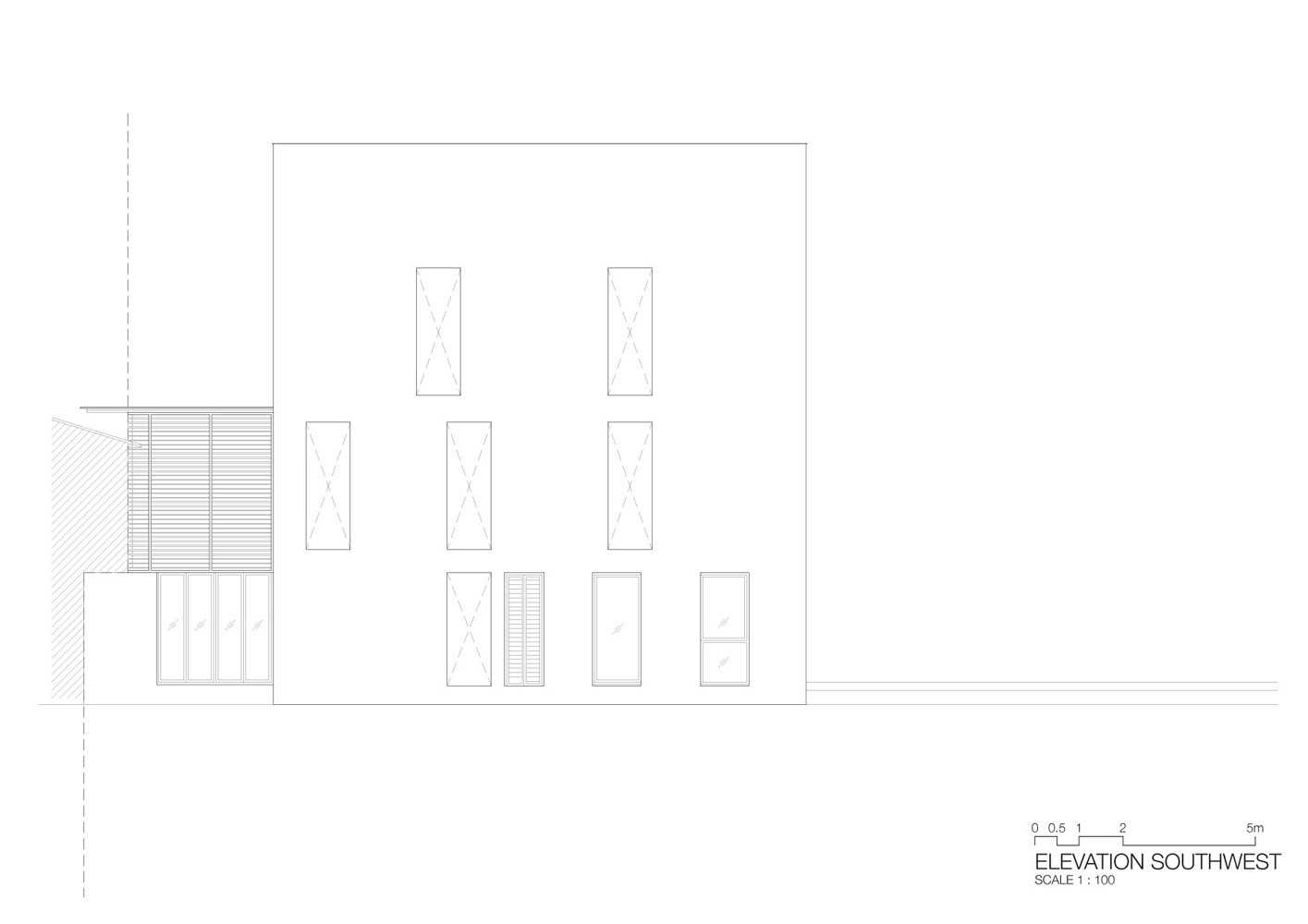

Elevation
Baan Moom

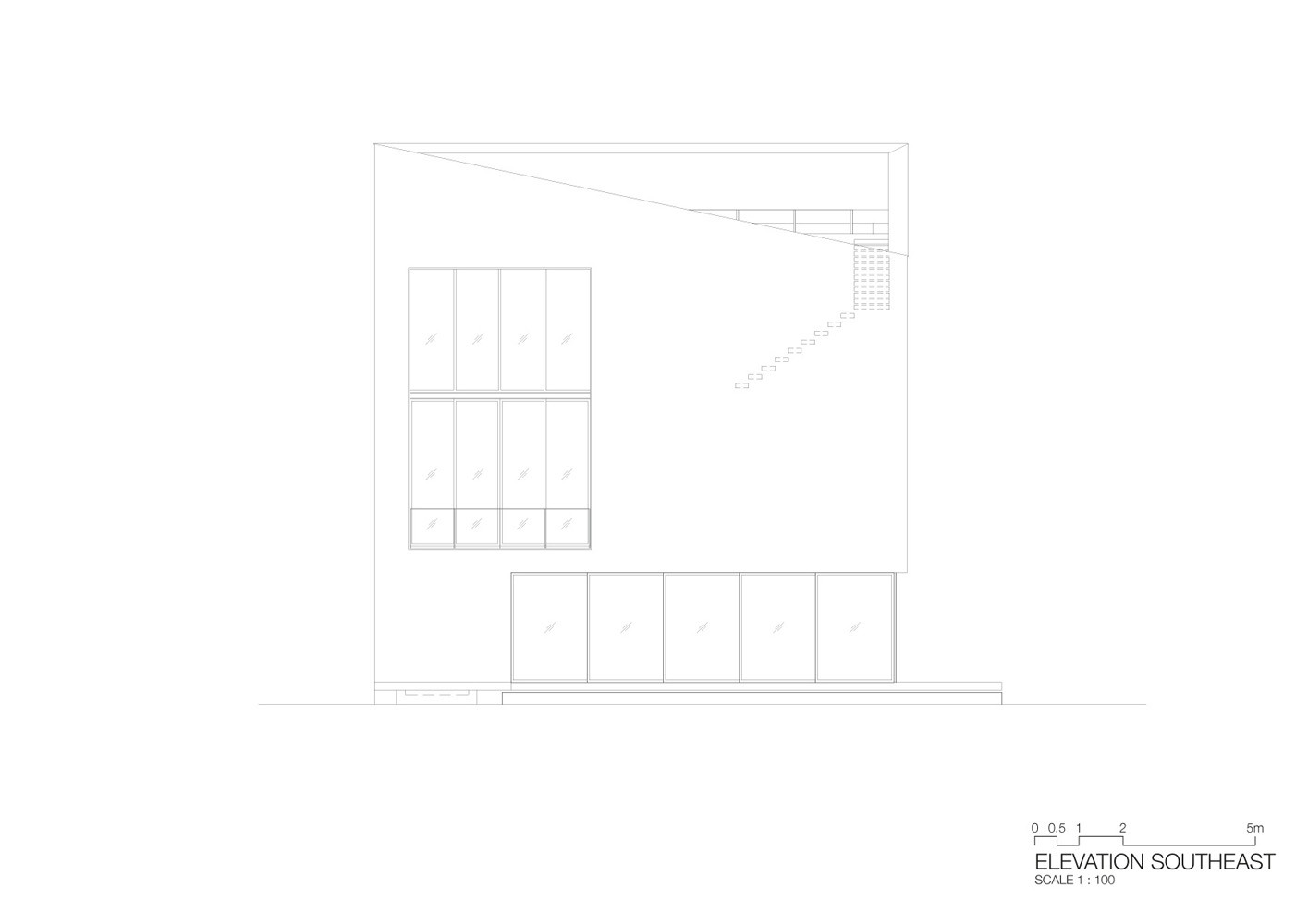

Elevation
Baan Moom

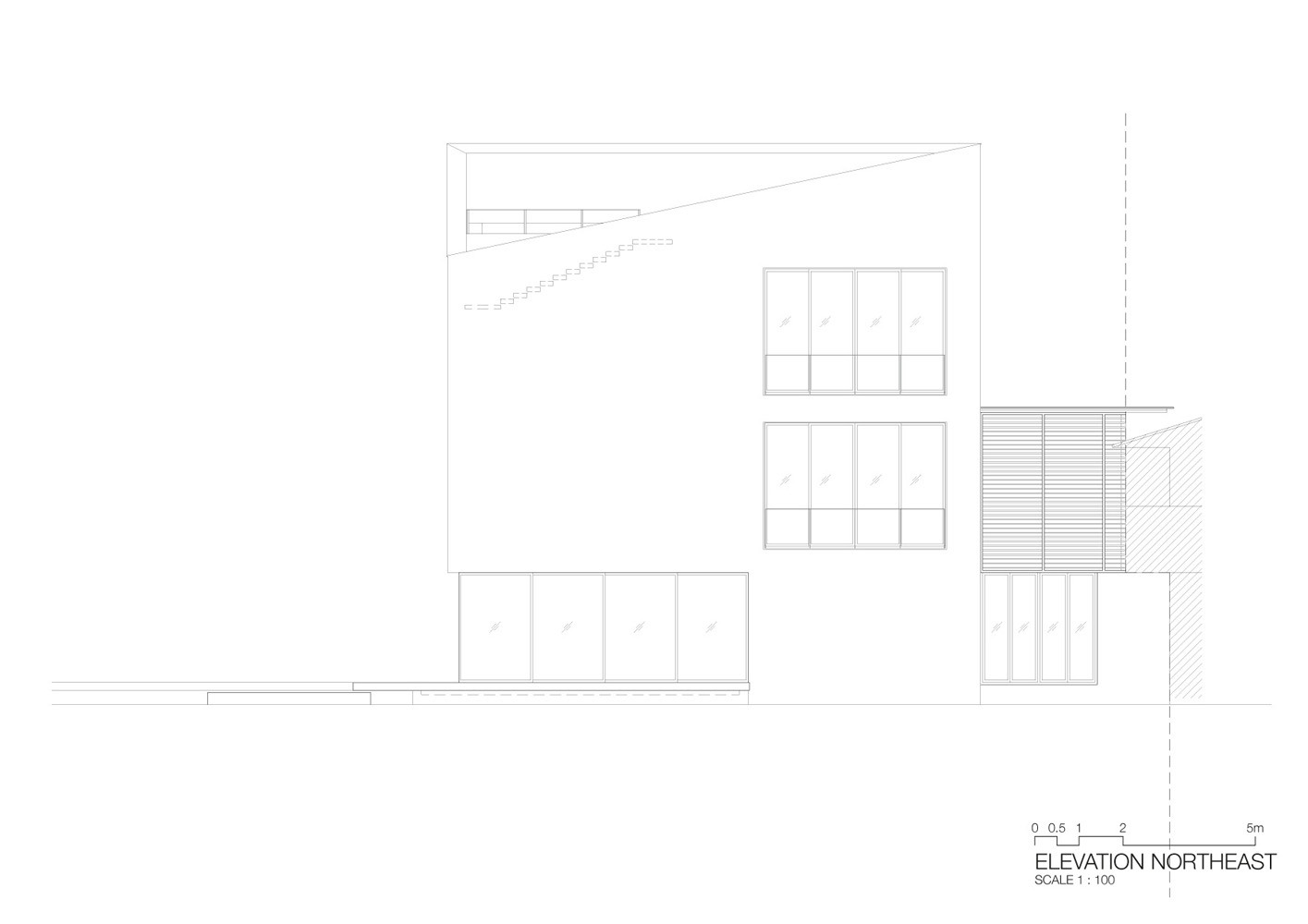

Elevation
Baan Moom
Elevation


Baan Moom

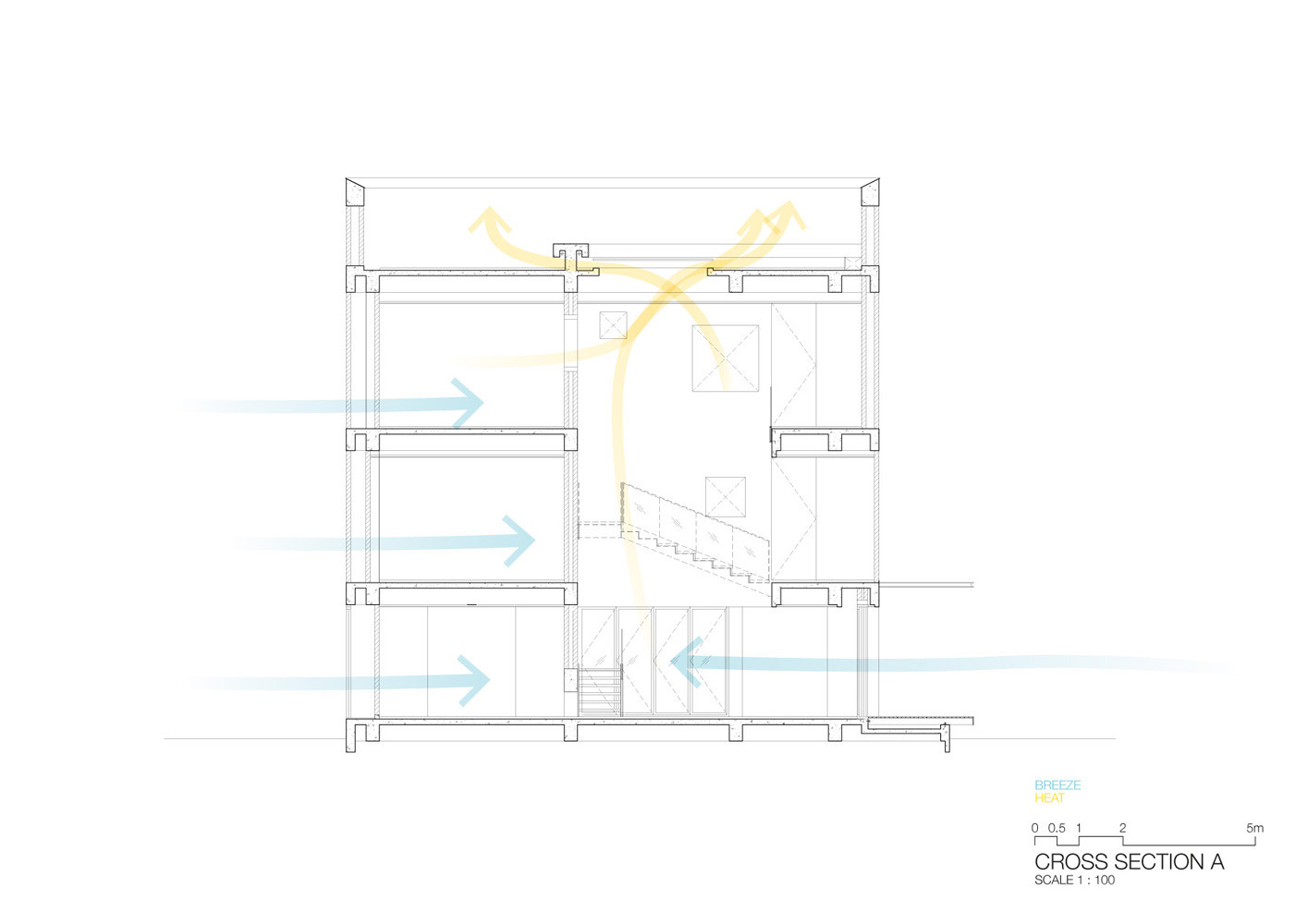

Section
Baan Moom

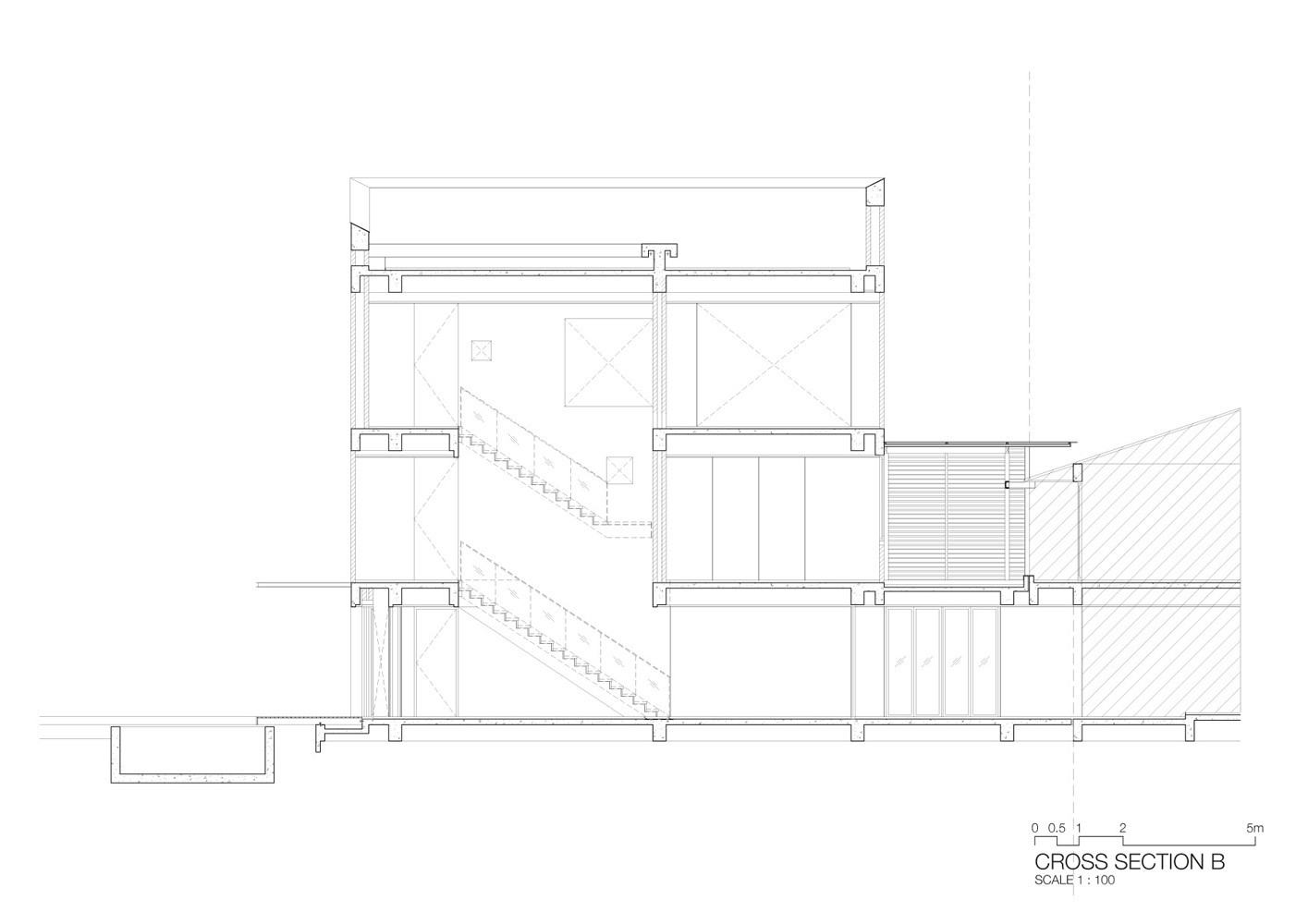

Section

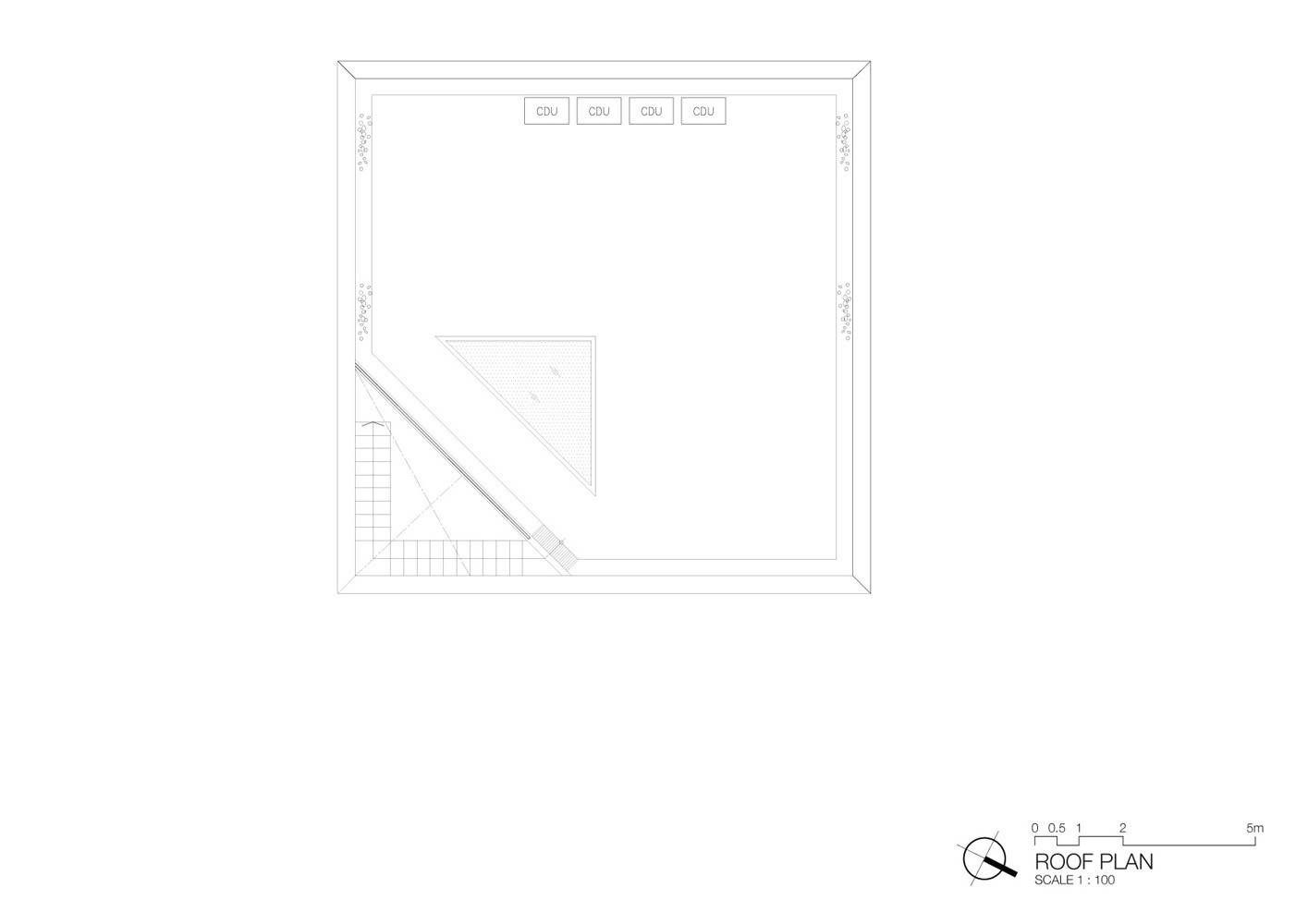

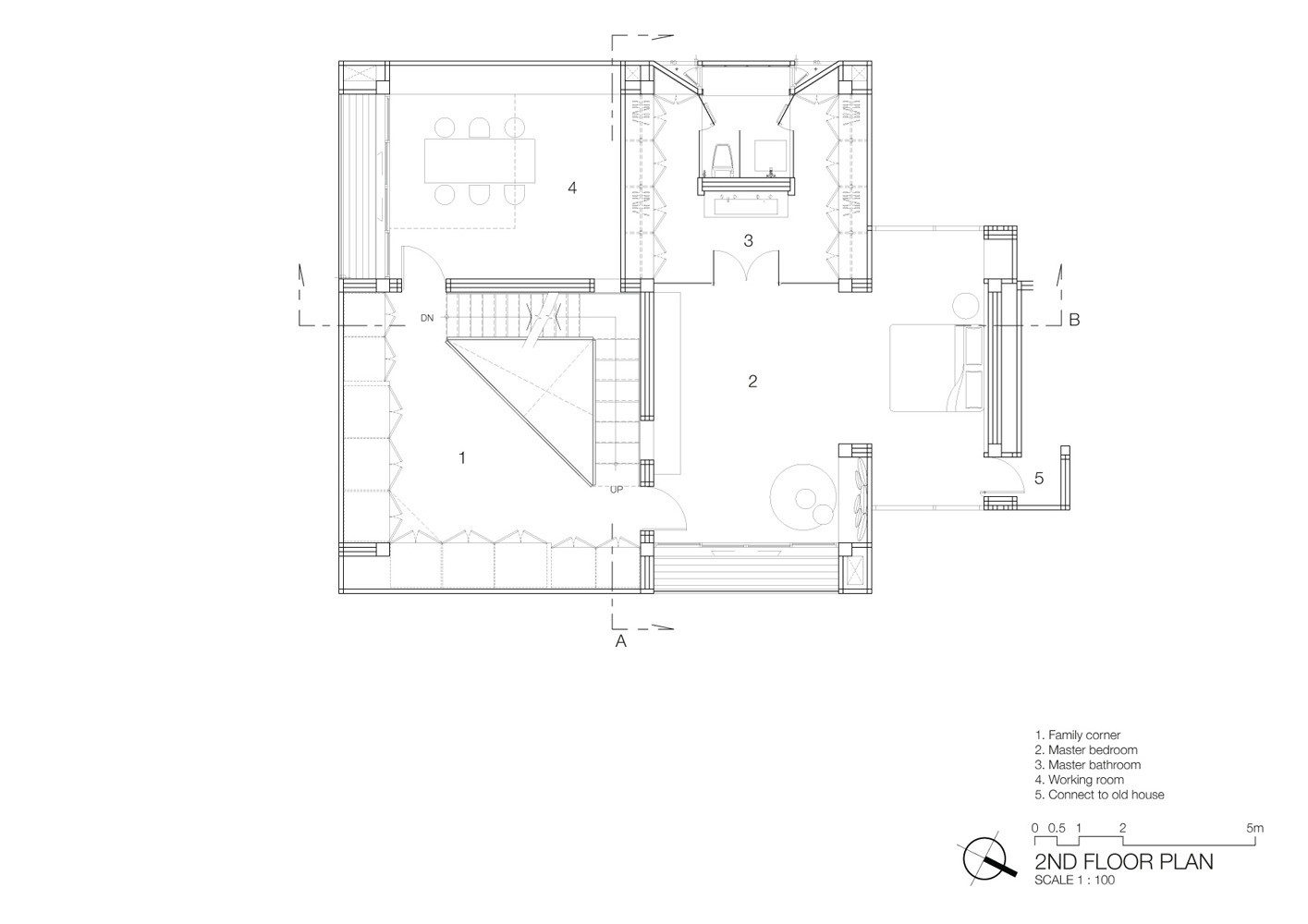

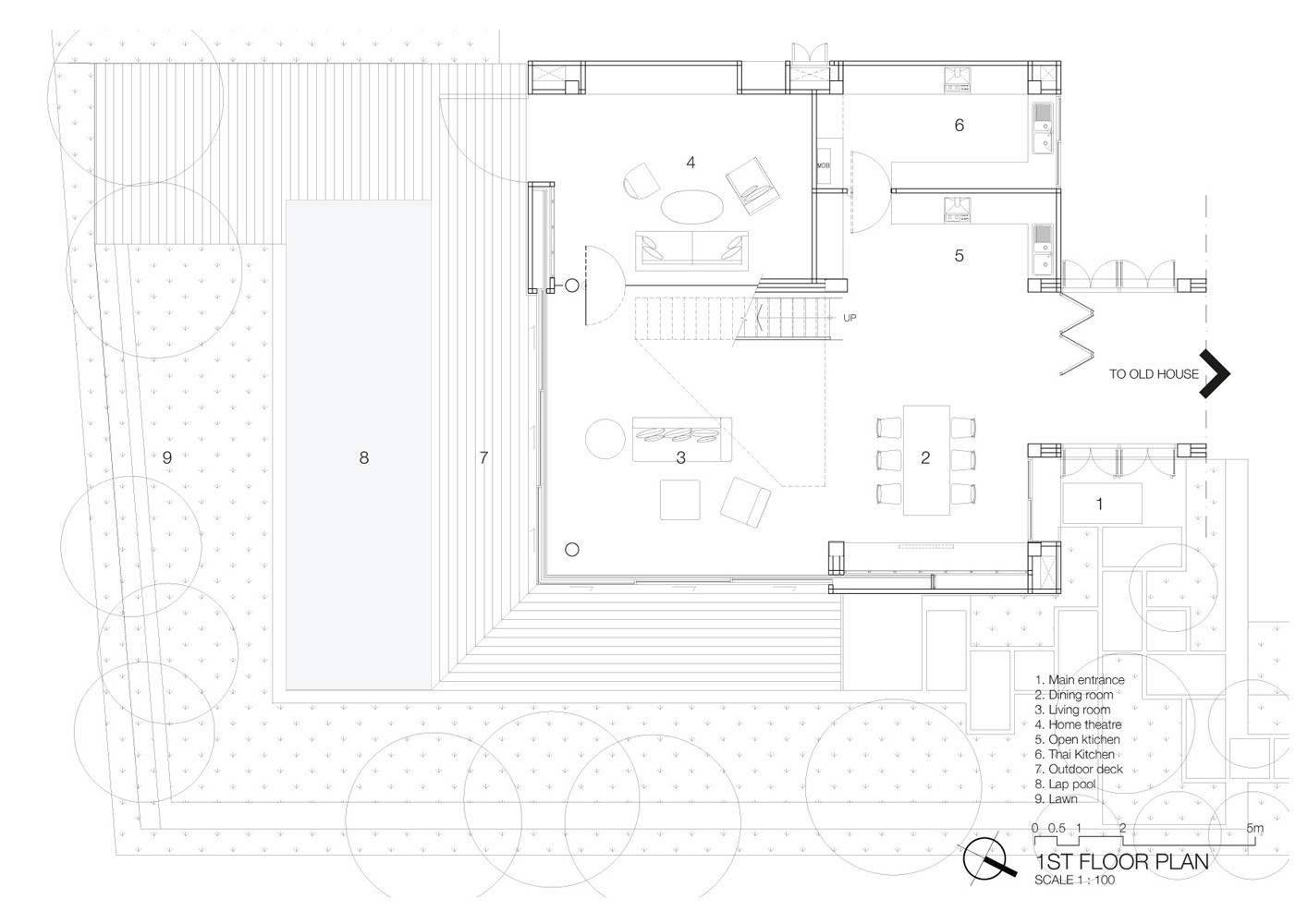

Baan Moom

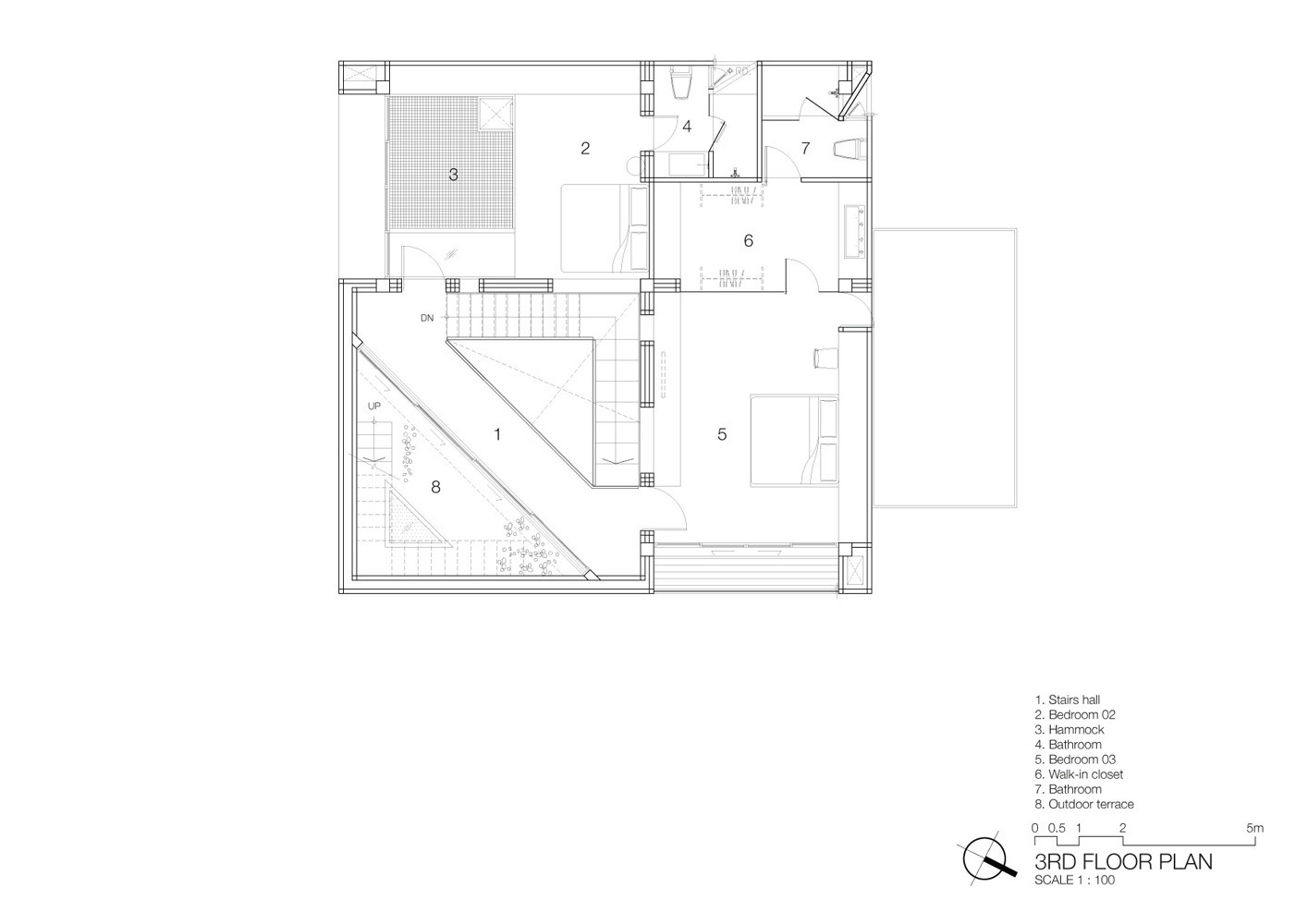

Plan
Baan Moom
Plan
Baan Moom
Plan
Baan Moom
Plan

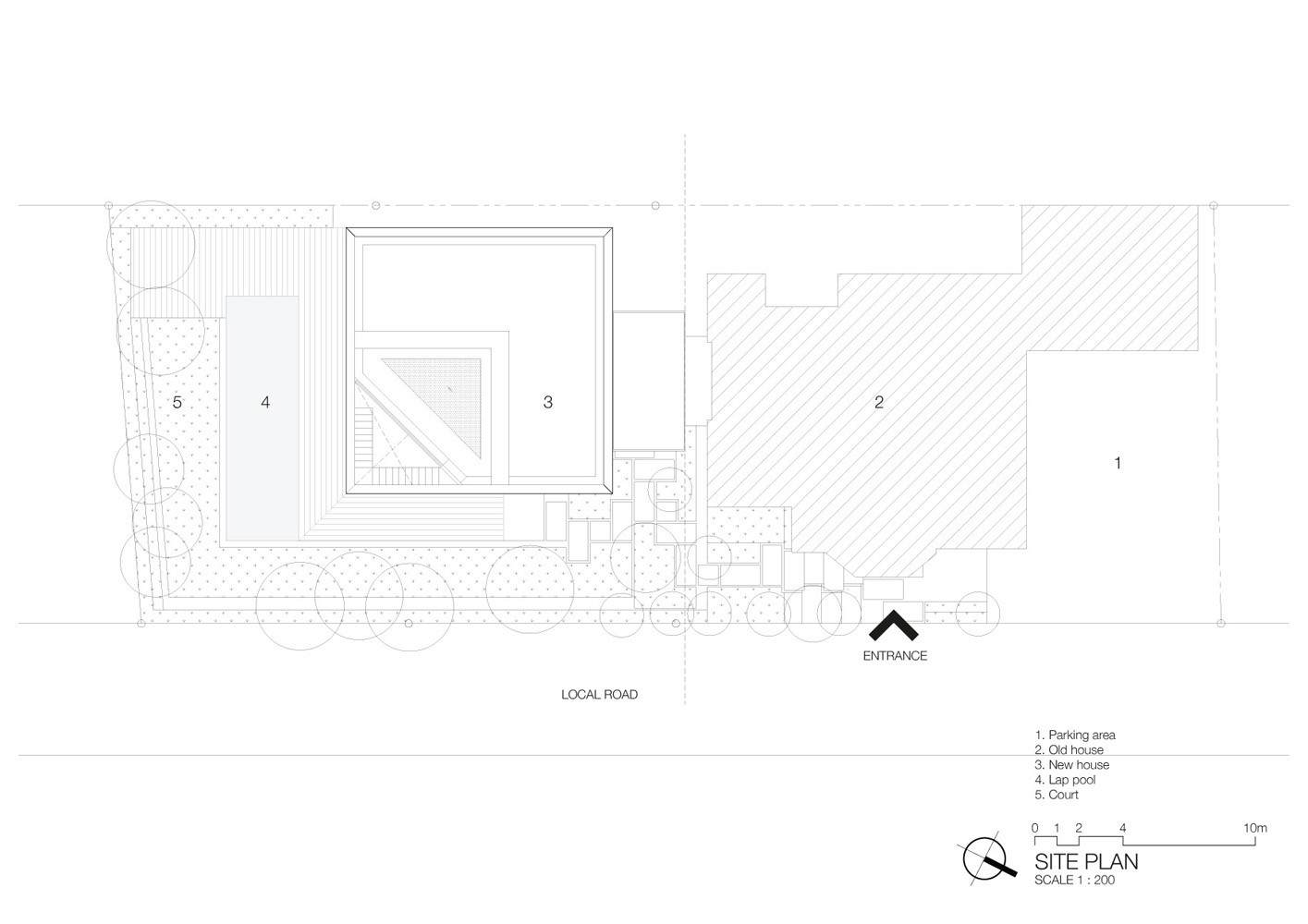

Baan Moom
Site Plan
