KUNSTCLUSTER

van Dongen-Koschuch: Frits van Dongen and Patrick Koschuch

ARCHITECTS
van Dongen-Koschuch: Frits van Dongen and Patrick Koschuch

AREA
27550.0 m²

YEAR
2012

LOCATION
Nieuwegein, The Netherlands

CATEGORY
Office Buildings, Shopping Centers

Text description provided by architect.

Commissioned to Frits van Dongen and Patrick Koschuch, both formerly architects of ‘de Architekten Cie'.

Kunstcluster
Courtesy of van Dongen-Koschuch
Kunstcluster
Courtesy of van Dongen-Koschuch

The Kunstcluster (Art Cluster) is a landmark of the town centre of Nieuwegein, which is to be redeveloped over the next few years. background-color: rgba(217, 206, 206, 1)

A new town hall is to be built, with shops, homes and offices above ground, and underground parking. The site of the Kunstcluster consists of two conjoined blocks: the theatre with arts centre as well as the multi-storey car park combined with retail space.

Kunstcluster
Courtesy of van Dongen-Koschuch
Kunstcluster
Courtesy of van Dongen-Koschuch

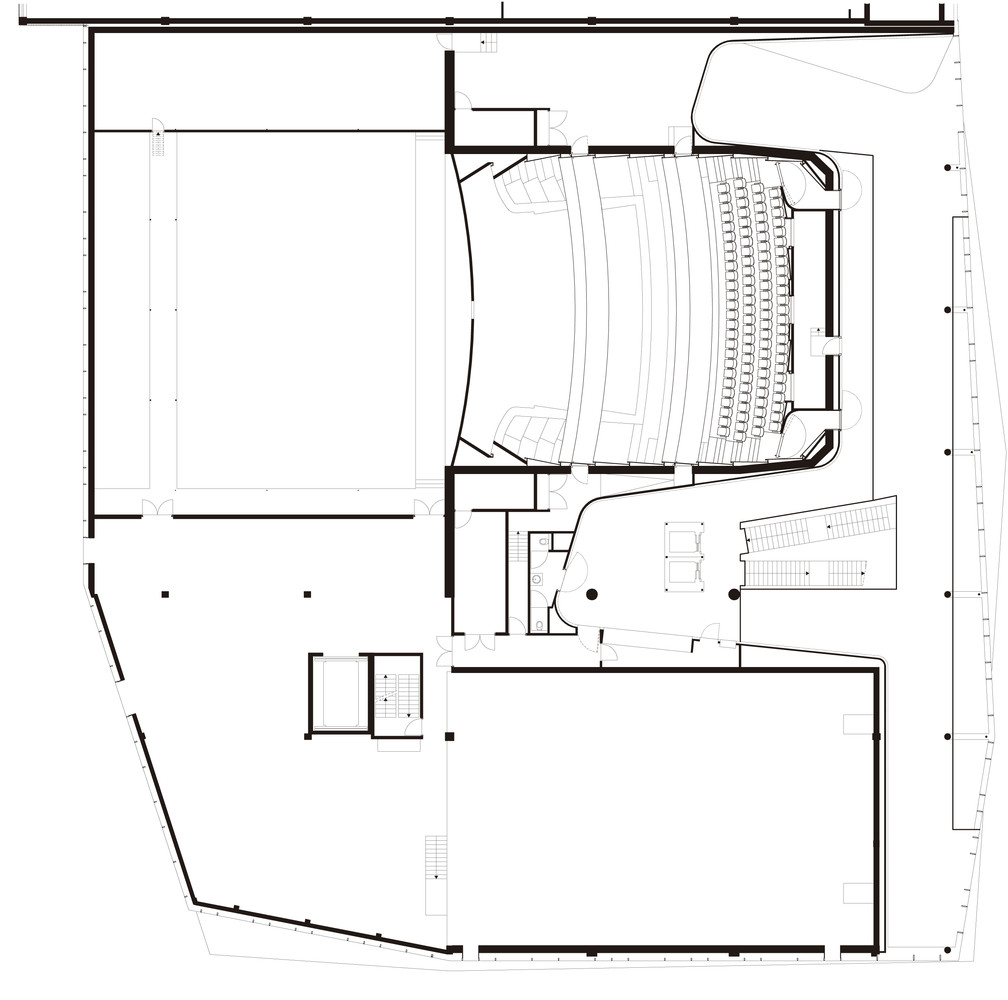

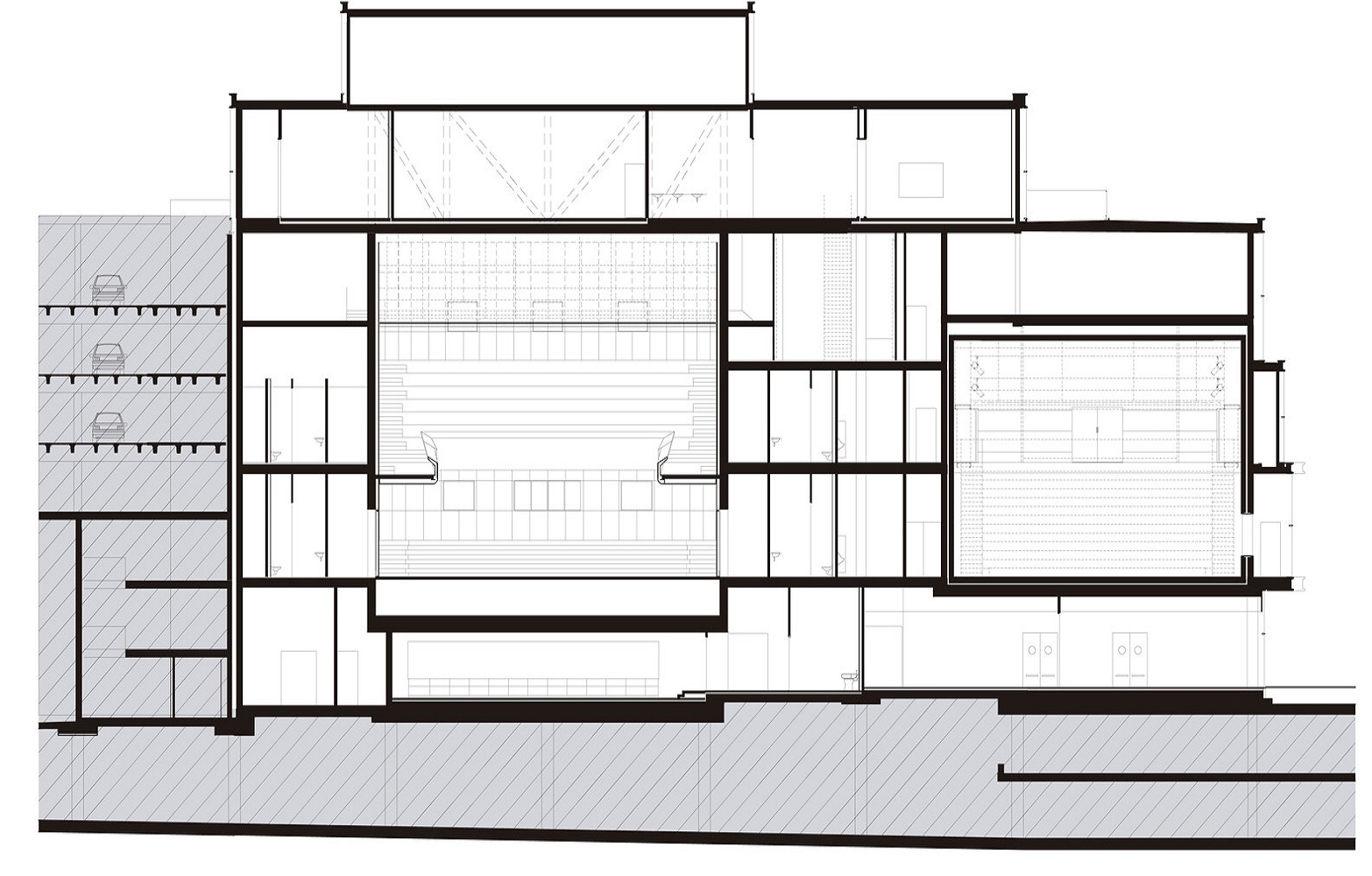

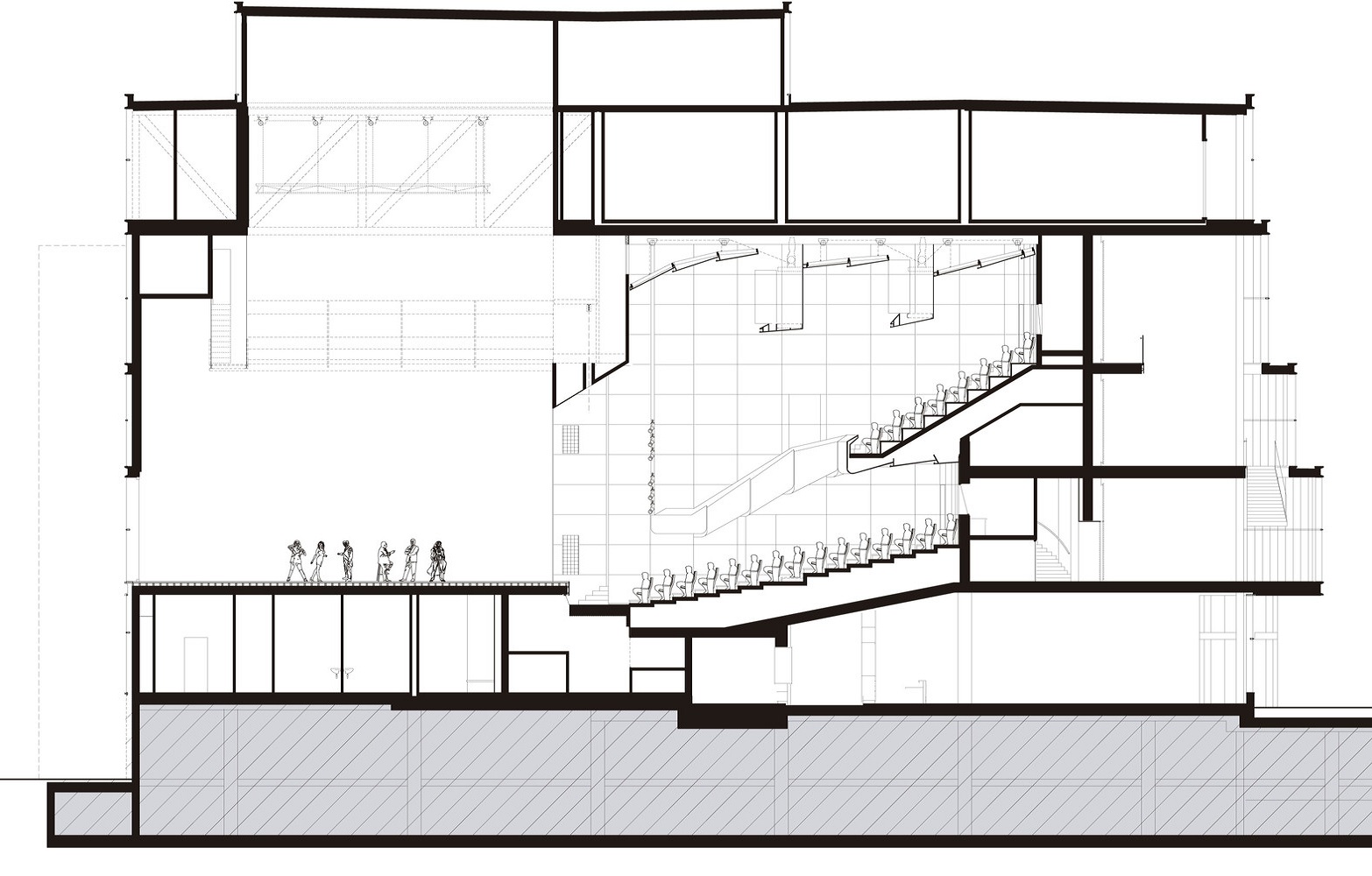

The new theatre comprises two auditoria: a main stage with circle, seating audiences of 650 - 700, with podium and ample stage space for all types of production; and a studio theatre seating 200, also with circle.

The studio consists of flat floor and foldaway stage, and will be available for events of all kinds, including pop and other music.

Kunstcluster
Courtesy of van Dongen-Koschuch
Kunstcluster
Courtesy of van Dongen-Koschuch

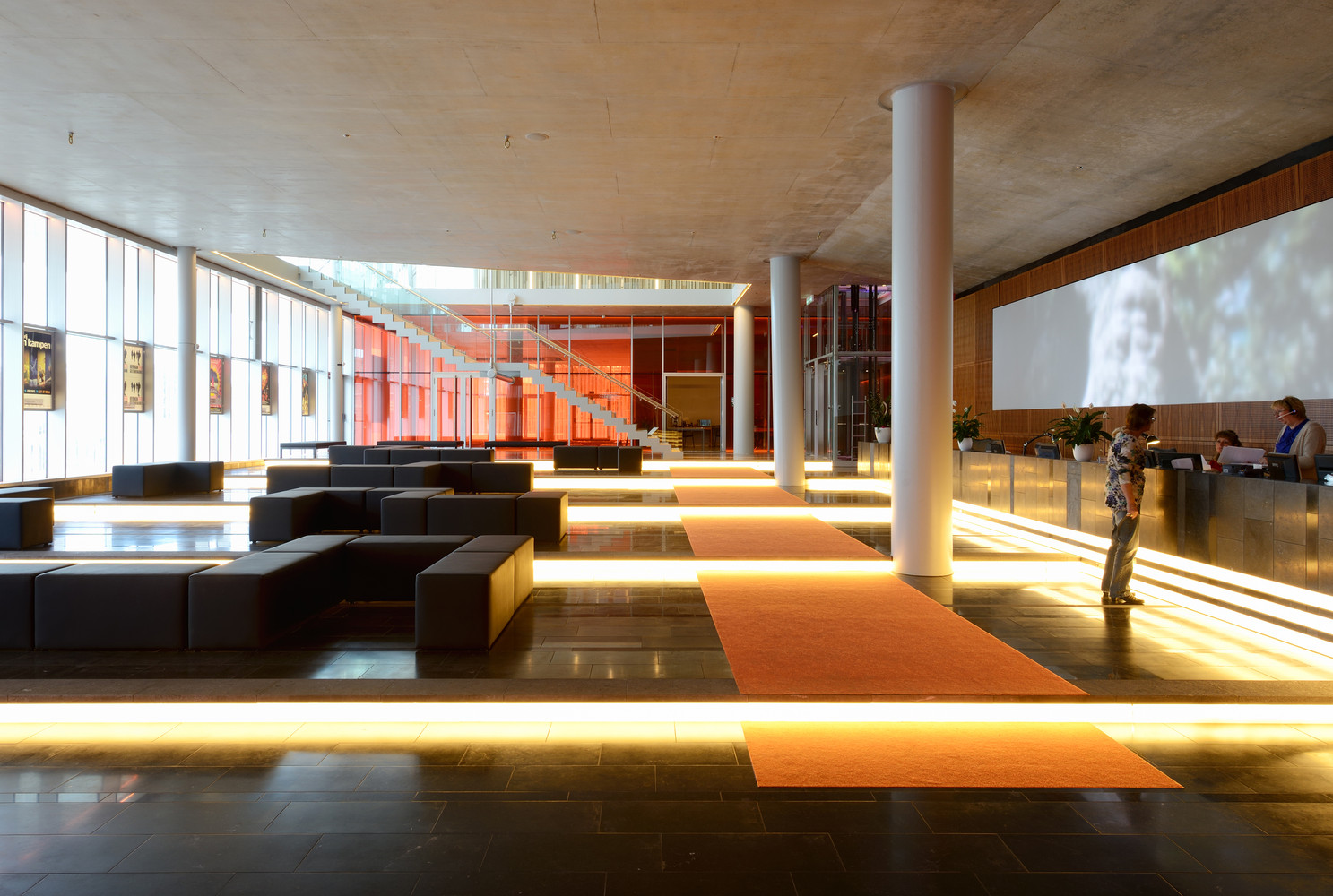

Completing the complex are three spectacular foyers and a theatre café looking on to the central square, the Stadsplein.

Above the theatre will be an arts centre, a multifunctional venue for music, dance and acting classes.

Kunstcluster
Courtesy of van Dongen-Koschuch
Kunstcluster
Courtesy of van Dongen-Koschuch

The glass façade is printed, to give the illusion of (stage) curtains. This applied print also considerably reduces the percentage of light penetration via the south and east façade, preventing overheating on sunny days.

The foyers, and therefore most people, are located on the Stadsplein façade to the south.

Kunstcluster
Courtesy of van Dongen-Koschuch
Kunstcluster

Here, the pigment of the print is sufficiently transparent and translucent to make the image visible from inside to outside, and from outside looking in.

A ‘shop window,’ roughly 20 metres high, enables anyone walking across the central square to get a glimpse of the audiences inside.

Theatregoers, in turn, overlook the town centre from the three foyers, respectively 5, 10 and 15 metres up. The façade is floodlit after dark with energy-saving LED lighting.

Kunstcluster
Kunstcluster
Kunstcluster

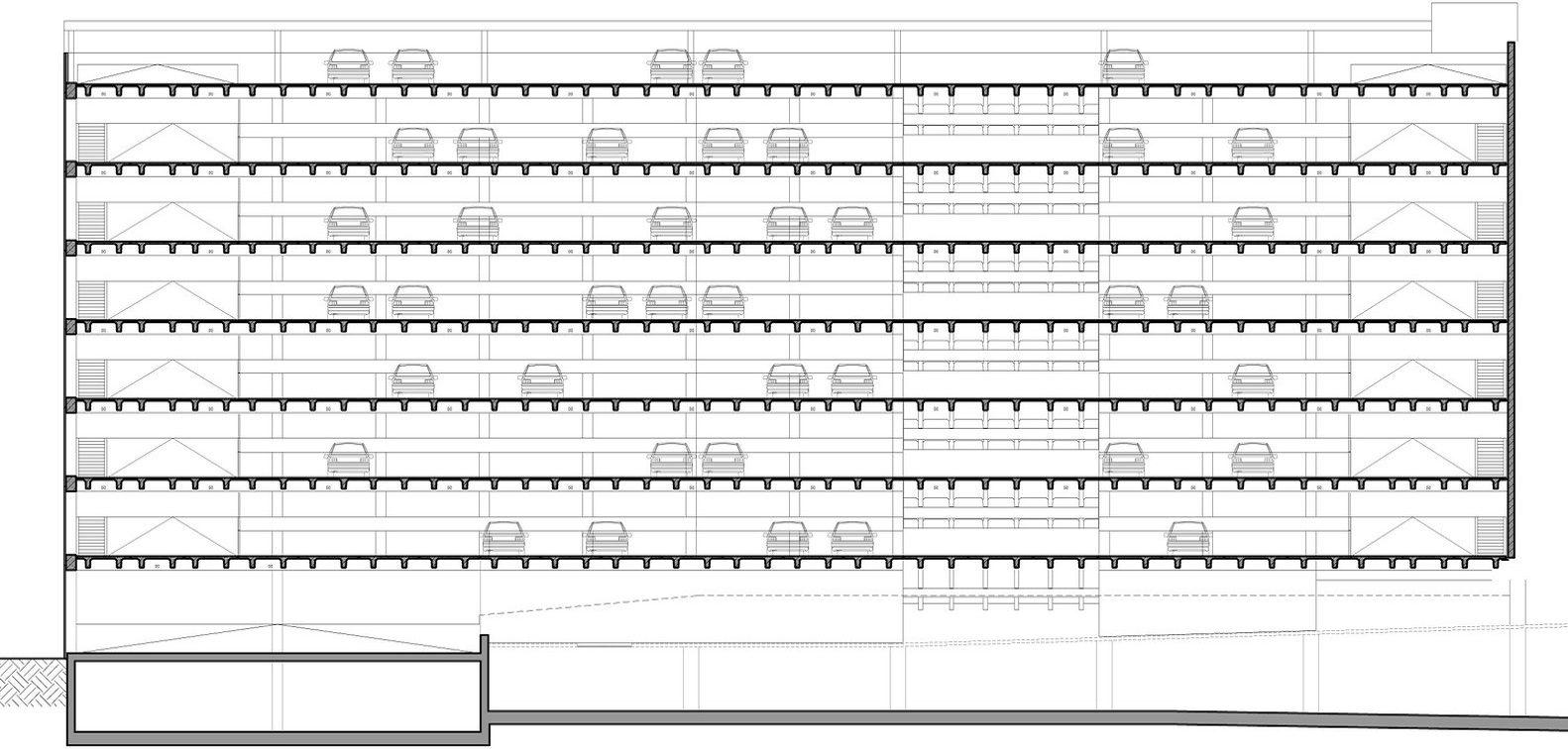

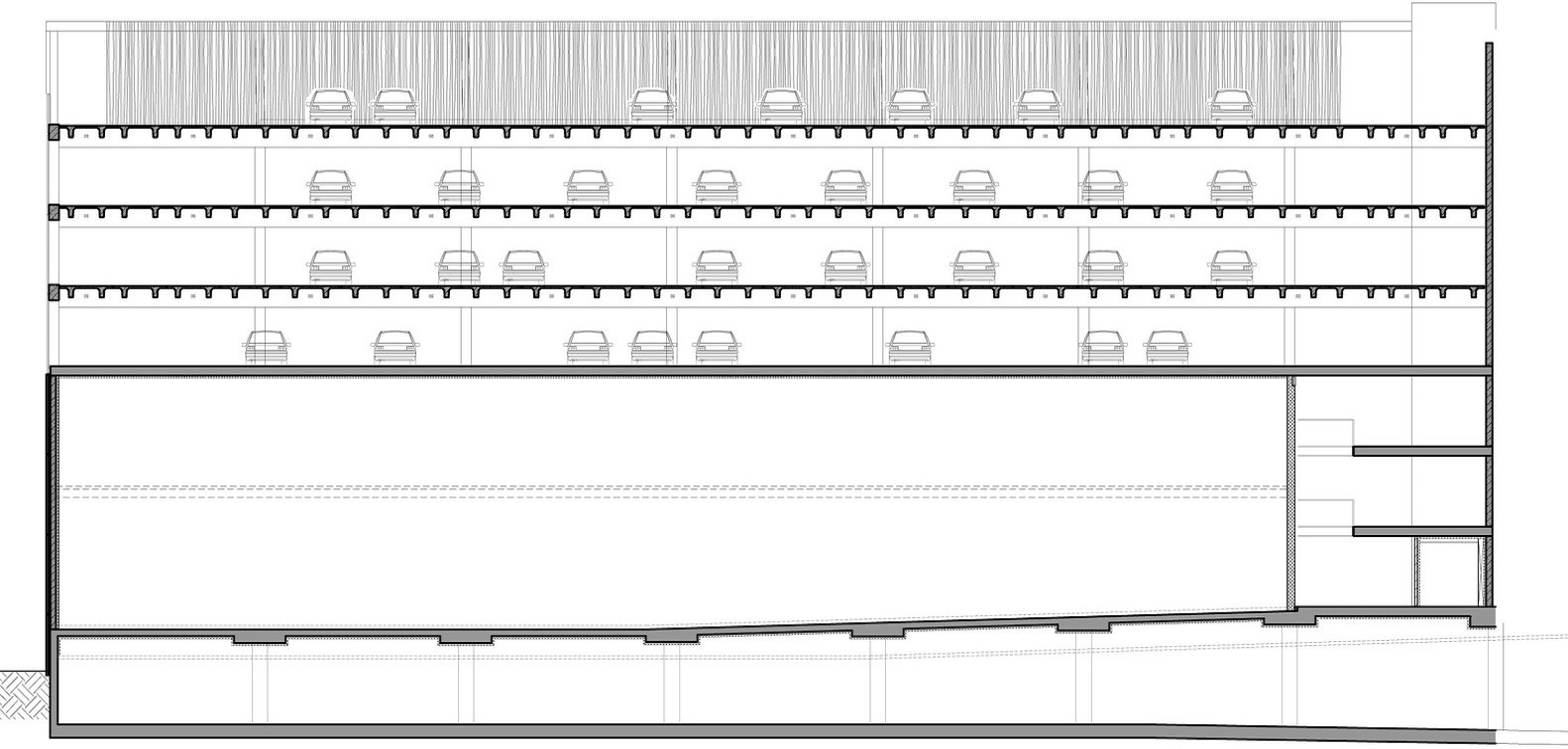

In the redeveloped town centre nearly all cars will go underground. The multi-storey car park next to the Kunstcluster is an exception.

This block is literally a green lung in the stone-built urban environment. Analysis during the design process came up with the idea of a parking structure which would be carbon-neutral both to build and, expressly also, to operate.

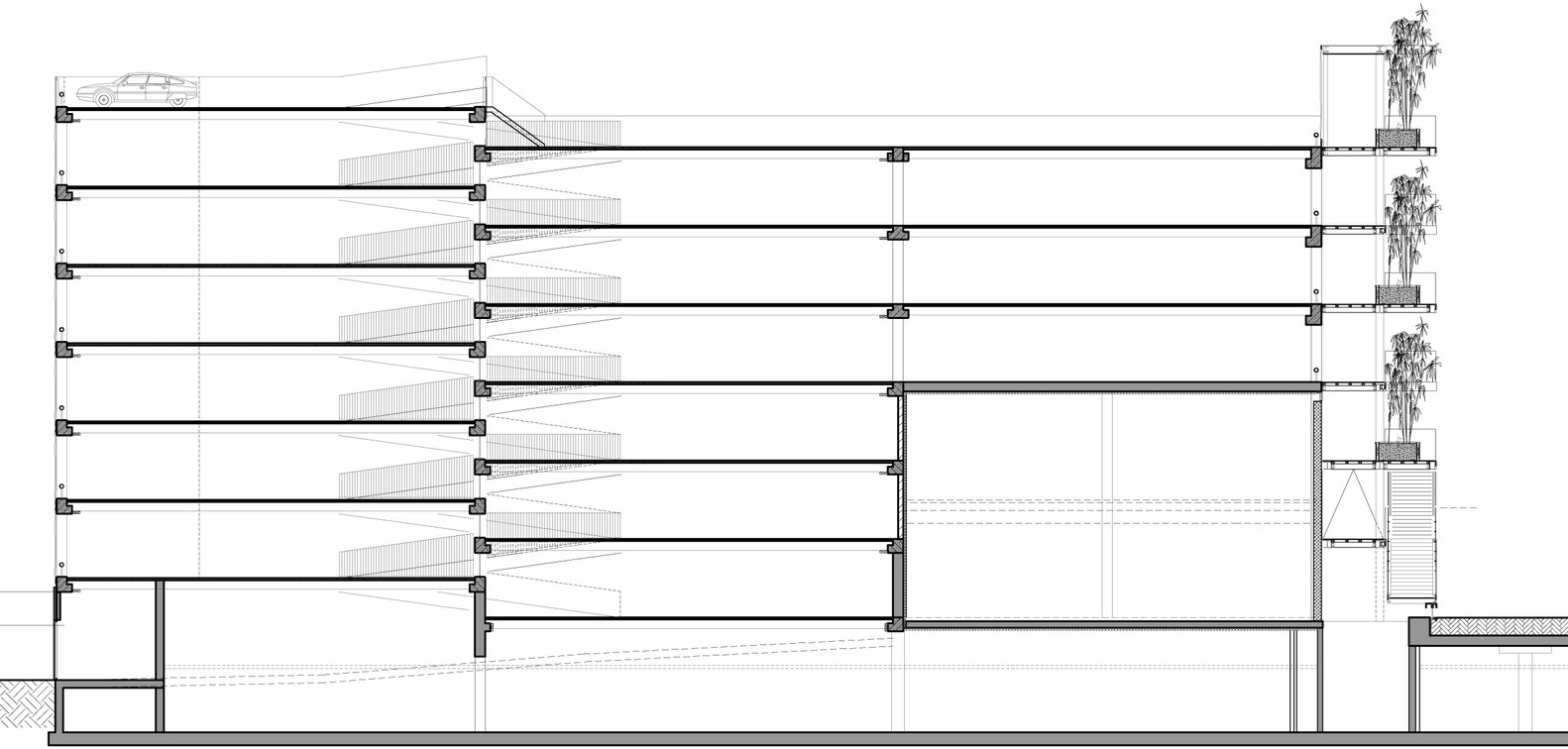

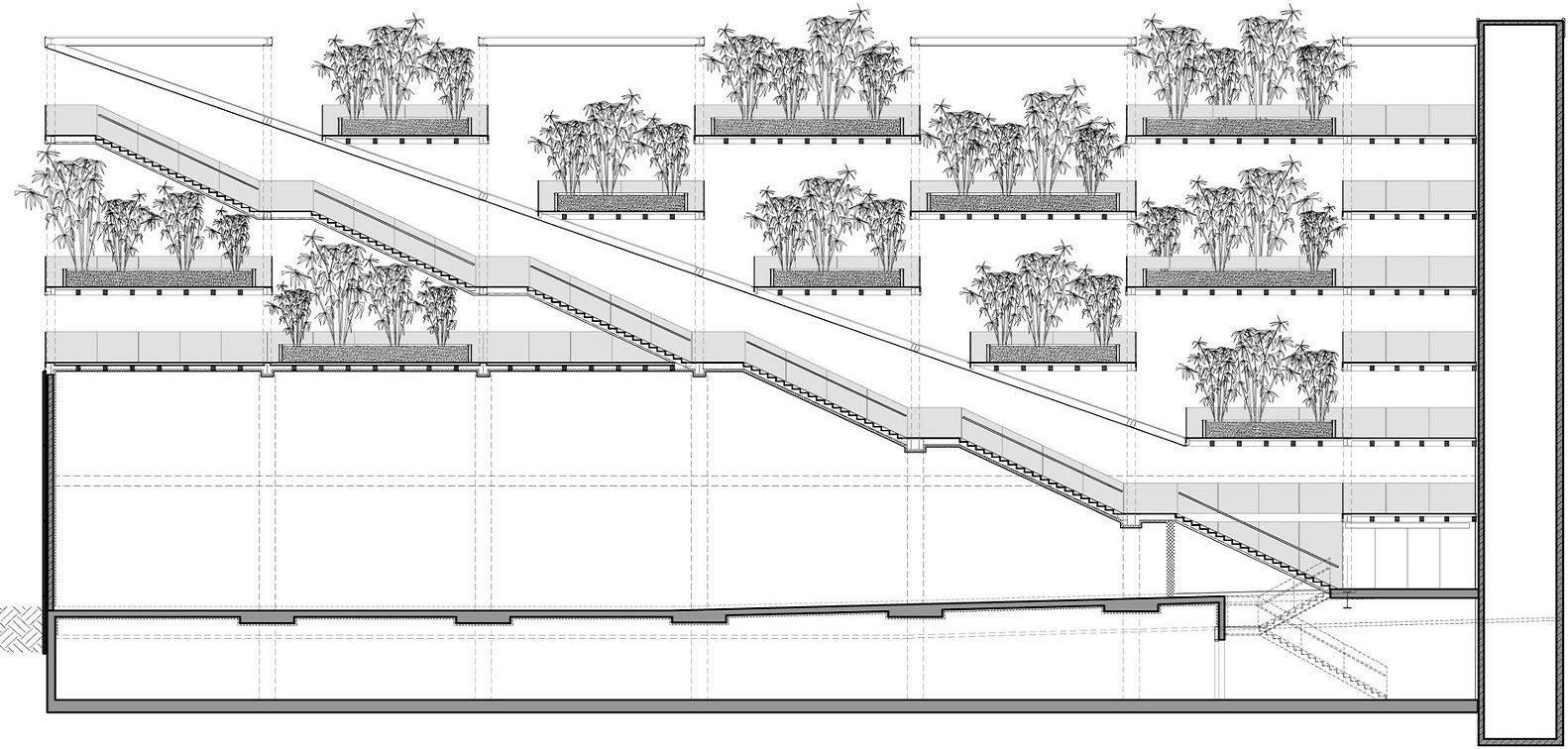

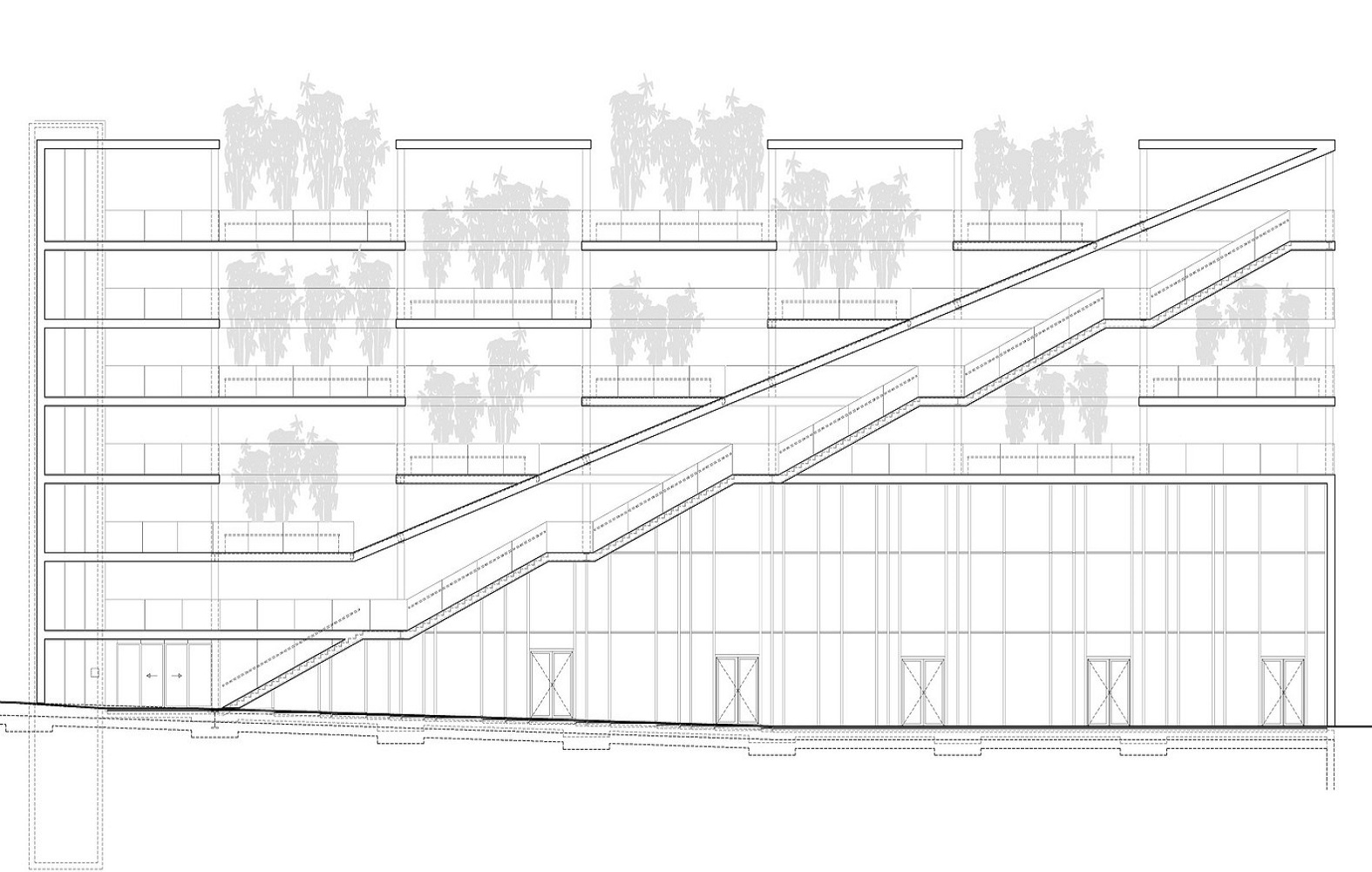

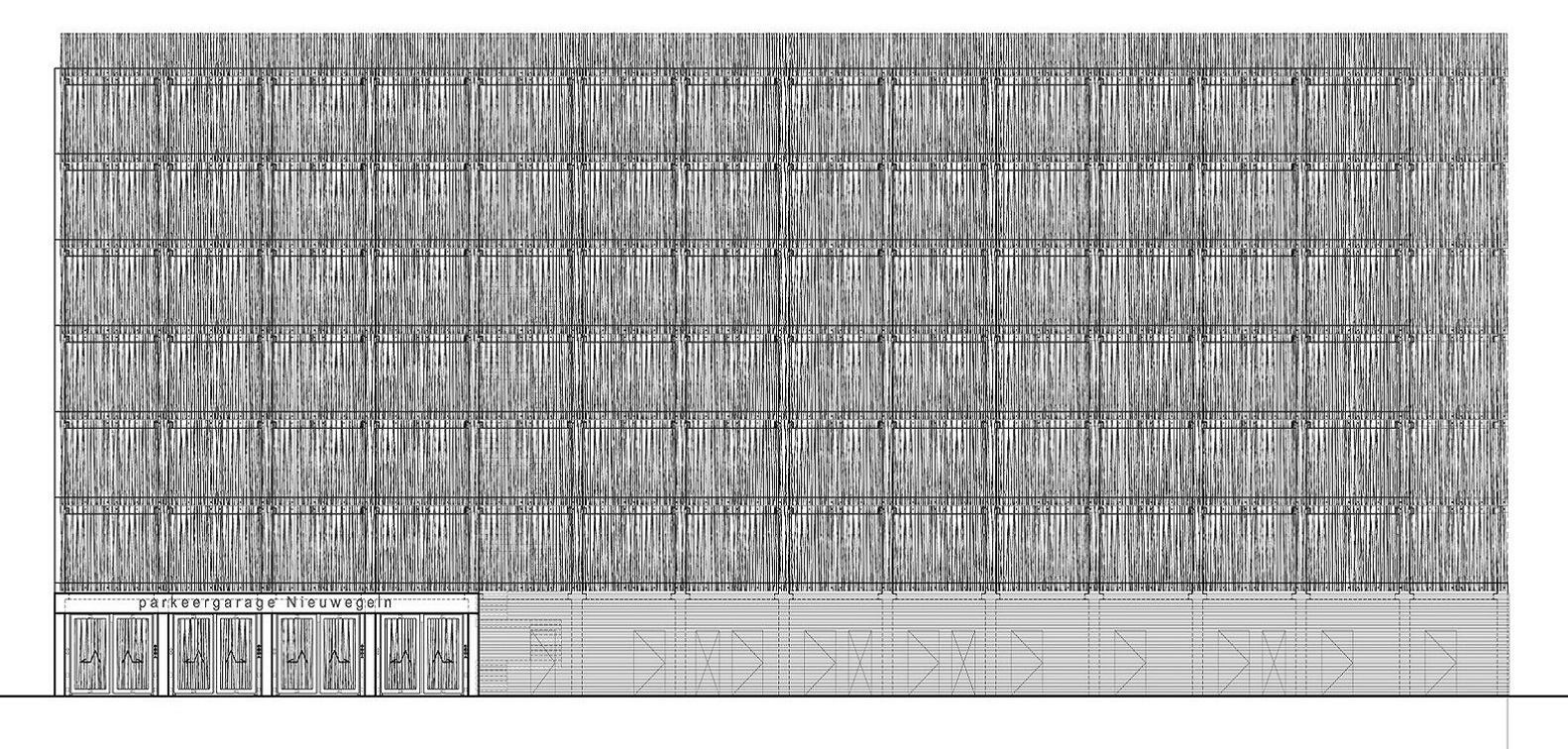

The garage frontage on the Stadsplein side is four metres thick. Here a cascade stairway wends its way up/down through a bamboo plantation six metres high.

Kunstcluster
Courtesy of van Dongen-Koschuch
Kunstcluster
Courtesy of van Dongen-Koschuch

Prints on the balustrades and other glazed surfaces graphically reflect the bamboo image. The ground floor accommodates retail, resulting in a living streetscape.


Kunstcluster

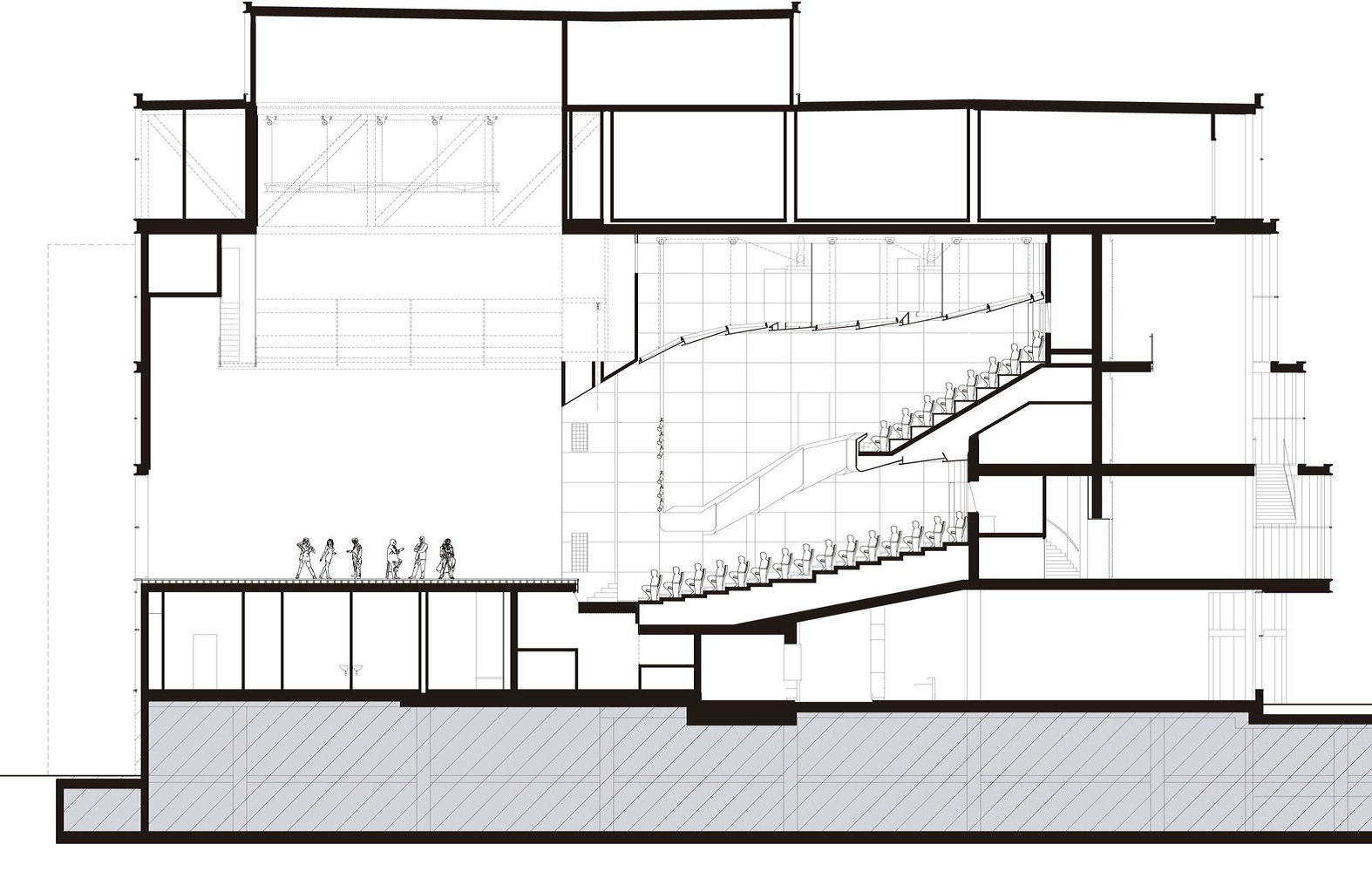

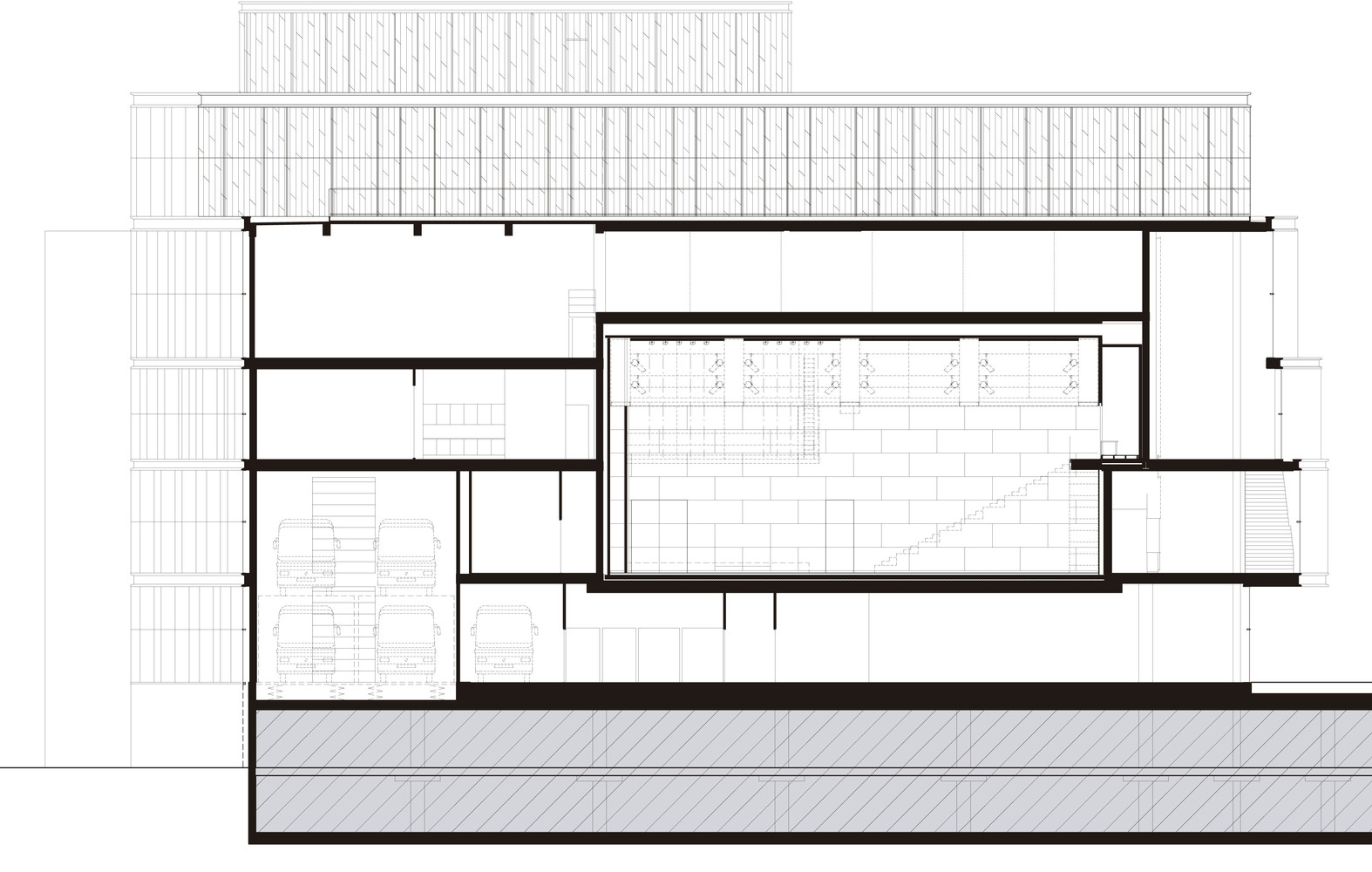

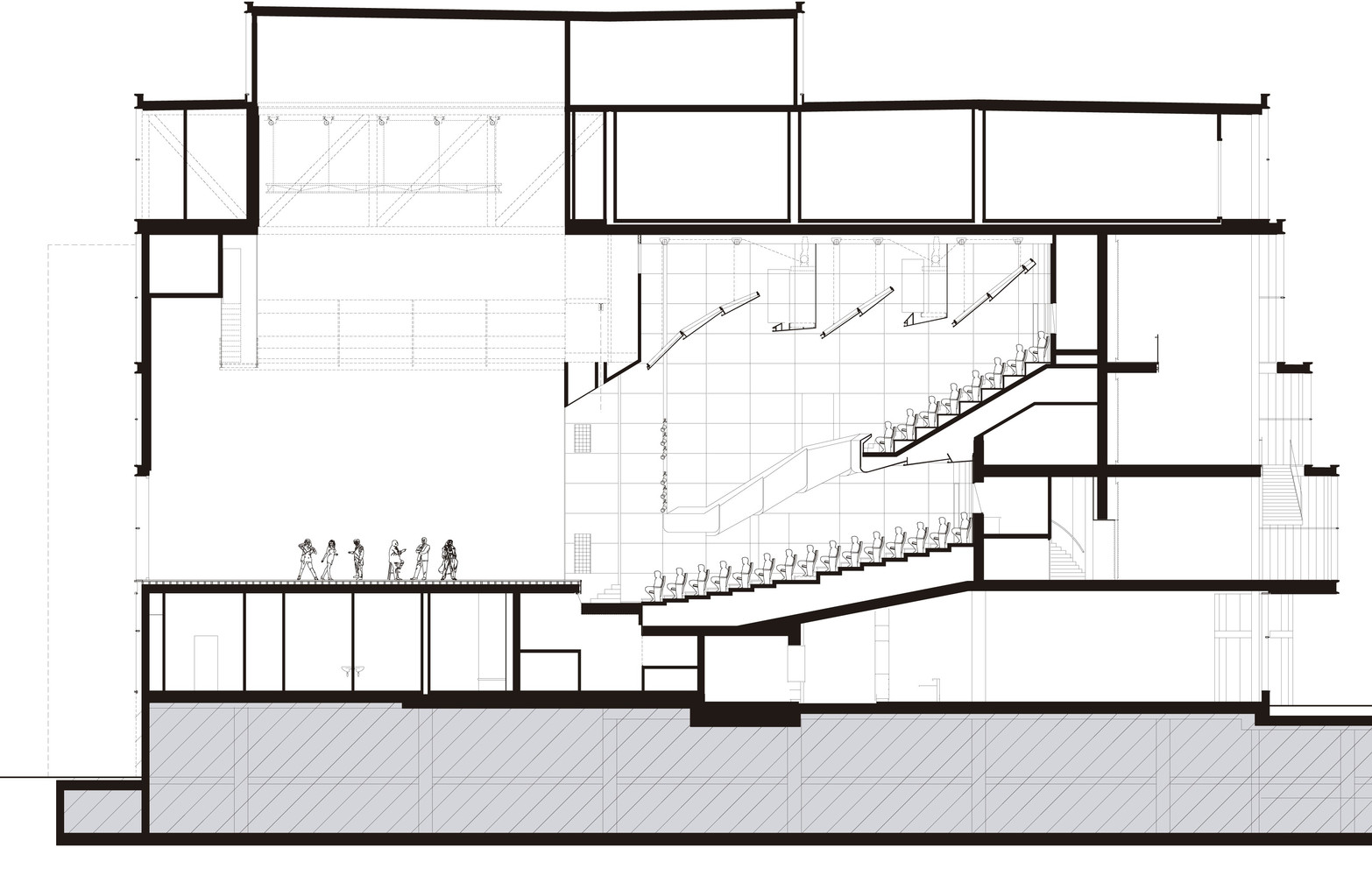

Section
Kunstcluster
Section
Kunstcluster
Section
Kunstcluster
Section
Kunstcluster
Section
Kunstcluster
Section
Kunstcluster
Section
Kunstcluster
Section
Kunstcluster
Section


Kunstcluster

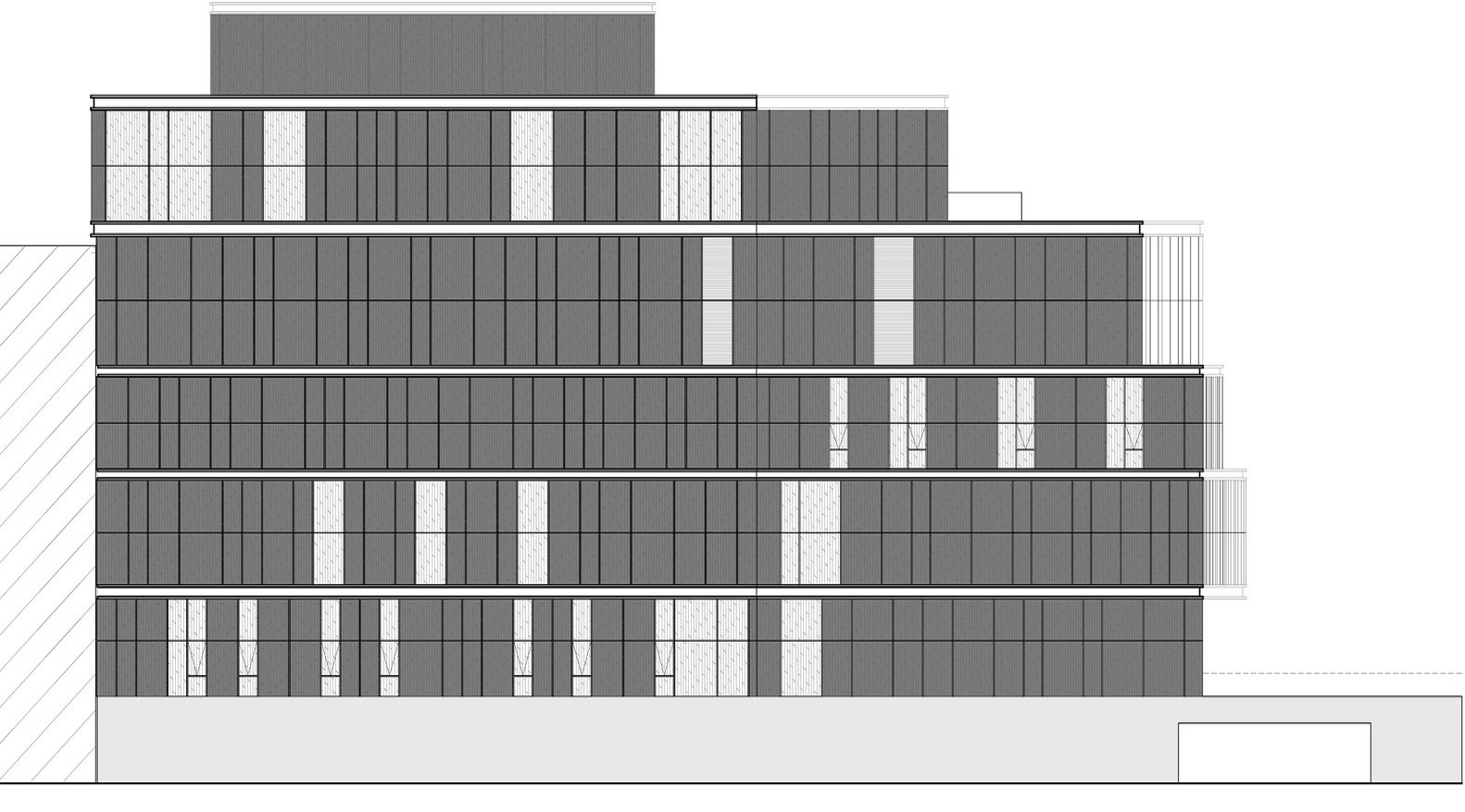

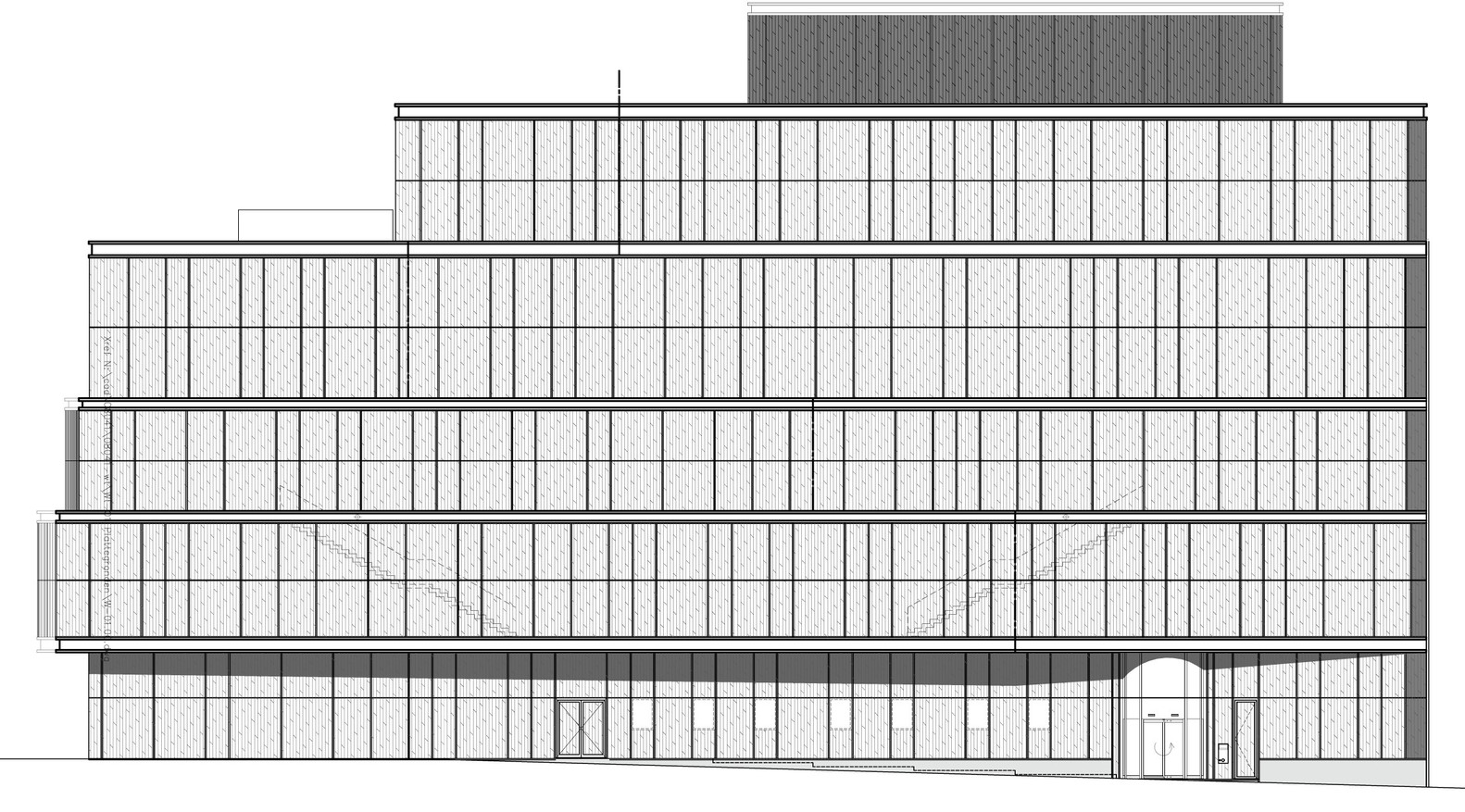

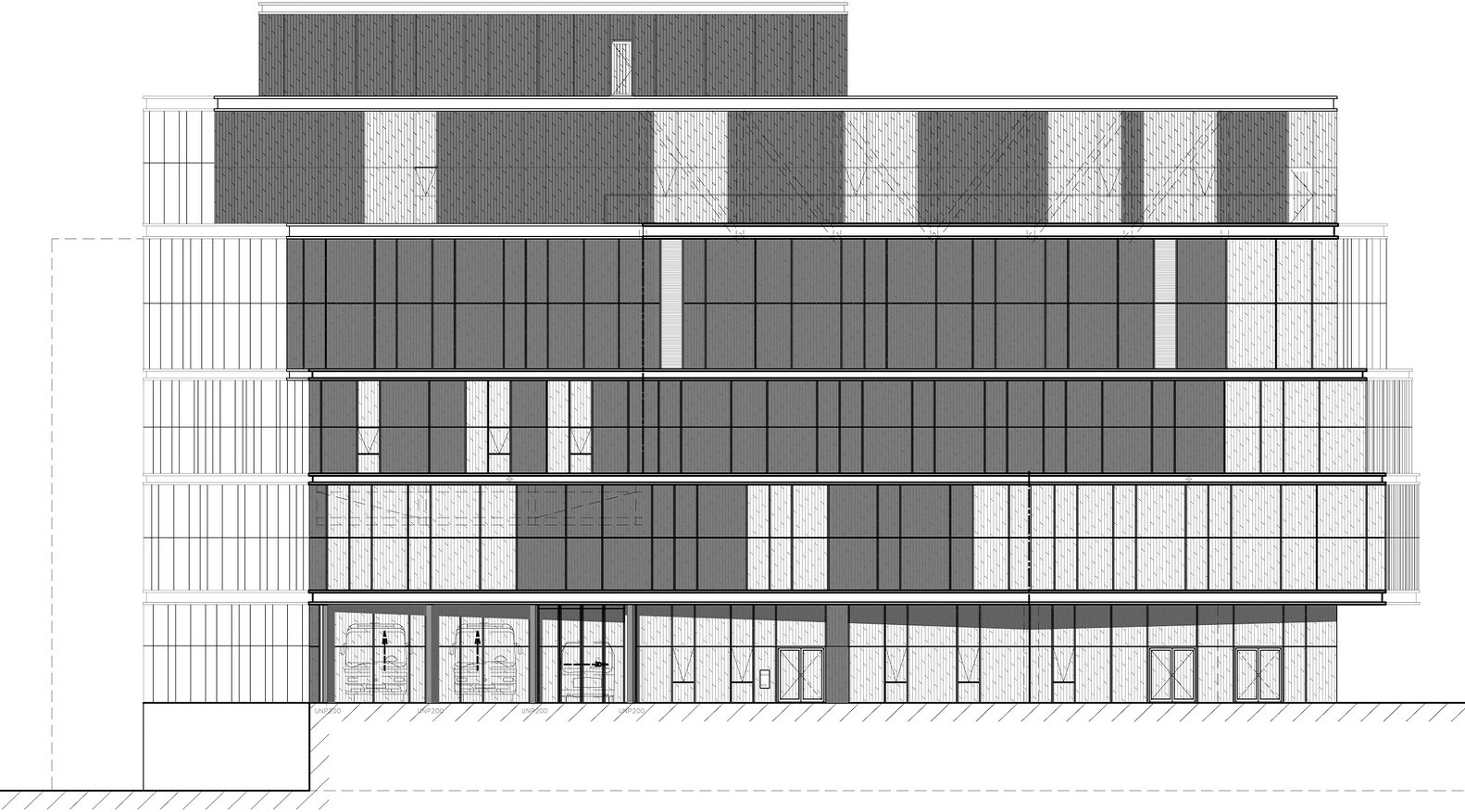

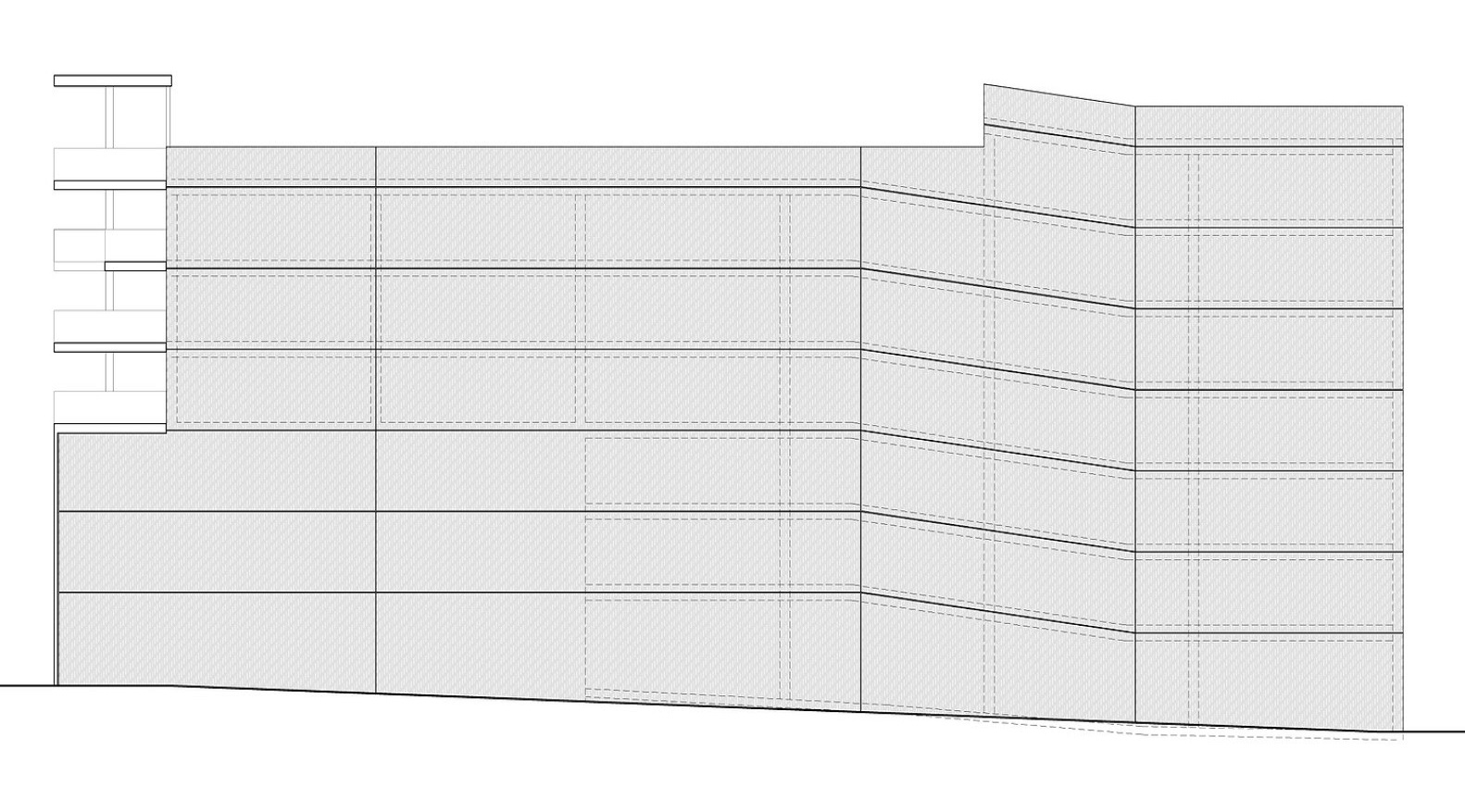

Facade
Kunstcluster
Facade
Kunstcluster
Facade
Kunstcluster
Facade
Kunstcluster
Facade
Kunstcluster
Facade

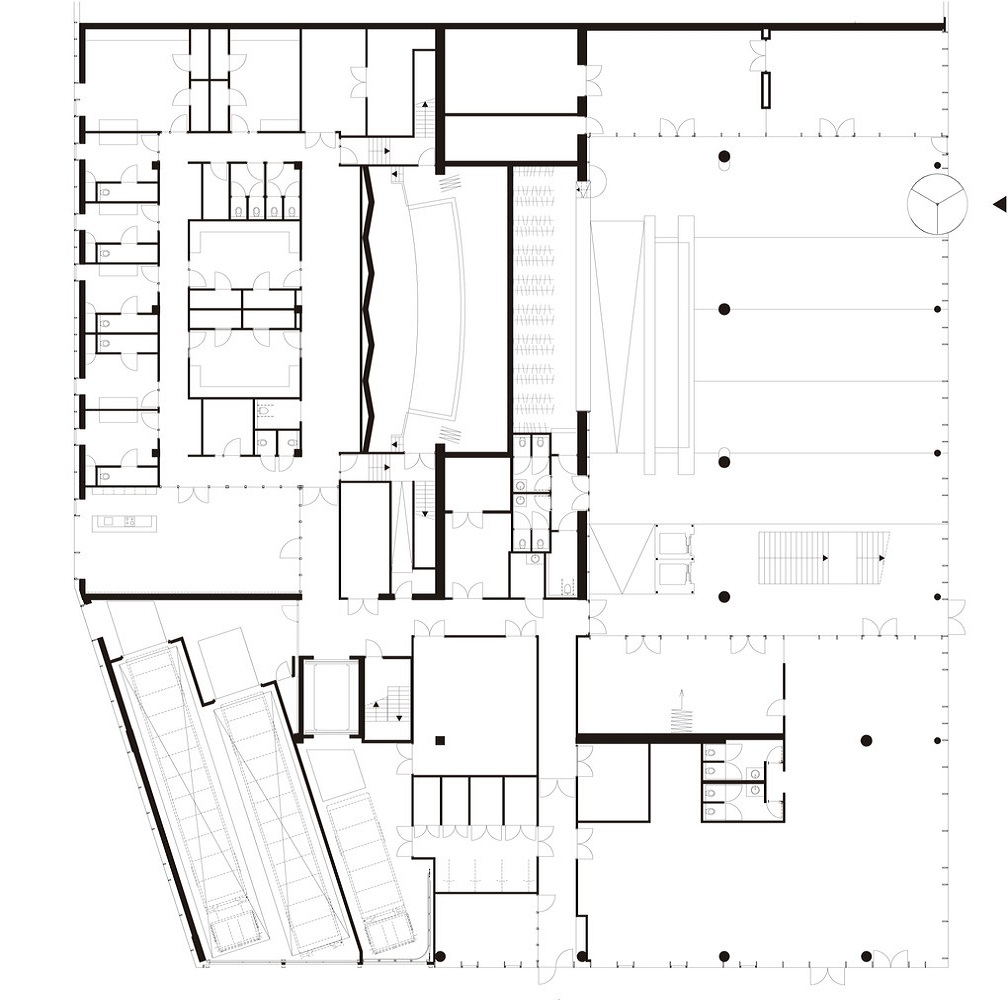

Kunstcluster

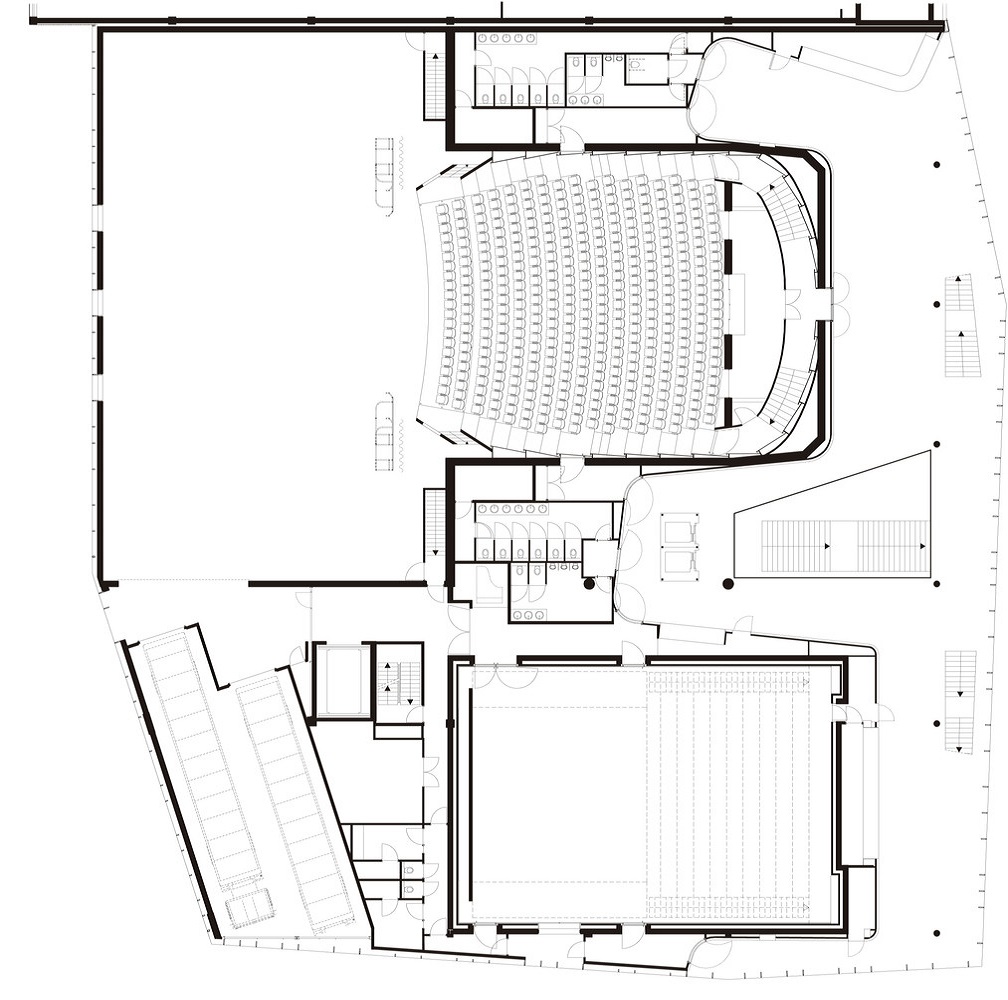

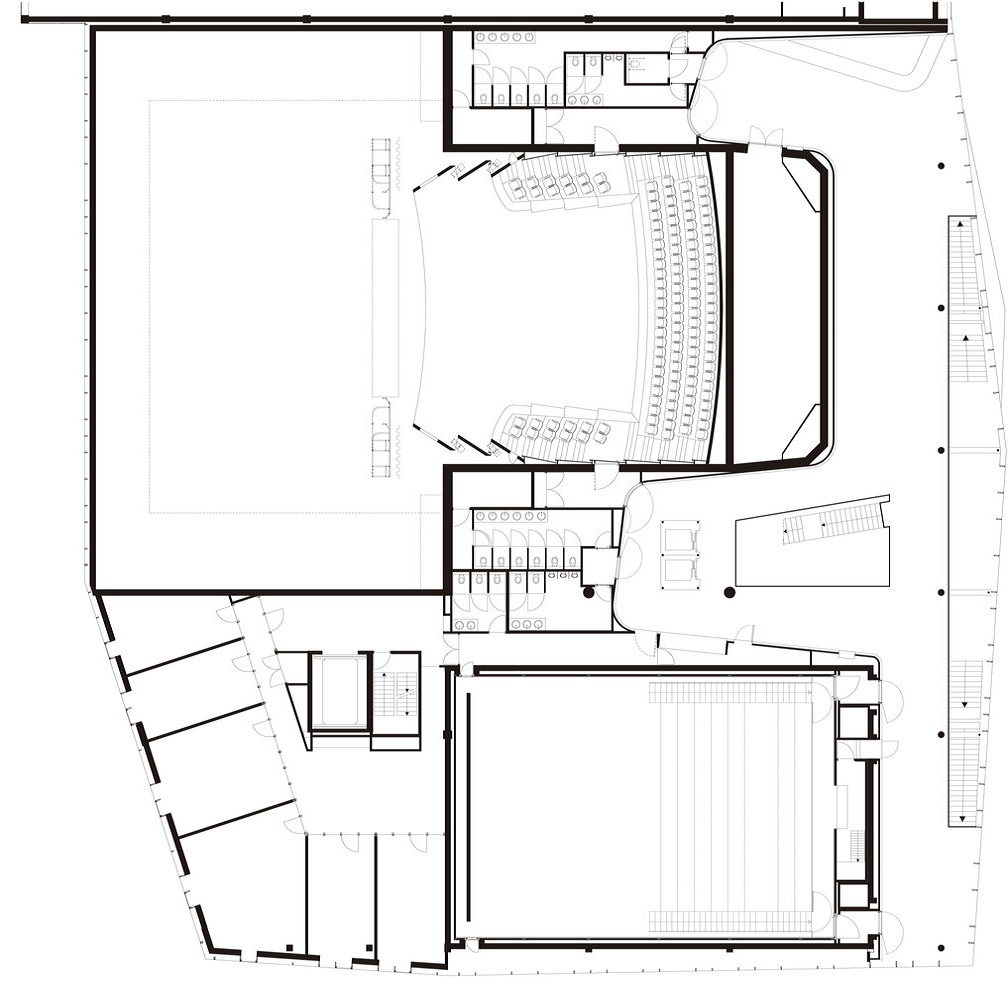

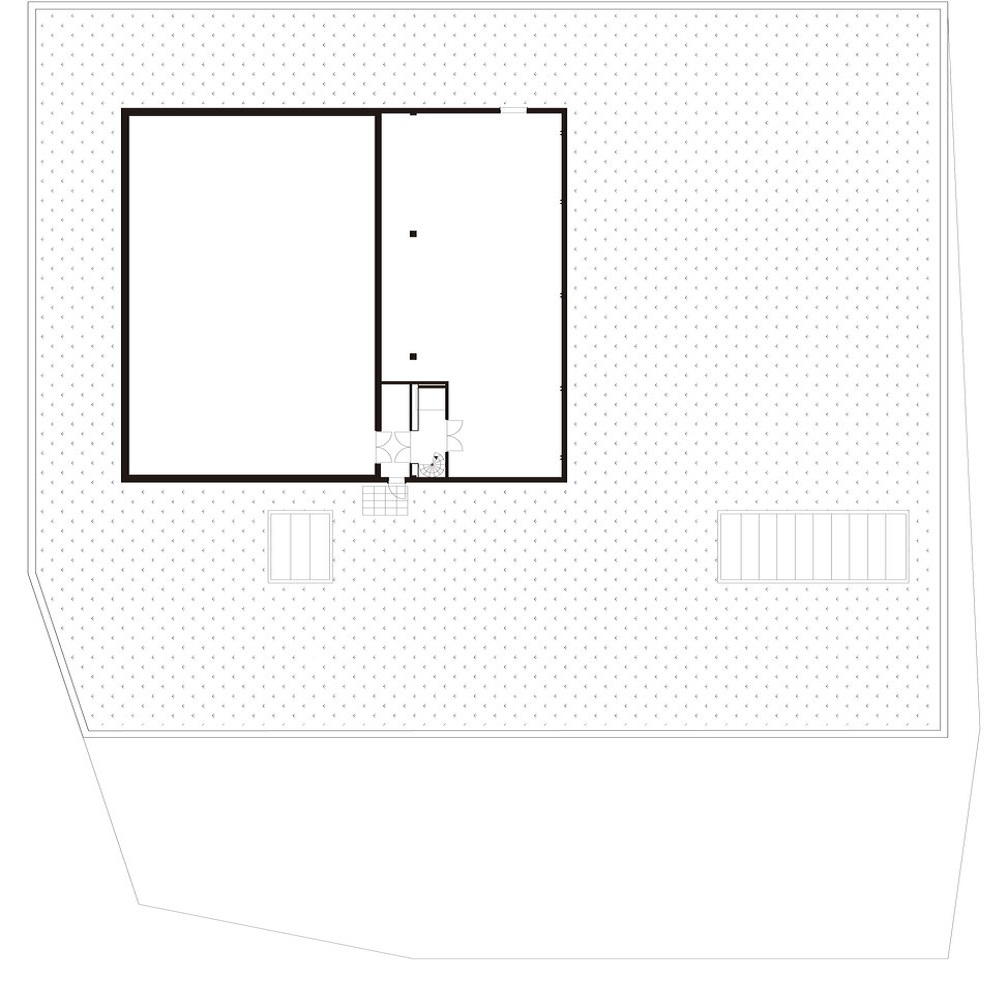

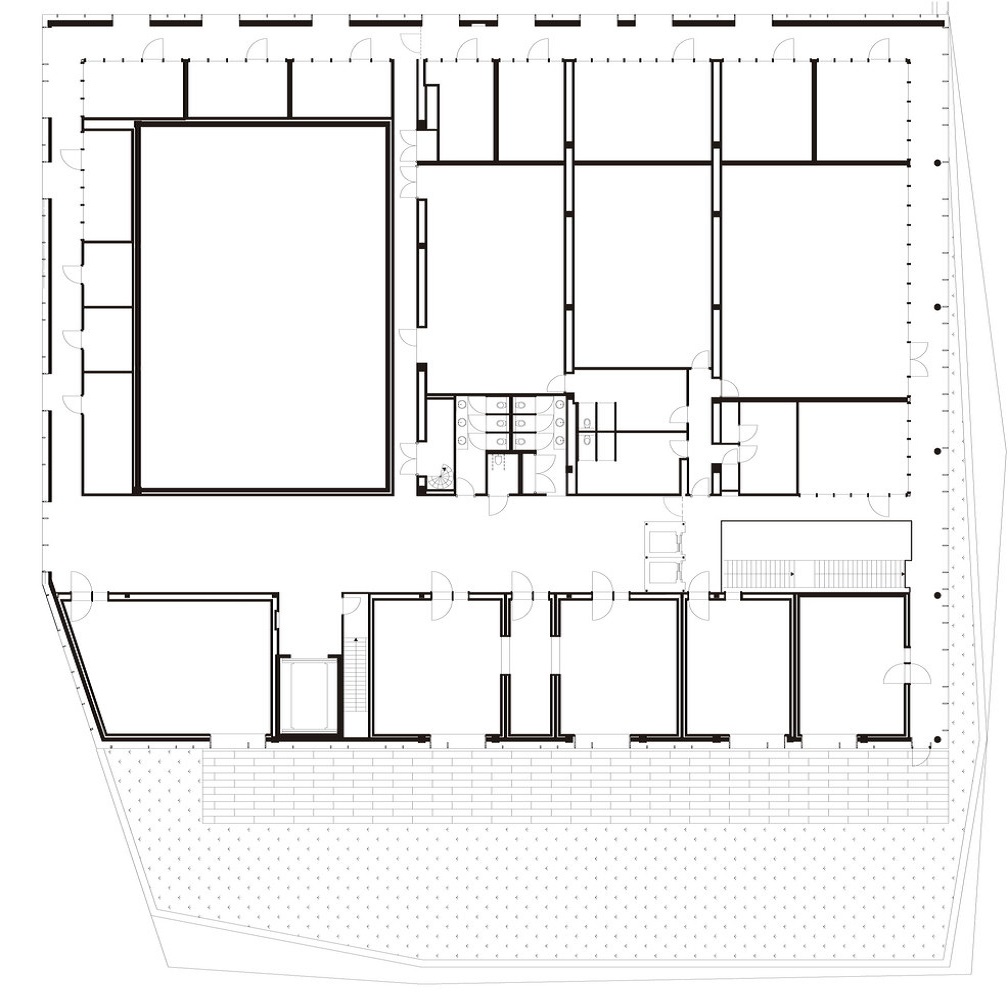

Floor Plan
Kunstcluster
Floor Plan
Kunstcluster
Floor Plan
Kunstcluster
Floor Plan
Kunstcluster
Floor Plan
Kunstcluster
Floor Plan
