EDIFICIO 03 98

Espinoza Carvajal Arquitectos

LOCATION
Loja, ecuador

CATEGORY
Mixed Use Architecture, Housing, Office Buildings

PROJECT YEAR
2012

AREA
1000.0 m²

THE BUILDING AND THE CITY The urban situation of 03 – 98 building is located within 500m from the center of Loja’s city.

Edificio 03 98
© Sebastián Crespo
Edificio 03 98
© Sebastián Crespo
Edificio 03 98
© Sebastián Crespo

There are landscape values and street furniture around 03 – 98, the relationship with the public space becomes continuous with the entrance plaza of the project.

The conformation of the set is given by two towers articulated with a vertical circulation plus a porch before entering to each department, this being a coexisting or meeting space.

Edificio 03 98
© Sebastián Crespo
Edificio 03 98
© Sebastián Crespo

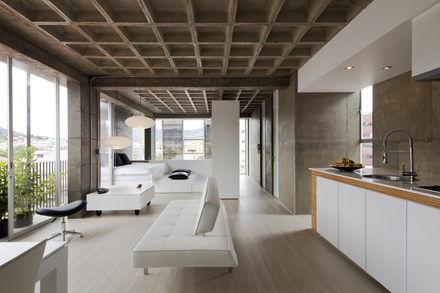

About the units contained in each block, they are defined as a diaphanous space, where wet areas are grouped, making it a flexible and adaptable space, all guided by the conceptual sections of the project and the user’s actions that defines the limits of occupation. (City and Society – System and Technology).

The technique and technology allowed us to be efficient with the construction of the building; we tried to make this process in a single action, obtaining a better use of resources.

Edificio 03 98
© Sebastián Crespo
Edificio 03 98
© Sebastián Crespo
Edificio 03 98
© Sebastián Crespo

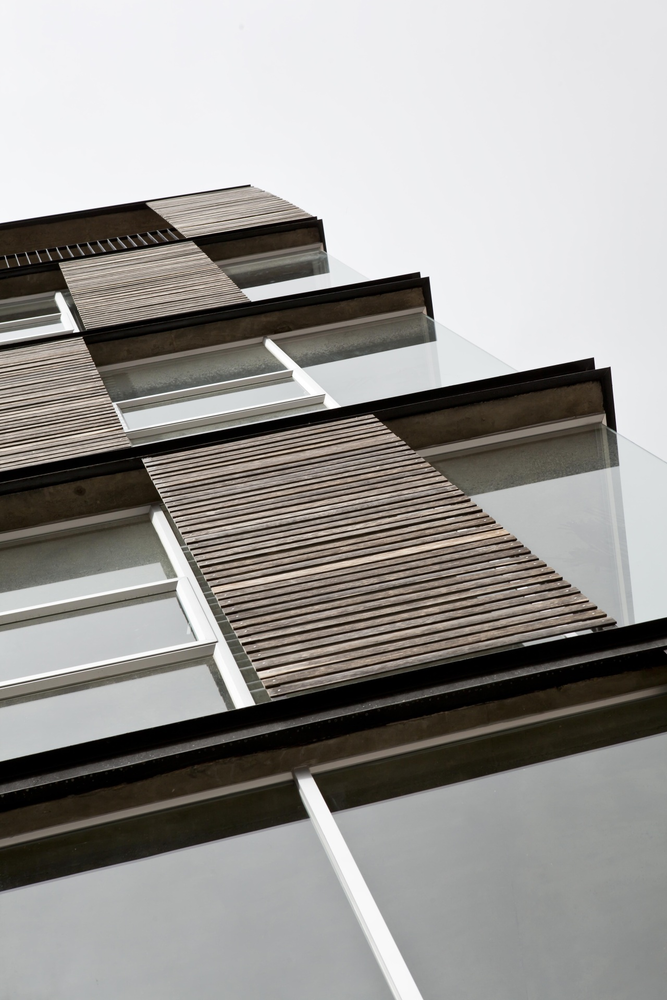

Several systems where involved: reinforced concrete structure in sight, metal and wood in the vertical circulation, prefabricated panels, allowing the assembly of the whole system of coverage and adaptation to the environment.


Edificio 03 98
© Sebastián Crespo
Edificio 03 98
© Sebastián Crespo
Edificio 03 98
© Sebastián Crespo
Edificio 03 98
© Sebastián Crespo
Edificio 03 98
© Sebastián Crespo
Edificio 03 98
© Sebastián Crespo
Edificio 03 98
© Sebastián Crespo
Edificio 03 98
© Sebastián Crespo


Edificio 03 98
Diagram
Edificio 03 98
Diagram


Edificio 03 98
Detail
Edificio 03 98
Detail


Edificio 03 98

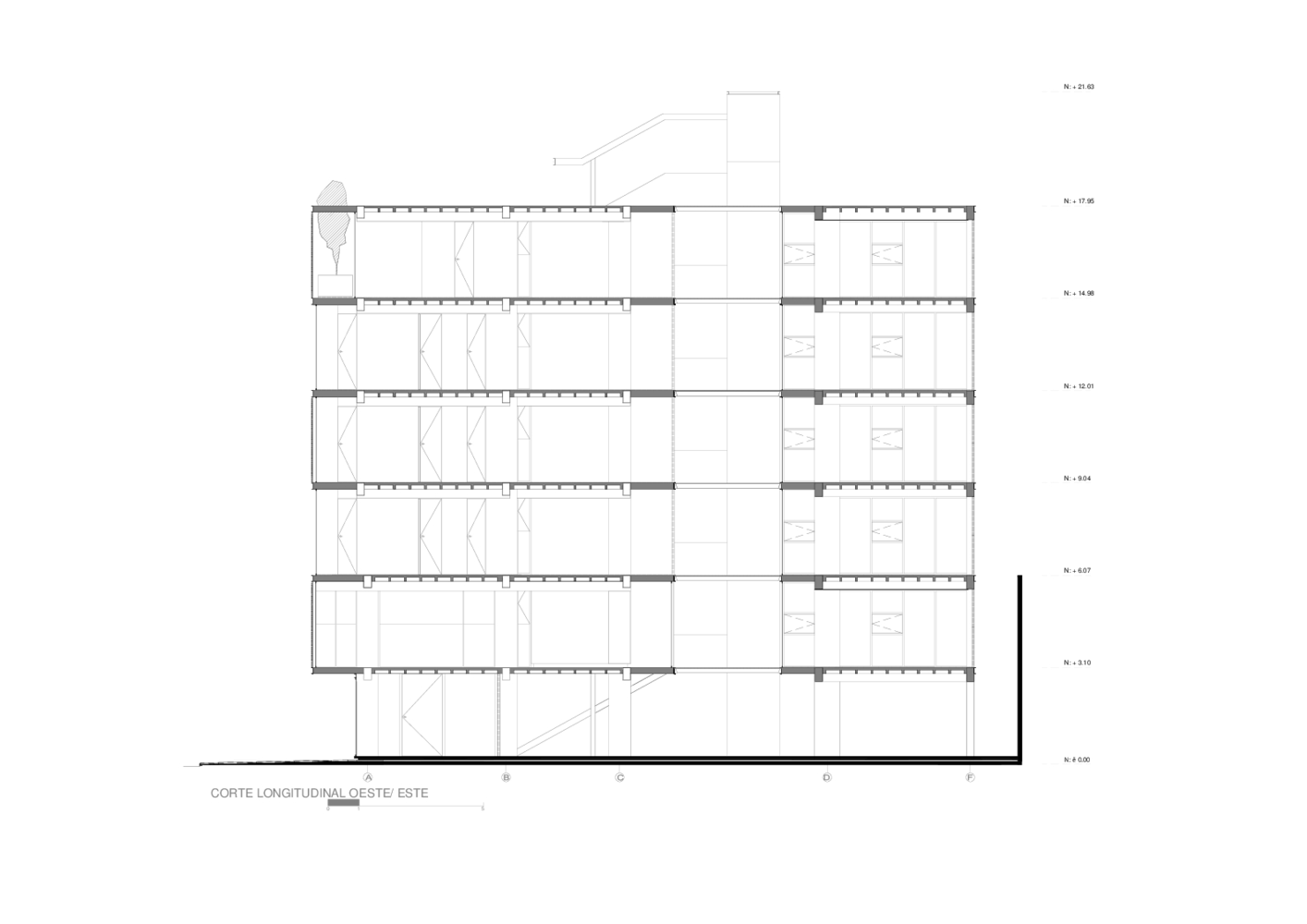

Section
Edificio 03 98
Elevation


Edificio 03 98
Plan
Edificio 03 98
Plan
Edificio 03 98
Plan
