CCTV Headquarters

CCTV Headquarters
Courtesy of OMA

CCTV HEADQUARTERS

OMA

CATEGORY
Institutional Buildings

LOCATION
Beijing, China

YEAR
2012

ARCHITECTS
OMA

AREA
473000.0 m²

MANUFACTURERS
 KEIM, Erco, Mitsubishi Electric, Panasonic, iGuzzini, Baosteel, Beijing Jangho, CSG,
Ispert, Jiang Su Huning, Shanghai Gate, Soprema, Thorn, Yingliang Stone

Text description provided by architect.

This past wednesday, OMA participated in the official construction completion ceremony for the China Central Television (CCTV) Headquarters in Beijing, which will start to be used later this year.

CCTV Headquarters
Courtesy of OMA
CCTV Headquarters
Courtesy of OMA

Designed by OMA as a reinvention of the skyscraper as a loop, construction on the building began in 2004.

At approximately 473, 000m2, CCTV – accommodating TV studios, offices, broadcasting and production facilities – is OMA’s largest ever project and its first major building in China.

CCTV Headquarters
Courtesy of OMA
CCTV Headquarters
Courtesy of OMA

CCTV defies the skyscraper’s typical quest for ultimate height. Rising from a common platform, two towers lean towards each other and eventually merge in a perpendicular, 75- metre cantilever.

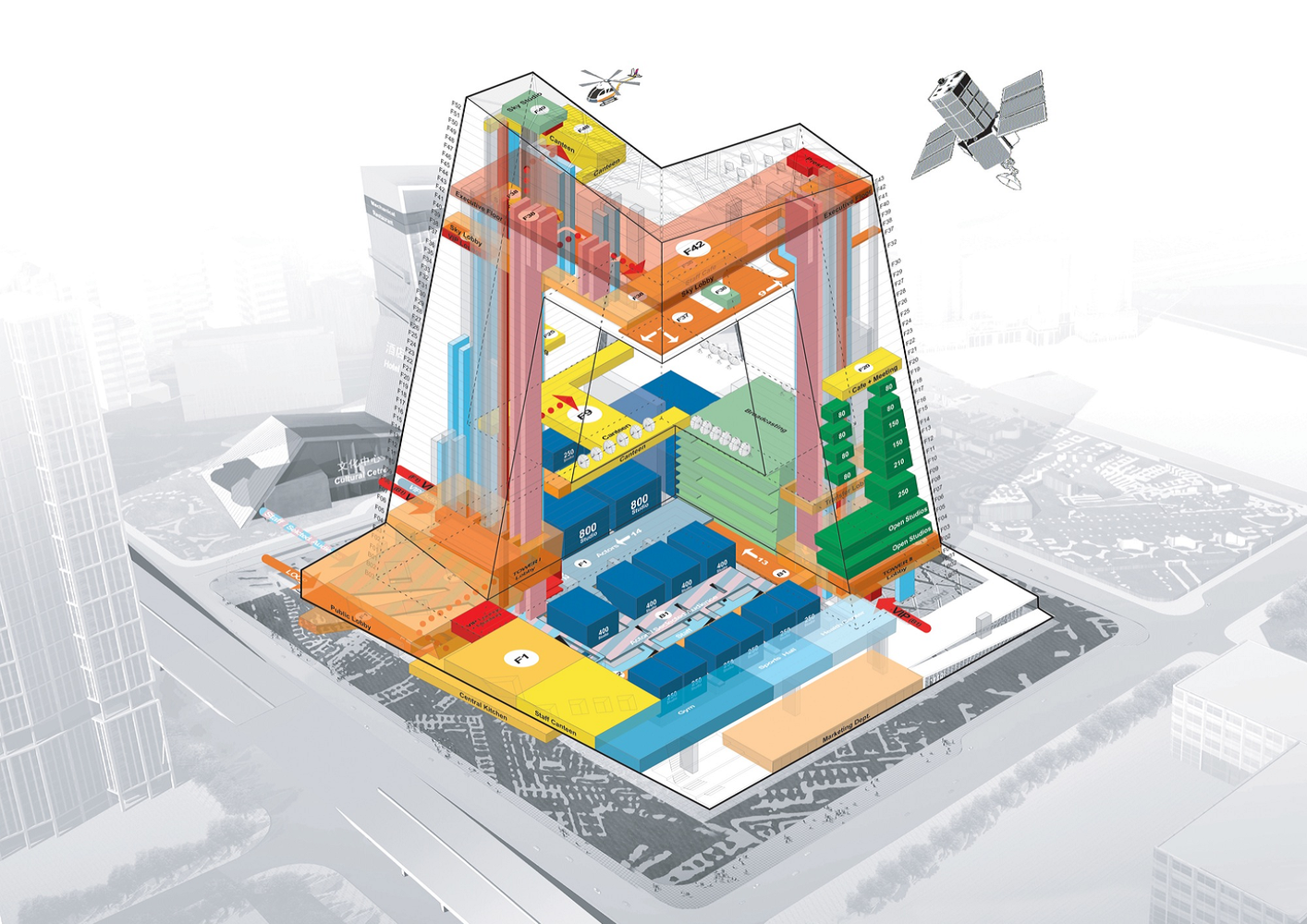

The design combines the entire process of TV-making – formerly scattered in various locations across the city – into a loop of interconnected activities.

CCTV Headquarters
Courtesy of OMA
CCTV Headquarters
Courtesy of OMA
CCTV Headquarters
Courtesy of OMA

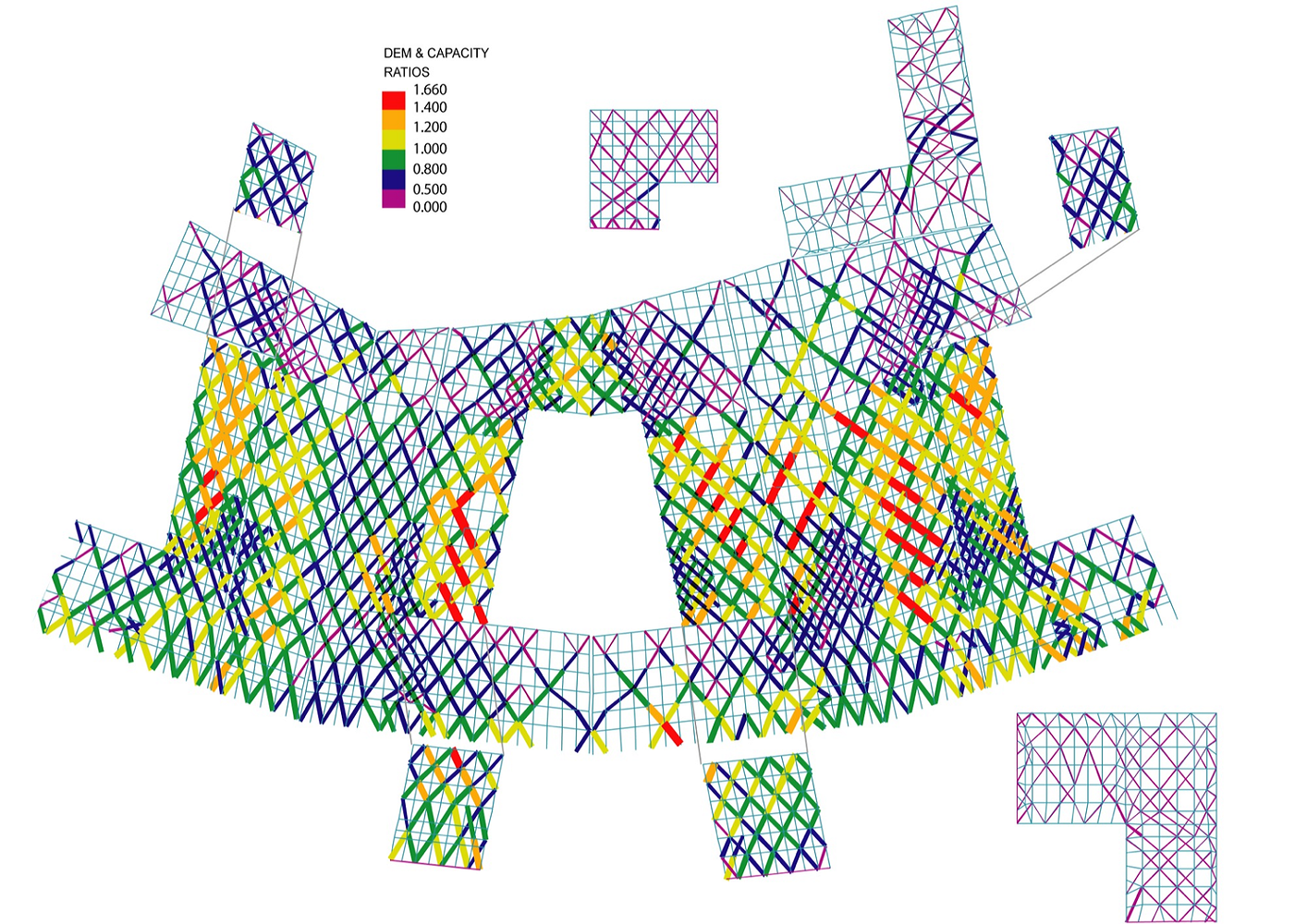

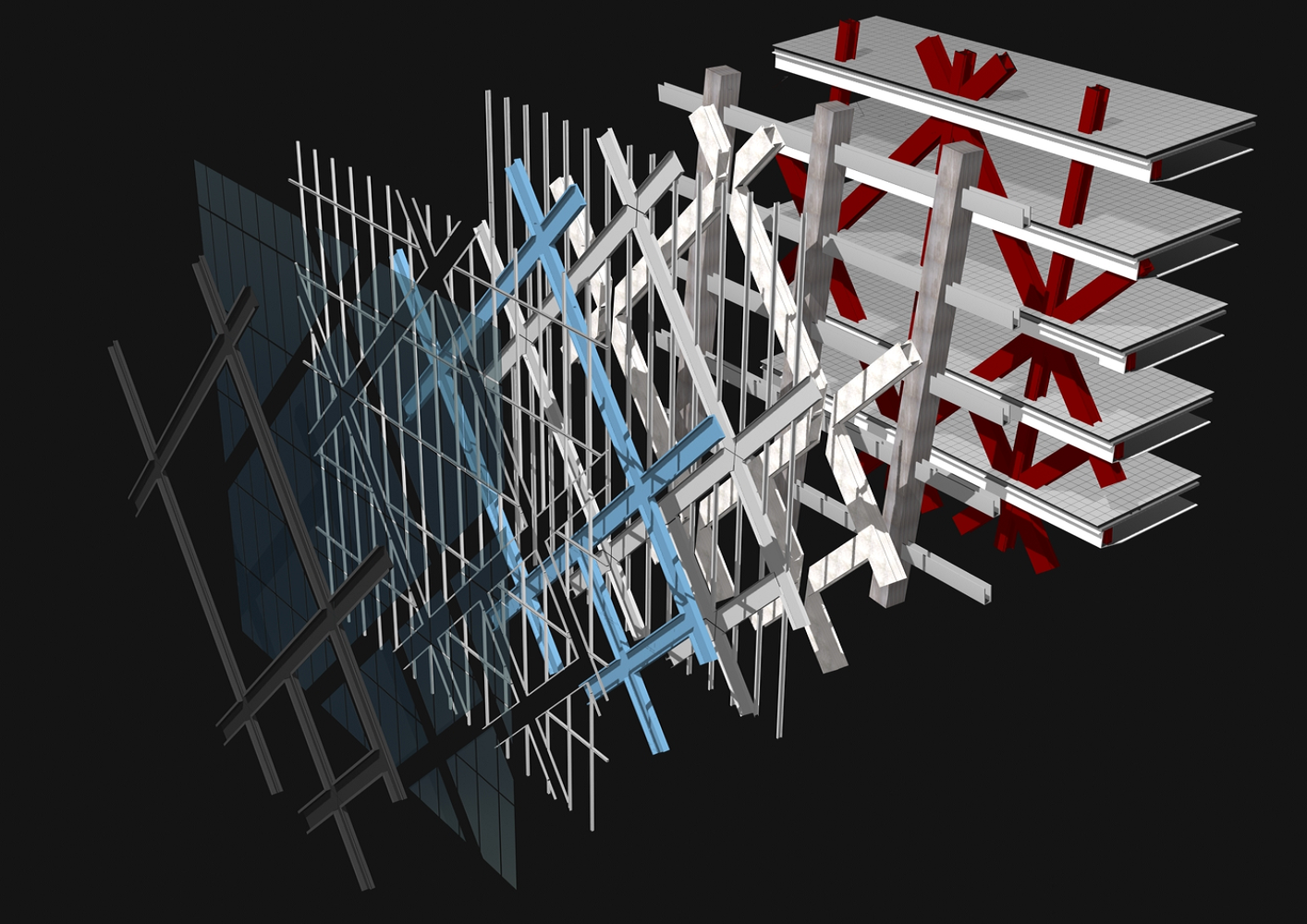

The structure of the CCTV Headquarters, and the forces at work within it, is visible on its façade: a web of diagonals that becomes dense in areas of greater stress, looser and more open in areas requiring less support.The façade itself becomes a visual manifestation of the building’s structure.

The CCTV project was led by OMA / Rem Koolhaas, former OMA partner Ole Scheeren (until 2010), OMA partner David Gianotten and project manager Dongmei Yao in close collaboration with partners Shohei Shigematsu, Ellen van Loon and Victor van der Chijs.

CCTV Headquarters
Courtesy of OMA
CCTV Headquarters
Courtesy of OMA

The design team consisted of project architects Anu Leinonen, Charles Berman and Adrianne Fisher together with a team of over 100 architects from OMA.

The structural and MEP design was provided by Cecil Balmond and Arup, while ECADI (East China Architectural Design & Research Institute) functioned as the Local Design Institute.

Design Consultants included Front INC, Inside/Outside, DHV, DMJMH+N, Lerch Bates & Associates, LPA, Sandy Brown Associates and Romano Gatland NY.

CCTV Headquarters
Courtesy of OMA


CCTV Headquarters
Courtesy of OMA
CCTV Headquarters
Courtesy of OMA
CCTV Headquarters
Courtesy of OMA
CCTV Headquarters
Courtesy of OMA


CCTV Headquarters
Courtesy of OMA

CCTV Headquarters

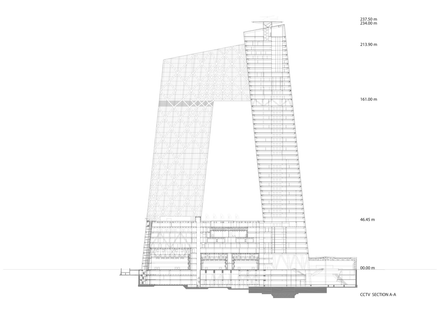

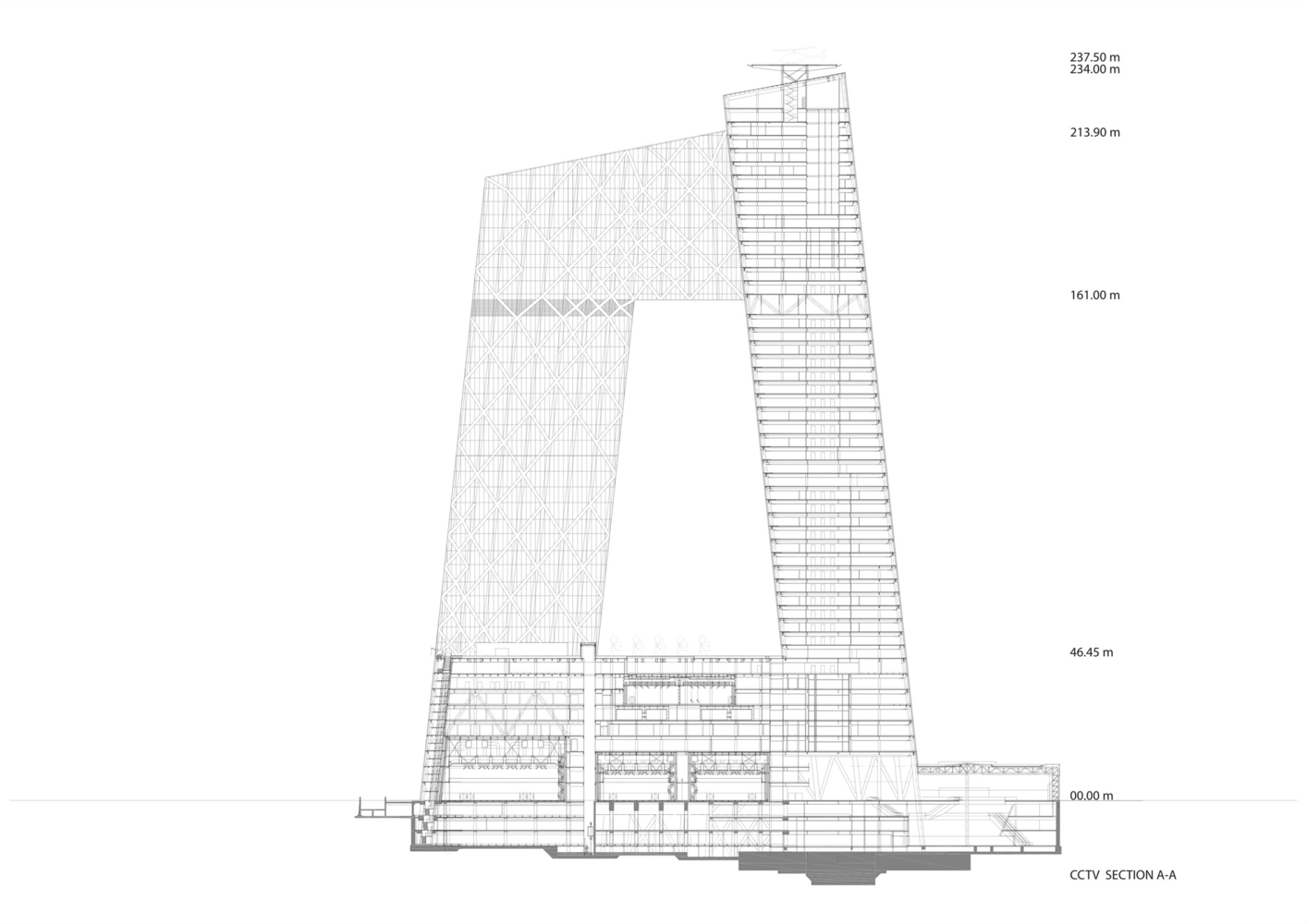

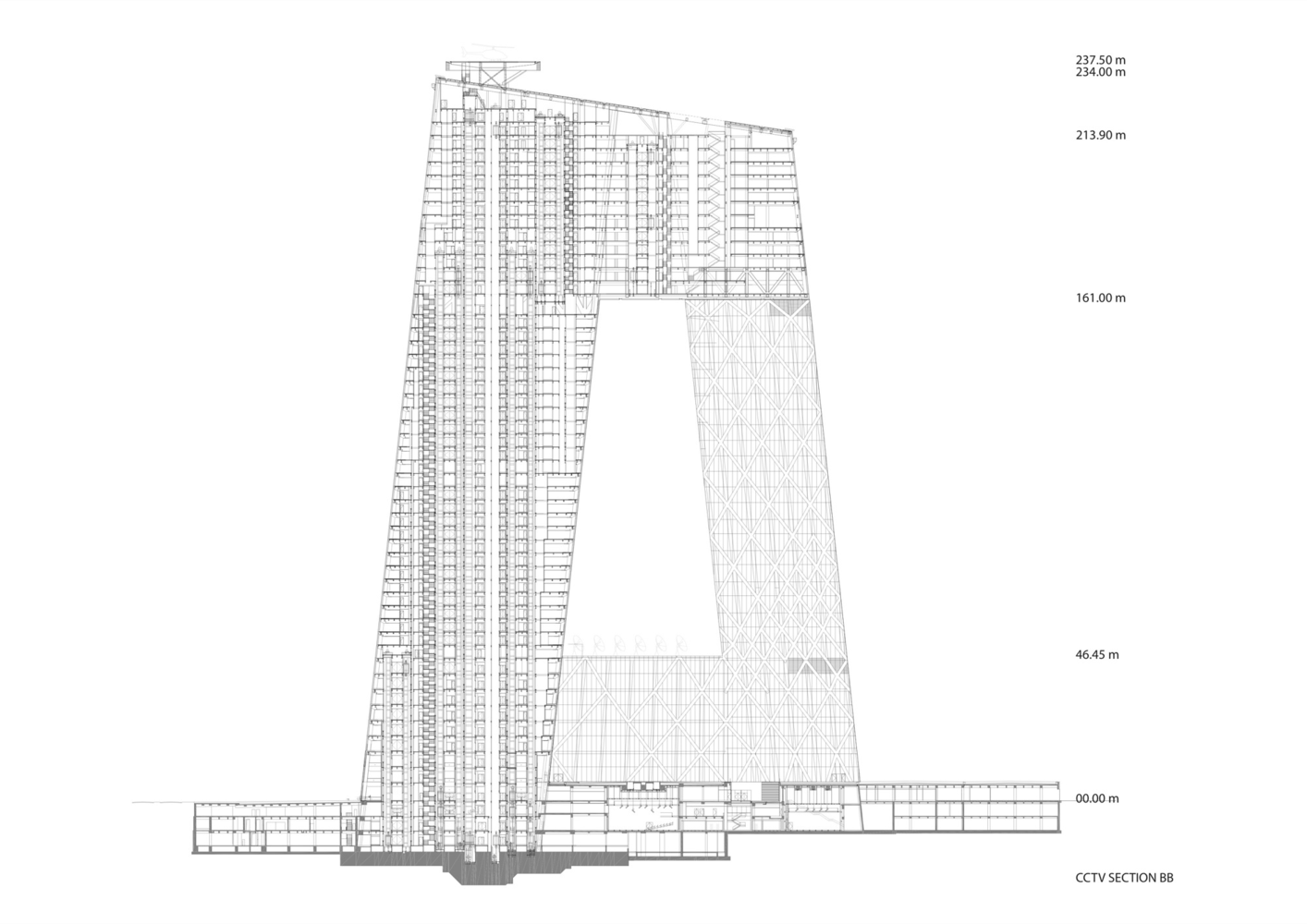

Section 01
CCTV Headquarters
Section 02


CCTV Headquarters

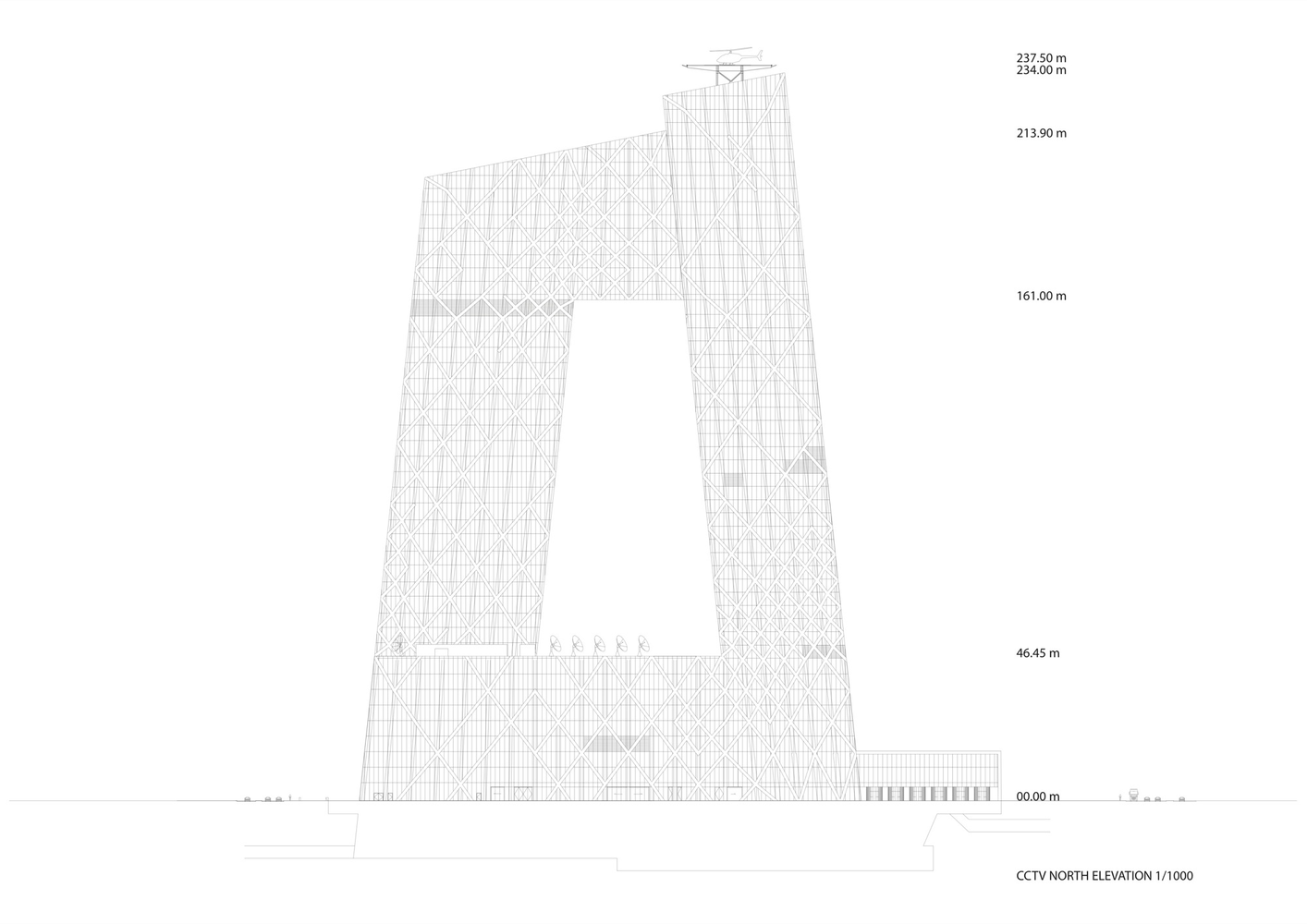

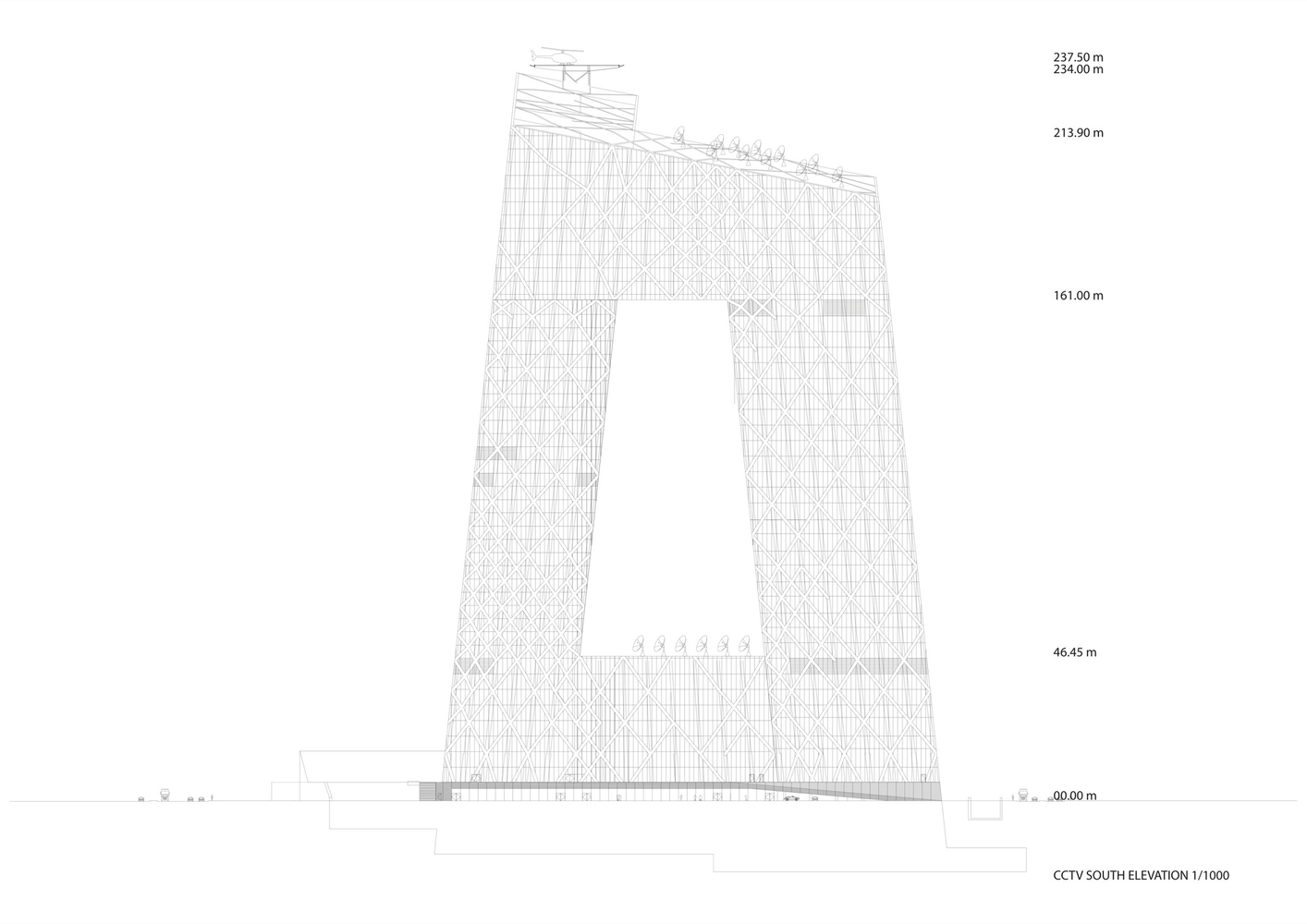

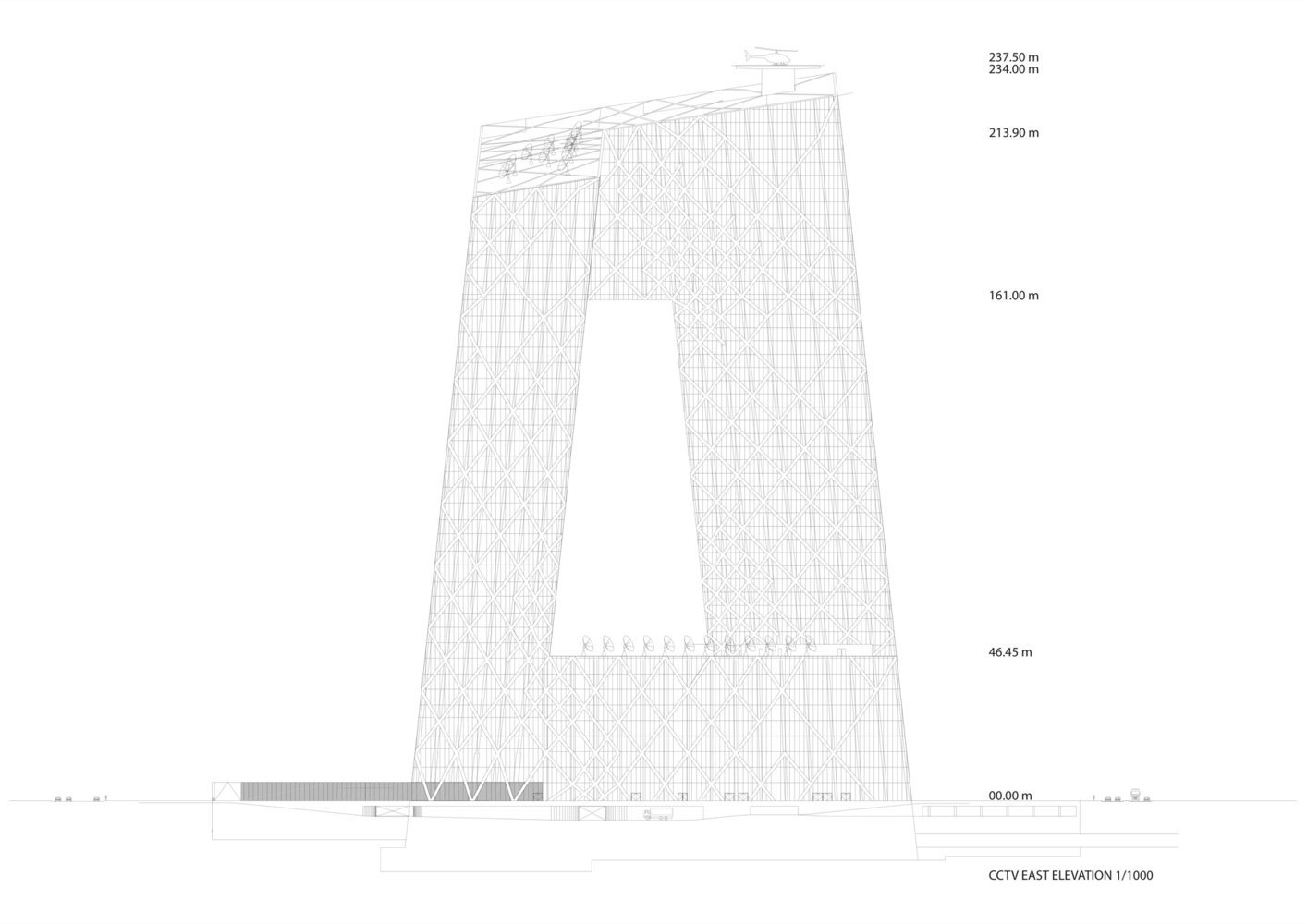

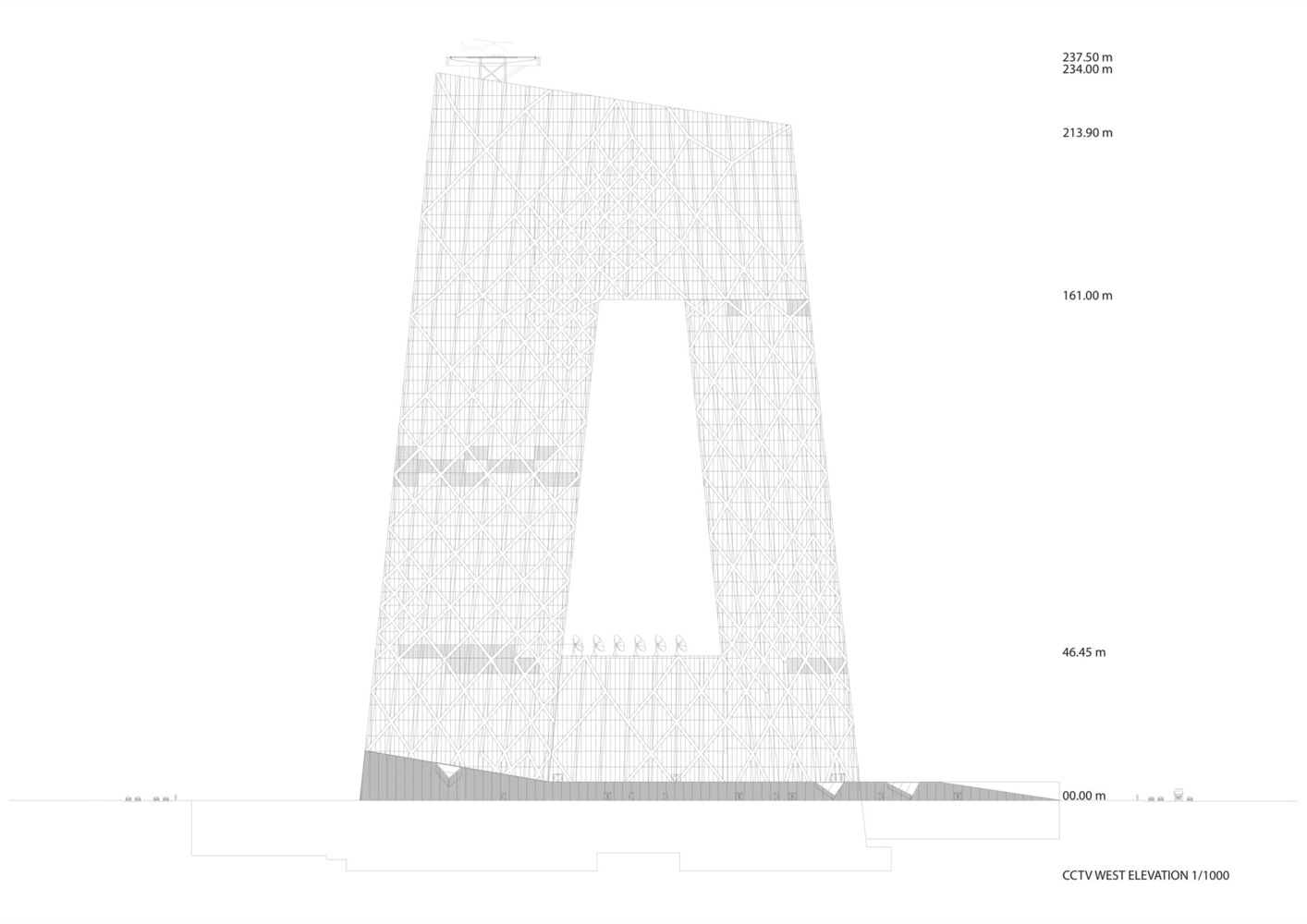

Elevation 01
CCTV Headquarters
Elevation 02
CCTV Headquarters
Elevation 03
CCTV Headquarters
Elevation 04


CCTV Headquarters

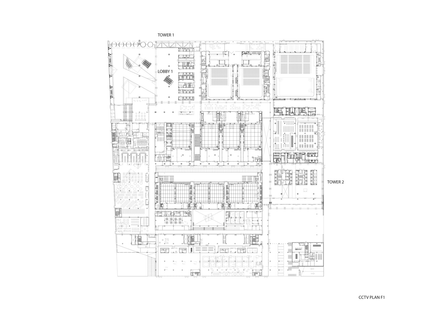

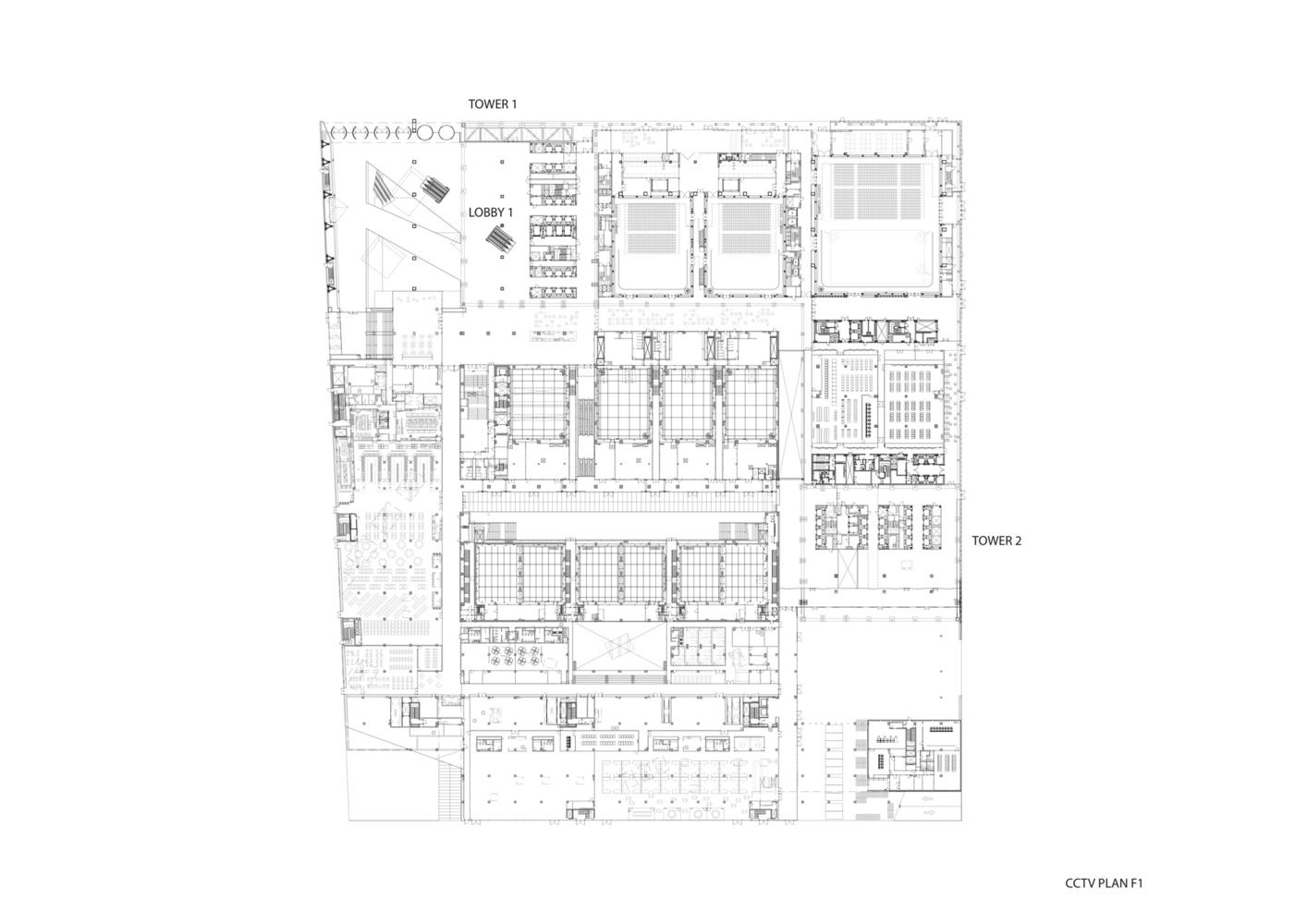

Plan 01
CCTV Headquarters
Plan 02
CCTV Headquarters
Plan 03
CCTV Headquarters
Plan 04
CCTV Headquarters
Plan 05


CCTV Headquarters
Diagram 01
CCTV Headquarters
Diagram 02
CCTV Headquarters
Diagram 03
CCTV Headquarters
Diagram 04
