EX HOUSE

GarcíaGermán Arquitectos

ARCHITECTS
GarcíaGermán Arquitectos

AREA
135.0 m²

CATEGORY
Houses

YEAR
2012

LOCATION
Castillejo De Mesleón, Spain

PHOTOGRAPHS
Jorge Lopez Conde

Ex House
© Jorge Lopez Conde

Paisajes con Madera (facades), Schüco-Alucer (alluminium windows), Intemper (green roofs).

The term “Ex” refers to a vital process developed by our client through an abandonment of downtown Madrid and its disadvantages leaving behind a world of urban routines.

Ex House
© Jorge Lopez Conde
Ex House
© Jorge Lopez Conde

This displacement aims to achieve a feeling of retreat and isolation inherent to the rural setting of the Somosierra mountain range, where the house is located, but taking advantage of its close proximity to the city, with the property at just 1km. distance from the N-1 highway and one-hour drive from Madrid.

A way of life in tune with nature but accessible from the city, appropriate for young dwellers.

The house, camouflaged inside a dense forest, manages to face the views of the granite Somosierra and La Pinilla peaks to the south while looking at the same time to the reddish vast sediment plains that extend to the north, sitting in this geological transition and facing both directions.

Ex House
© Jorge Lopez Conde
Ex House
© Jorge Lopez Conde

These views are formalized in two large identical 4,50m. openings situated in opposite sides of the central square-plan living area.

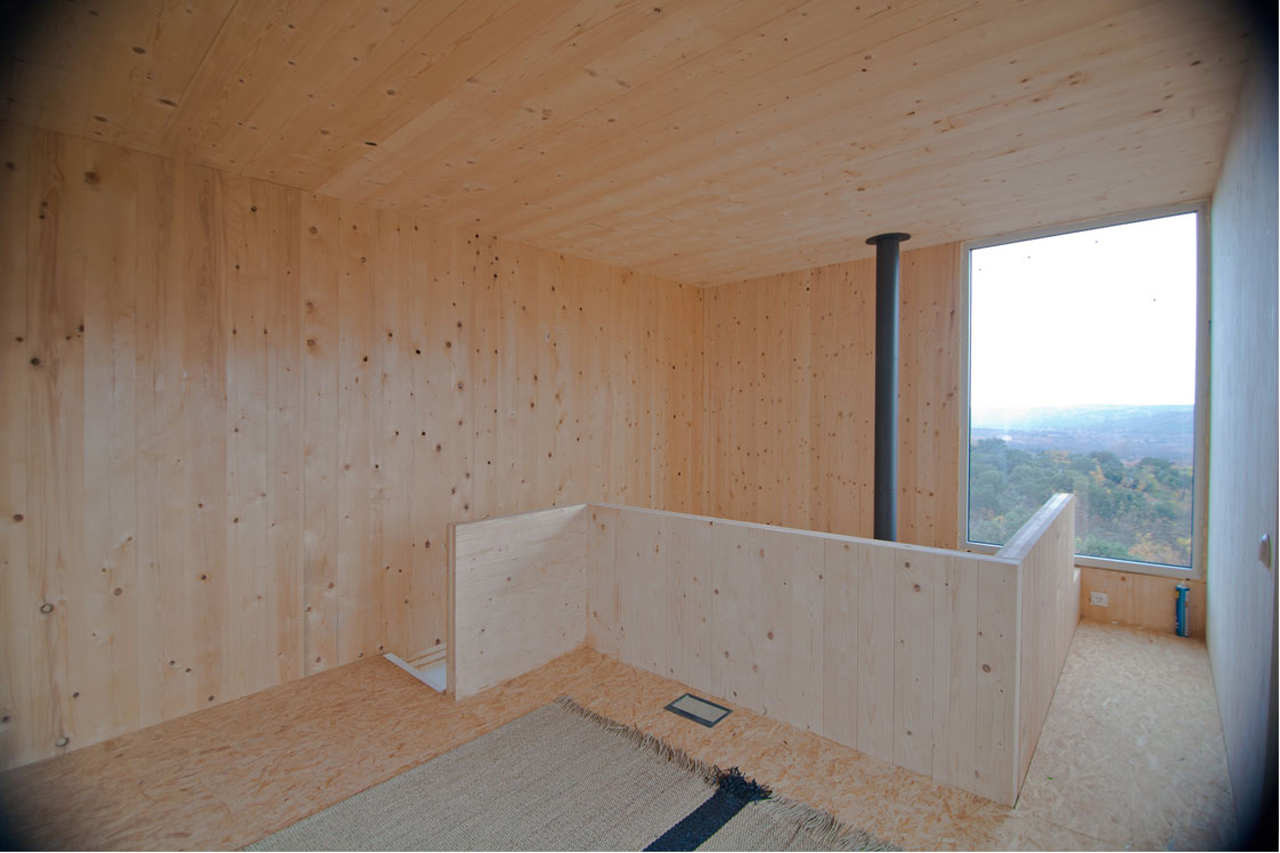

This living area has a fireplace and is double-heighted to the north, regulating the inside temperature of the house.

Building systems incorporate high-tech devices in construction methods with a predominant concern for sustainability in the processes and materials employed.

Offering environmental standards that combine a contemporary level of comfort with the recovery of a secluded lifestyle with all of its charms.

Ex House
© Jorge Lopez Conde
Ex House
© Jorge Lopez Conde

The use of wood and its qualities, not only technical (insulation, easiness in handling, waste reduction) but also cultural and somatic (awareness of a sustainable living, warm textures, comfort connotations), determines the entire working process, providing the house with its characteristics natural and friendly finishes.

The working process was drastically reduced from the usual 13-14 months in buildings of this size (120-140m2) to 3 months, allowing for the house completion in about 8 months from the first drawings, lowering the costs by minimizing transport, reducing displacement of all parts involved and minimizing management phases.

Ex House
© Jorge Lopez Conde
Ex House
© Jorge Lopez Conde

The quartering of high-strength cross-laminated wood panels is modulated to fit one single truck which is driven from the Austrian factory.

The panel are then assembled on-site by skilled labour (3 people) in a 5 day process.

The house is built without earthworks and placed gently in the shade of a group of existing trees, rehearsing an essential lifestyle which mixes contemporary devices with the recovery of basic activities.

Fireplace, vegetable garden, septic tank and heat generation system through fire-heated water are combined with 18 cm.

Ex House
© Jorge Lopez Conde
Ex House
© Jorge Lopez Conde

Mineral-wool thermal insulation, triple gas filled anodized aluminium glazing 6 / 6 +12 +4 mm. and green roofs with a multilayer cover.

All these devices add up to a drastic reduction in maintenance costs.

Ex House
© Jorge Lopez Conde
Ex House
© Jorge Lopez Conde

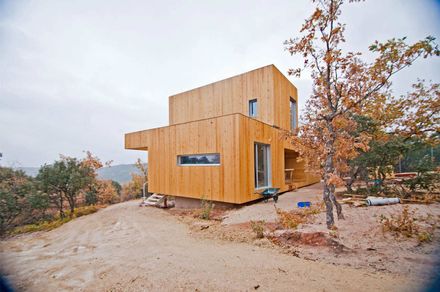

Facades are done with 16cm. wide toothed wooden planks manufactured from cheap local Valsaín (Segovia) pine, recovering a XVI Century local tradition from the Borbón-era and in disuse nowadays.

This closes a circle which starts with the high-tech-prefab “pan-European” structure of the house and ends with the reactivation of a beloved local craft in the house’s enclosures.

Ex House
© Jorge Lopez Conde


Ex House

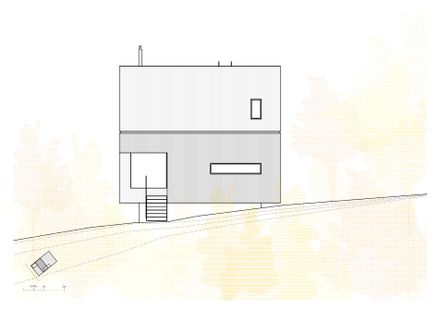

elevation 01
Ex House
elevation 02


Ex House
section 01
Ex House
section 02
Ex House
section 03


Ex House

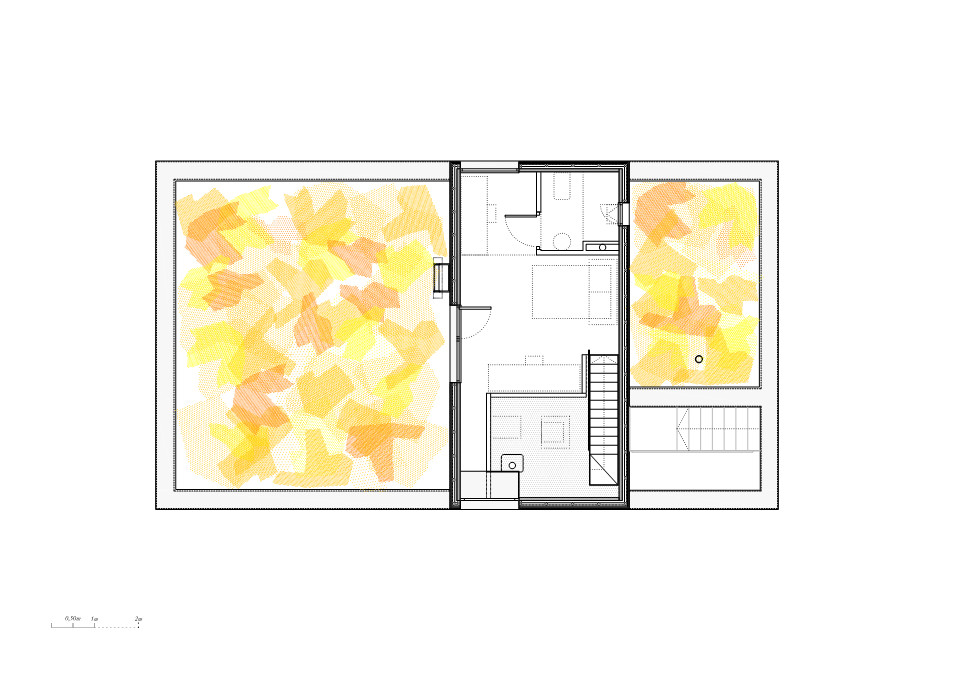

first floor plan
Ex House
lower floor plan
Ex House
site plan


Ex House
emplacement
Ex House
details


Ex House
puzzle
