PERTH ARENA

ARM Architecture, CCN

Perth Arena
© Peter Bennetts

ARCHITECTS
Arm Architecture, CCN

SENIOR TEAM LEADER
Steve Christie

PROJECT DIRECTOR
Stephen Ashton

JV DIRECTOR
Dominic Snellgrove

DESIGN DIRECTOR
Howard Raggatt

PROJECT ARCHITECTS
Stephen Davies, Peter Keleman

PHOTOGRAPHS
Greg Hocking, Peter Bennetts , John Gollings

AREA
28300 m²

YEAR
2012

LOCATION
Perth WA 6000 Australia

CATEGORY
Recreation & Training

Perth Arena
© Peter Bennetts

Text description provided by architect.

The Perth Arena is perhaps like the ancient Greek myth of the Trojan Horse – an object of desire, dragged into great triumph and allowed to bring its rampage of entertainment with it.

With up to 15,000 seats, an operable roof for sporting matches, 36 VIP super boxes, five major multi‐purpose event rooms, half a dozen food and beverage outlets and a 700‐space basement car park, the Perth Arena becomes a stand‐alone entertainment extravaganza for the city.

Perth Arena
© Peter Bennetts
Perth Arena
© John Gollings

Perth Arena features a retractable roof that can open in seven minutes allowing natural light to flood the centre court. It also features five multi‐purpose event rooms, half a dozen food and beverage outlets, state of the art acoustics, function spaces, corporate hospitality suites, cafes and a basement car park.

The stadium has a very flexible design, allowing for crowds of up to 15,500 in general admission concert mode and up to 14,000 in tennis mode. Alternatively, the arena can be closed down for an intimate concert with 3000 people.

Perth Arena
© Peter Bennetts
Perth Arena
© John Gollings
Perth Arena
© John Gollings

The striking design was inspired by the 12‐sided Round House in Fremantle and the 209 irregular shaped pieces of Christopher Monckton's Eternity Puzzle. 'This landmark building has been designed to provoke symbolic interpretation, create direct visual responses from all approaches, and become an integral part of the city’s overall urban design and architectural strategy,' said design director Howard Raggatt.

Our architectural strategy was simple: provide a core multi‐functional arena without compromise and then surround it with variable circulation and a striking configuration. Most venues of this type provide continuous repetitive spaces around the core function.

Perth Arena
© John Gollings
Perth Arena
© John Gollings

We have explored this building typology another way. Instead of a singular facade we have created extreme variability, giving the building a different face from every angle. Whether approaching from the elevated freeway to the west, the grand boulevard to the south, the railway lines on the north or new urban developments to the east, every facade presents a new dynamic.

It is the interior, and especially the entrance and great public concourses, that best express our vision for the building. Instead of a brutally unimaginative interior, Perth Arena is inspired by the whole experience of a public building, and especially the experience of looking out to the city.

Perth Arena
© John Gollings
Perth Arena
© Greg Hocking

Sustainable features include mixed mode natural ventilation to public concourses, displacement air conditioning system through the seating plats reducing energy consumption, photo voltaic (solar) array on the roof, WELLS‐rated fixtures and fittings and waterless urinals, locally sourced materials (e.g. West Australian granite for the entry foyers) and a water sensitive landscape design.

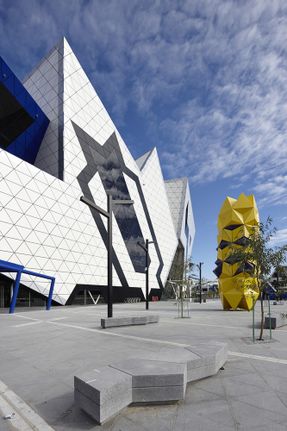

ARM and CCN provided advice to the client on artist selection and were involved in reviews of the final design. Six years in the making, Geoffrey Drake‐Brockman’s 'Totem' draws on sophisticated robotics and schoolyard origami to make a memorable piece of public art.

Its moving panels are programmed to open and close like flower petals in response to people walking past and it shoots geometric laser projections onto the wall of the Arena at night. 'Totem' has affectionately become known as the 'Perth Pineapple'.

Perth Arena
© John Gollings


Perth Arena
Elevation
Perth Arena
Section


Perth Arena

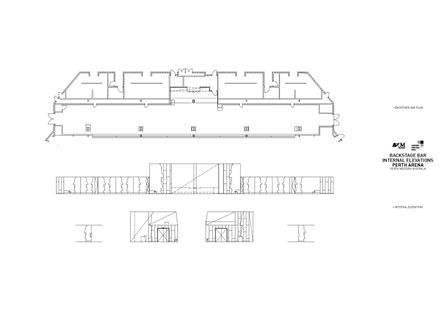

Detail
Perth Arena
Detail


Perth Arena
First Floor Plan
Perth Arena
Site Plan
