Sports Complex In Châtenay-Malabry
ARCHITECTS
Aea - Agence Engasser + Associés
PHOTOGRAPHS
Mathieu Ducros
AREA
2400.0 m²
YEAR
2012
LOCATION
Châtenay-malabry, France
CATEGORY
Gymnasium
Text description provided by architect.
Located at the heart of the ‘Butte Rouge’ garden city in the Paris suburb of Châtenay-Malabry, the Léonard de Vinci sports complex houses a multipurpose sports hall, a dojo and annexes.
The project can be divided into two main sections: - The base of the building which emerges from the park.
- The base of the building which emerges from the park. The low height of the base is in keeping with the existing buildings and forms an extension of the greenery that runs from the garden-city through to the green roof;
- A ‘wooden lantern’, which forms the bulk of the sports hall and sits on top of the large green roof.
The steel cladding on the base and the perforated iron panelling protect the glass passages and provide a contrast with the wood used in the sports hall.
A false ceiling made of lengths of larch wood run between the Glulam beams, concealing the technical fittings, while allowing light to filter through and improving the hall’s acoustics.

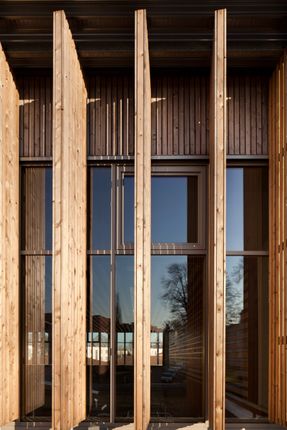

The wood and aluminium façades, which frame the majority of the glass surfaces in the complex, are protected on the eastern and western sides of the sports hall by large shutters made of retified pine, identical to the northern and southern gables.
