Laboratorios Vaquero

CATEGORY
Commercial Architecture, Shopping Centers

YEAR
2012

ARCHITECTS
Laboratorios Vaquero

LOCATION
Mexico

Text description provided by architect.

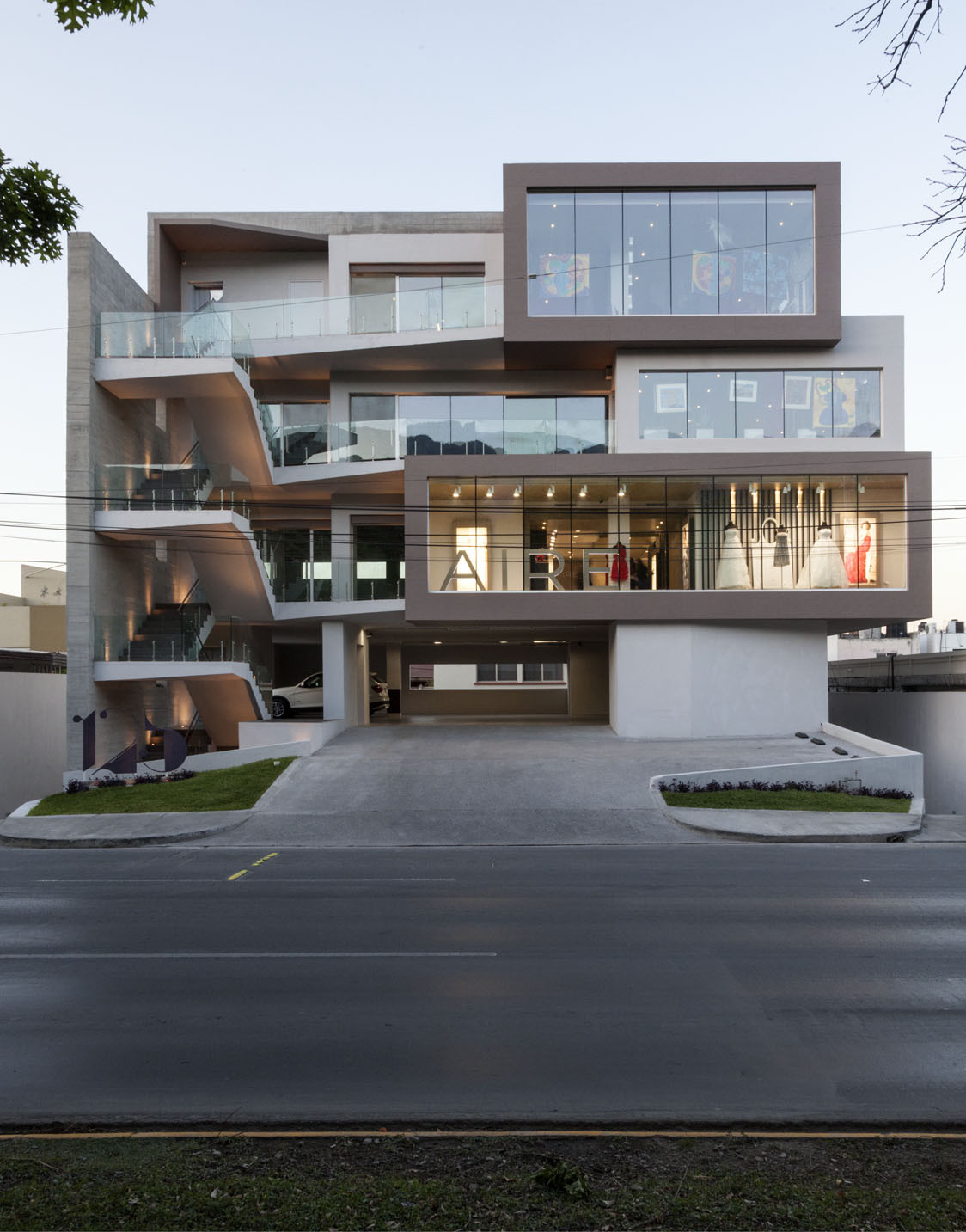

In San Pedro, Garza García, commercial buildings are sprouting from the ground like grass land, mainly on the commercial corridor Calzada del Valle.

125
© Estudio Alejandro Cartagena
125
© Estudio Alejandro Cartagena
125
© Estudio Alejandro Cartagena

This avenue consists of 2 streets of 3 lanes and a median 40 meters wide with trees.

There is a line of trees that marks the street from the buildings and provides an interesting scenario to work on.

The lot is located on the north sidewalk of this avenue that turns to the eastern Sierra Madre, and given the original characteristic of the avenue as a residential zone, one of the biggest challenges was to deal with a small lot.

125
© Estudio Alejandro Cartagena
125
© Estudio Alejandro Cartagena

This limited the development of parking on two levels and on these, three levels of commercial area that unfold displaying seven individual containers that identify each separate element.

This idea was developed from the two speeds with which the building can be experienced, one is vehicular with short attention spans, and the other is pedestrian, from where the building can be more slowly appreciated from the median.

The arrangement of the areas is read as three storefronts, this results by eliminating the halls at the end of each level to expand the profitable area.

125
© Estudio Alejandro Cartagena
125
© Estudio Alejandro Cartagena

At the end of the halls is the staircase, supported by a concrete wall that delimits the building and contextualizes the space relative to the avenue.


125

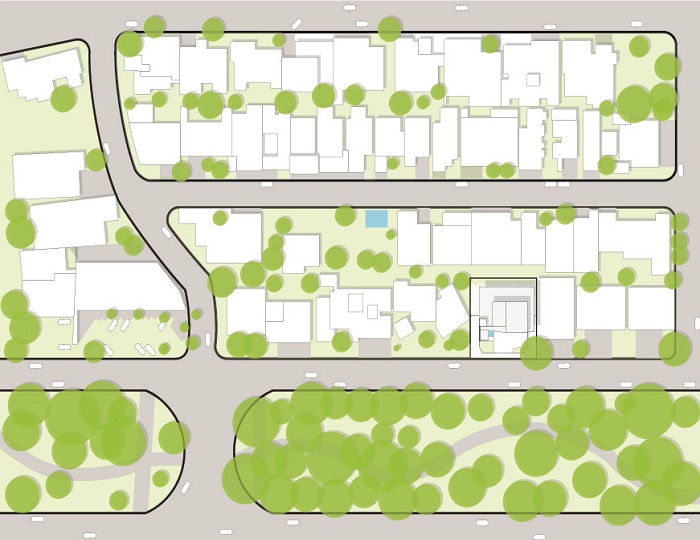

Site Plan
125

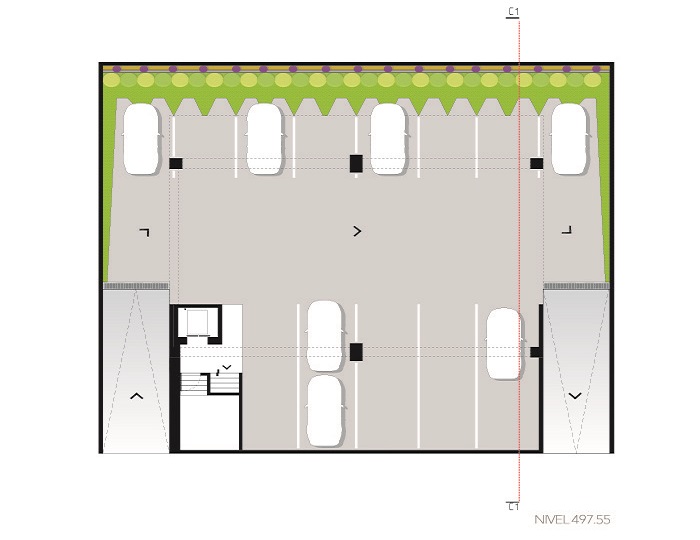

Plan Level 497
125

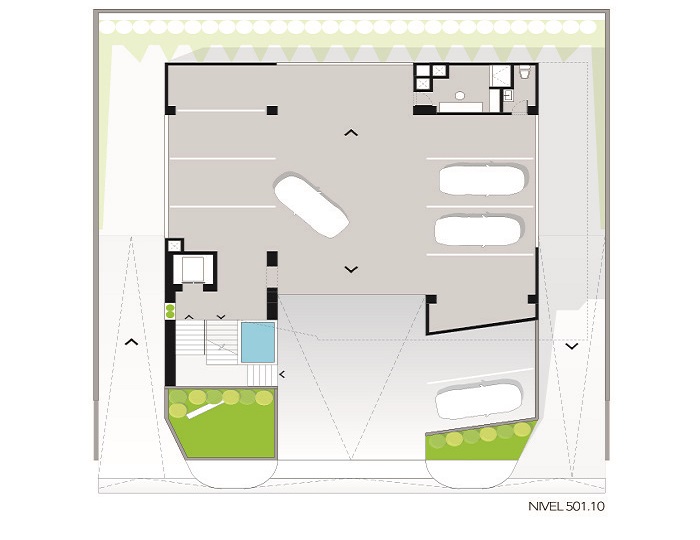

Plan Level 501
125

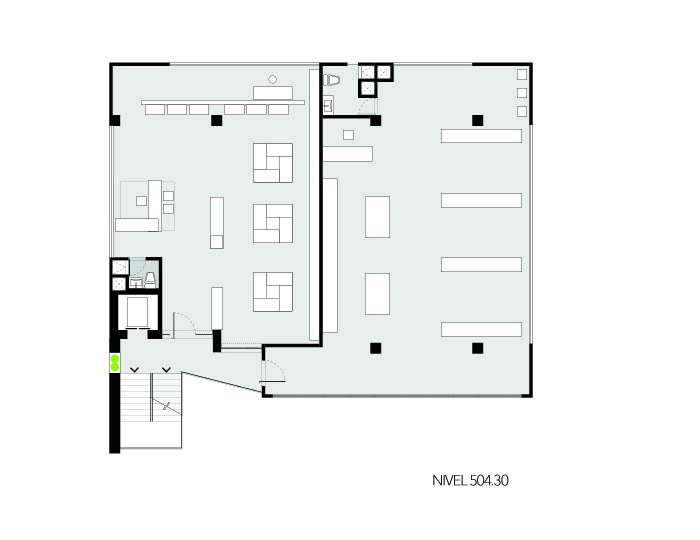

Plan Level 504
125

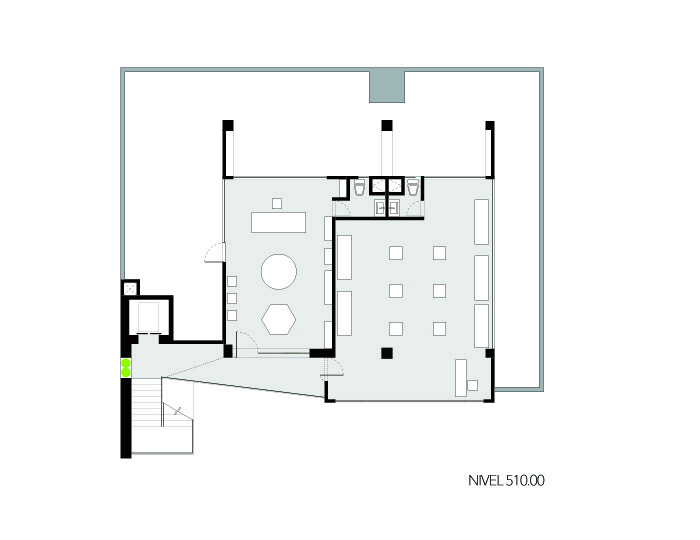

Plan Level 510
125
Plan Level 570


125

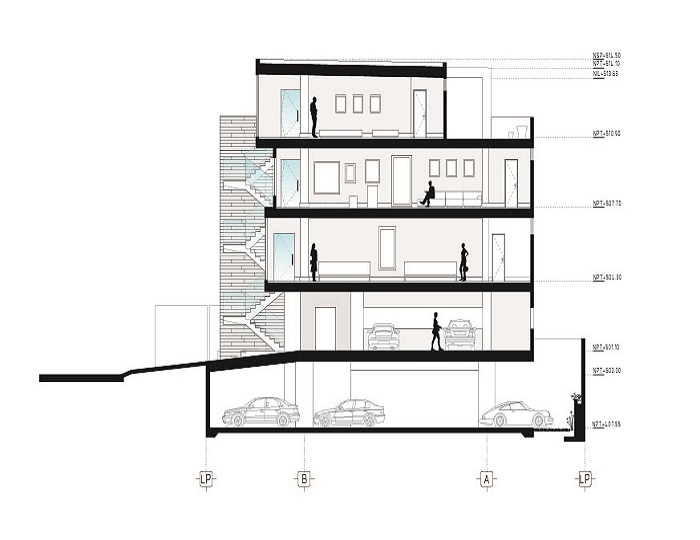

Section
125

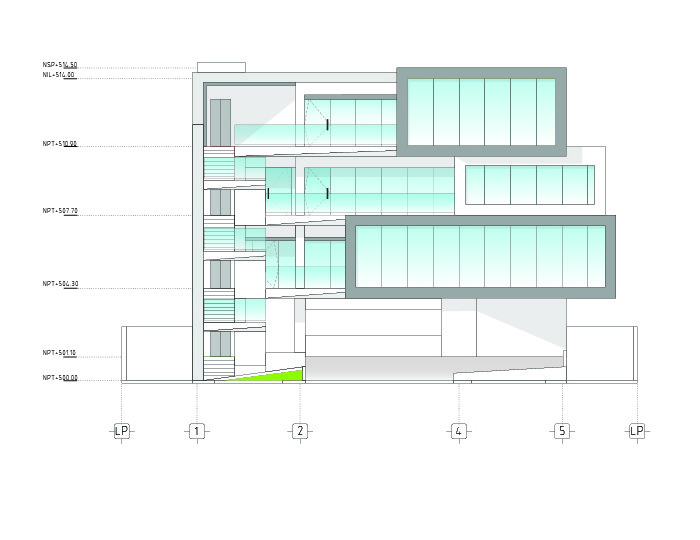

Main Facade
125
Isometric view
125

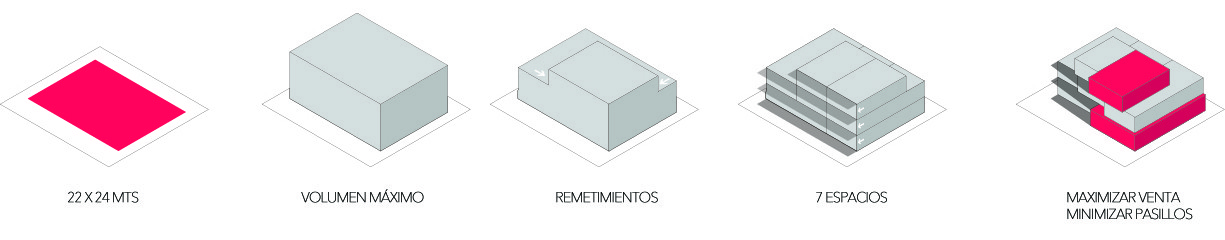

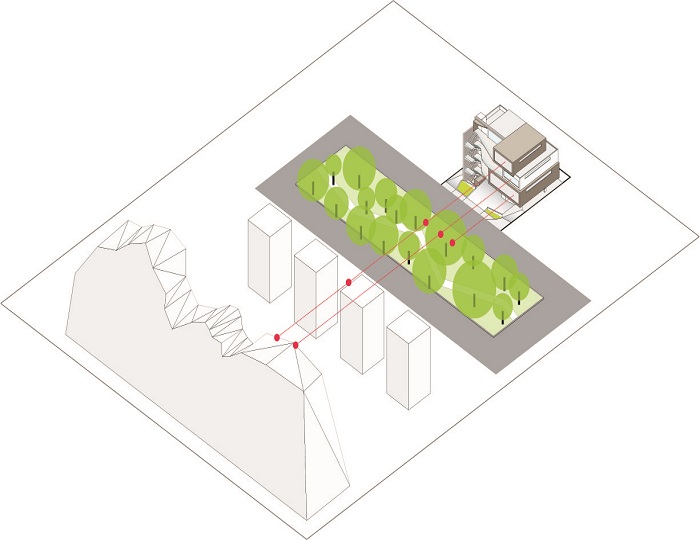

Scheme
