UCELLO

Nicolás Vázquez

Ucello
© Onnis Luque

ARCHITECTS
Nicolás Vázquez

AREA
619.0 m²

PHOTOGRAPHS
Onnis Luque

YEAR
2012

LOCATION
Mexico City, Mexico

CATEGORY
Apartments

Ucello
© Onnis Luque

Text description provided by architect.

The context where this building is located, is an area where the soil is raw material for making bricks, where a clay pit used to be.

We still find some traces of this industrial activity, as evidenced by the sunken park. Therefore, the material that defines the nature of the building is brick.

The project exhibits its "pieces" through different architectural solutions, multiple but logical, thus showing the naturalness of the instruments that compose the architecture and construction processes.

Ucello
© Onnis Luque
Ucello
© Onnis Luque

The building contains three maisonettes in a field of 9 meters wide by 18 meters deep, with a Capulín (a wild tree that gives small fruits) located right in the middle of the property.

The schema of these three small maisonettes (two in two levels) refer to spatial queries raised by Le Corbusier.

The project is a tectonic experimentation, which shows what is supported, private, public, and useful, all from Kahn´s logic.

Through the use of brick and its relation with the steel structure, a vigorous reference is made to the place and to some buildings in the area.

Ucello
© Onnis Luque
Ucello
© Onnis Luque

The contrasting relation between these two materials is established with the help of a concrete vault system, adapted from the front of the property division into nine equal parts (91.5 inches) and three bays of approximately five meters deep.

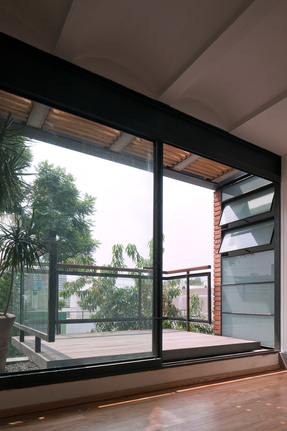

The glass in the windows tightens the abstract relationship between the windows and the brick, giving the building a contrasting balanced character.

The connection to the street is accomplished with a porch that is generated to solve the access to the parking lot located in a semi-basement. This gate is defined by a marquee / jardiniere that articulates and separates the rooms of the first apartment from the main entrance and into the street, giving privacy because it is just 1.80 meters above the sidewalk.

Ucello
© Onnis Luque
Ucello
© Onnis Luque
Ucello
© Onnis Luque
Ucello
© Onnis Luque

Ucello
Planta 00
Ucello
Planta 01
Ucello
Planta 03
Ucello
Planta 04
Ucello
Planta 05
Ucello
Corte Transversal


Ucello
Corte
